Overview

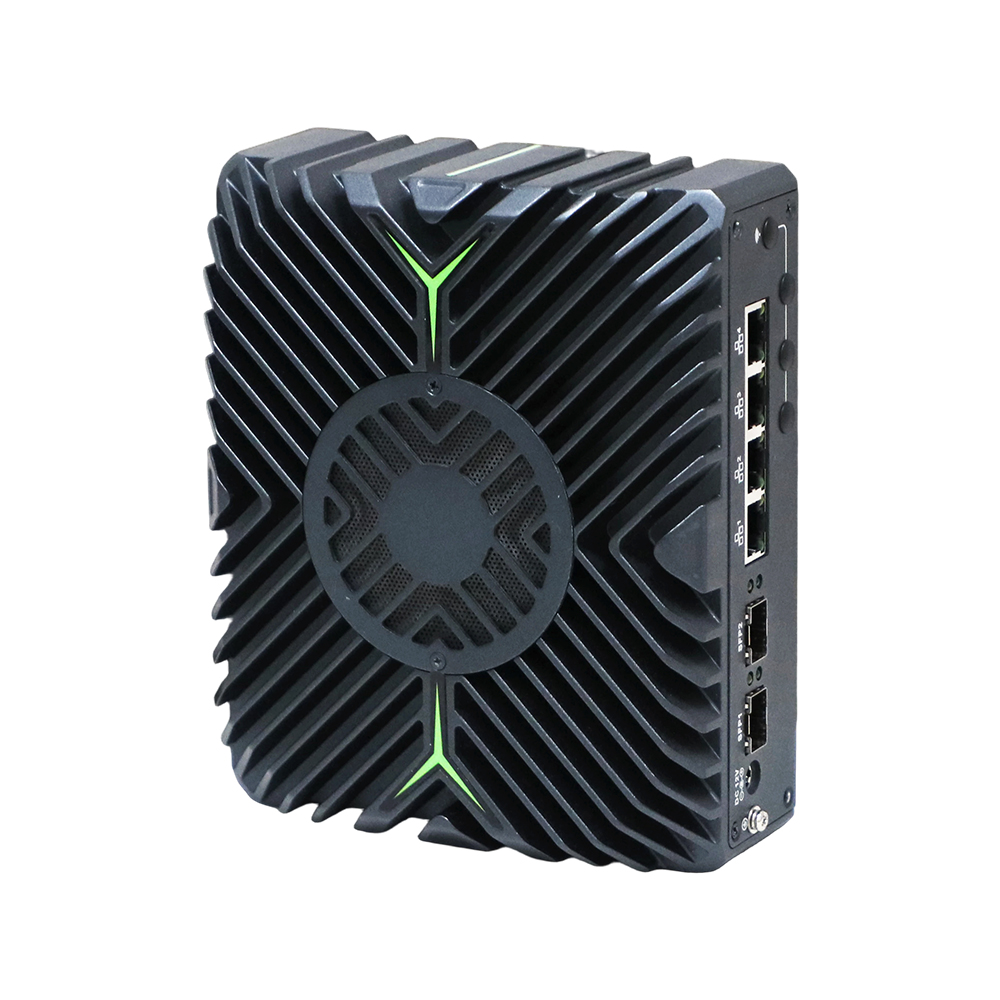

Engineered for silent, fanless operation, this compact industrial firewall router is powered by a 12th Gen Intel Core processor. It delivers robust networking with quad Intel i226 2.5GbE ports and dual 10GbE SFP+ fiber uplinks (Intel 82599). Designed for space-constrained deployments, it supports up to 64GB dual-channel DDR5 RAM, triple 4K displays, and three M.2 slots for simultaneous SSD, WiFi, and 4G/5G expansion, ensuring reliable performance and ultimate flexibility.
Specifications
| System Parameter | |
| Model | Partaker H6 |
| Processor | Intel Core i5 1235U (10 Cores 12 Threads, Turbo 4.4 GHz) |
| Intel Core i7 1255U (10 Cores 12 Threads, Turbo 4.7 GHz) | |
| Chipset | Intel Iris Xe Graphics |
| Memory | 2*DDR5 4800 MHz SODIMM memory slots, Max. 64 GB |
| BIOS | AMI UEFI BIOS |
| Display Port | 1*HD, 1*DP, 1*Type-C, Resolution up to 4096×2160@60Hz |
| Storage | 1*M.2 2280 slot, 1*2.5-inch HDD/SSD |
| Expansion | 1*M.2 2280 M-Key slot (Only NVMe , PCIe 4.0 x4) |
| 1*M.2 2230 E-key slot (PCIe & USB / CNVio2) | |
| 1*M.2 2242/3052 B-key slot (USB 3.0, 4G/5G), external SIM card slot | |
| Expandable interface (not included in standard shipping): 4 GPIO channels,2*USB2.0 | |

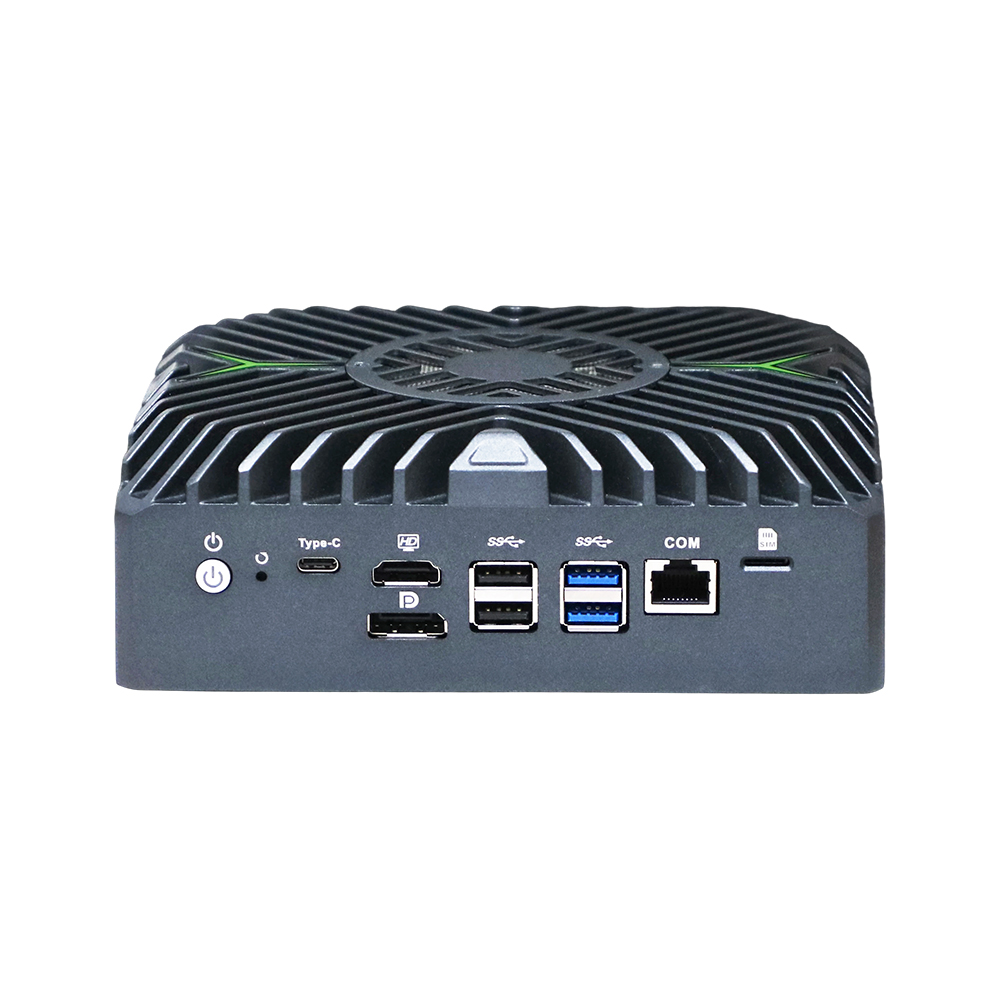

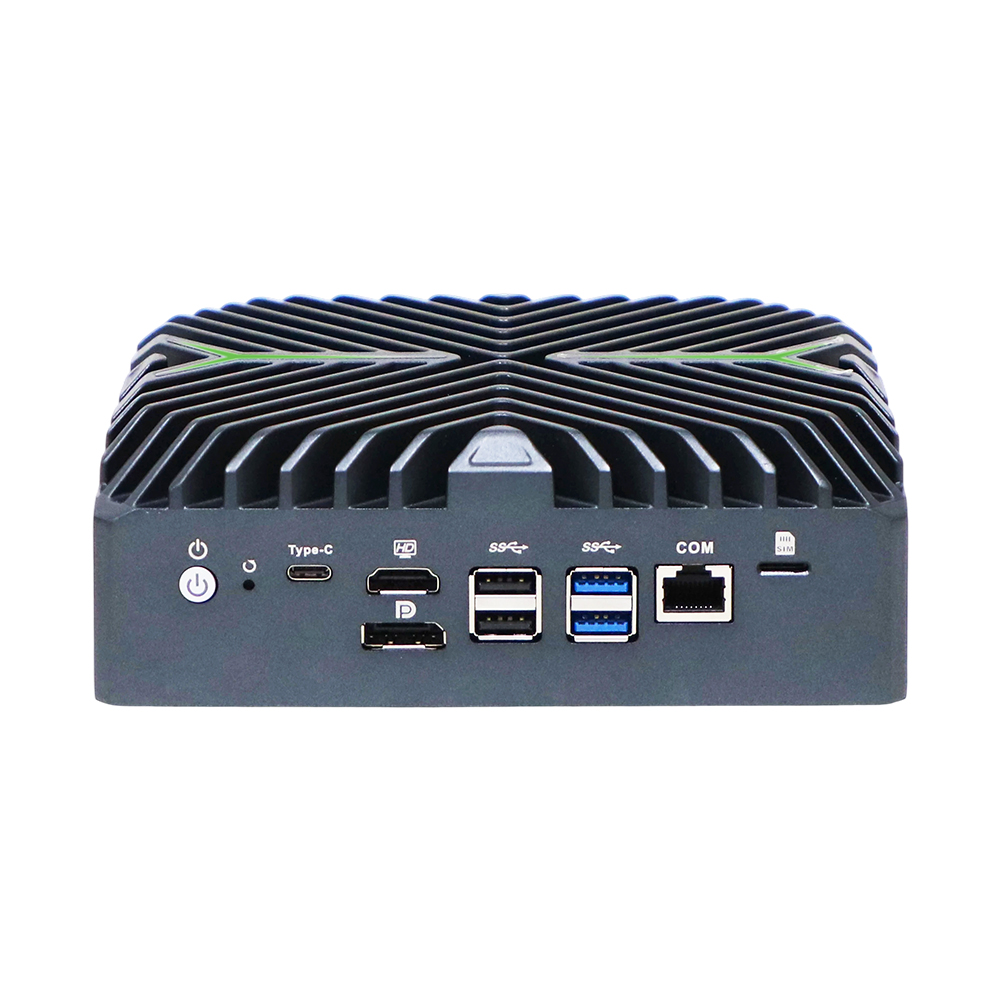

| Front I/O | 1*Power Button, 1*restart / BIOS reset button,1*Type-C (video output/USB 3.2/PD 5V1A), 1*DP |
| 1*HD , 2*USB2.0, 2*USB3.2 , 1*RJ45 COM (support Console ), 1*Nano-SIM card | |

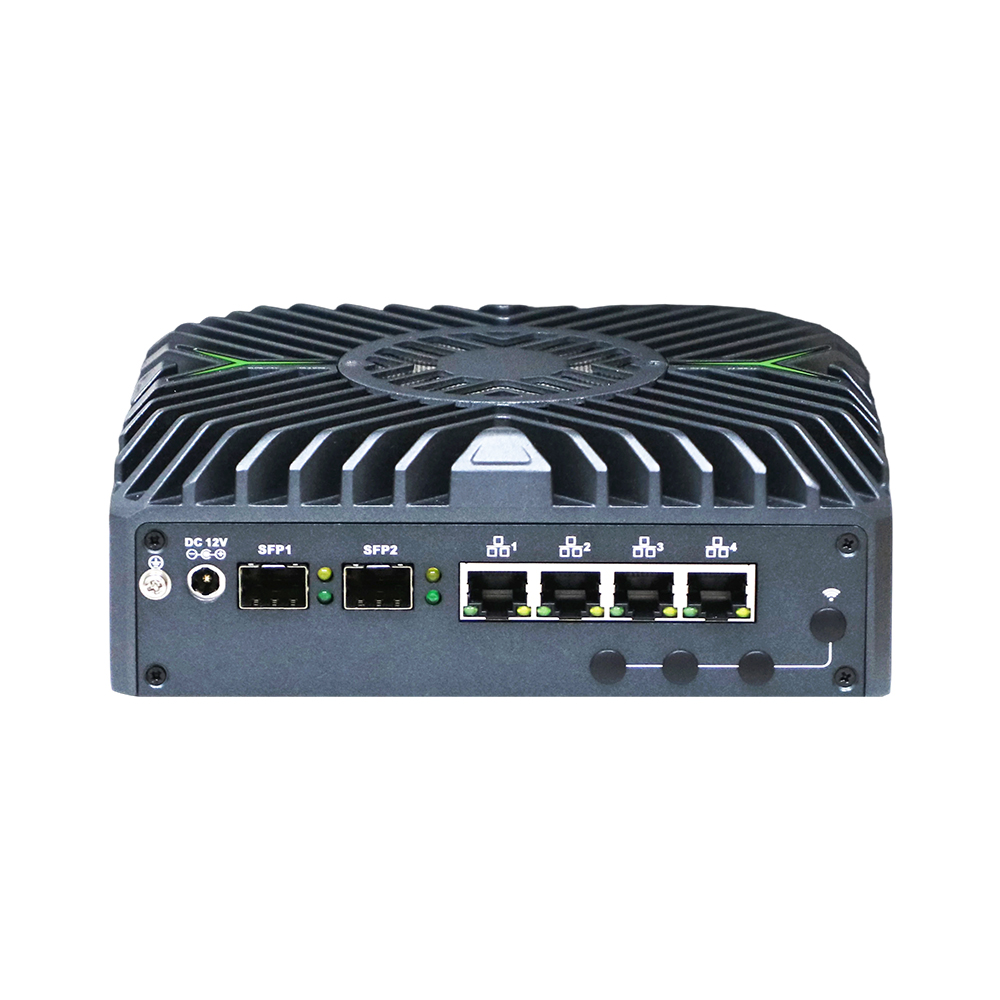

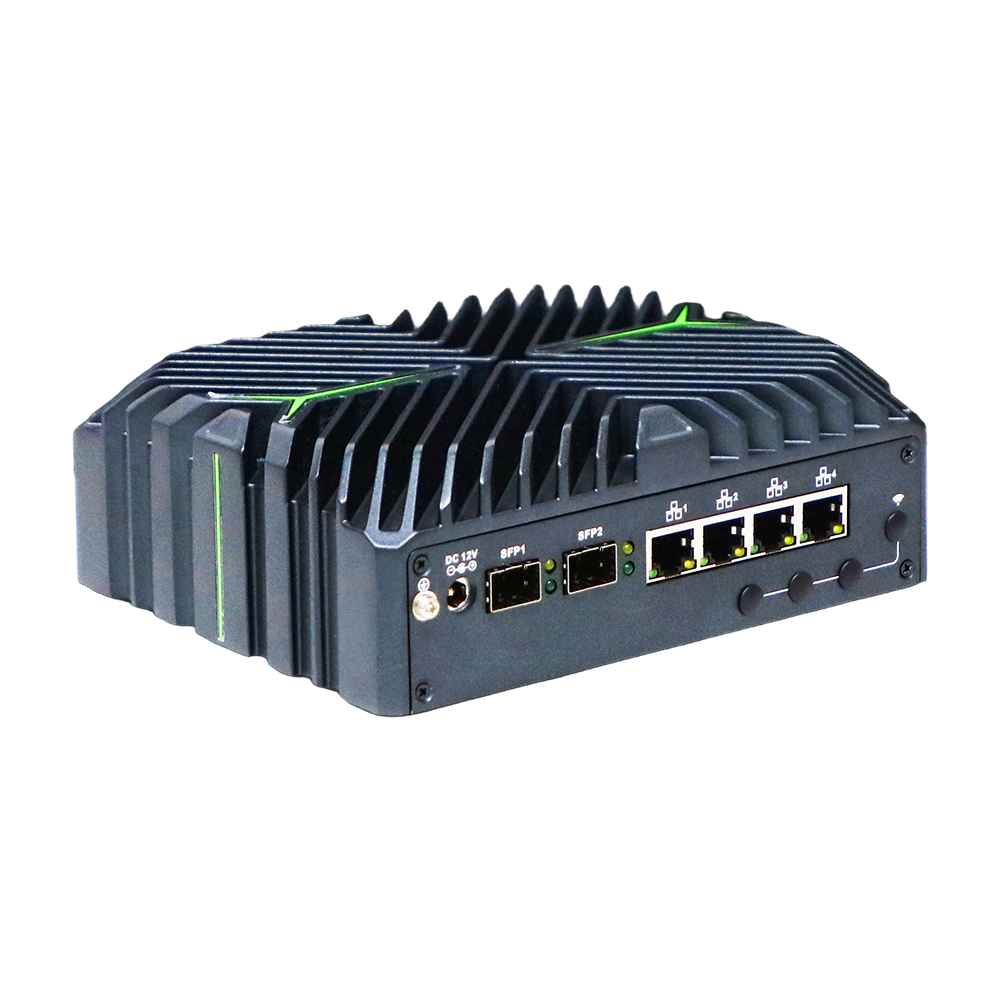

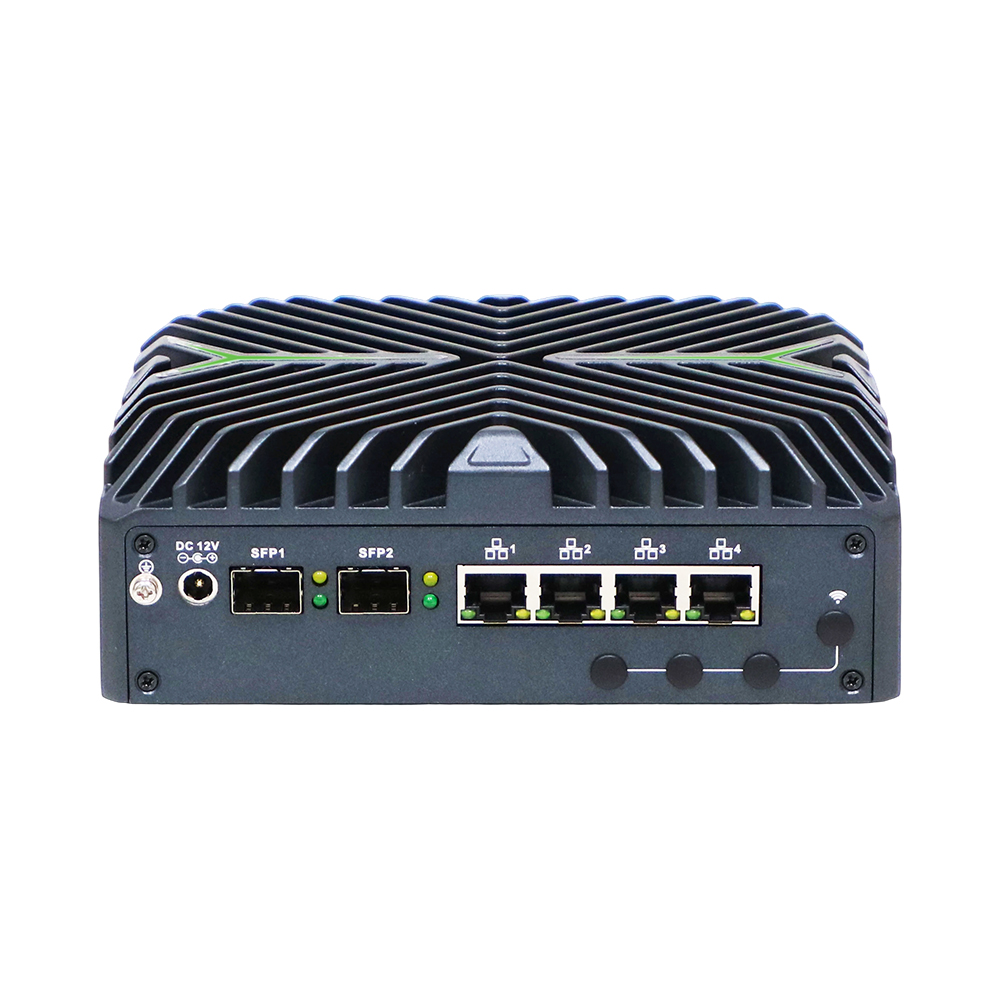

| Rear I/O | 1*DC-12V, 2*Intel 10 GbE SFP+, 4*Intel 2.5G Lan |
| Network | 4* Intel i226 2.5Gbe Lan, LAN1 i226-LM support Intel vPro(Lan1) 2*10 GbE SFP+ ports (Intel 82599) |
| Input Voltage | DC 12V |
| Certificates | CE,CCC,FCC Class A,ROHS |
| Other Function | Power-on, timed power-on, PXE boot, network wake-up, watchdog (0-255 levels), TPM2.0 security encryption |
| Application | Industrial control, Industrial automation, robotics, iot, edge computing, machine vision, AGV/AMR, |
| Structure Parameter | |
| Color | Metal gray 【Any color can be customized】 |
| Material | High-quality all aluminum，surface anodic oxidation |
| Dimension | 170 * 140 * 58 mm |
| Weight | 1.33 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
