H11 Mini PC N100 with Intel Alder Lake-N CPU

  • Compact Aluminum Build, Sleek Black Design
  • Intel N100 CPU, 4 Cores, UP to 3.4GHz
  • Versatile HDMI/DP Display Options
  • Intel I226 Gigabit LAN, Diskless Boot Support
  • DDR5 4800MHz Memory Slot, up to 16GB
  • M.2(NVME) and SATA3.0 Storage Support
  • AMI EFI BIOS, Compatible with Various OS
  • Fanless Design Ensures Silent Operation
  • Wide Operating/Storage Temperature Range

Share to:



The H11 Mini PC boasts a robust aluminum build, compact dimensions, and a versatile setup. Featuring an Intel N100 processor, Intel UHD Graphics, and 4 Intel i226 Gigabit LAN ports, it supports diskless boot and wake on LAN functionalities. Equipped with DDR5 memory, M.2 NVME & SATA storage, plus USB 3G/4G support. This fanless system supports various OS like Windows, Linux, pfSense, and OPNsense. With a rich port array, compact design, and wide compatibility, it offers reliable and flexible computing solutions.




Material Aluminum alloy
Colour Black

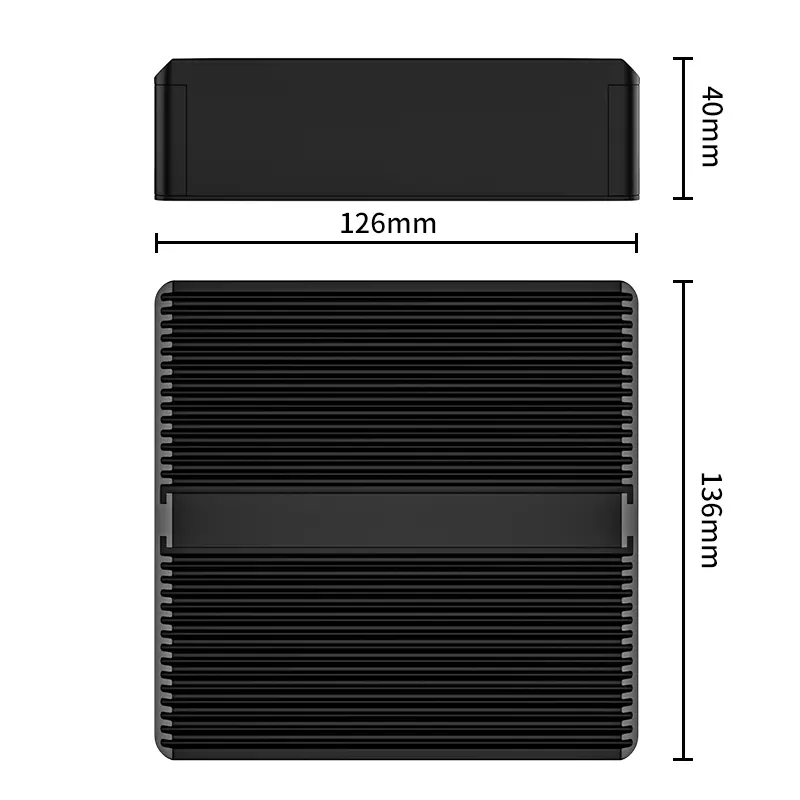

Size 136x 126 x 40mm
Weight 1.5Kgs
Insallation Method Desktop type/Vesa
CPU Intel Processor N100, 4 Core 4 threads, up to 3.40GHz, 6MB Cache
Display Ports 1 x HDMI, 1 x DP, Support synchronous or asynchronous display
Color Black
Graphic Intel UHD Graphics
Network Card 4 x Intel i226 Gigabit LAN, support diskless boot, wake on LAN
Expand 1 full-length MINI-PCI-e (support USB signal 3G/4G communication module)
Memory 1 x DDR5 4800MHz notebook memory slot, up to 16GB, SODIMM
Storage 1 x M.2(NVME protocol), 1xSATA3.0
Other Function Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog

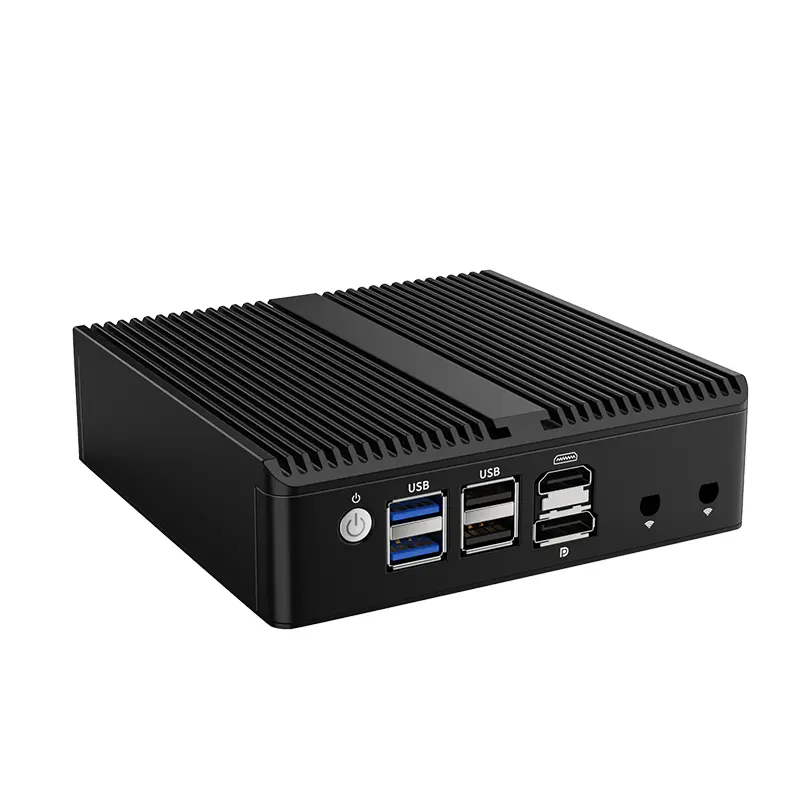

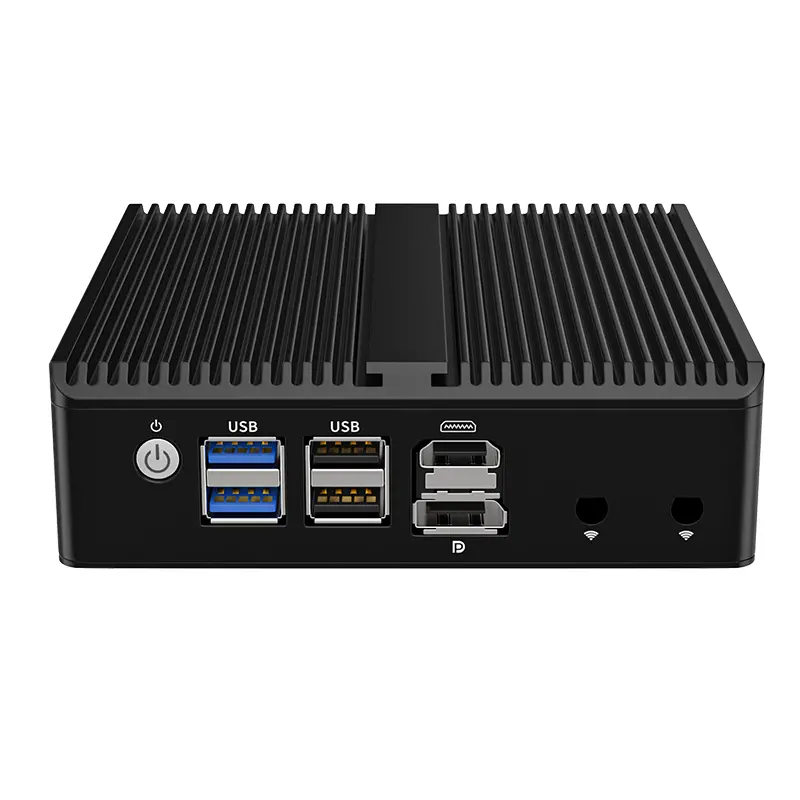

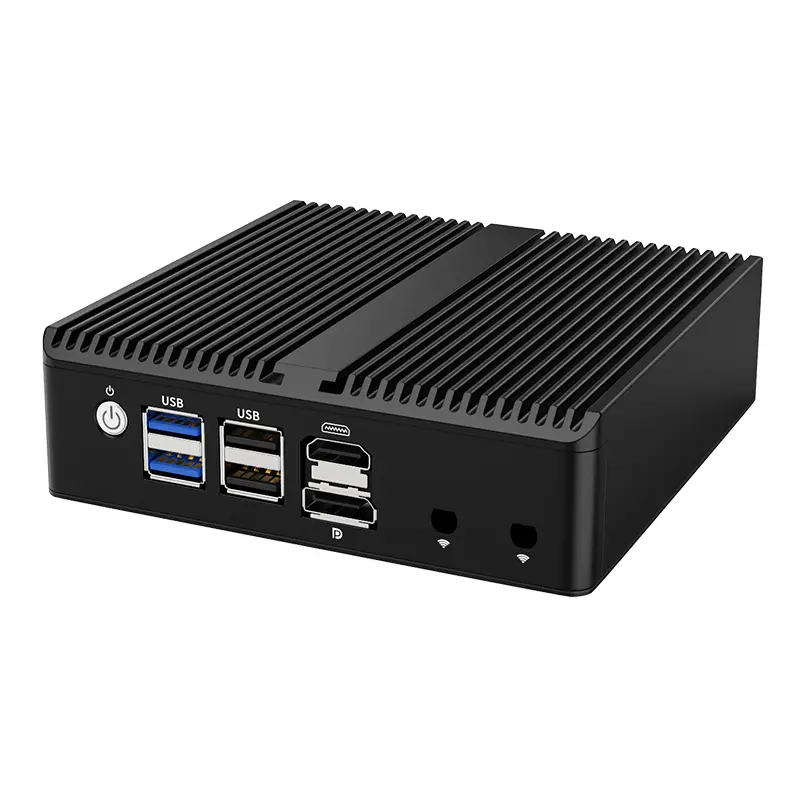

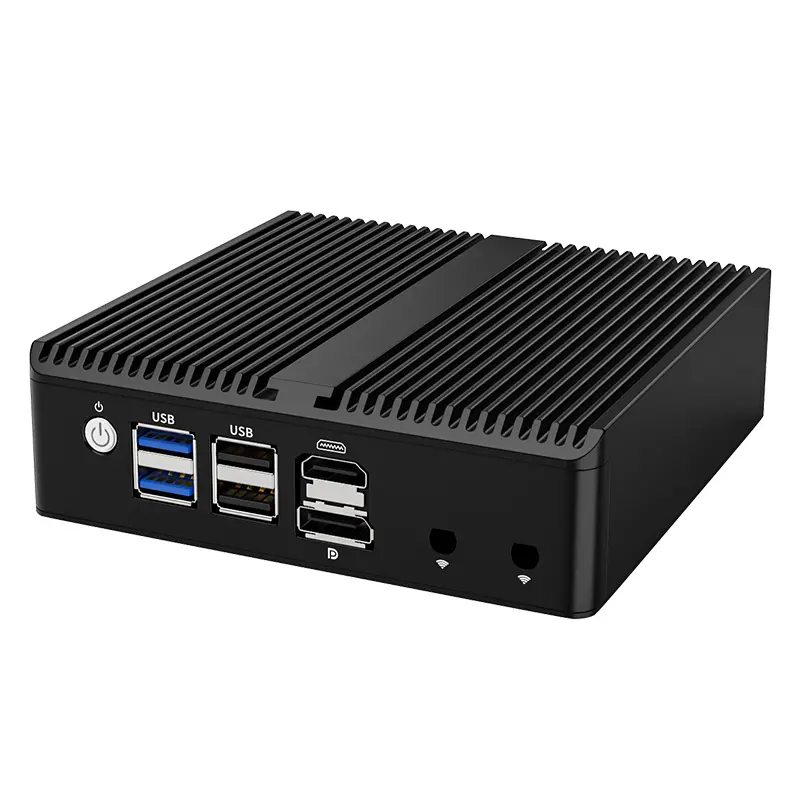

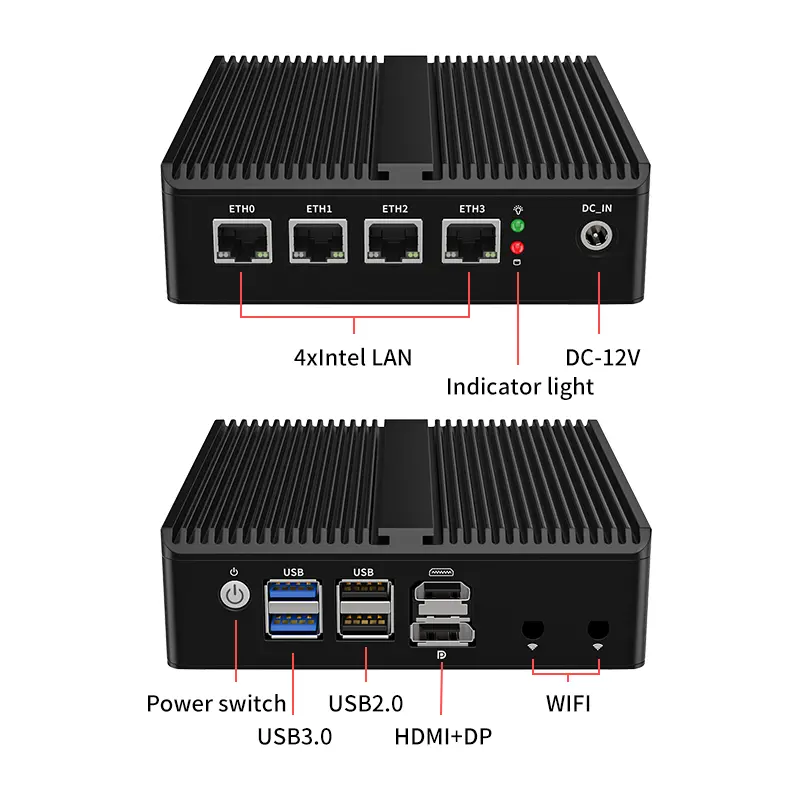

Front Panel 2 x USB3.0
2 x USB2.0
1 x Power SW
2 x WiFi Holes
1 x DP
1 x HDMI

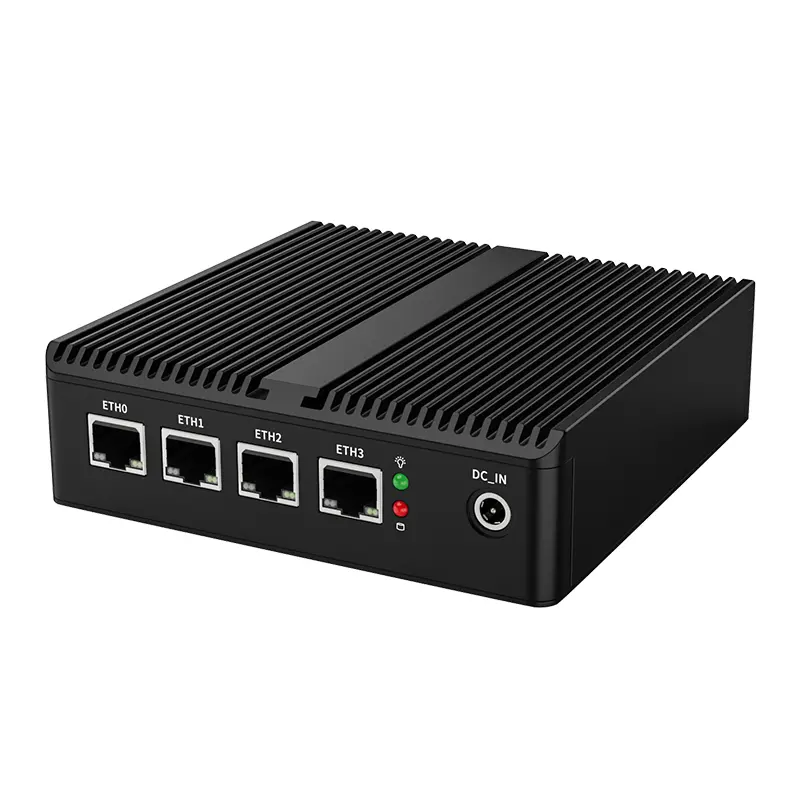

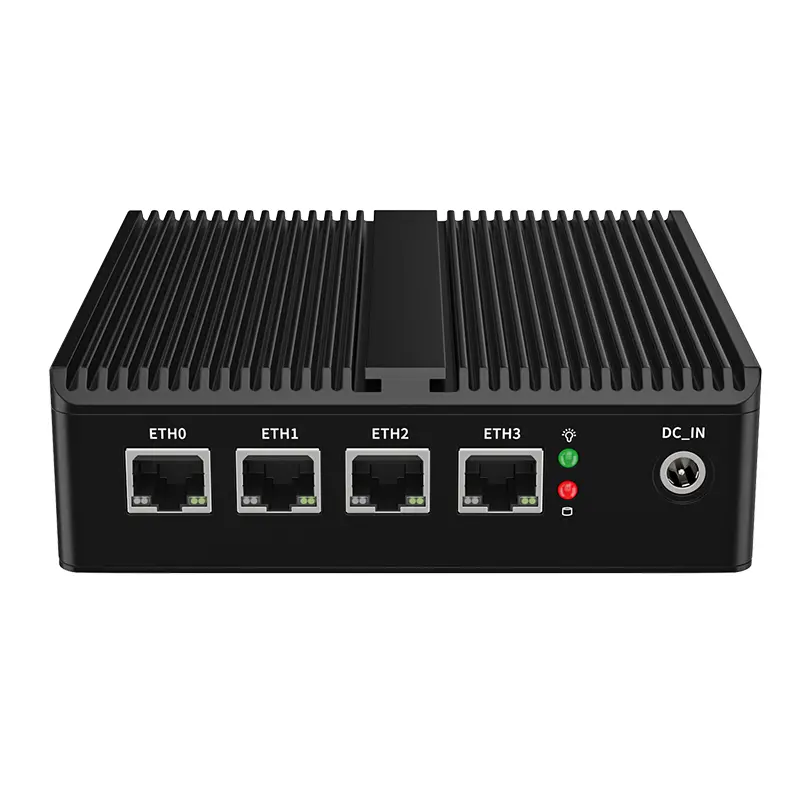

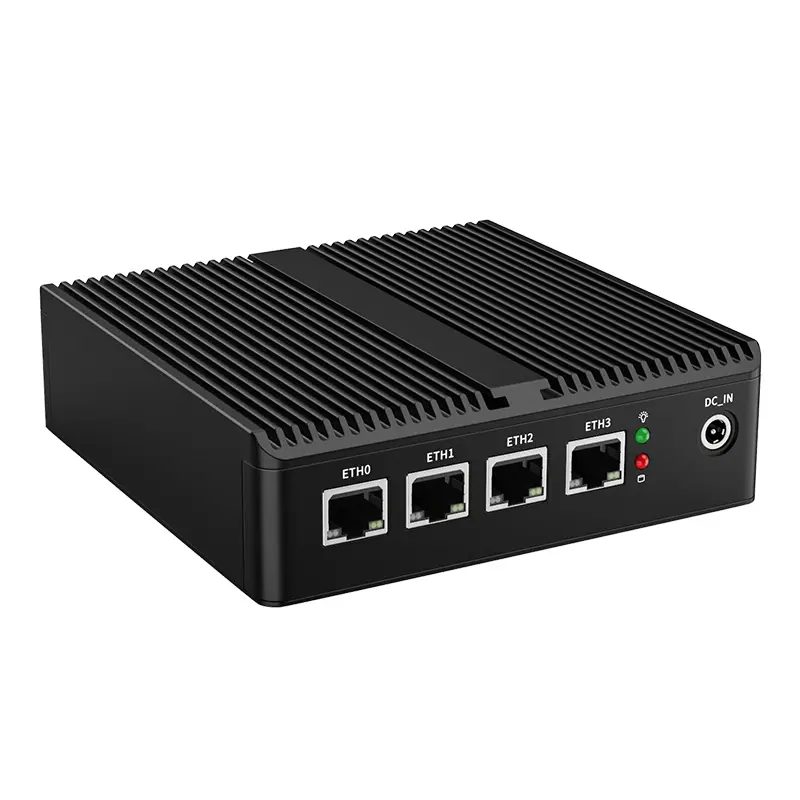

Rear Panel 4 x LAN
2 x indicator light
1 x DC-IN
1 x Type-C
System Support Windows, Linux Ubuntu, pfSense, OPNsense etc
Cooling Mode Fanless
Power Supply DC12V-4A 5.5*2.5
Packing List H11 mini pc, power supply, power cord, warranty card
Operating Temperature 0C~70C Centigrade (32 F~140 F)
Storage Temperature -20C~80C Centigrade (-68F~176F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS


Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H11 N100 Intel UHD Graphics 3.40 GHz 1 x DP/1 x HDMI 1 x SO-DIMM DDR5 1 x M.2 NVMe SSD/1 x 2.5 inch SATA 4 4 12V4A
