Partaker H11 – Ultra-Compact 8-Port 2.5G Firewall Mini PC for AI & Edge Security
Powered by the latest 14th Gen Intel Core Ultra processor (up to 12 cores, 4.8GHz) with integrated NPU for AI acceleration, the Partaker H11 delivers exceptional performance in an ultra-compact form factor. Designed for demanding networking and edge computing tasks, it features 8× Intel i226-V/LM 2.5GbE ports (including 1× vPro), triple 4K display support, and flexible storage options (M.2 NVMe + 2.5″ HDD/SSD).
Built for industrial reliability, the H11 offers fanless or fan-cooled configurations, operates in extreme temperatures (-20°C to +50°C), and includes TPM 2.0 hardware security. Weighing just 1.36kg, it’s ideal for space-constrained deployments in firewall, VPN, SD-WAN, AI inference, and secure edge gateway applications.
Powered by the latest 14th Gen Intel Core Ultra processor (up to 12 cores, 4.8GHz) with integrated NPU for AI acceleration, the Partaker H11 delivers exceptional performance in an ultra-compact form factor. Designed for demanding networking and edge computing tasks, it features 8× Intel i226-V/LM 2.5GbE ports (including 1× vPro), triple 4K display support, and flexible storage options (M.2 NVMe + 2.5″ HDD/SSD).
Built for industrial reliability, the H11 offers fanless or fan-cooled configurations, operates in extreme temperatures (-20°C to +50°C), and includes TPM 2.0 hardware security. Weighing just 1.36kg, it’s ideal for space-constrained deployments in firewall, VPN, SD-WAN, AI inference, and secure edge gateway applications.
Specifications
| Model | Partaker H11 |
| Color | Metal gray (color can be customized freely) |
| Material | Aviation grade aluminum alloy |
| Processor | Onboard Intel Core Ultra 5 125U (12 core 14 threads, Max Turbo 4.3 GHz, 15W ) |
| Onboard Intel Core Ultra 7 155U (12 core 14 threads, Max Turbo 4.8 GHz , 15W) | |
| NPU | Intel AI Boost (Max Frequency 1.4GHz |
| RAM | 2*DDR5 5600 SODIMM memory slot, Max 64 GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel® Graphics |
| Display Port | 1 HDMI,1 DP, 1 Type-C, Resolution up to 4096×2160 @ 60Hz |

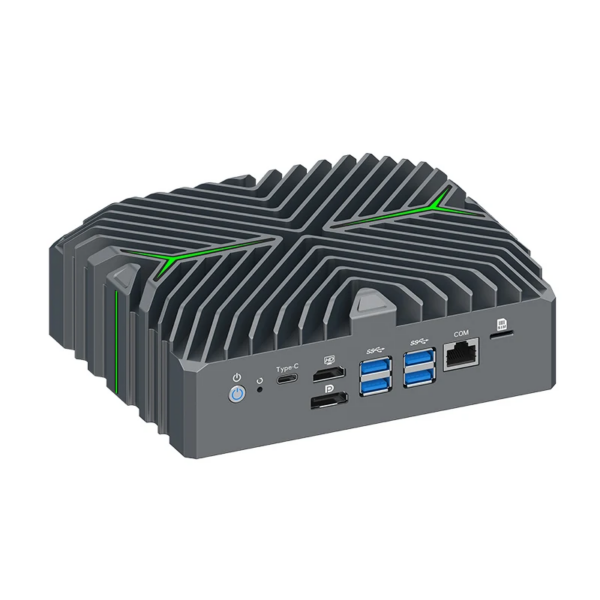

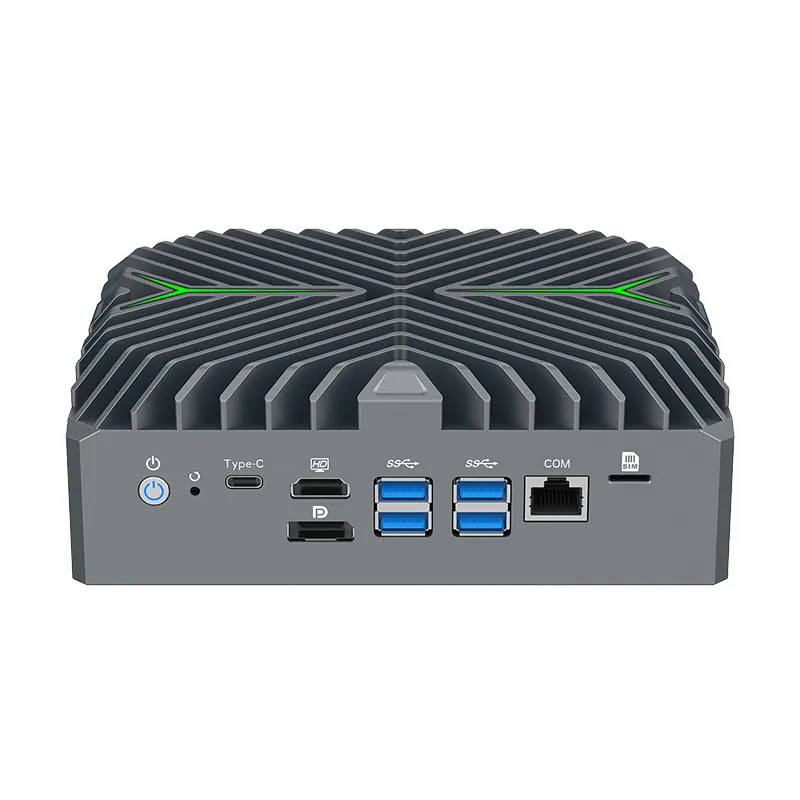

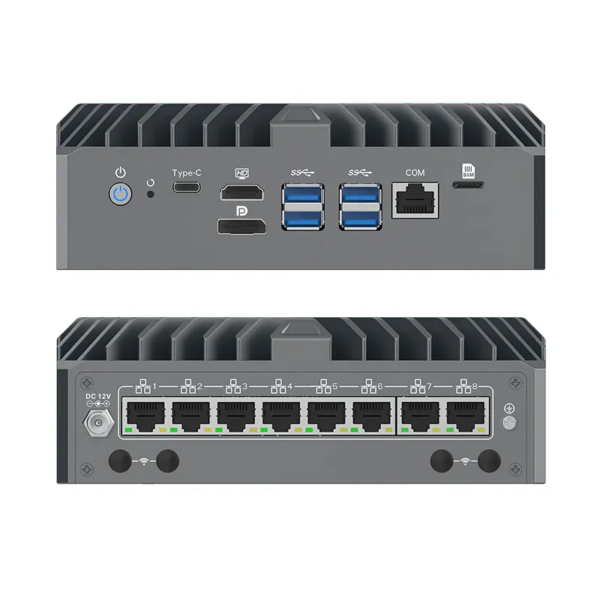

| Front I/O | 1 Power Button,1 Reset,1 Type-C (support DP/USB 3.2/PD 5V1A), |
| 1 HD-M-I, 1 DP, 4 USB 3.2, 1 RJ45 COM (suppor Console),1 SIM Card Slot | |

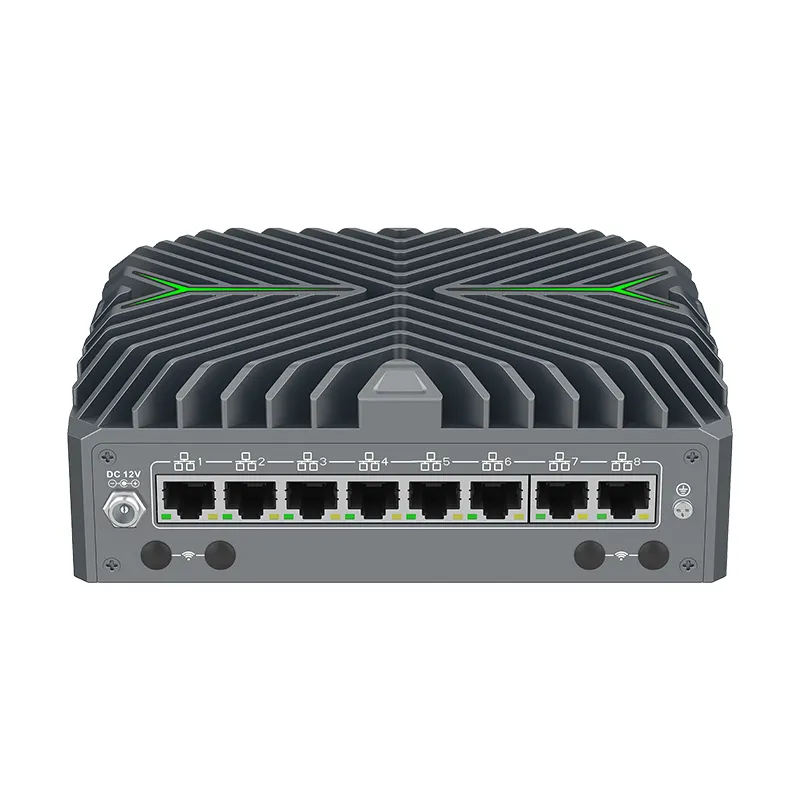

| Rear I/O | 1 DC , 8 Intel 2.5G Lan (1 Intel i226-LM support vPro, 7 Intel i226-V) |
| Expansion Slot | Support 1*M.2 2280 M-Key slot (NVME protocol, PCIE4.0 x4) |
| Support 1*M.2 2230 E-key slot (PCIe&USB /CNVio2 ) | |
| Support 1*M.2 3052 (2242) B-key slot (USB 3.0 signal, supports 4G/5G), external SIM card slot | |
| Expandable interface (not included in standard shipment)： 2 USB 2.0, 4*Pin GPIO | |
| Network | 7*Intel i226-V 100/1000/2500M Ethernet |
| 1*Intel i226-LM 100/1000/2500M Ethernet, support Intel vPro (LAN1) | |
| Storage | Support1*M.2 2280 slot , 1*2.5-inch HDD/SSD |
| Input Voltage | DC 12V input |
| Other Function | Power On, Timed Power On, Network Wake-Up, PXE, Watchdog (0-255 Levels), TPM 2.0 Secure Encryption |
| Work Temp | 0 ℃ – +40 ℃ (commercial HDD), -20 ℃ – +50 ℃ (industrial SSD), surface air flow |
| Work Humidity | 5% – 95% non condensing state |
| Certificates | CE、 CCC、 FCC Class A、 RoHS |
| Dimension | 170 * 140 * 58 mm |
| Net Weight | 1.36 kg |
| Application | Firewall, VPN, Network Server, Network Security, Router, and etc. |
