H7-A Micro Firewall 4G Router with Intel Pentium i3 i5 i7

  • Robust 12th/11th Gen Intel CPUs With High-Speed Performance
  • Versatile Network Support—4 x Intel 2.5G Adaptive LAN
  • Extensive Memory—up to 64GB DDR4 3200 MHz
  • Dual Storage Options—M.2 NVMe and 2.5-inch HDD
  • Feature-rich—AES-NI, ESXI, PVE, Wake-on-LAN, etc
  • Expandable with MINI PCIE for WiFi/Bluetooth/4G
  • Advanced Cooling System—Smart Fan for Efficient Heat Control

Share to:

Overview



The H7-A Mini PC boasts a range of powerful 12th and 11th-gen Intel processors. Its smart fan cooling system, adaptable network interfaces, and extensive memory support ensure versatility for Windows, Linux, and specialized applications. Equipped with various ports and smart BIOS features, this device ensures reliability in varied operating conditions and is an excellent fit for diverse usage scenarios.



Specifications



MaterialAluminum alloy
ColourDark Gray

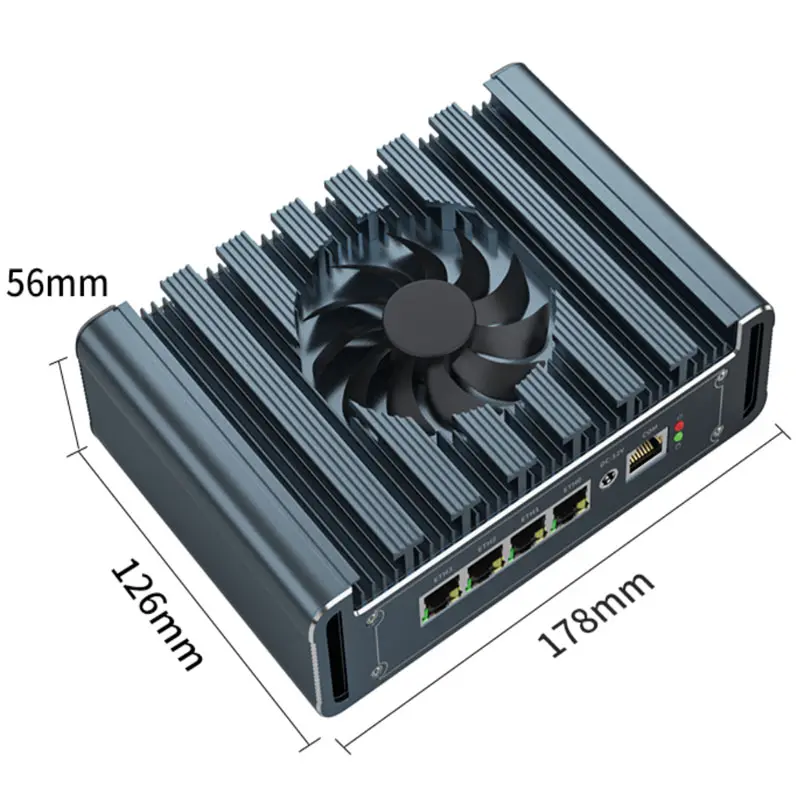

Size178x122x55(mm)
Weight2.5Kgs
Insallation MethodDesktop type
Vesa mounted installtion
CPU12th Pentium Gold 8505, 5 core 6 threads, Up to 4.4GHz
12th Intel Core i3-1215U, 6 core 8 threads, Up to 4.4GHz
12th Intel Core i5-1235U, 10 core 12 threads, Up to 4.4GHz
12th Intel Core i7-1265U, 10 core 12 threads, Up to 4.8GHz
11th Intel Core i3-1115G4, 2 core 4 threads, Up to 4.1GHz
11th Intel Core i5-1145G7, 4 core 8 threads, Upt to 4.4GHz
11th Intel Core i7-1165G7,4 core 8 threads, Up to 4.7GHz
Intel Pentium Gold 7505, 2 core 4 threads, Up to 3.5GHz
Intel Celeron Processor N5105, 4 core 4 threads, Up to 2.9GHz
Intel Celeron Processor N5100, 4 core 4 threads, Up to 2.8GHz
Network Card4 x Intel I225/I226 2.5G adaptive network card interface
Memory2 x DDR4 3200 MHz SODIMM memory slots, up to 64GB
Storage1 x M.2 2280 nvme, 1 x 2.5-inch hard drive
GraphicIntel HD Graphiacs
FunctionSupport AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc
Display1 x HDMI, 1 x DP
ExpandSupport 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)

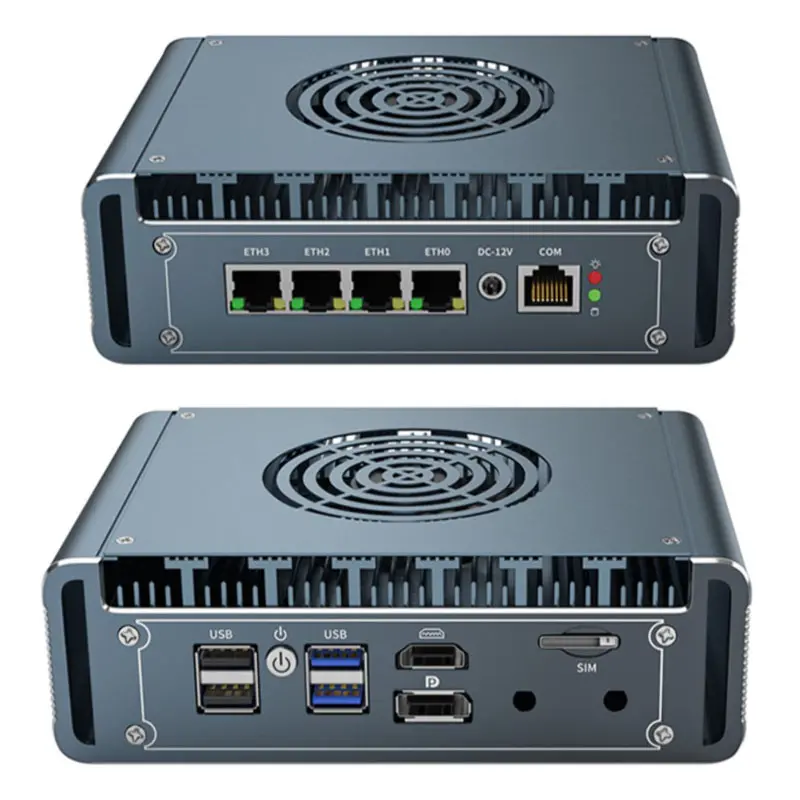

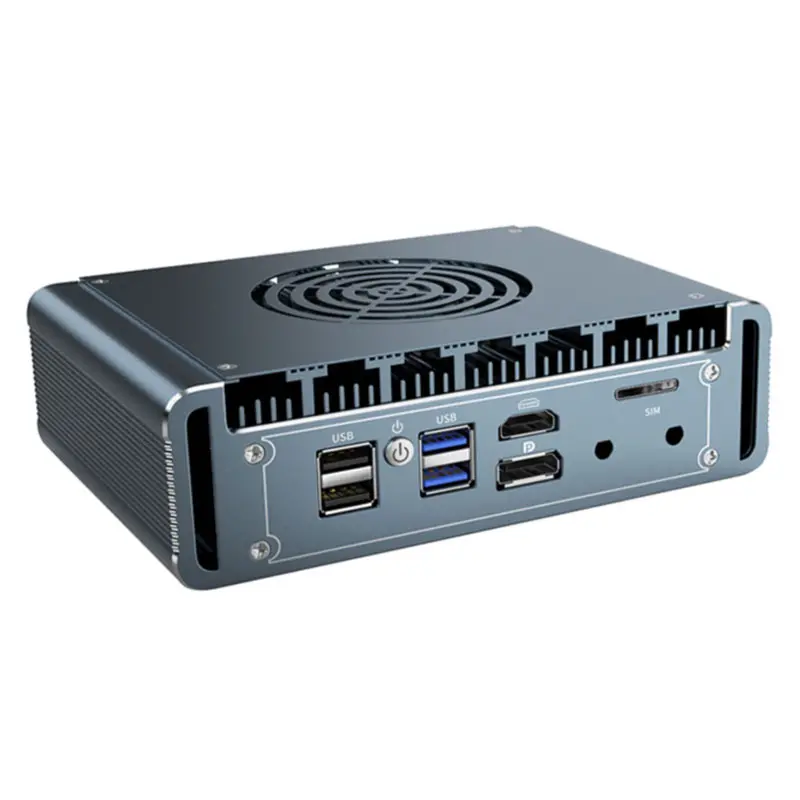

Front Panel1 x Power Switch
4 x USB3.0
1 x HDMI
1 x DP
1 x SIM Card Slot
2 x WiFi Holes

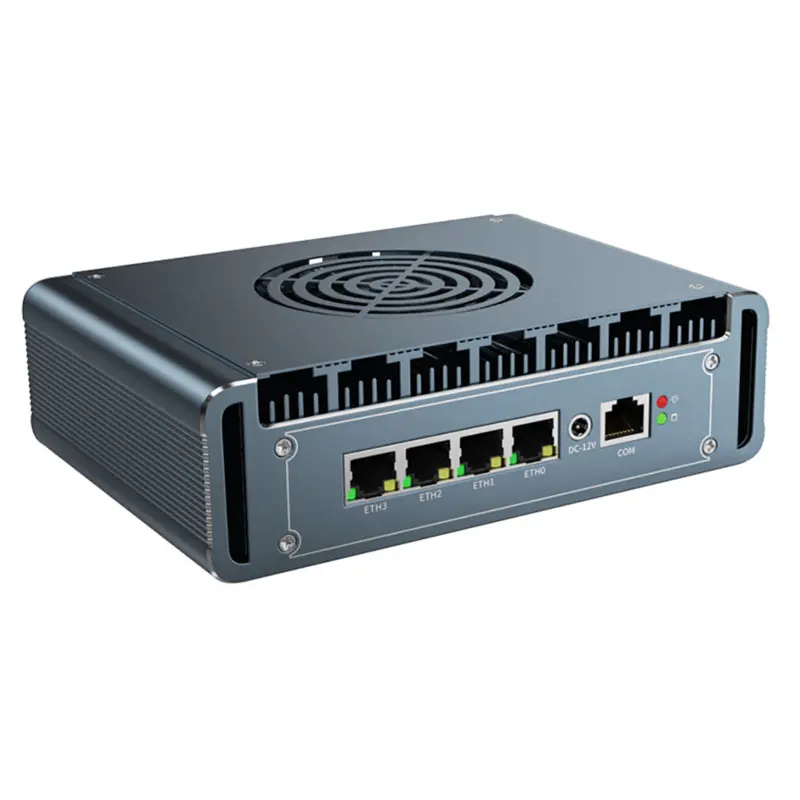

Rear Panel4 x Intel LAN
1 x DC-12V
1 x COM
1 x Power indicator
1 x Hard disk indicator
BiosAMI EFI BIOS
System SupportWindows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc
Cooling ModeSmart Fan
Power SupplyDC12V-10A 5.5*2.5
Packing ListH7-A mini pc, power supply, power cord, vesa bracket, warranty card
Operating Temperature0°C~70°C Centigrade (32°F~140°F)
Storage Temperature-20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity10%~90% (non-condensing)
CertificationCE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

ModelProcessorGraphicsFrequencyDisplayMemoryStorageLANUSBPower
H7-AN5105Intel UHD Graphics2.0~2.9 GHzDP/HDMI2 x SO-DIMM DDR4, Max 32G1 x M.2 NVMe 2280/2.5 inch SATA3.04 x i226412V/4A
H7-AN5100Intel UHD Graphics1.1~2.8 GHzDP/HDMI2 x SO-DIMM DDR4, Max 32G1 x M.2 NVMe 2280/2.5 inch SATA3.04 x i226/225412V/4A
H7-APentium Gold 7505Intel UHD Graphics2.0~3.5 GHzDP/HDMI2 x SO-DIMM DDR4, Max 64G1 x M.2 NVMe 2280/2.5 inch SATA3.04 x i226412V/7A
H7-AI3 1115G4Intel UHD Graphics1.7~4.1 GHzDP/HDMI2 x SO-DIMM DDR4, Max 64G1 x M.2 NVMe 2280/2.5 inch SATA3.04 x i226412V/7A
H7-AI5 1135G7Intel Iris Xe Graphics2.4~4.2 GHzDP/HDMI2 x SO-DIMM DDR4, Max 64G1 x M.2 NVMe 2280/2.5 inch SATA3.04 x i226412V/7A
H7-AI7 1165G7Intel Iris Xe Graphics2.8~4.7 GHzDP/HDMI2 x SO-DIMM DDR4, Max 64G1 x M.2 NVMe 2280/2.5 inch SATA3.04 x i226412V/7A
H7-APentium Gold 8505Intel UHD Graphics3.3~4.4GHzDP/HDMI2 x SO-DIMM DDR4, Max 64G1 x M.2 NVMe 2280/2.5 inch SATA3.04 x i226412V/10A
H7-AI3 1215UIntel UHD Graphics3.3~4.4GHzDP/HDMI2 x SO-DIMM DDR4, Max 64G1 x M.2 NVMe 2280/2.5 inch SATA3.04 x i226412V/10A
H7-AI5 1245UIntel Iris Xe Graphics3.3~4.4GHzDP/HDMI2 x SO-DIMM DDR4, Max 64G1 x M.2 NVMe 2280/2.5 inch SATA3.04 x i226412V/10A
H7-AI7 1265UIntel Iris Xe Graphics3.6~4.8GHzDP/HDMI2 x SO-DIMM DDR4, Max 64G1 x M.2 NVMe 2280/2.5 inch SATA3.04 x i226412V/10A



Intel i226-V is a new network card, pfSense-CE etc system suppliers maybe have not released compatible driver to match yet, suggest to install newest version of following systems: pfSense Plus, OPNsense 22.x,OpenWrt, ESXi, Proxmox, PVE, CentOS etc
