Overview
“The All-Aluminum Intel-powered Mini PC offers robust processing with i3/i5/i7 processors, multiple connectivity options with 3x 2.5G LAN, expandable memory up to 32GB, and versatile storage configurations. Featuring active cooling, it suits diverse applications like industrial automation, medical, and logistics.”
Specifications
Material | High-quality all aluminum, surface hard anodized |
Colour | Black (color can be customized) |
Size | 230 x 152 x 68mm |
Weight | 2.5Kgs |
Insallation Method | With mounting ears, Wall-mounted, embedded, desktop |
CPU | Intel Core i3 1115G4(Dual core 4 threads,3.0 GHz,Turbo 4.1GHz) |
Intel Core i5 1135G7(Quad core 8 threads,2.4 GHz,Turbo 4.2 GHz,8MB cache) | |
Intel Core i7 1165G7(Quad core 8 threads,2.8 GHz,Turbo 4.7 GHz,12MB cache) | |
Display Ports | 1 x HD FHD Display port,1 x DP (Support synchronous and asynchronous dual display) |
Graphic | Intel HD Graphics /Intel Iris(R)Xe Graphics |
Network Card | 3 x Intel i225-V 2.5G Lan |
Memory | 1 x DDR4 3200MHz SODIMM memory slot,Max. 32GB |
Storage | Support 1 x M.2 slot(support NVME), 1 x 2.5 inch HDD |
Expansion | 1 x M.2 M-Key 2280 slot(support NVME) |
1 x MINI PCIE slot(support WIFI/BT) | |
M.2 B-key slot 3042/3052(support 4G), with SIM card slot | |
Can be expand(The standard is without it): 2 x USB2.0 | |
Other Function | Auto Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption |

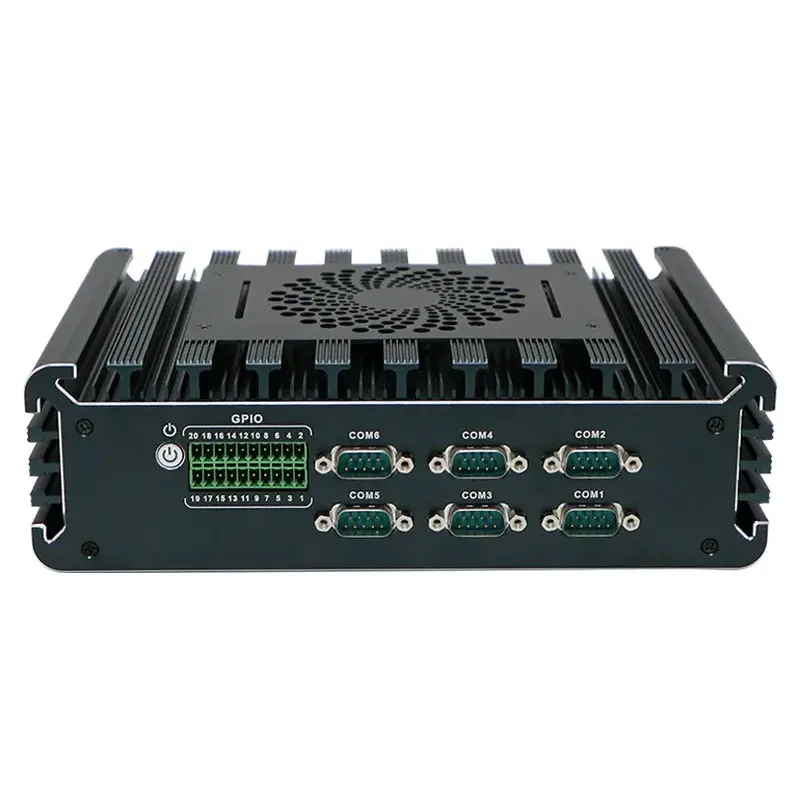

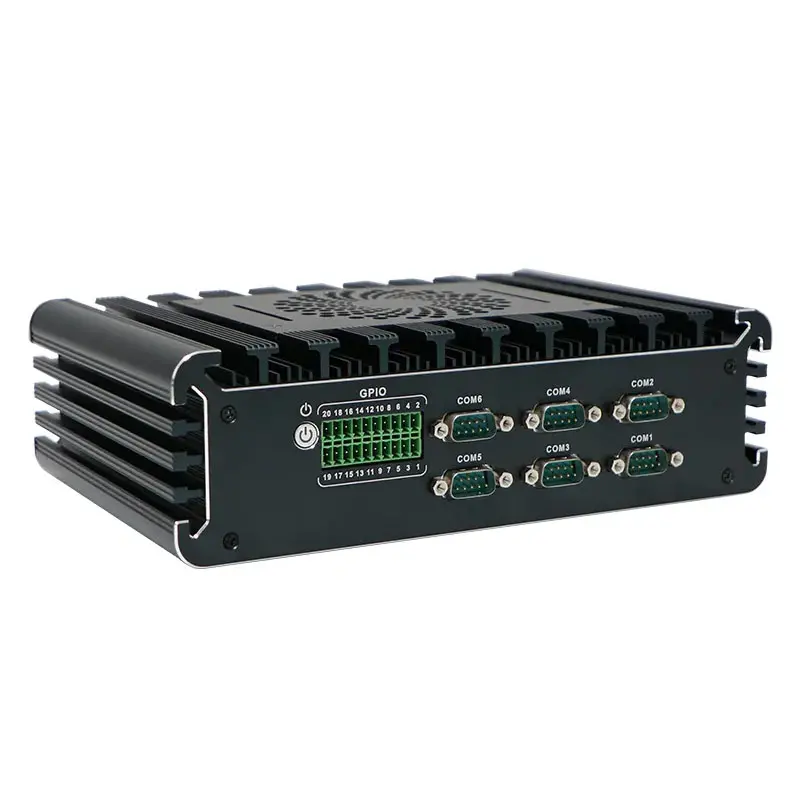

Front Panel | 1 x Power button |
1 x 16 pins GPIO Phoenix terminal | |
6 x COM ports(COM1&COM2 can be option RS232/RS485) | |

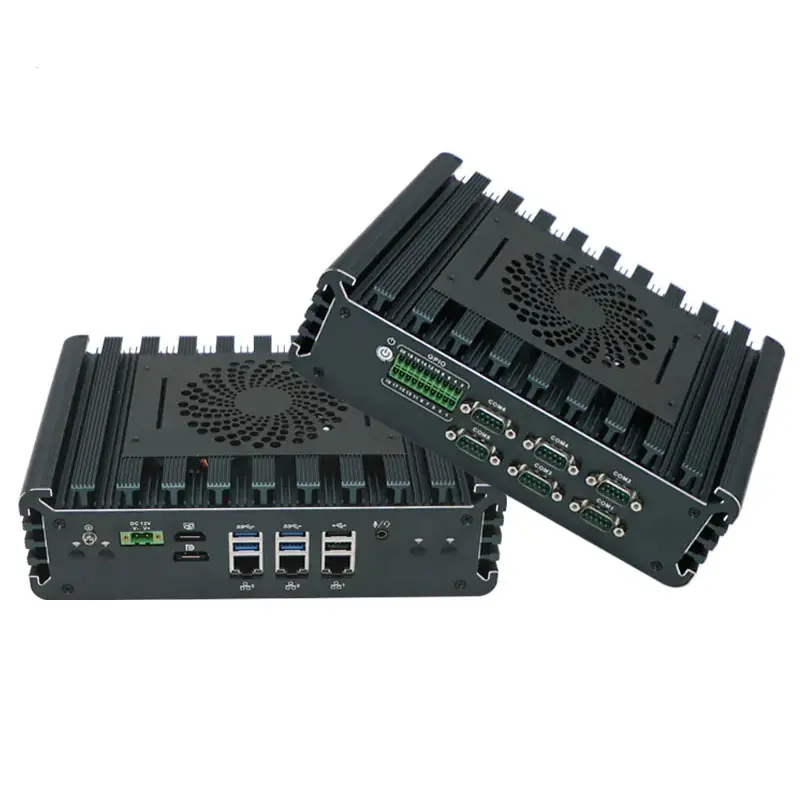

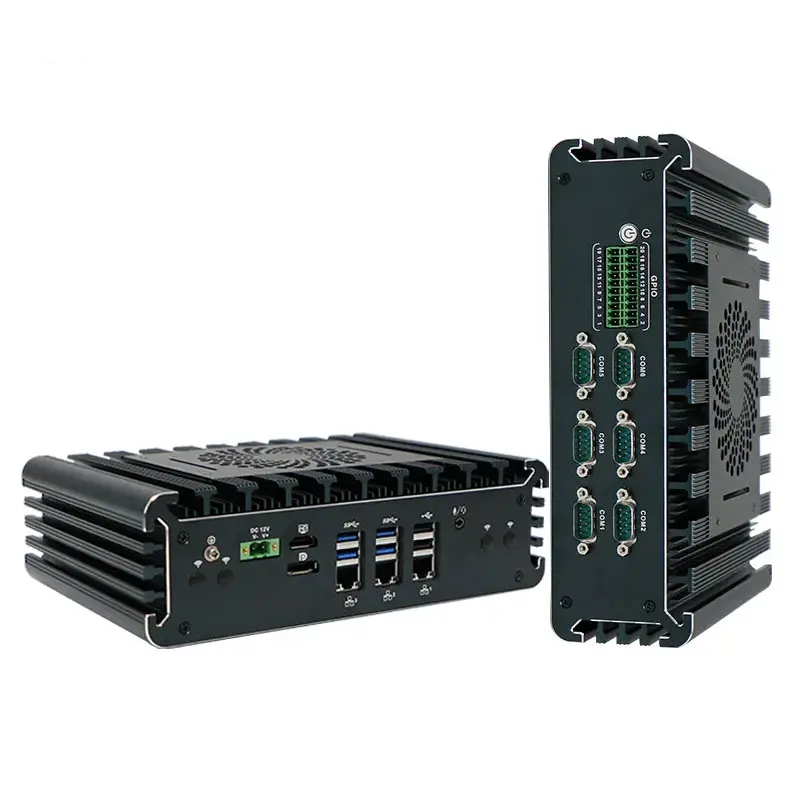

Rear Panel | 1 x 2Pin Phoenix terminal |
1 x HDMI | |
1 x DP | |
4 x USB3.0 | |
2 x USB2.0 | |
3 x Intel I225-v 2.5G LAN | |
1 x Audio&Mic | |
Bios | AMI EFI BIOS |
System Support | Windows 7/8/10/11, Linux |
Cooling Mode | Fan active cooling |
Power Supply | DC-IN 12V |

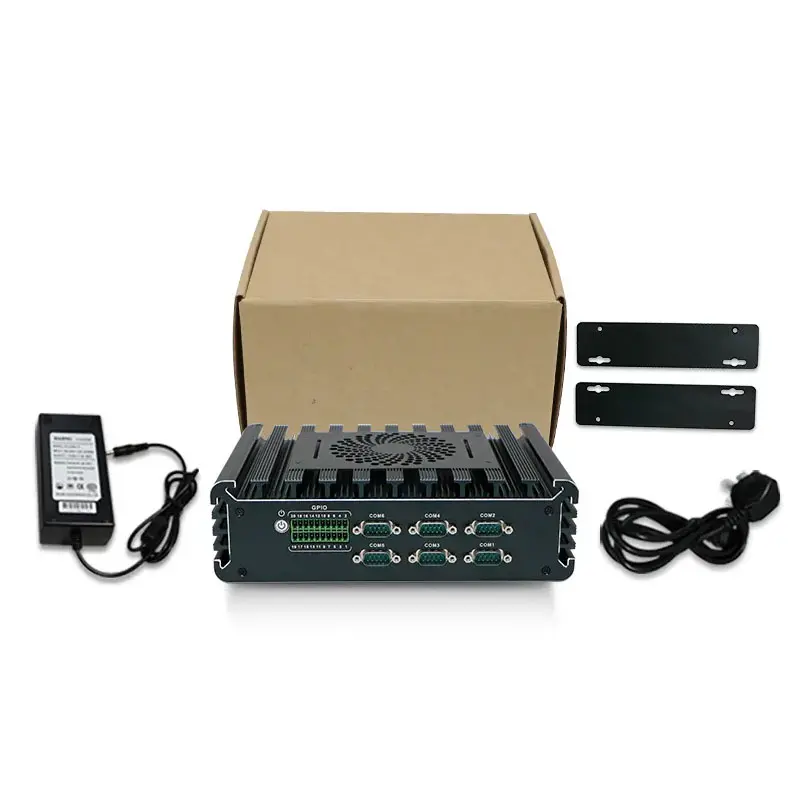

Packing List | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable |
Work Temperature | 0℃ ~ +50℃ ( HDD),-20℃ ~ +60℃ ( SSD),Surface air flow |
Relative Humidity | 5 % ~ 95% non-condensing |
Certification | CE FCC ROHS |
Application | Industrial automation, medical, logistics and transportation, warehousing, electronic education and other fields |
