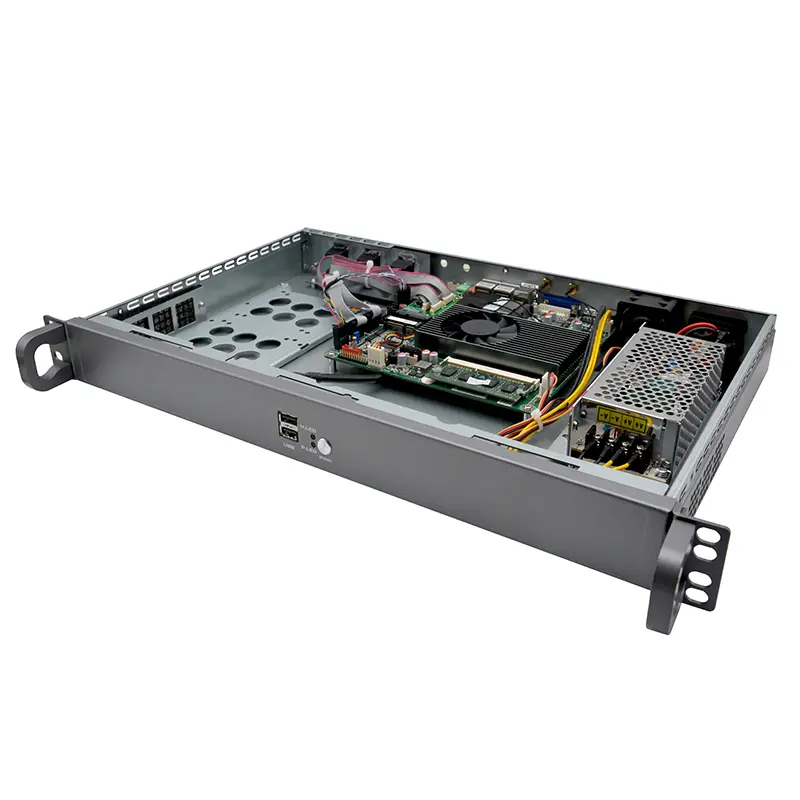

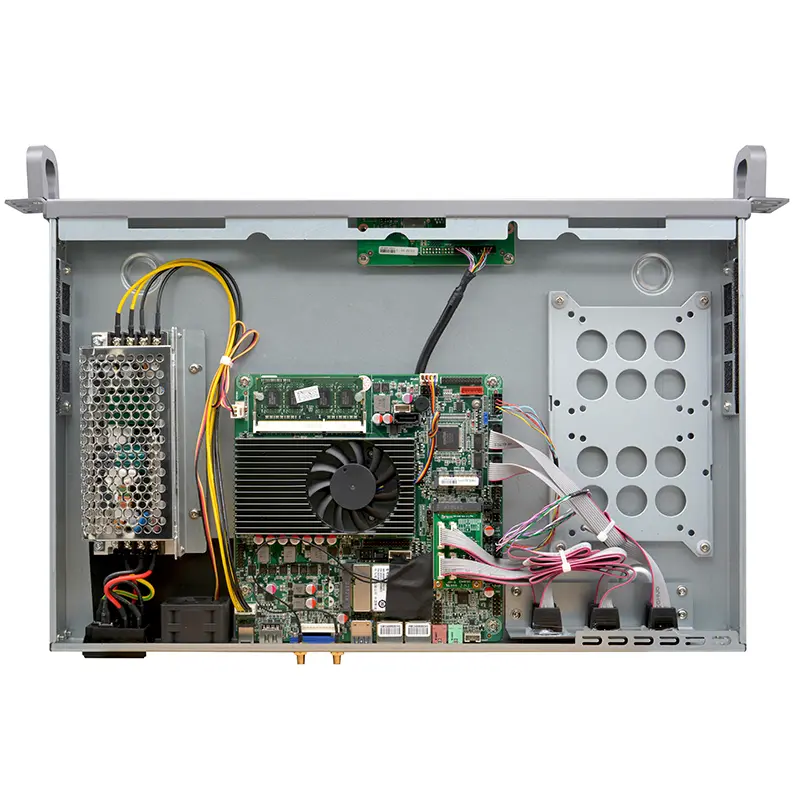

F6 1U Router Firewall PC I5 3210M Appliance

  • Robust Intel®Core I5-3210M Processor
  • Efficient Dual Gigabit Ethernet Support
  • Versatile VGA and HDMI Display Ports
  • Compact Design, Versatile Installation
  • Support for Multiple Operating Systems
  • Integrated Intel® HD Graphics 4000
  • Efficient, Low-Power Cooling System

Share to:



This 1U firewall features an integrated Intel®Core I5-3210M processor, multiple connectivity ports, and expandability options for diverse system support. With efficient cooling and sturdy design, it ensures optimal performance in various environments.




Chassis 1U standard chassis, high-quality galvanized steel
Colour Light silver black
Size 430MM*280MM*45MM
Weight 8Kgs
Insallation Method Desktop type/rack mounting
CPU Integrated Intel®Core I5-3210M /2.5GHz dual core 4 thread processor,TDP 18W
Network Card 2 x RTL8111H Gigabit Ethernet, support WOL / PXE function
Graphic Integrated Intel® HD Graphics 4000
Memory 1 x SODDR3 RAM slot, support single channel, DDR3 1600/1333 , max up to 8GB
Storage 1 x MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps
1 x SATA2.0 HDD ,transfer rate up to 3Gbps
Display 1 x VGA, 1 x HDMI
Expand 1 x Mini-PCIE slot, support WIFI, 3G/4G module

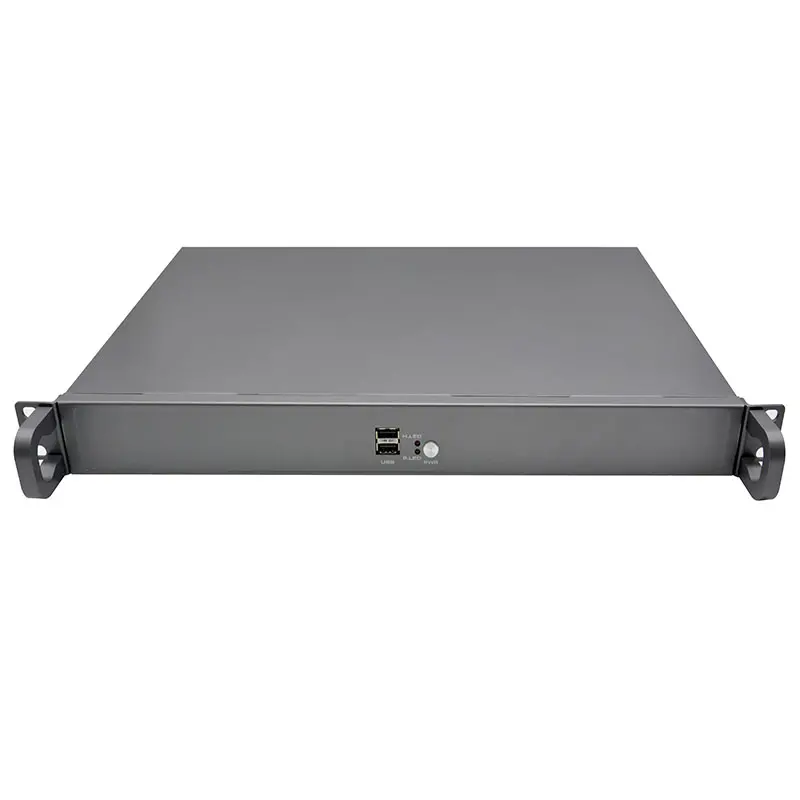

Front Panel 1 x Power switch
1 x Power.LED, 1 x HDD.LED
2 x USB2.0 port

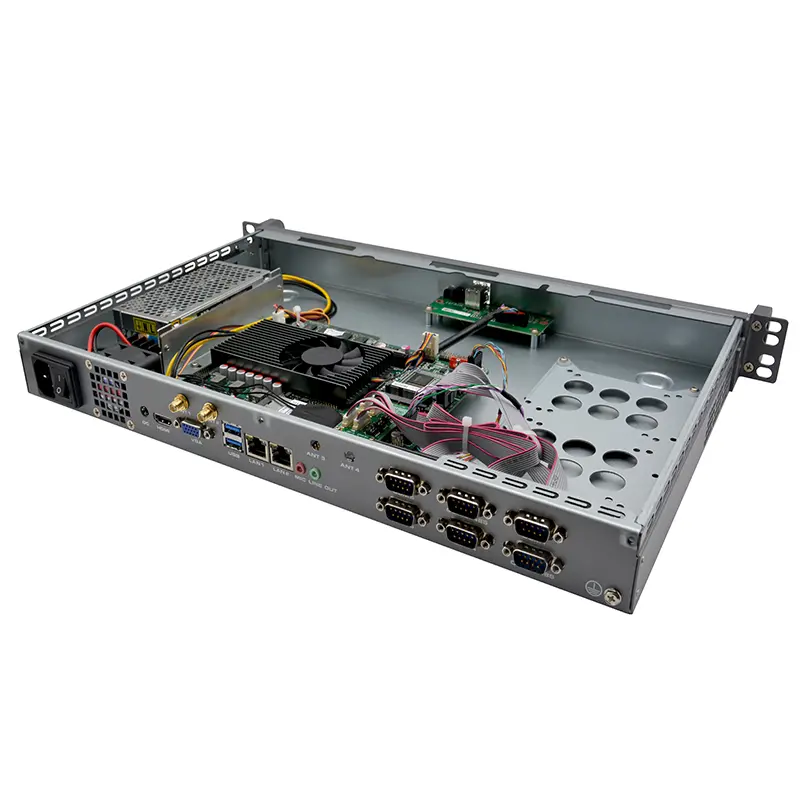

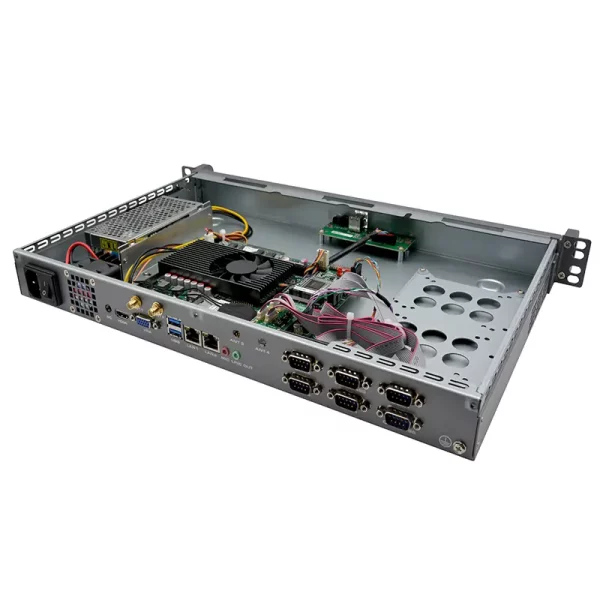

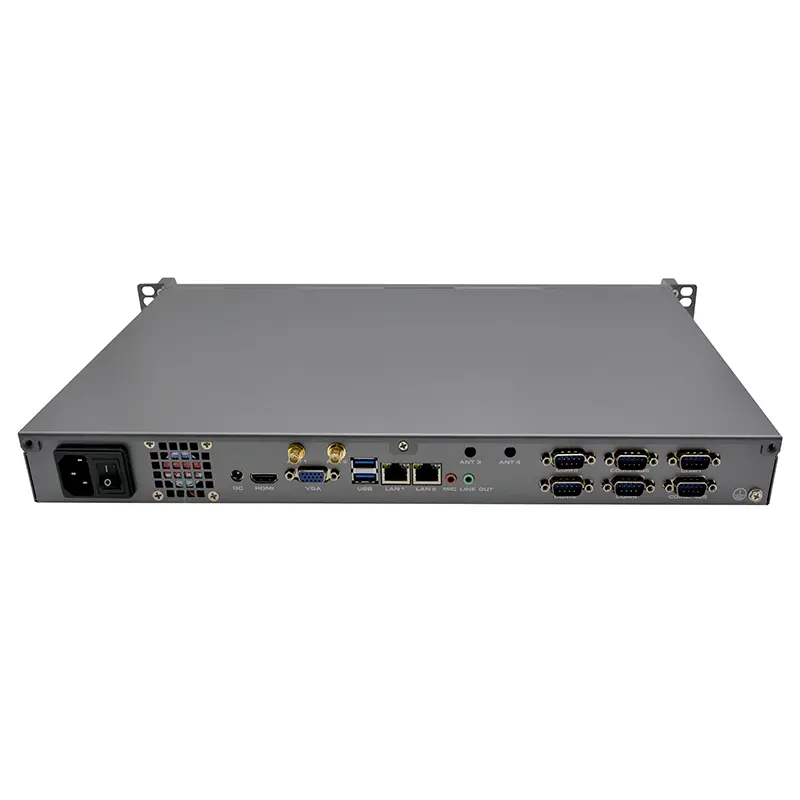

Rear Panel 1 x VGA
1 x HDMI
2 x LAN
6 x RS232 COM port ( COM1/COM2 the 9th pin charged functionCOM2/COM3 support RS422/485)
1 x Line out port, 1 x MIC port, onboard ALC892 7.1+2 channel high fidelity audio controller
1 x power supply connector
1 x USB3.0
System Support Windows 7/10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx
Watch Dog Support hardware reset function (L2560~255 seconds)
Cooling Mode With Fan
Power Supply DC power supply, 12V/5A, AC TO DC, 60W
Packing List F6 Firewall Appliance, Power adapter, Power cord, Warranty card
Operating temperature -10℃~60
Storage temperature -20℃~70
Relative humidity 5%-95% relative humidity, non-condensing
Work vibration 0.5g rms/5-500HZ/random/operating


Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Memory MB LAN COM HDMI VGA USB2.0 USB3.0 Power
F6 3210M /2.5GHz 1*SODDR3 B320 2 6 1 1 2 2 DC 12V
