Overview

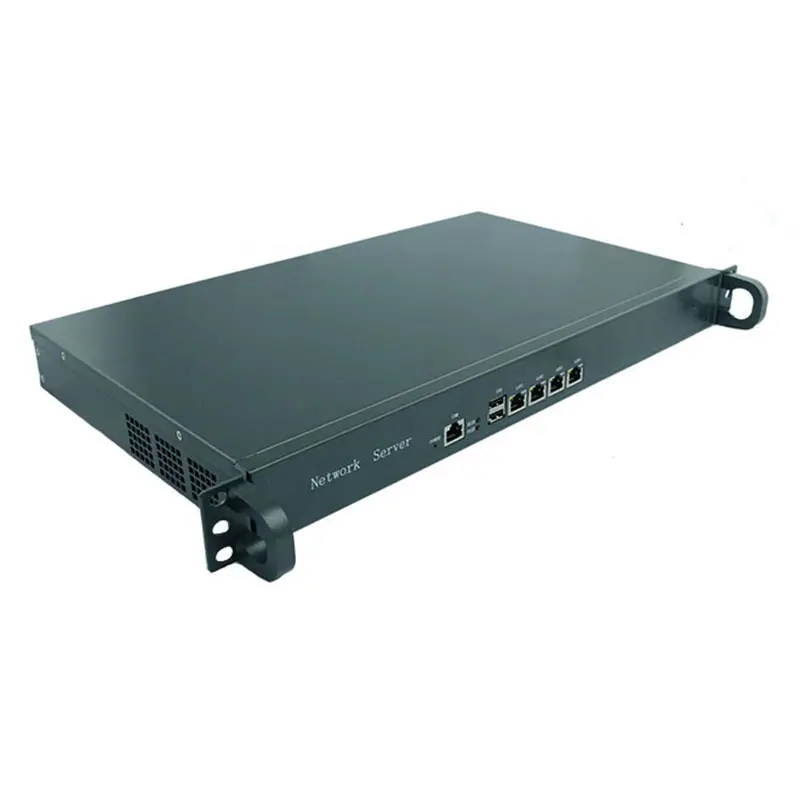

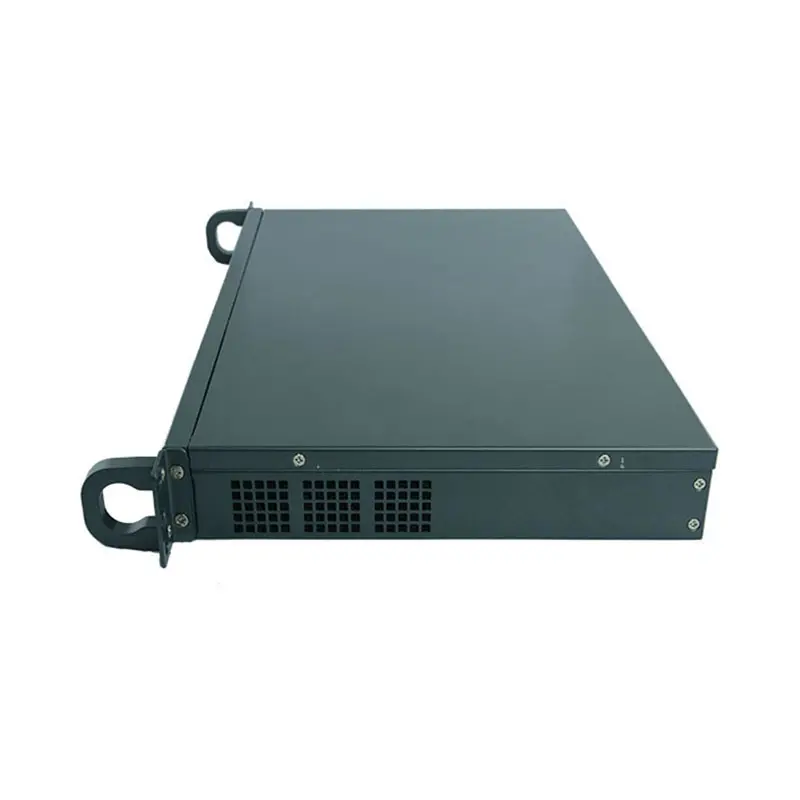

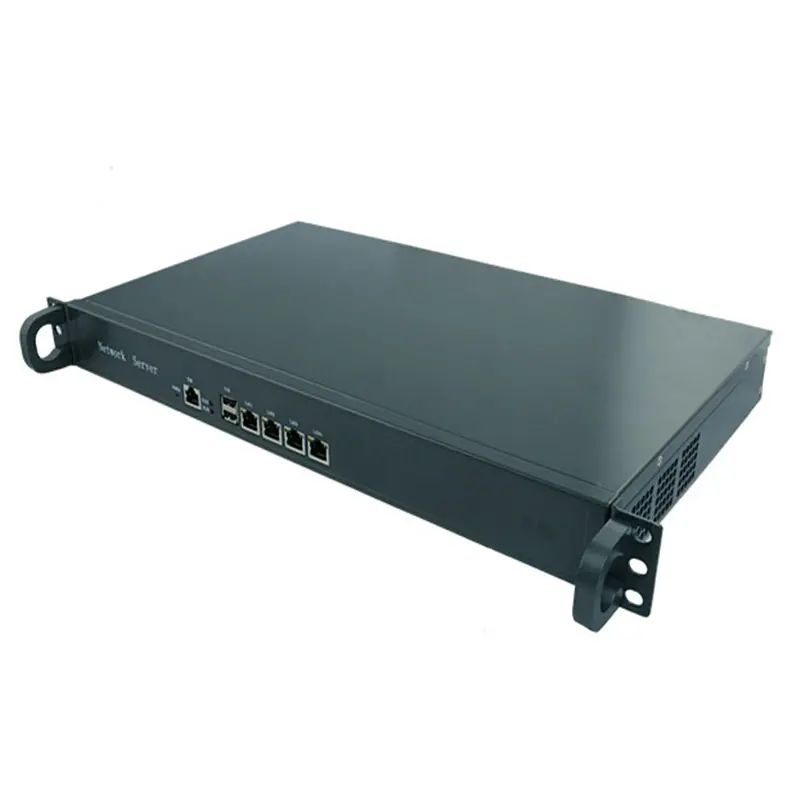

The F3 is a firewall appliance that provides reliable and secure network protection for your home or business. It is equipped with 4*Intel I211/I225 Gigabit Lan ports, which support high-speed data transmission and flexible network configuration. The F3 features a powerful processor, a fanless design, and a durable metal case, ensuring high performance, low noise, and long lifespan.
Specifications
| Material | 1U standard chassis, high quality galvanized steel |
| Colour | Asian silver black |
| Size | 430mm*250.2mm*46mm |
| Weight | 6.5Kgs |
| Insallation Method | 1U standard rack |
| CPU | Integrated Intel Celeron J4125 2.0GHz quad-core quad-thread processor, TDP 10W |
| Integrated Intel Celeron Processor J1900 quad-core quad-thread, TDP 10W | |
| Chipset | SOC |
| Network Card | 4* Intel I211 Gigabit LAN, support Wake-on-LAN/PXE function |
| Com | 1* Standard RS232 serial interface |
| Memory | 1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB |
| Storage | 1* MSATA SSD, transfer speed up to 3Gbps 1*2.5 inch SSD/HDD |
| Graphic | Integrated Intel UHD Graphics 600 Core Graphics |
| Expand | 1* Mini-PCIE slot, support WIFI, 4G module, default is USB signal, Note: Mini-PCIE slot and LAN4 share PCIE channel, user can choose one |

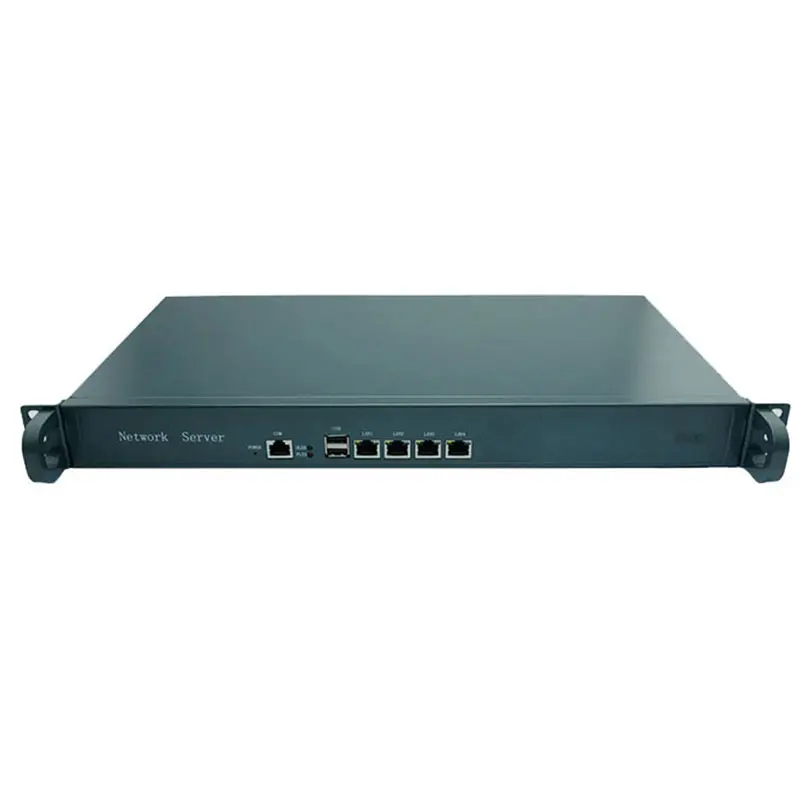

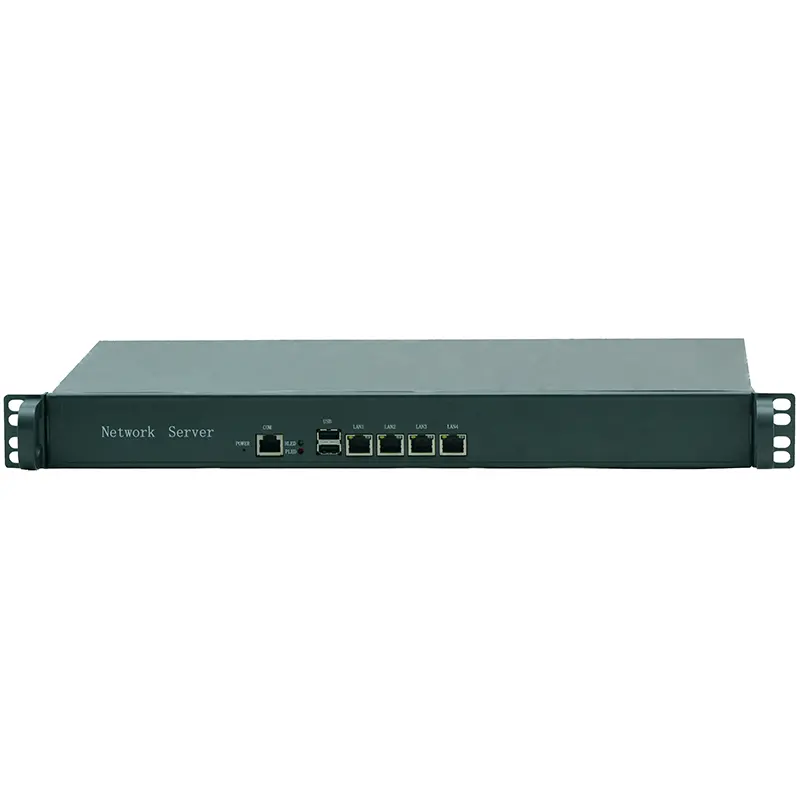

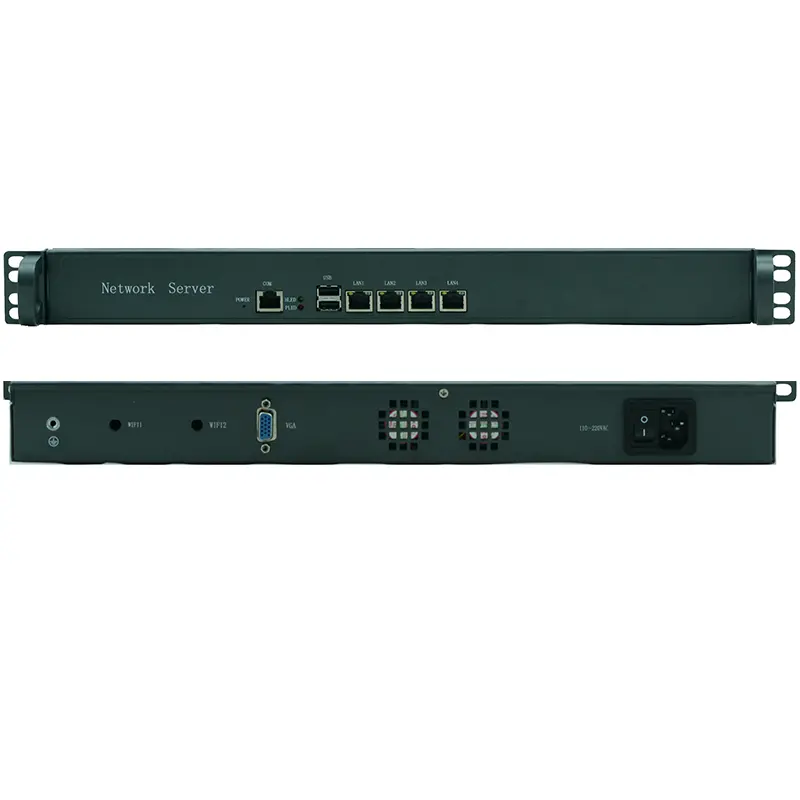

| Front Panel | 1*Power switch |
| 1* standard RS232 serial interface | |
| 2* USB2.0 interface | |
| 1* power indicator, 1* hard disk indicator | |
| 4* Intel I211 Gigabit LAN, support Wake-on-LAN/PXE function | |

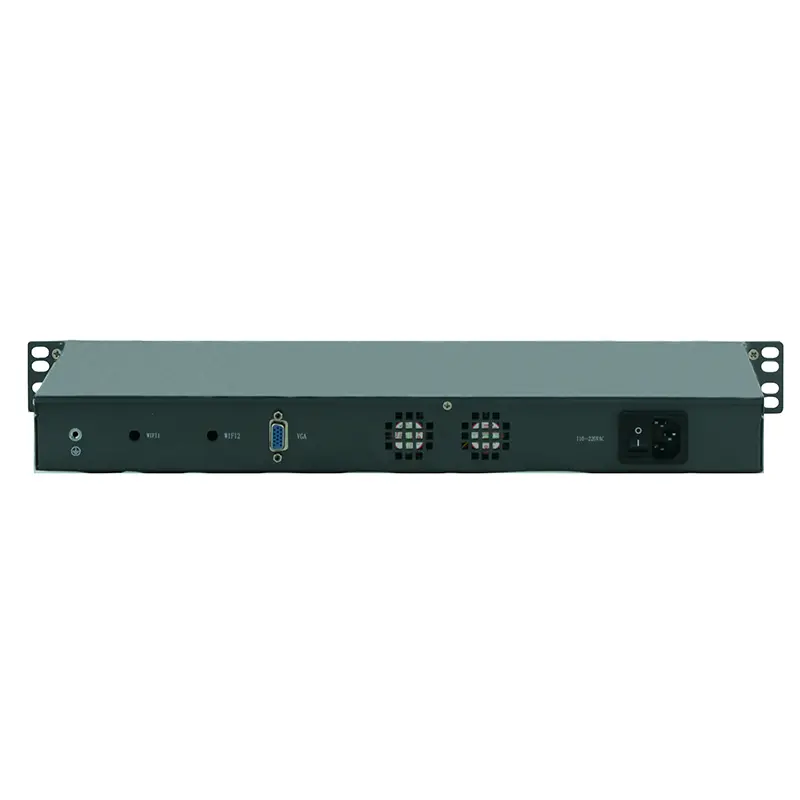

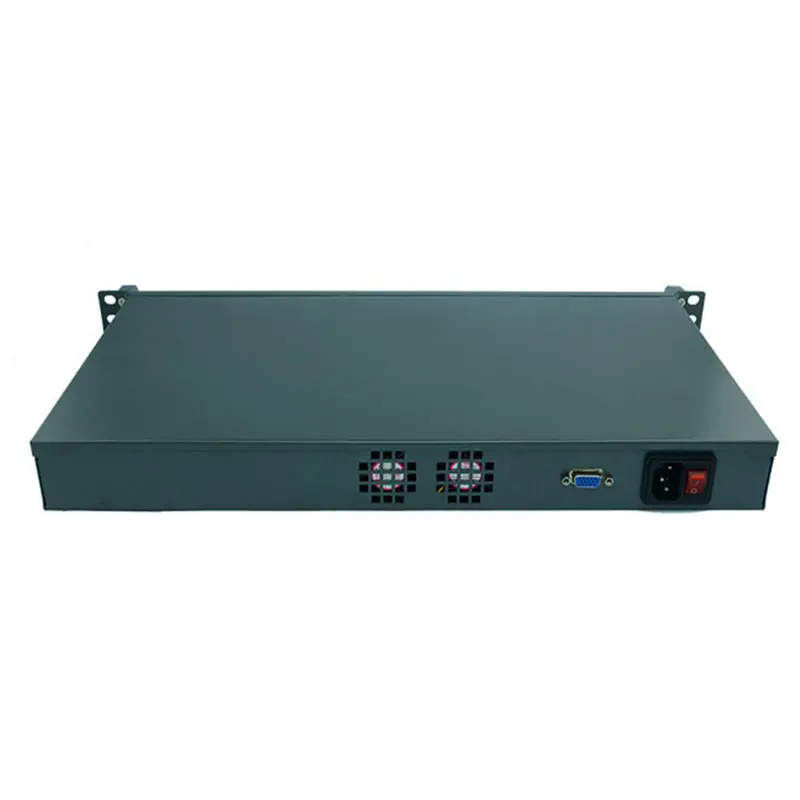

| Rear Panel | 1*VGA interface |
| 1* AC power connector | |
| 2 x WiFi antennas | |
| Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) |
| System Support | Windows 7/10, 64bit (without key) Ubuntu |
| Power Type | External open power supply |
| Power Supply | AC 110~220V AC TO DC, 60W |
| Packing List | F3 firewall appliance, power supply, power cord, warranty card |
| Operating Temperature | -10C~60C Centigrade (32F~140F) |
| Storage Temperature | -20C~70C Centigrade (-68F~176F) |
| Relative Humidity | 5%-95% relative humidity, non-condensing |
| Working Vibration | 0.5g rms/5-500HZ/random/operating |
| Certification | CE FCC ROHS |
