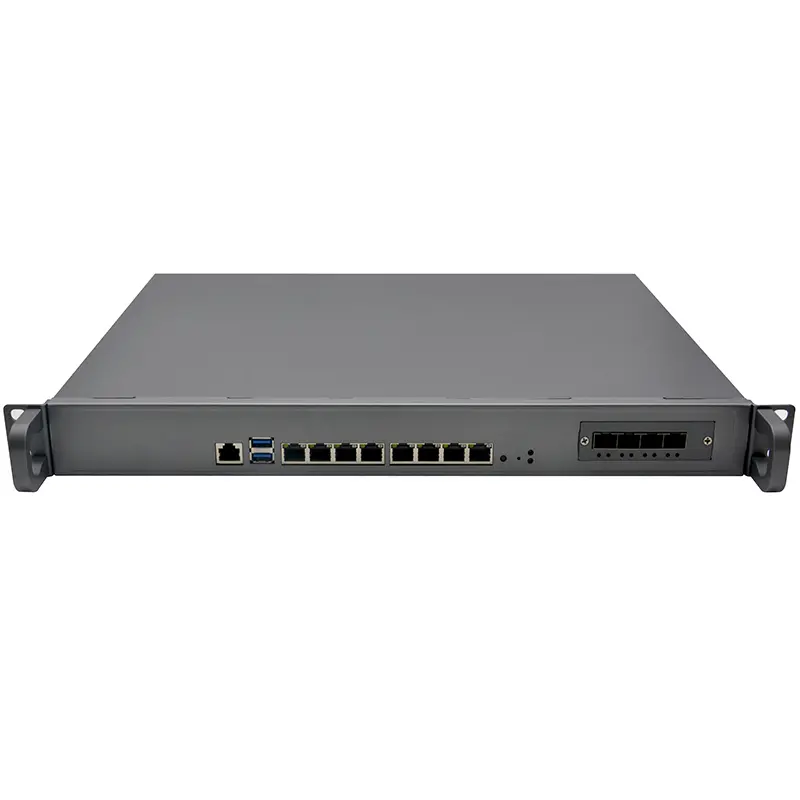

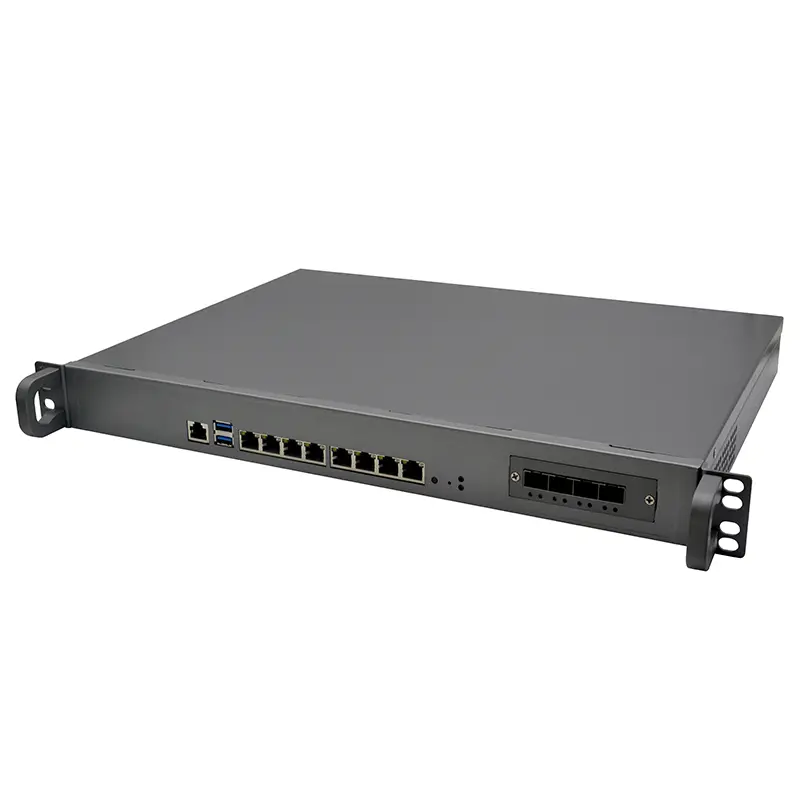

F12 1U RackMount Security Firewall 8 LAN 4 SFP

  • 1U Standard Chassis Made of High-Quality Galvanized Steel
  • 8 Intel I210 Gigabit LAN Ports with Wake-on-LAN/PXE and BYPASS
  • Integrated Intel HD Graphics Core Graphics Card with VGA output
  • 2 DDR4 SODIMM Memory Slots with Up to 64GB Support
  • 1 MSATA Slot and 1 3.5 Inch or 2.5 Inch Hard Disk Slot
  • 1 PCIE X8 Slot for Gigabit/10 Gigabit Fiber Card Expansion
  • 1 MINIPCIE Slot for WiFi/4G Connectivity With Sim Slot

Share to:



The F12 Firewall Appliance, boasting a compact 1U chassis in iron gray, supports an array of Intel processors (LGA1151, LGA1200), with eight Intel I210 Gigabit LAN ports and a versatile expandability, offering top-tier security features, massive memory support, and varied system compatibility, ensuring reliable, high-performance network protection and management. Ideal for rack mounting or desktop installation, it integrates powerful components, fiber card expandability, and robust storage options in a compact, well-cooled design, making it versatile for multiple system environments and diverse usage scenarios




Chassis 1U standard chassis, high-quality galvanized steel
Colour Iron gray
Size 430MM*320MM*44.5MM
Weight 9Kgs
Insallation Method Desktop type/rack mounting
CPU Supports Intel® LGA1151 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7 series processors
Support Intel® Core i5 7300HQ Processor, 6M Cache, up to 3.50 GHz
Support Intel® Core i7 6920HQ Processor, 8M Cache, up to 3.80 GHz
Support Intel® LGA1200 10/11th I3 I5 I7 series processors
Network Card 8 x Intel I210 Gigabit electrical ports, support Wake-on-LAN/PXE function (LAN1-4 supports BYPASS, default does not upload files) Choose one of LAN8 and WiFi, the default is LAN8
Graphic Integrated Intel HD Graphics core graphics card
Memory 2 x DDR4 SODIMM memory slots, support 2400MHz memory, maximum support 64GB
Storage 1 x MSATA, transmission speed up to 6Gbps
1 x 3.5 inch hard disk or 1*2.5 inch hard disk
Display 1 x VGA
Expand 1*PCIE X8 slot, expandable Gigabit/10 Gigabit fiber card
1*MINIPCIE slot, support WiFi/4G
1*USB2.0, can connect dongle

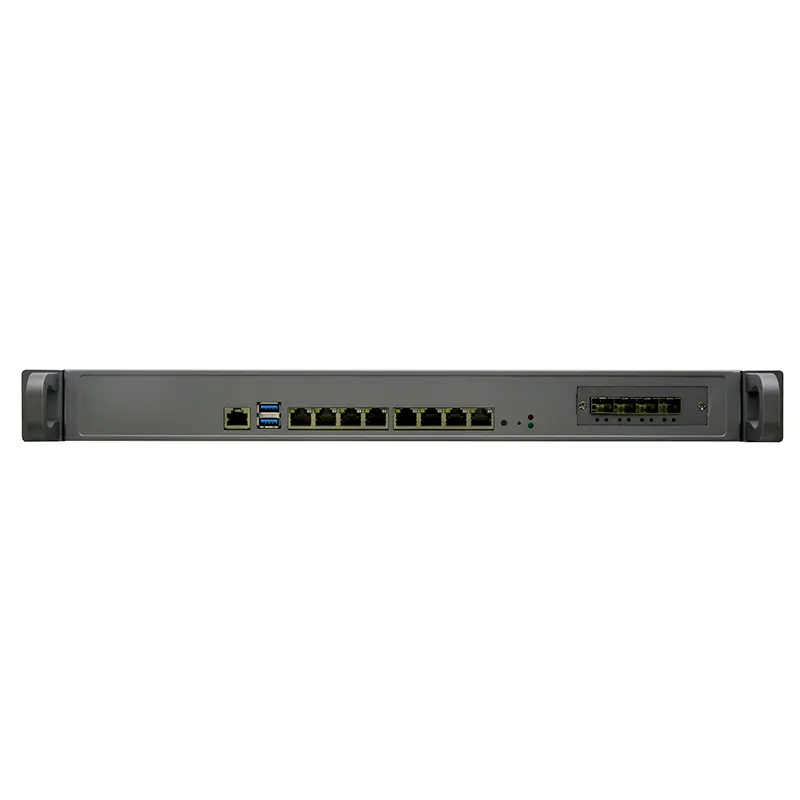

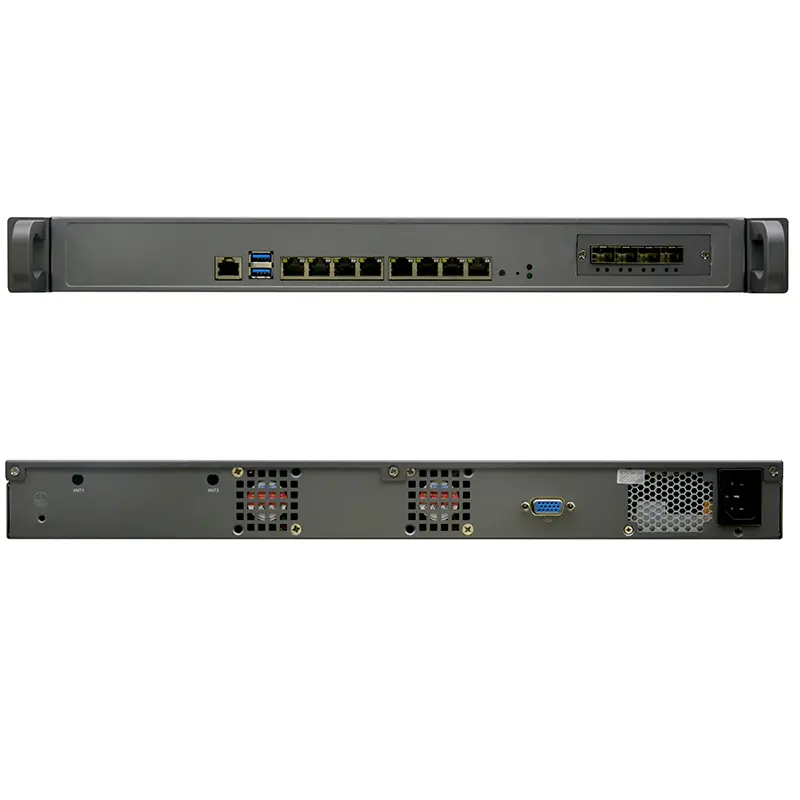

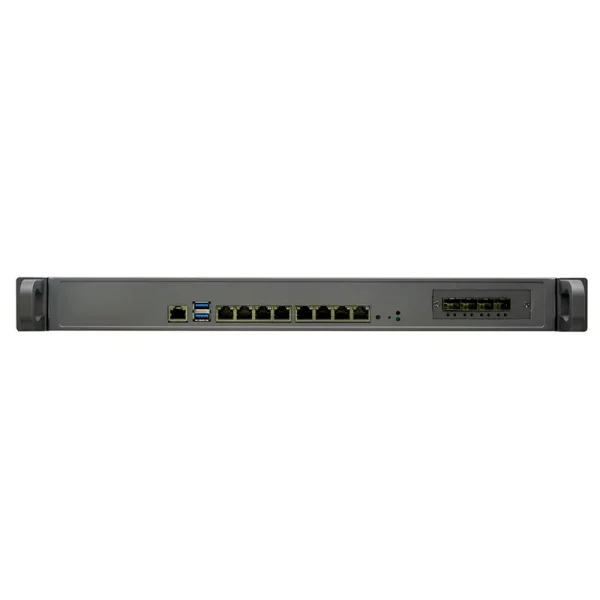

Front Panel 1 x Power switch, 1 x Restart switch
8 x Intel I210 Gigabit LAN
2/4 x Optical fiber
1 x RJ45 COM
1 x USB3.0

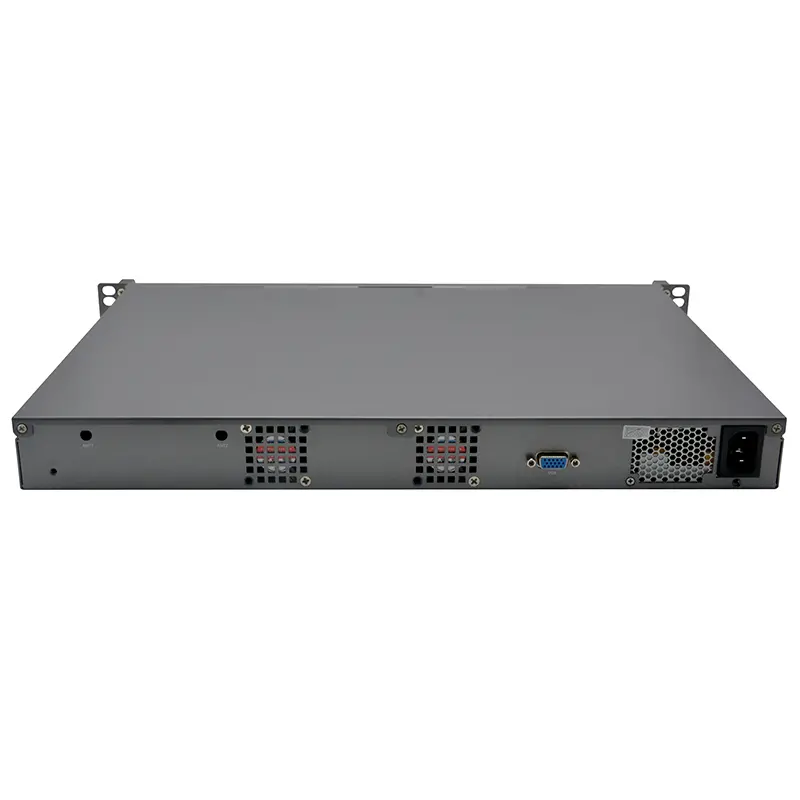

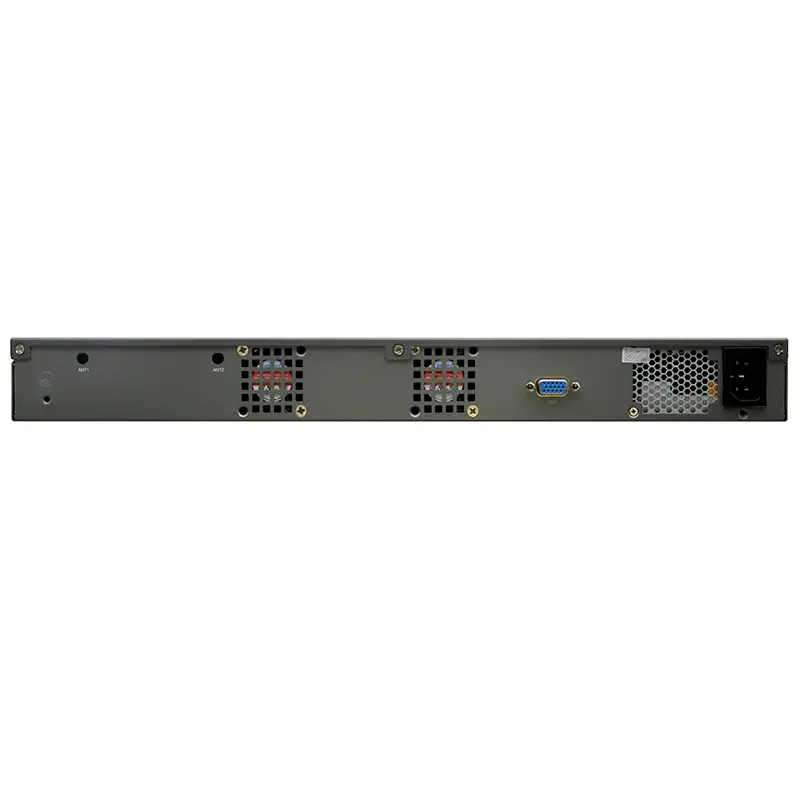

Rear Panel 1 x VGA
1 x Power cord interface
System Support Windows 7/10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx
Cooling Mode With Fan
Power Supply Built-in ATX/1U power supply, AC 110-220V Standard 250W
Packing List F12 Firewall Appliance, Power adapter, Power cord, Warranty card
Operating temperature -10℃~50℃
Storage temperature -20℃~70℃
Relative humidity 5%-95% relative humidity, non-condensing
Work vibration 0.5g rms/5-500HZ/random/operating

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Memory MB IO Board BYPASS LAN COM VGA SFP USB Power
F12 (R270) LGA1151 2*SODDR4 R270 M210-L8 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V
F12(7300HQ) I5-7300HQ/2.50GHz 2*SODDR4 R370 M210-L8 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V
F12(6920HQ) I7-6920HQ/2.90GHz 2*SODDR4 R730 M210-L8 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V
F12(R570) LGA1200 2*SODDR4 R570 M210-L8 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V


LGA1151/CPU/6th Gen G3900/G3930/G4400/I3 6100/I5 6500/I5 6500T/I7 6700
LGA1151/CPU/7th Gen G4900/G4930/G4560/I3 7100/I5 7500/I7 7700
LGA1151/CPU/8th Gen G5400/I3 8100/I5 8400/I5 8500/I7 8700
LGA1151/CPU/9th Gen I3 9100/I5 9400/I5 9500/I7 9700/I7 9700K
LGA1200/CPU/11th Gen I5 11400/I5 11500/I5 11600/I7 11700/I9 11900/I9 11900K
LGA1200/CPU/10th Gen I3 10100/I5 10400/I7 10700
