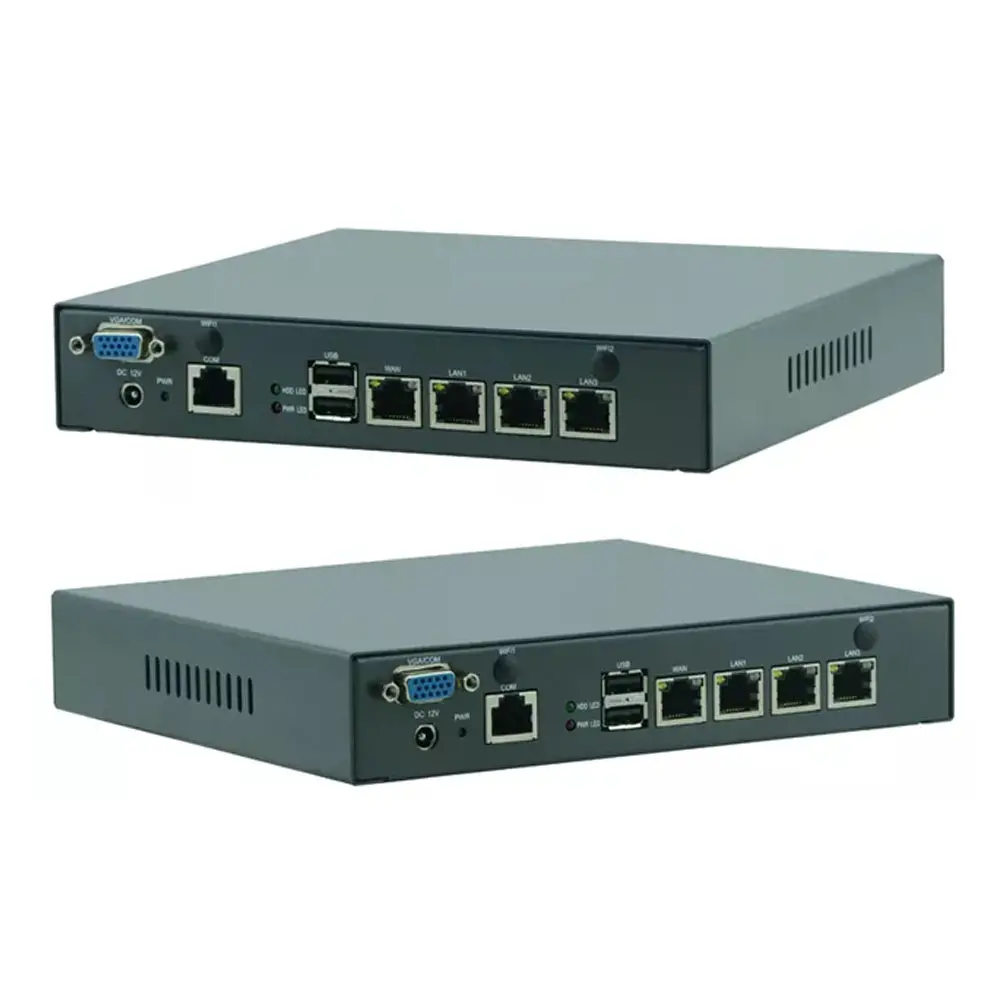

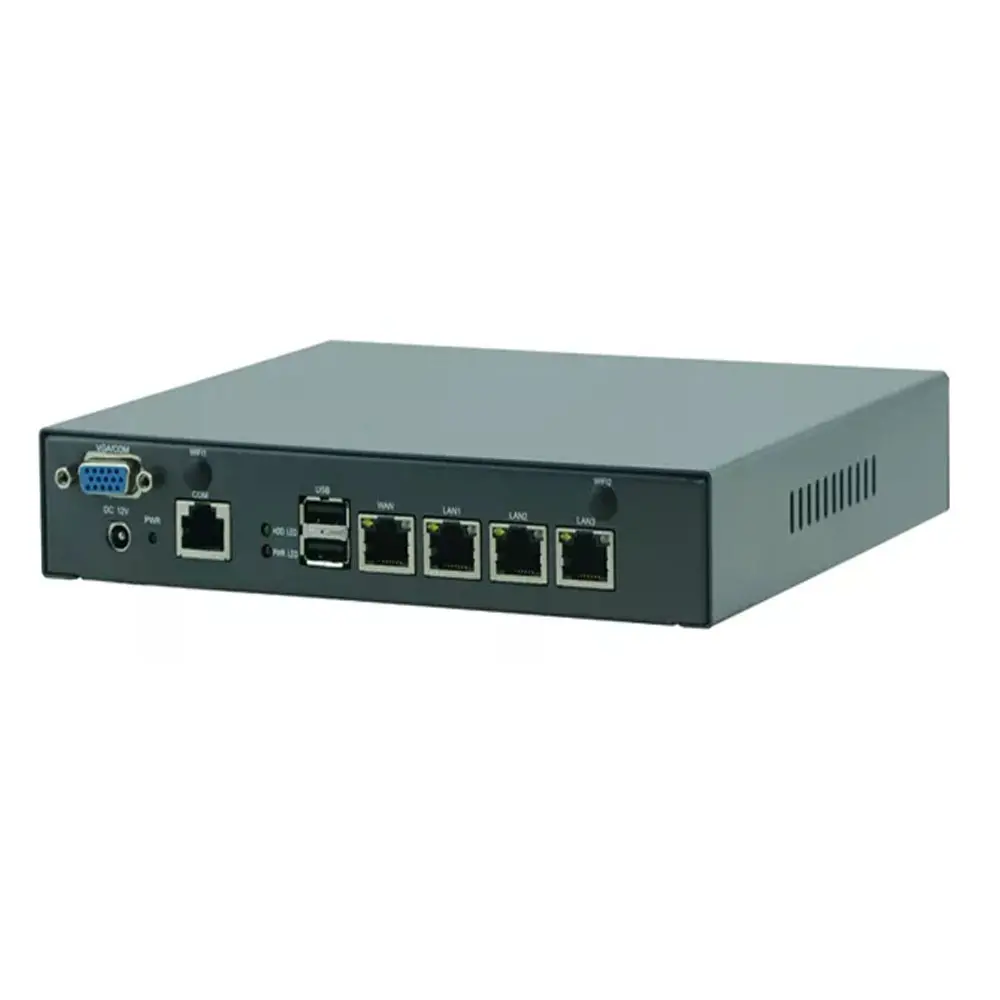

F1 J4125 Fanless Opnsense Firewall Hardware

  • Efficient, Fanless Cooling, Top-Grade Build
  • Intel Celeron J4125 Processor Integration
  • Dual Intel I211 Gigabit Ethernet Support
  • Versatile, Expandable Storage Solutions
  • Configurable Network Port Flexibility
  • Support for WIFI / 4G Module Setup
  • Resilient Performance Under Vibration

Share to:



The F1 Firewall Appliance presents a compact, fanless design with an Intel Celeron J4125 CPU, dual Gigabit Ethernet, DDR4 memory support, and ample storage options. It operates with low power consumption and offers extensive OS compatibility, making it ideal for diverse network environments. The hardware reset feature enhances its reliability, accompanied by a fanless cooling system. The device ensures a wide operating temperature range, making it suitable for various setups, while its sturdy build provides robust protection against vibrations. Ideal for network security applications, it comes with essential ports and LEDs for seamless setup and monitoring, complemented by its compact size and adaptable installation methods.

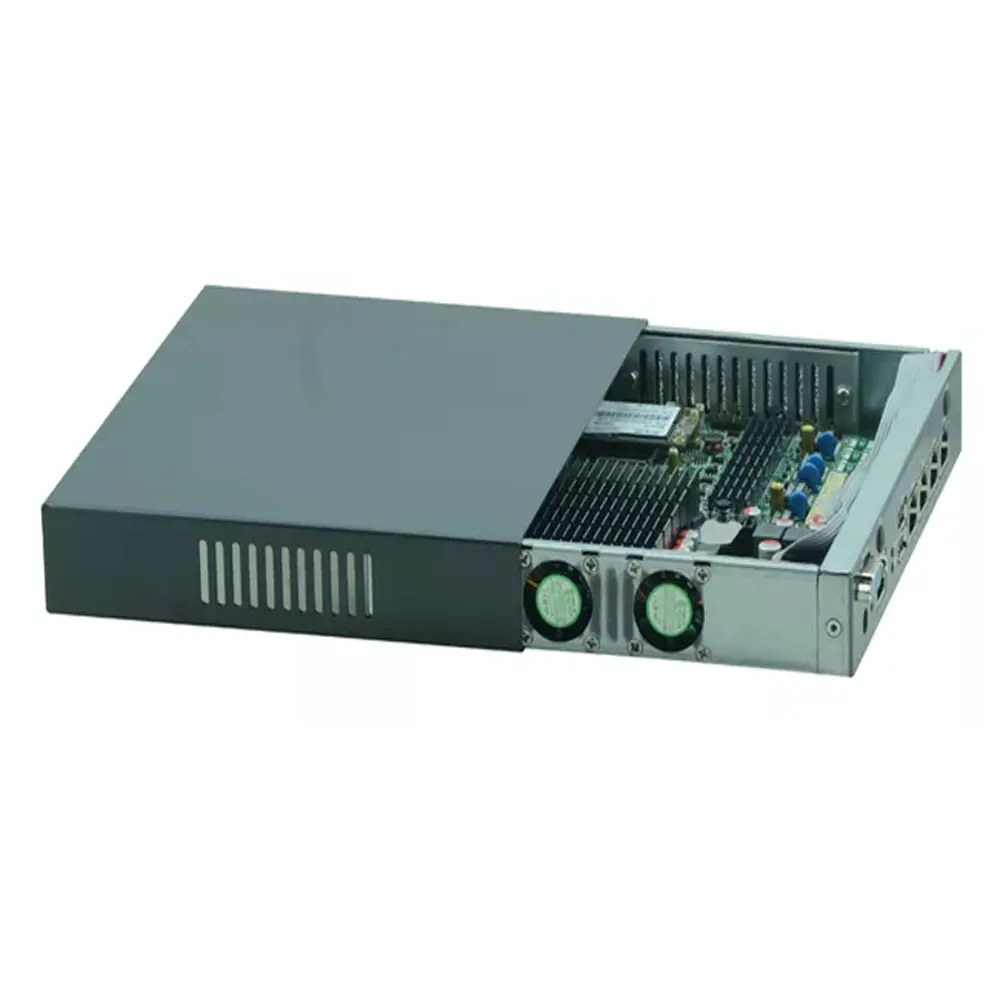

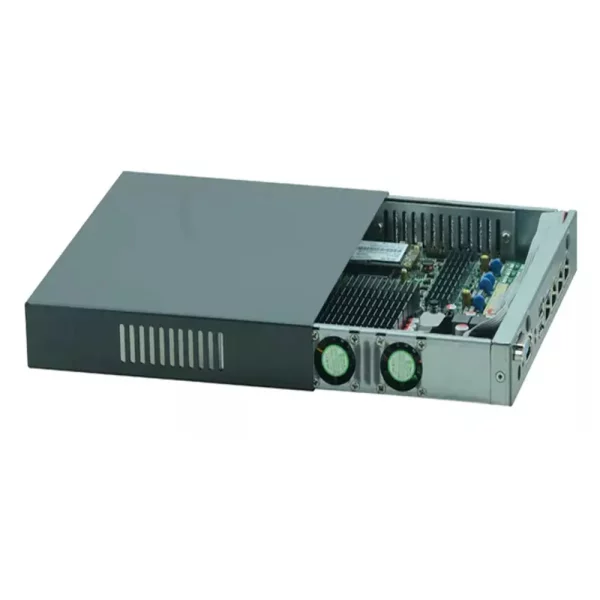

Chassis Fanless cooling, high quality galvanized steel
Colour Light silver black
Size 197mm*175mm*35mm
Weight 2.5Kgs
Insallation Method Desktop type
CPU Integrated Intel®Celeron J4125 2.0GHz quad core 4-thread processor ,TDP 10W
Compatible with Intel® Gemini Lake full series CPU
Network Card 2 x Intel I211 Gigabit Ethernet, support Wake On LAN/PXE
Graphic Intel® UHD Graphics 600
Memory 1 x DDR4 SODIMM slot ,support single channel , 2400MHz , max up to 8GB
Storage 1 x MSATA SSD expansiontransfer rate up to 3Gbps
1 x 2.5”HDD expansion
Display 1 x VGA
Expand 1 x Mini-PCIE slot, support WIFI / 4G module, default : USB signal
Note: Mini-PCIE slot and the LAN4 share PCIE channel (optional)

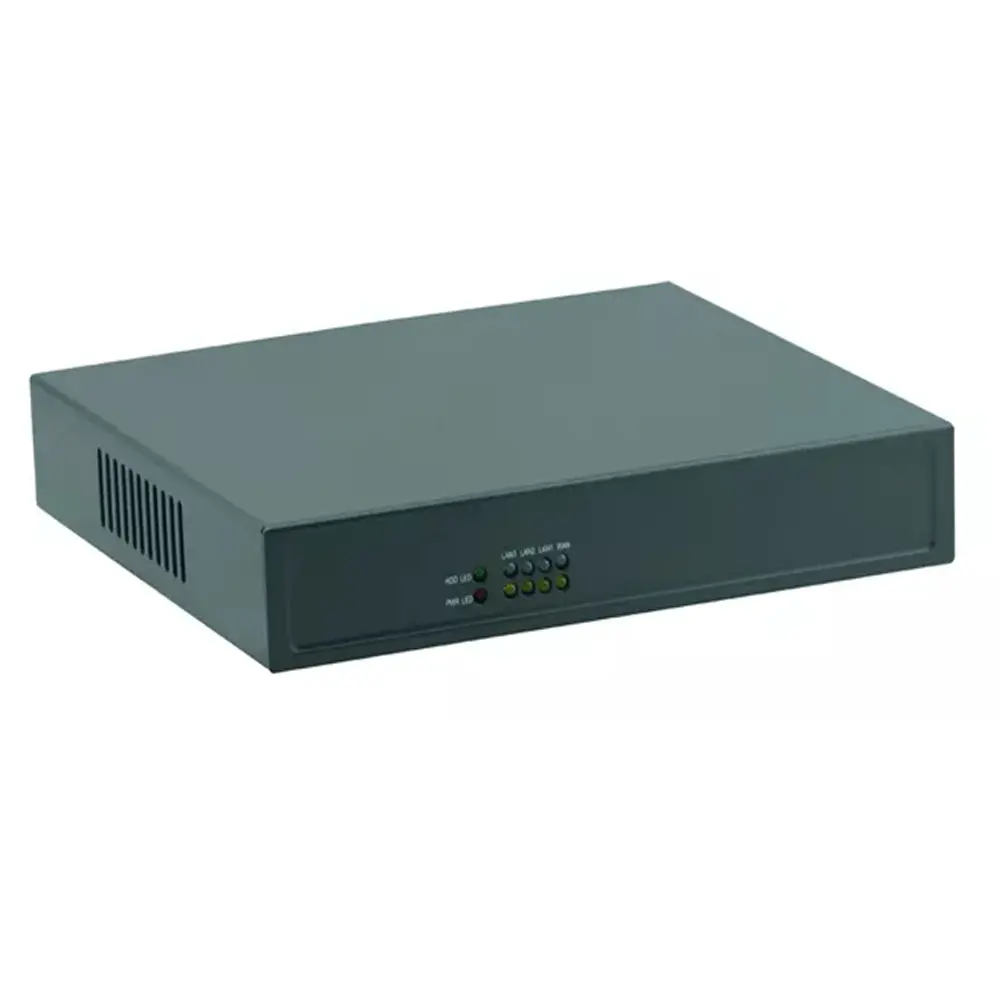

Front Panel 1 x Power LED, 1 x HDD LED
1 x Network LED
2 x Network data transmission LED

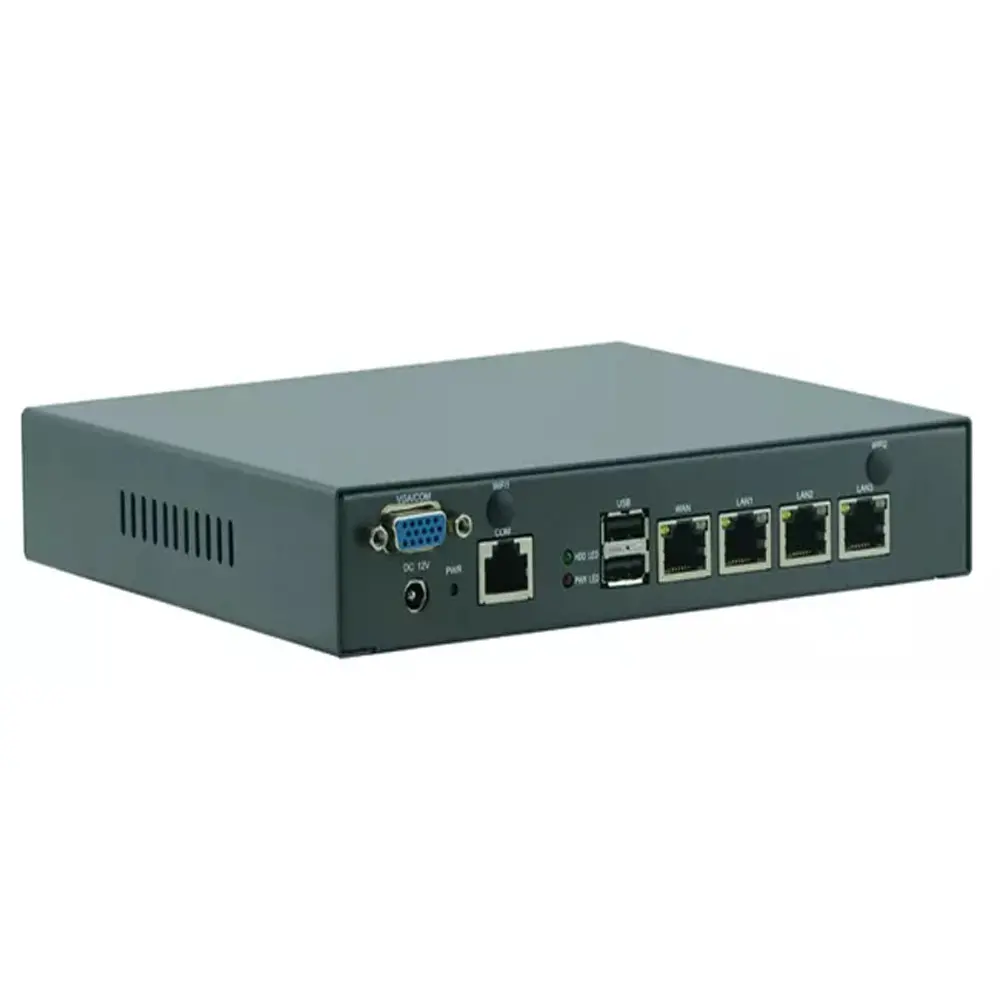

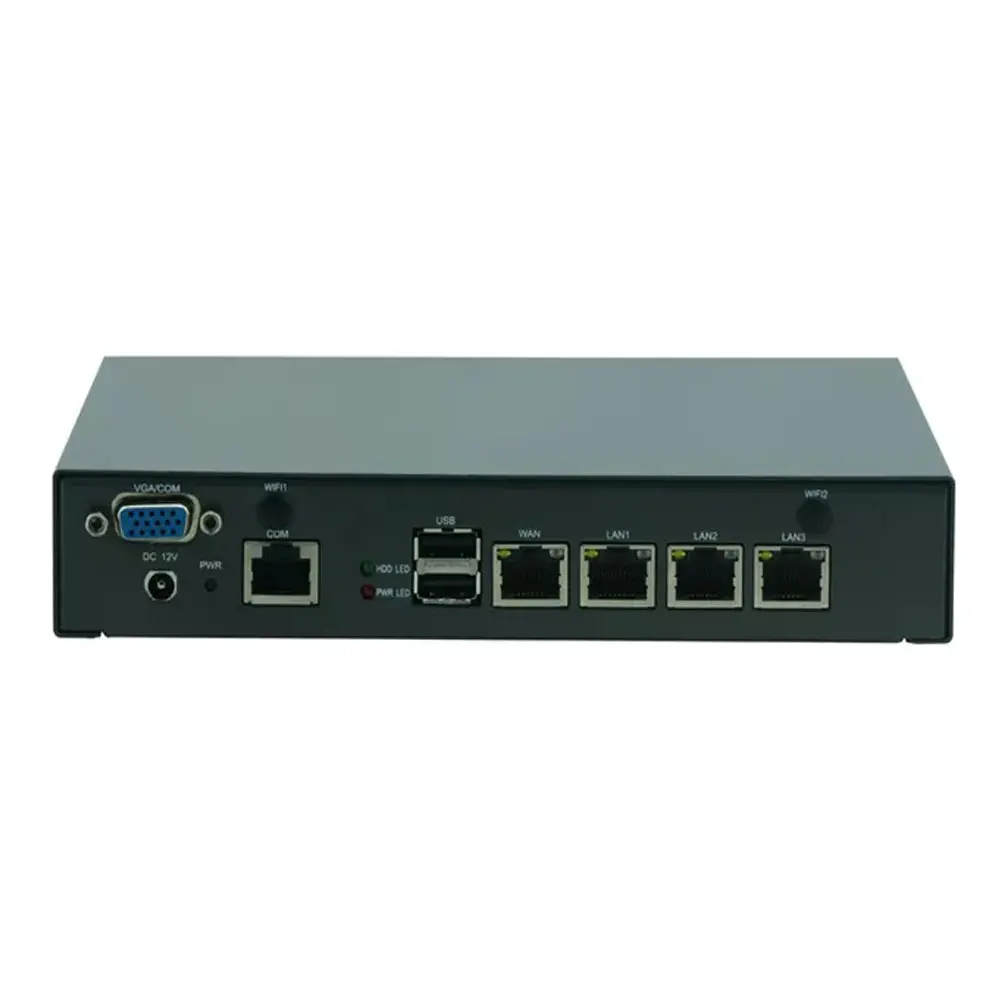

Rear Panel 1 x Power Switch
1 x Intel I211 LAN
1 x RS232 COM port
1 x VGA
1 x USB2.0
1 x 12V DC power input
1 x Power LED, 1 x HDD LED
System Support Windows 7/10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx
Watch Dog Support hardware reset function (L2560~255 seconds)
Cooling Mode Fanless Cooling
Power Supply DC power supply, 12V/5A, AC TO DC, 36W / 60Woptional
Packing List F1 Firewall Appliance, Power adapter, Power cord, Warranty card
Operating temperature -10℃~60
Storage temperature -20℃~70
Relative humidity 5%-95% relative humidity, non-condensing
Work vibration 0.5g rms/5-500HZ/random/operating

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Memory MB LAN COM HDMI VGA USB2.0 SIM HDD GPIO USB3.0 Power
F1 J1900/2.0GHz 1*DDR3L M9F 4* 82583V 1 N/A 1 2 N/A N/A N/A N/A DC 12V
F1 J1900/2.0GHz 1*DDR3L M9E 4*I211 1 N/A 1 2 N/A N/A N/A N/A DC 12V
F1 J4125/2.0GHz 1*DDR4 M41E 4*I211 1 N/A 1 2 N/A N/A N/A N/A DC 12V
F1 J4125/2.0GHz 1*DDR4 M41V 4*I225V 1 N/A 1 2 N/A N/A N/A N/A DC 12V
