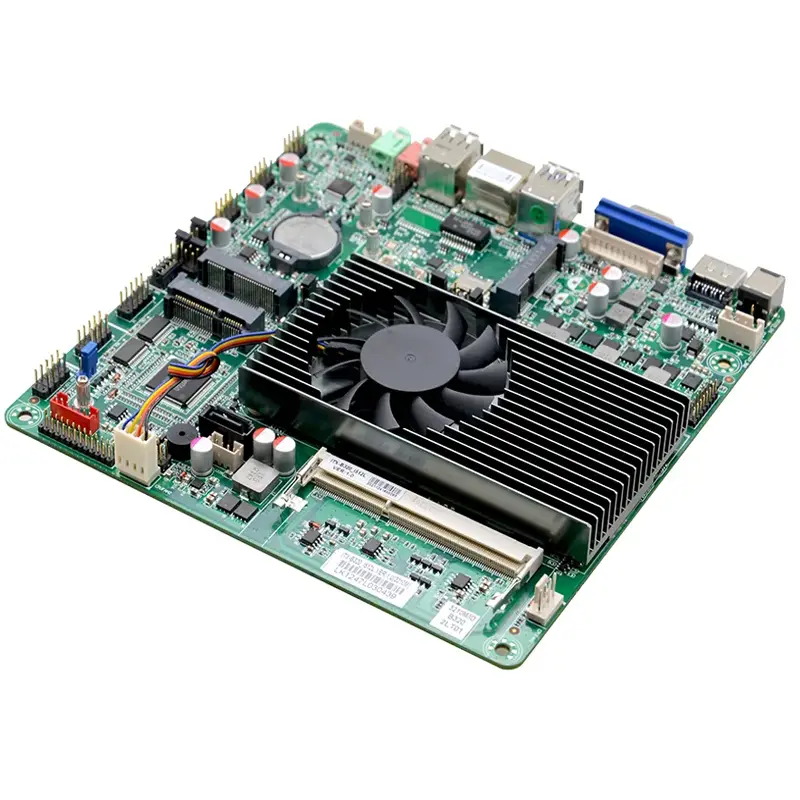

Overview
It features an integrated Intel®Core I5-3210M /2.5GHz dual-core quad-thread processor, with a TDP of 18W, which delivers powerful and energy-efficient performance for various applications. It is also compatible with Intel® Sandy /Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 low power processor, which can be chosen by the user.
Specifications
| Model | ITX-B320_I512L VER:1.0(3210M) |
| Processor | Integrated Intel®Core I5-3210M /2.5GHz dual-core quad-thread processor, TDP 18W
Compatible with Intel® Sandy /Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 low power processor |
| Chipset | Using Intel® HM77 Express Chipset |
| Memory | 1*SODDR3 memory slot, support single channel DDR3 1600/1333 memory, maximum support 8GB |
| Graphic | Integrated HD Graphics4000 core graphics card, supports single display, dual display mode, extended mode |
| Display | 1*VGA, 2*HD OUTPUT, 1*LVDS interface, support dual channel 24bit |
| Network | 1* RTL8111H Gigabit LAN, support Wake-on-LAN, PXE function |
| Storage | 1* SATA2.0 hard disk interface, transfer rate up to 3Gbps
1*MSATA slot, support SSD solid state drive, SSD transfer speed up to 6Gbps |
| Audio | Onboard ALC892 7.1+2 channel high-fidelity audio controller, support MIC/Line-out. Power amplifier
It is recommended to use a 2Ω5W speaker for the power amplifier |
| Expansion slot | 1* Mini-PCIE slot, support WIFI, 3G/4G module
1* Mini-PCIE slot, support WIFI/TPM-4COM small board, can use TPM-4COM small board to expand 4 serial ports |

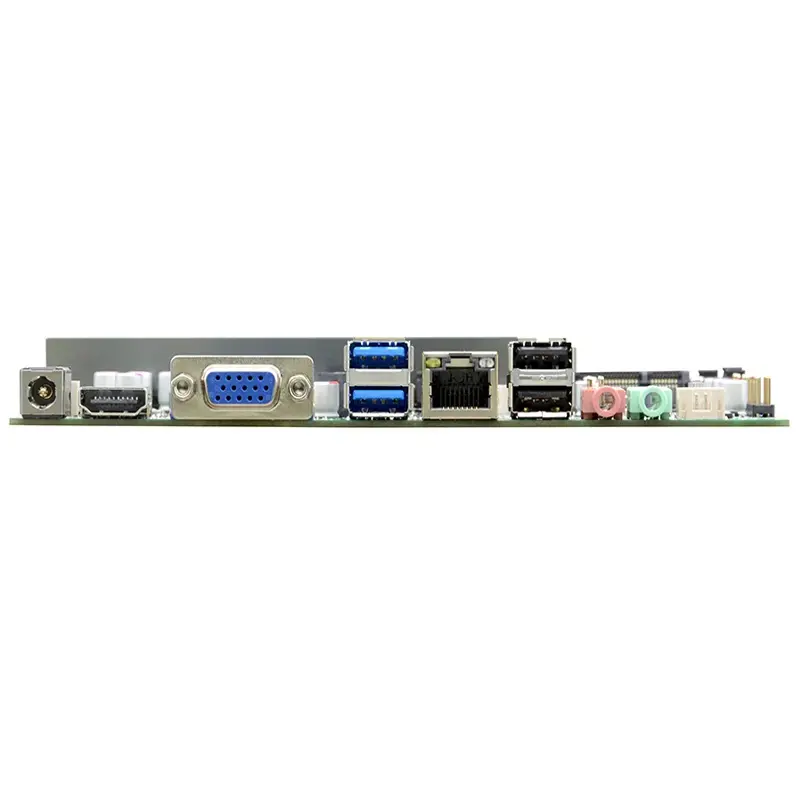

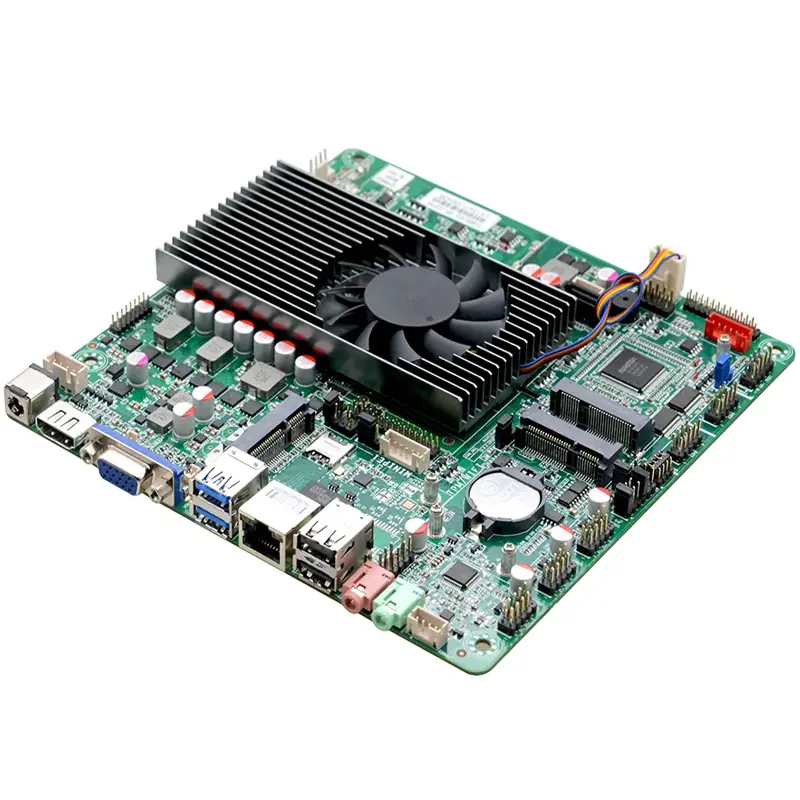

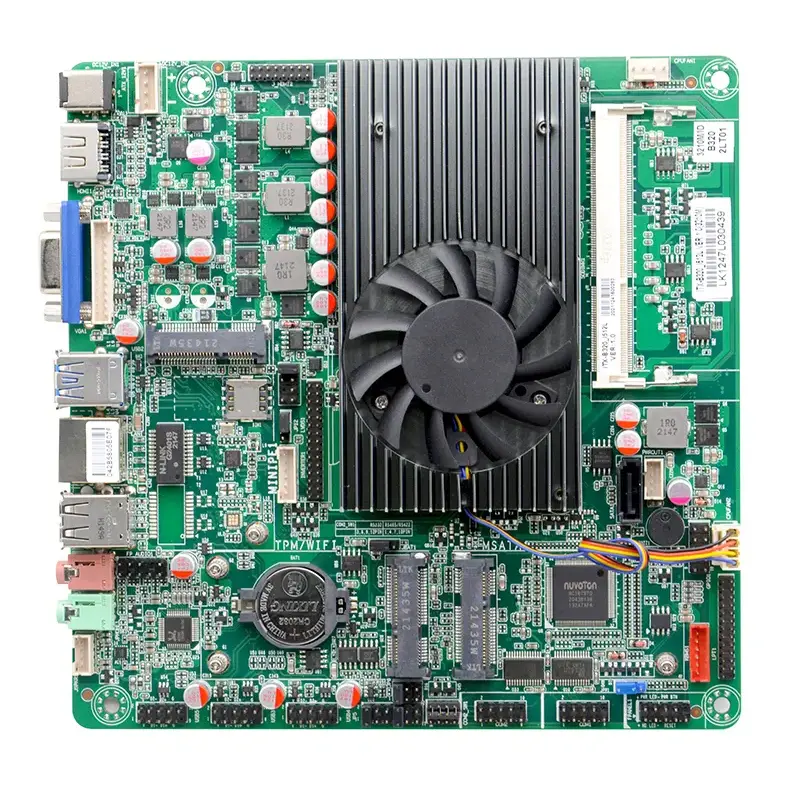

| Backplane I/O interface | 2*USB3.0,2*USB2.0 |
| 1* HD OUTPUT port | |
| 1* VGA port | |
| 1* RJ-45 Gigabit network interface | |
| 1* Line out (green) | |
| 1* Mic (red) | |
| 1* 12V DC_JACK input | |
| Built-in I/O interface | 1* LVDS interface (2*15pin), support dual channel 24bit (dual 8) |
| 1* LVDS backlight interface (1*6pin) | |
| 1* J_HD OUTPUT interface (2*8Pin) | |
| 1* JVGA1 interface (1*12pin), same signal as DB15 | |
| 2* RS232 serial port (COM2 supports RS422/485, COM1/COM2 9th pin supports live function) | |
| 1* LPT print port (2*13pin) | |
| 6* USB 2.0 interface (2*5pin) | |
| 1* PS/2 mouse and keyboard interface (1*6Pin) | |
| 1* Front panel function button and indicator interface (2*5pin) | |
| 1* Front panel audio interface (2*5pin) | |
| 1* Amplifier interface (1*4pin) | |
| 1* HDD power supply interface (1*4pin) | |
| 1* 4pin DC power interface, support 12V power input and output | |
| 1* SIM card holder | |
| Fan interface | 1*4pin CPU smart fan interface, 1*4pin system fan interface |
| GPIO | Support 4 input and output GPIO |
| BIOS | 32Mb Flash ROM |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Operating system | Windows 7/Windows 10/Linux |
| Power type | Powered by DC 12V power supply |
| Operating temperature | -10℃~60℃ |
| Storage temperature | -20℃~70℃ |
| Working humidity | 5%-95% relative humidity, non-condensing |
| Size | 170mm x 170mm |
