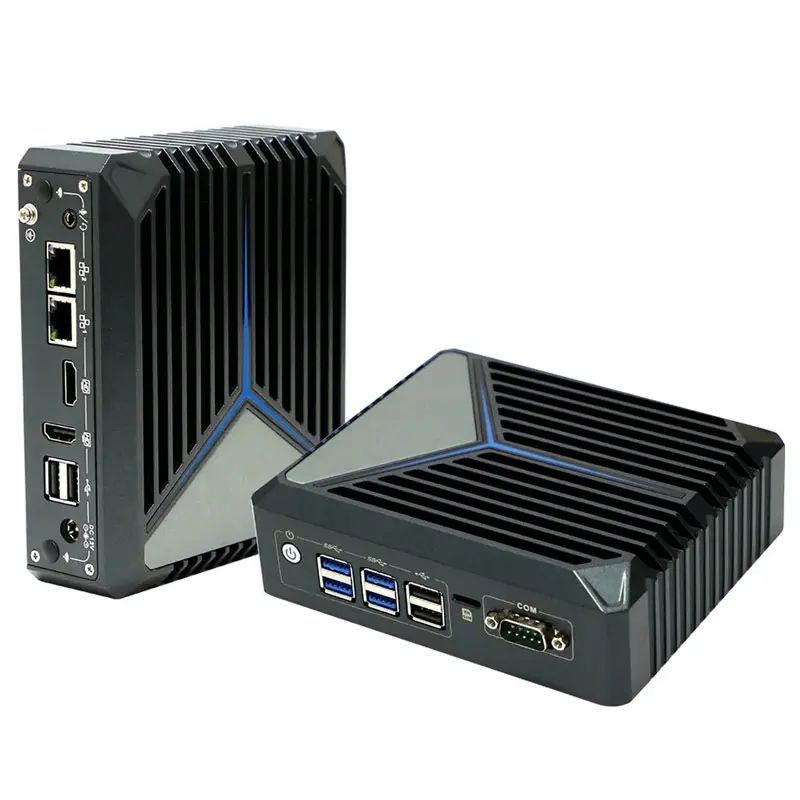

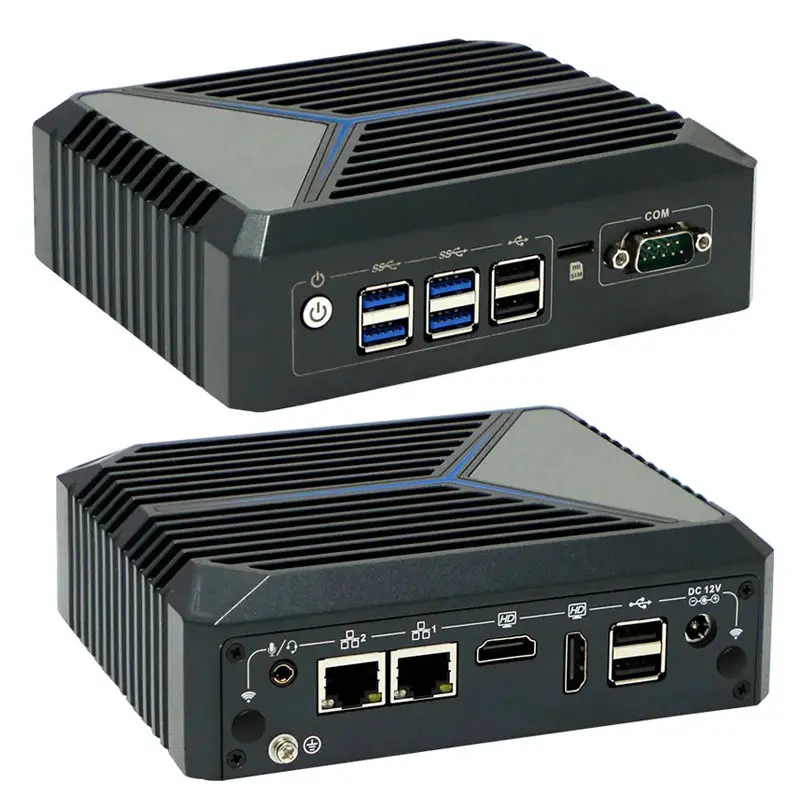

C8 Powerful Industrial 12th Gen Fanless J6412 Mini PC

  • Aluminum Build, Hard-Anodized Surface for Durability
  • Customizable Metal Gray Color Scheme
  • Lightweight at 1.5Kgs for Easy Handling
  • Desktop/Vesa Installation Flexibility
  • Intel Celeron J6412 CPU with Quad-Core Processing
  • Dual HDMI Ports, 4096×2160 @ 60Hz Resolution
  • Realtek 8111H 1000M LAN for Network Connectivity
  • DDR4 3200MHz SODIMM RAM Support up to 32GB
  • Auto Power-On, Wake On LAN, TPM2.0 Encryption

Share to:



Experience robust and reliable computing with our Intel Celeron J6412-powered Mini PC. Boasting Intel UHD Graphics, it supports dual displays at high resolutions. With 2 Realtek LAN ports, DDR4 3200MHz RAM slot, and versatile storage options like M.2 and HDD/SSD, this fanless PC ensures seamless performance. Additional features include auto power on, TPM2.0 encryption, and VESA mount support. Ideal for industrial automation, medical, logistics, and educational applications.




Material High-quality all aluminum, surface hard anodized
Colour Metal gray(Any color can be)
Size 150 x 126.5 x 45mm
Weight 1.5Kgs
Insallation Method Desktop type/Vesa
CPU Intel Celeron J6412 (Quad core quad threads, 2.0GHz, Max turbo 2.6GHz)
Display Ports 2 x HDMI (Support synchronous and asynchronous dual display, Max resolution support 4096×2160 @ 60Hz)
Graphic Intel(R) UHD Graphics
Network Card 2 x Realtek 8111H 1000M LAN
Memory 1 x DDR4 3200MHz SODIMM RAM Slot, Max Support 32GB
Storage 1 x M.2 2280 Slot,1 x 2.5 Inch HDD or SSD
Other Function Auto power on when there is electricity, Timing boot, Wake On LAN, PXE boot, Watchdog (0~255 Level),TPM2.0 security encryption
Expansion 1 x M.2 2280 M-key Slot(Support SATA Protocol)
1 x Mini PCIE Slot,WiFi or 4G

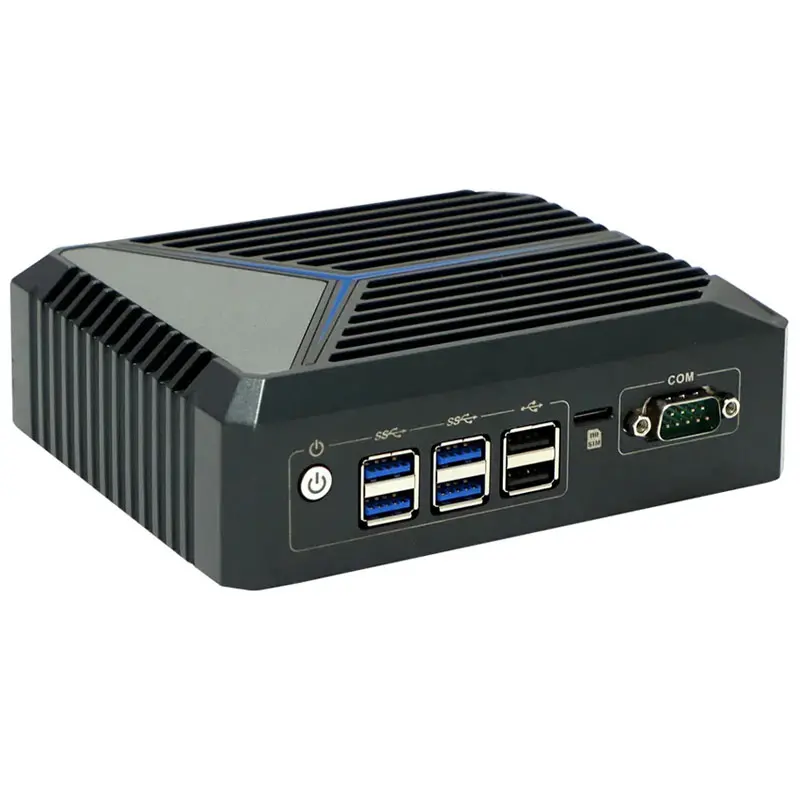

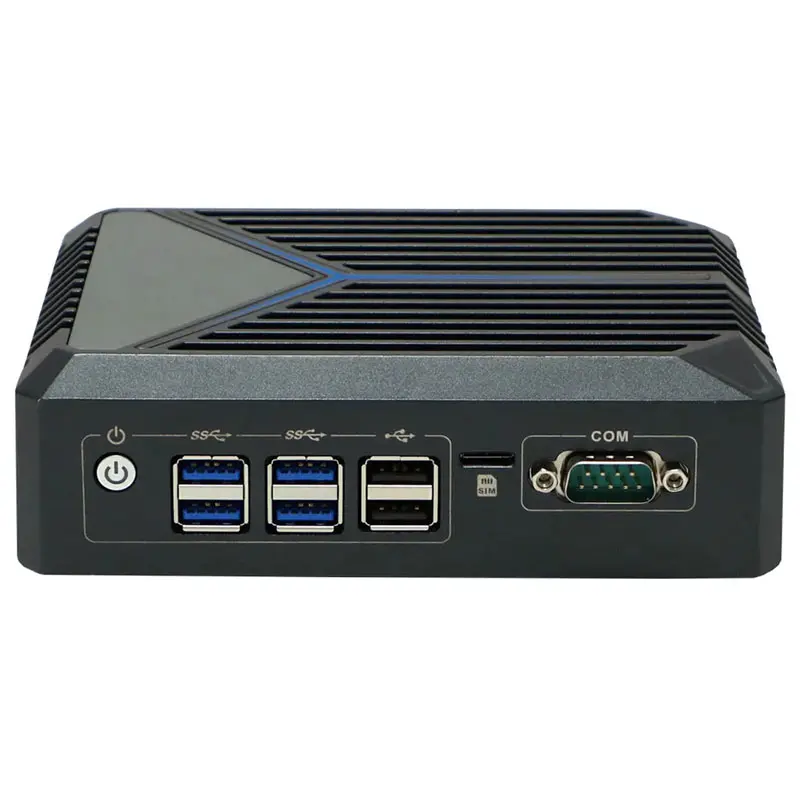

Front Panel 1 x Power Switch
4 x USB3.1
2 x USB2.0
1 x DB9 COM, 1 x SIM slot

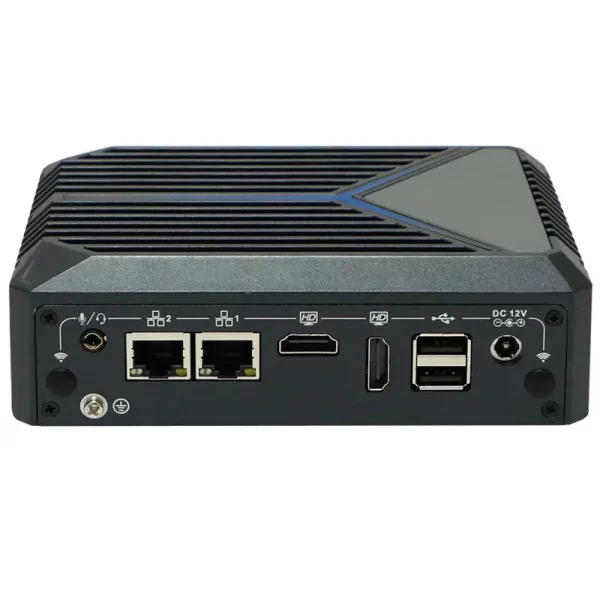

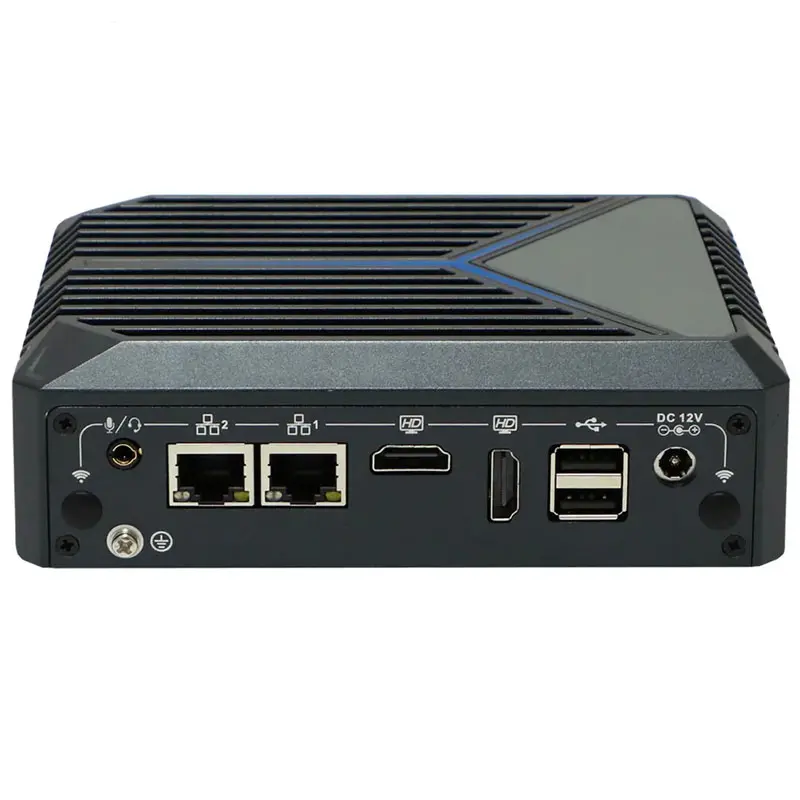

Rear Panel 1 x DC
2 x USB2.0
2 x HDMI
2 x RJ45 LAN
1 x Audio ( Support Mic and Speaker at the same time)
System Support Pre-install Windows 11 Pro 64 Bit, Also support Windows 10 pro, Linux
Cooling Mode Fanless
Power Supply DC 12V

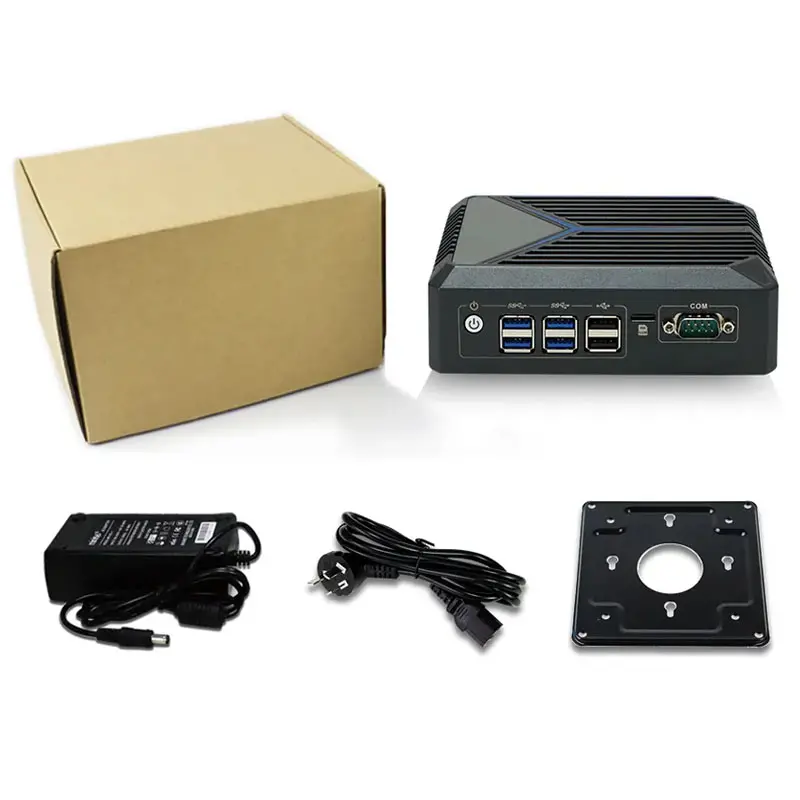

Packing List 1 x Mini PC, 1 x Power Adapter, 1 x VESA Mount & Screws
Work Temperature 0℃ ~ +40℃(Commercial HDD), -20℃ ~ +60℃(Industrial SSD), Surface air flow
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS
Application Industrial automation, medical, logistics and transportation, warehousing, electronic education etc.



Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
C8 J6412 Intel® UHD Graphics 2.0~2.6GHz 2 x HDMI 1 x SO-DIMM DDR4 1 x M.2 2280 Slot/1 x 2.5 Inch HDD or SSD 2 8 DC 12V
