C8 Fanless Mini PC for Security Networking

  • Intel Celeron J6412 CPU, 32GB RAM, UHD Graphics
  • 4 Intel i225-V 2.5G LAN ports for fast and stable network
  • 4K resolution with DP and HDMI ports.
  • M.2 2280 (SATA/NVME) and 2.5 inch HDD/SSD for speed and capacity
  • WiFi, Bluetooth, 4G modem with M.2, Mini PCIE, SIM slots
  • 6 USB Ports, 1 RJ45 COM port, 1 audio port.

Share to:

Overview



The C8 mini PC is a fanless, compact, and powerful computer that features an Intel Celeron J6412 quad core processor, up to 32GB of DDR4 RAM, and an M.2 2280 slot for fast and large storage. It also supports 4 Intel i225-V 2.5G LAN ports for high-speed and stable network connection, as well as WiFi, Bluetooth, and 4G modem for wireless connectivity. The C8 mini PC can run Windows 10/11, Linux, pfSense, and other operating systems, making it suitable for various applications such as firewall, VPN, network server, network security, router, and more. The C8 mini PC has a metal gray aluminum alloy case, a desktop type or vesa mounting installation method, and a low power consumption of 12V-IN. It comes with a power supply, a power cord, a vesa mount, and a warranty card. The C8 mini PC is a reliable and durable device that can operate in temperatures from -20°C to +60°C and has CE FCC ROHS certification. It also supports power-on, timed power-on, network wake-up, PXE boot, watchdog, and TPM2.0 security encryption functions.



Specifications



Material Aluminum alloy
Colour Metal gray(Any color can be)
Size 144 x 136.7 x 42 mm
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting
CPU Intel Celeron J6412 Quad core quad threading,2.0GHz,pulse frequency 2.6GHz
CPU Architecture Elkhart Lake
Network Card 4 x Intel i225-V 2.5G LAN
Graphic Intel UHD Graphics
Memory 1 x DDR4 3200MHz SODIMM Memory Slot, Max. Support 32GB
Storage 1 x M.2 2280 slot,1 x 2.5 inch HDD/SSD
Expand Support 1 x M.2 2280 M-key slot(support SATA protocol)
Support 1 x M.2 2230 E-key slot(support WIFI,Bluetooth)
Support 1 x Mini PCIE slot(Support 4GM modem,outside SIM slot,support USB signal WiFi/Bluetooth)

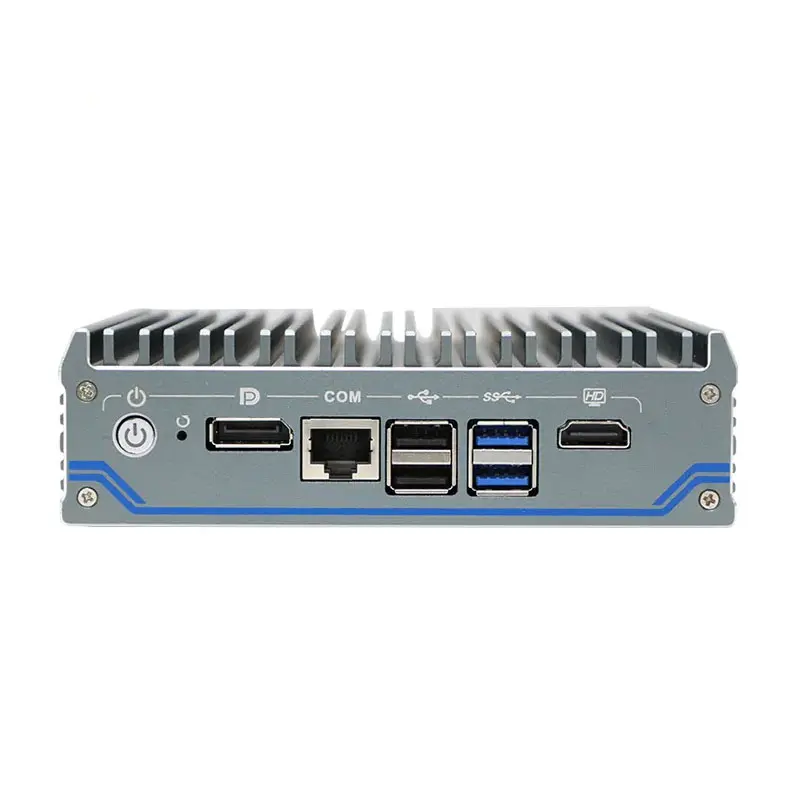

Front Panel 1 x Power button
1 xDP
1 x HDMI
1 x RJ45 COM(support Console)
2 x USB3.0
2 x USB2.0

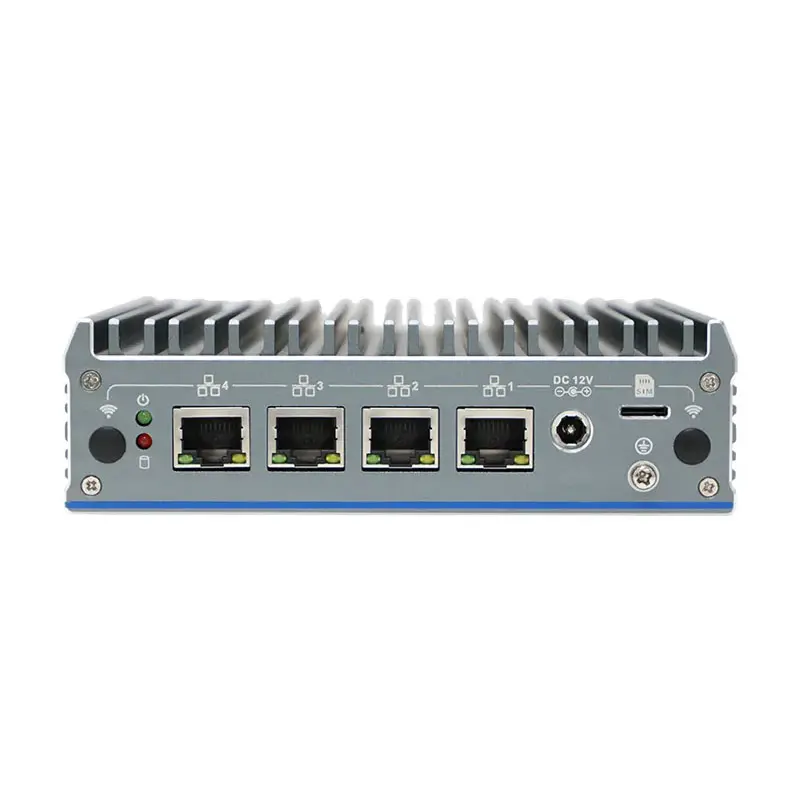

Rear Panel 4 x LAN
1 x SIM Card Slot
1 x DC-IN 12V
Bios AMI UEFI BIOS
System Support Windows 10/11, Linux, pfSense etc
Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter

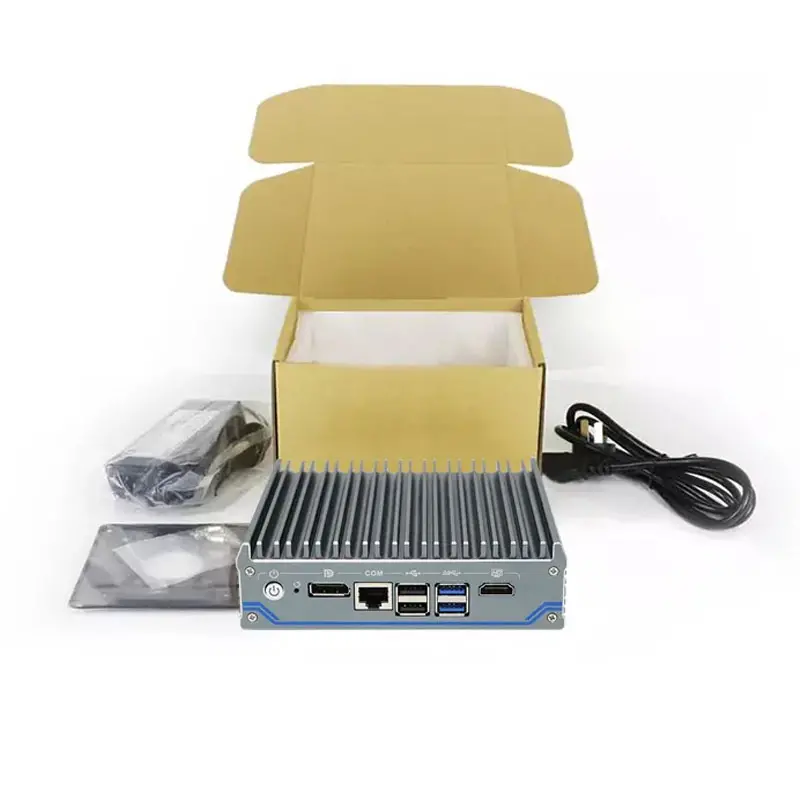

Packing List C8 mini pc, power supply, power cord, vesa, warranty card
Working Temperature 0℃ ~ +40℃,surface air flow(HDD),-20℃ ~ +60℃,surface air flow(SSD),surface air flow
Working Humidity 0% – 95% relative humidity, Non-condensing
Other Function Power-on, timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
Certification CE FCC ROHS



Get quote

If you have any question or inquiry, please don’t hesitate to contact us.



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
C8 J6412 Intel® UHD Graphics 2.0~2.6 GHz DP/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 4 4 12V/4A
