Overview
The J6412 Mini Desktop Computer is a compact and robust device that delivers excellent performance with its Intel Celeron J6412 Quad-core processor. It features 3 x Intel i225-V 2.5G LAN ports, 3 x M.2 slots, and up to 32GB of DDR4 RAM for fast and stable networking and data processing. It also supports 4K triple display with its HDMI and DP ports, making it suitable for various display setups. The J6412 Mini Desktop Computer is ideal for applications such as industrial automation, medical, logistics and transportation, warehousing, electronic education, etc.
Specifications
| Material | Aluminum alloy |
| Colour | Metal gray(color can be customized) |
| Size | 150 x 126.5 x 45 mm (W*D*H) |
| Weight | 1.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| CPU | Adopt Intel Celeron J6412 quad core 2.0GHz |
| CPU Architecture | Elkhart Lake |
| Network Card | 3 x Intel i225-V 2.5G LAN |
| Mainboard | 120*120mm mini itx mainboard |
| Memory | 1 x DDR4 3200MHz SODIMM, Max 32 GB |
| Display Port | 1 x HD Port, 2 x DP Port |
| Audio | Integrated Realtek ALC662 6sound channel |
| Storage | 1 x M.2 2280 slot, 1 x 2.5 inch HDD/SSD |
| Expand | 1 x M.2 2280 M-key slot( support SATA protocol) |
| 1 x M.2 3052 B-key slot(USB3.0 signal,support 4G/5G),1 x SIM slot | |
| 1 x M.2 2230 E-key slot(support WIFI, BT) | |

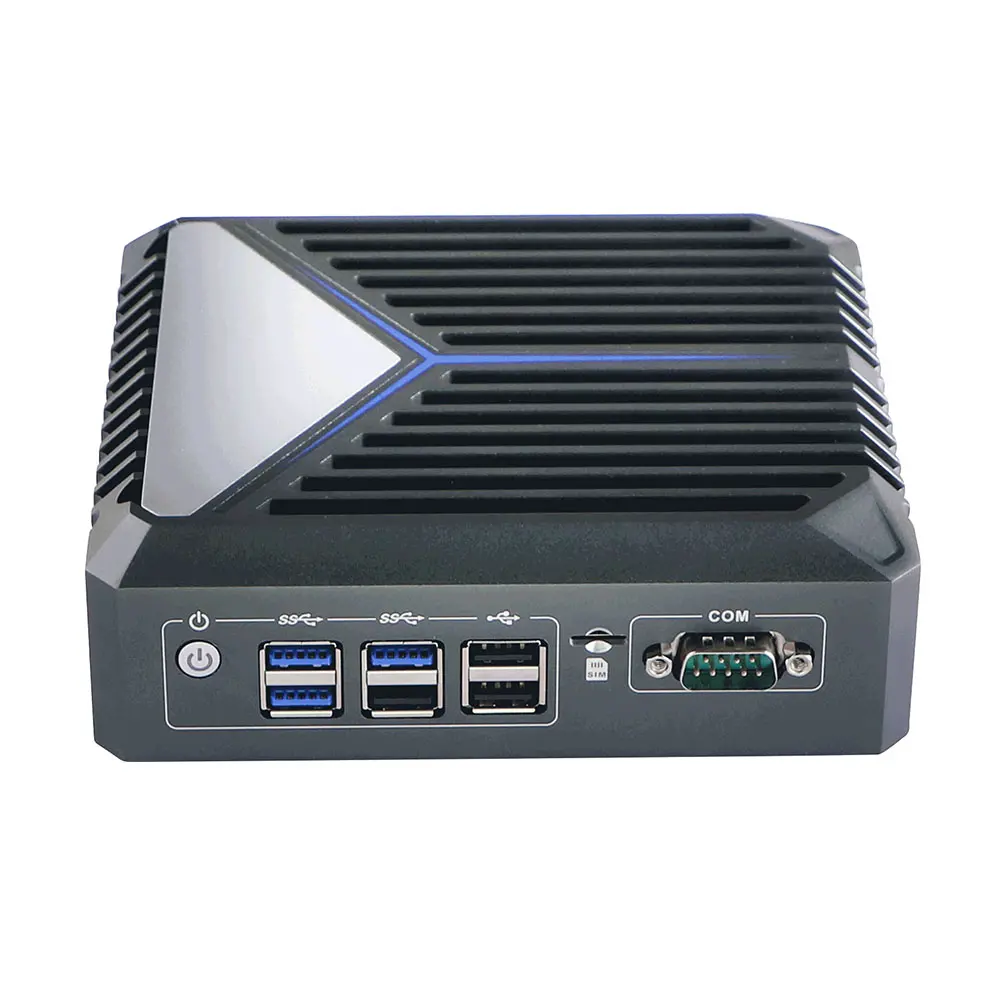

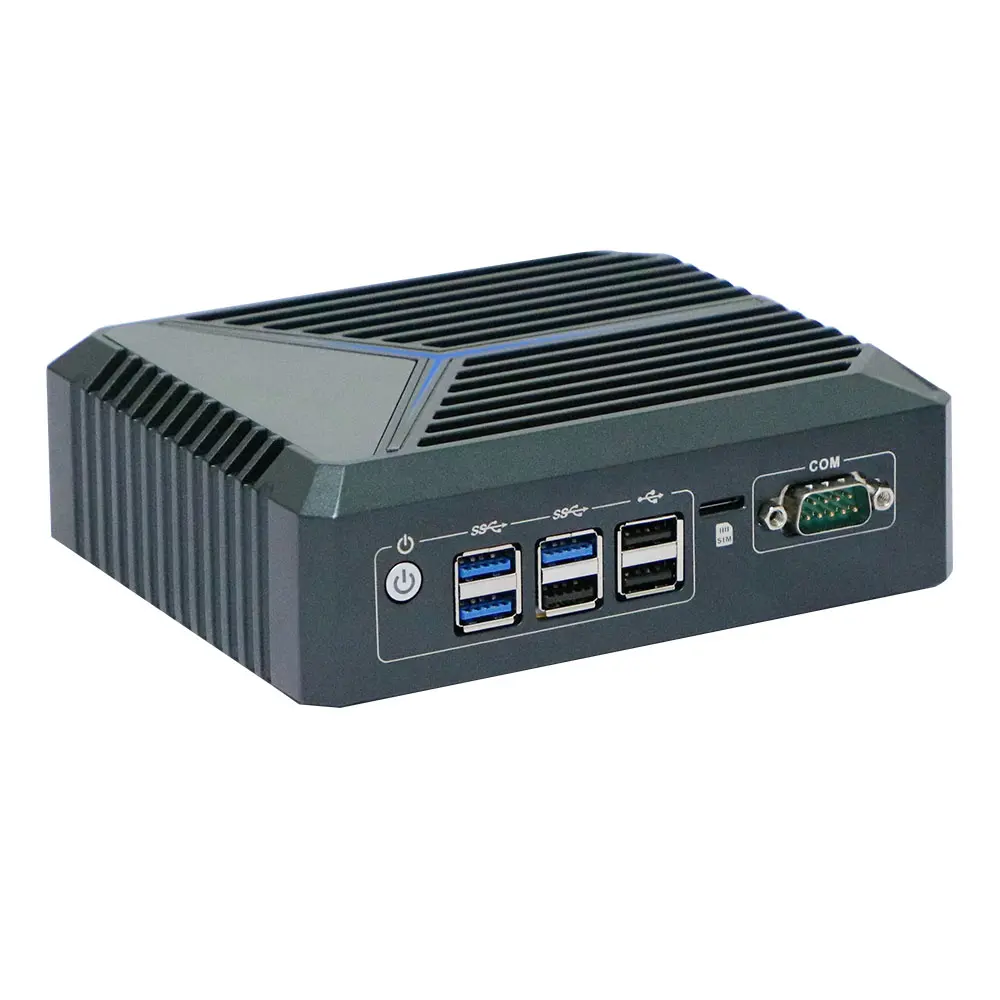

| Front Panel | 1 x Power button |
| 3 x USB2.0 | |
| 3 x USB3.0 | |
| 1 x COM | |
| 1 x SIM Card Slot | |

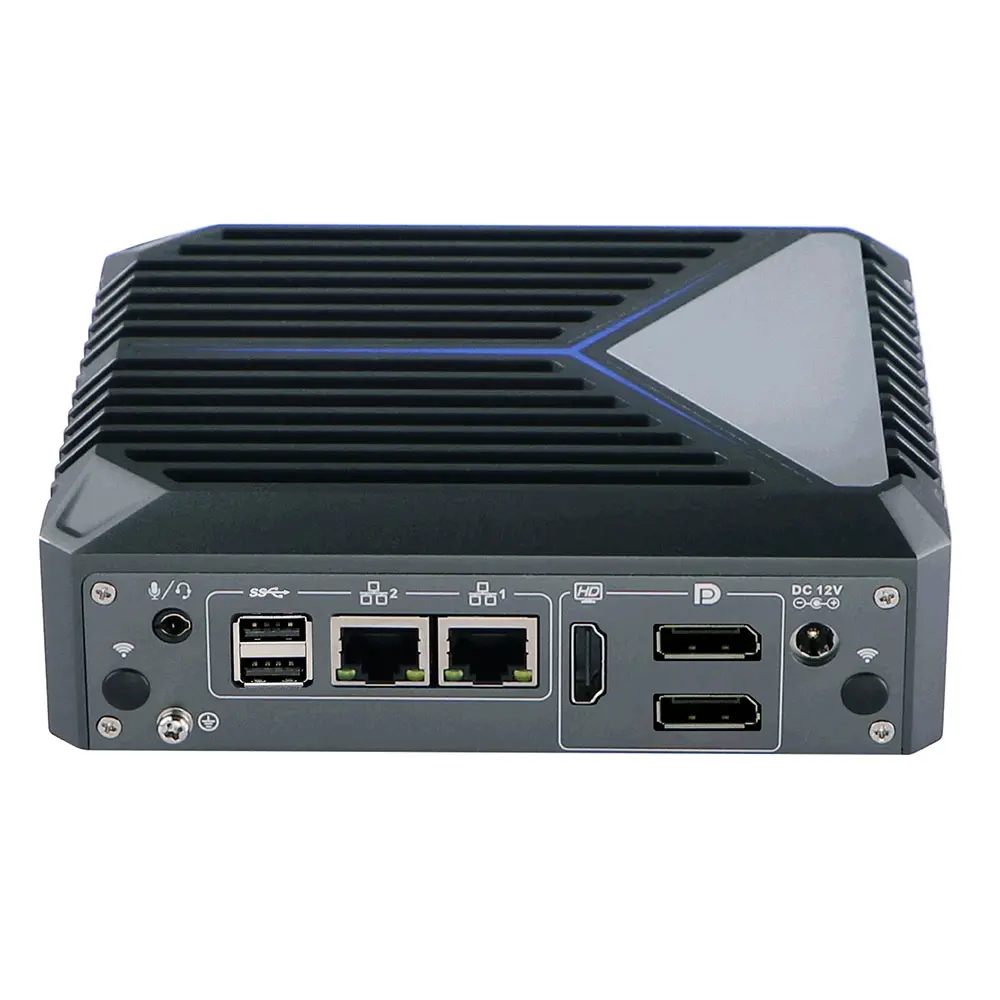

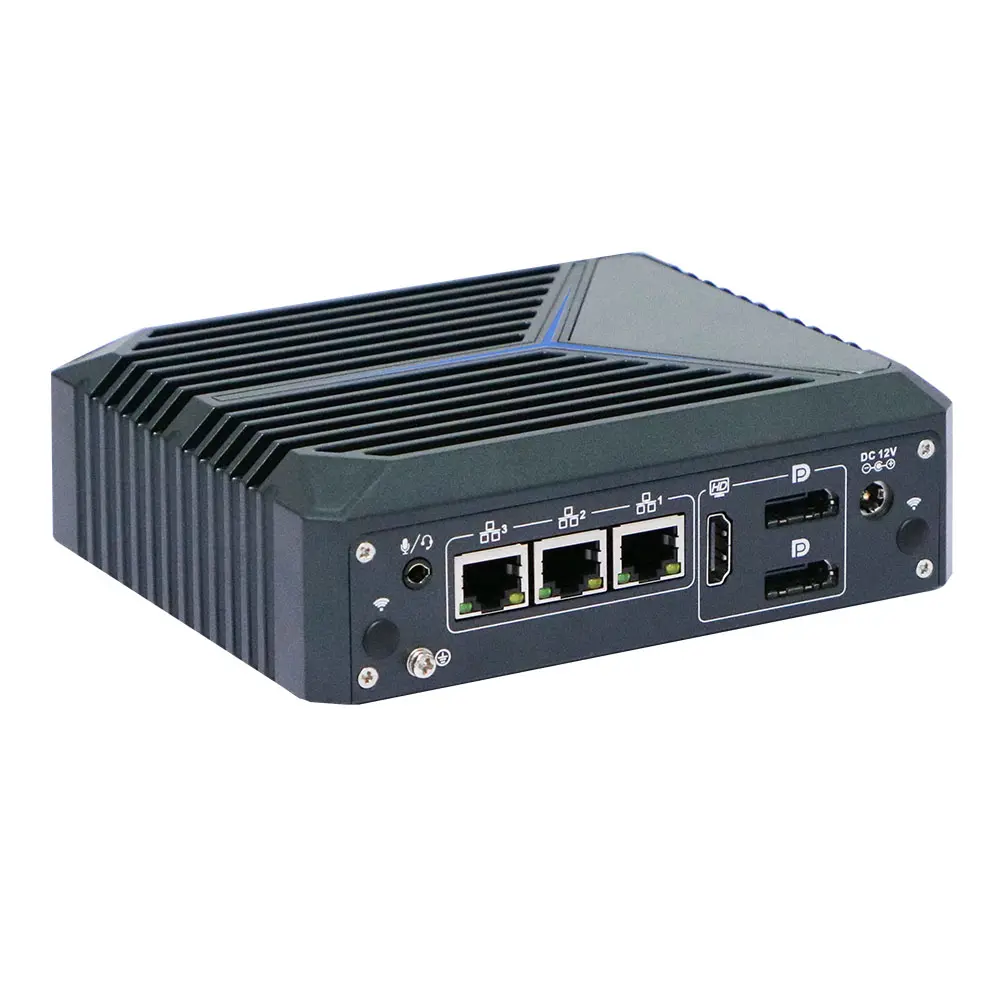

| Rear Panel | 3 x LAN |
| 1 x DP(4K 60Hz) | |
| 1 x HDMI(4K 60Hz) | |
| 1 x Audio(Mic and Speaker) | |
| 1 x DC-IN 12V | |
| Bios | AMI UEFI BIOS |
| System Support | Windows 10/11, Linux, pfSense etc |
| Cooling Mode | Fanless |
| Power Supply | DC 12V-IN power supply and AC power adapter |
| Packing List | C6 mini pc, power supply, power cord, vesa, warranty card |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education, etc |
| Working Temperature | 0℃ ~ +40℃(Commercial HDD),-20℃ ~ +60℃(Industrial SSD),Surface air flow |
| Working Humidity | 0% – 95% relative humidity, Non-condensing |
| Other Function | Support Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Certification | CE FCC ROHS |
