Overview

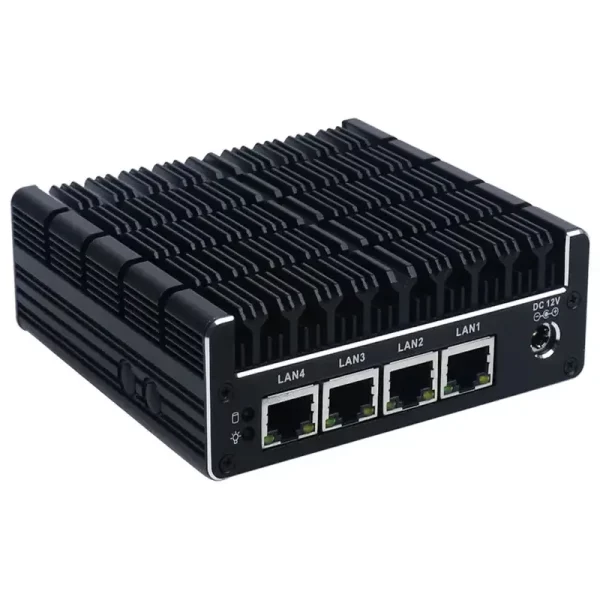

The J3160 Firewall PC is a robust and reliable device that can safeguard your network from various online threats and intrusions. It is powered by a J3160 processor, which delivers low power consumption and stable performance. It also has 4 LAN ports and 1 RJ45 COM port, which support high-speed data transmission and flexible network configuration.
Specifications
| Material | Aluminum alloy |
| Colour | Black(color can be customized) |
| Size | 115 x 107.5 x 39 mm (W*D*H) |
| Weight | 1.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| CPU | Intel Celeron Procesor J3160(2M Cache, up to 2.24 GHz) |

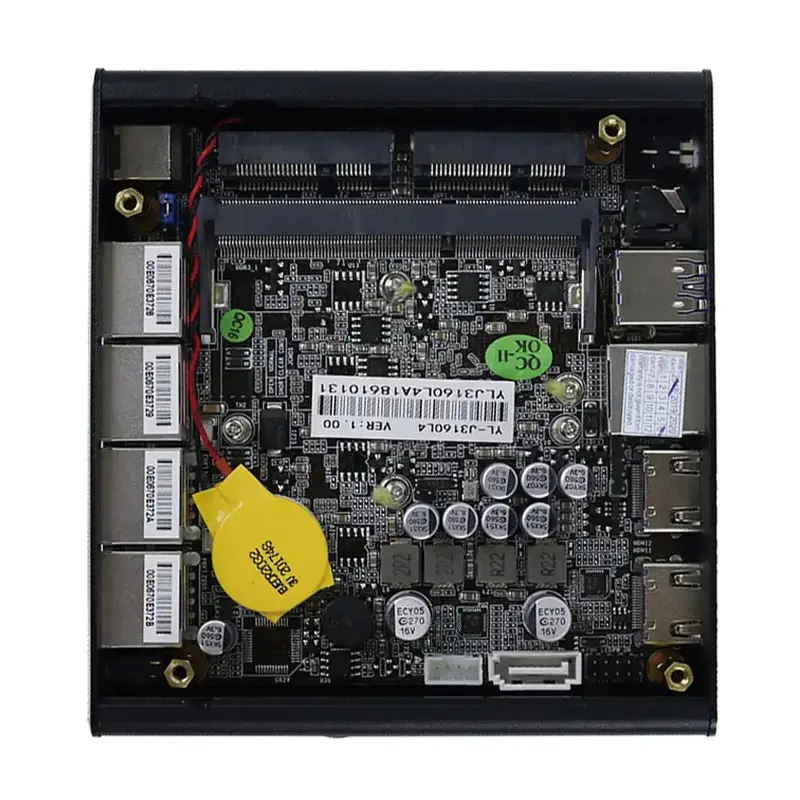

| Mainboard | 100 x 100mm NUC mainboard |
| Network Card | 4 x Intel i210AT 1000M lan, support wake on lan |
| Chipset | Intel Integrated Chipset |
| Memory | 1 x DDR3L 1600Mhz So-DIMM Ram Slot, Max 8G |
| Storage | 1 x mSATA SSD |
| CPU | Intel Celeron,Procesor J3060(2M Cache, up to 2.48 GHz) |
| Mainboard | 100 x 100mm NUC mainboard |
| Network Card | 2 x Intel i211AT 1000M lan, support wake on lan |
| Chipset | Intel Integrated Chipset |
| Memory | 1 x DDR3L 1600Mhz So-DIMM Ram Slot, Max 8G |
| Storage | 1 x mSATA SSD |
| Expand | 1 x Mini-PCIE(support SMATA), 1 x Mini-PCIE(support WiFi/BT optional) |
| Front Panel | 1 x Power button |
| 1 x Audio/MIC | |
| 2 x USB3.0 | |
| 1 x RJ45 COM(support Console) | |
| 2 x HDMI | |
| Rear Panel | 4 x USB2.0 |
| 2 x LAN | |
| 1 x DC-IN 12V | |
| Expand | 1 x Mini-PCIE(support SMATA), 1 x Mini-PCIE(support WiFi/BT optional) |

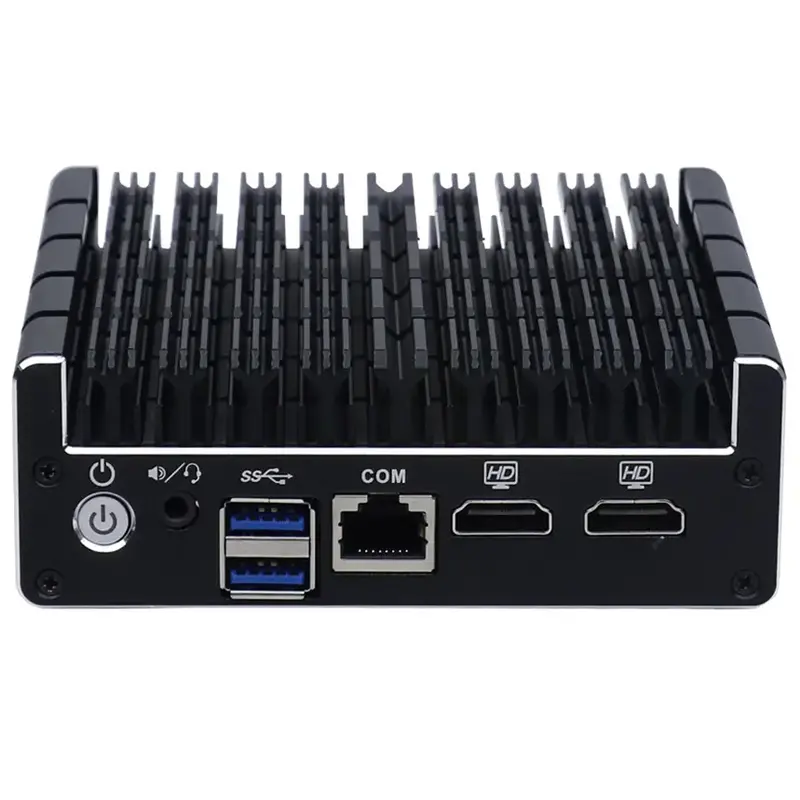

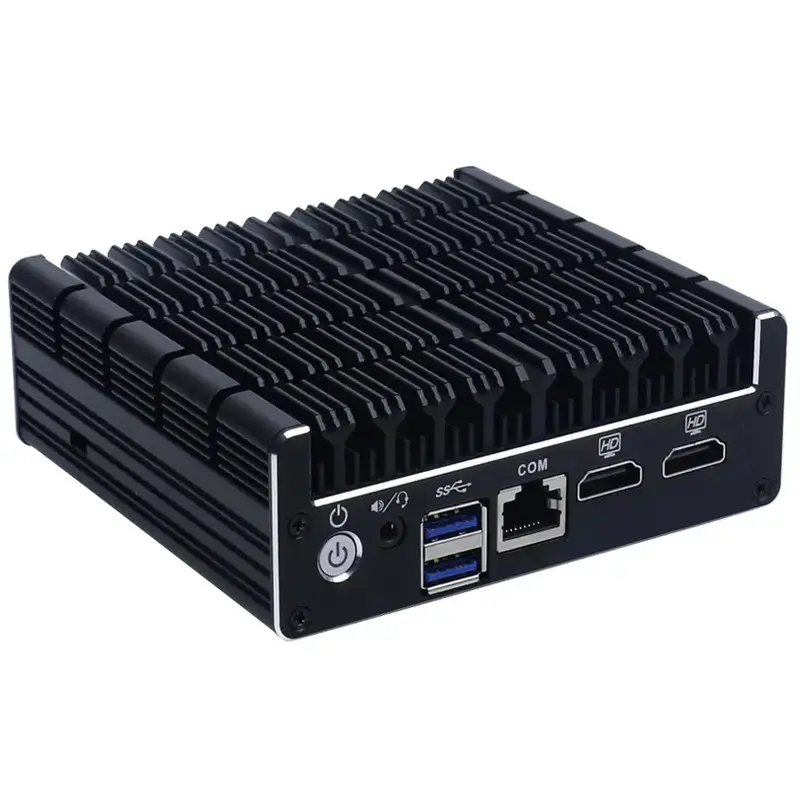

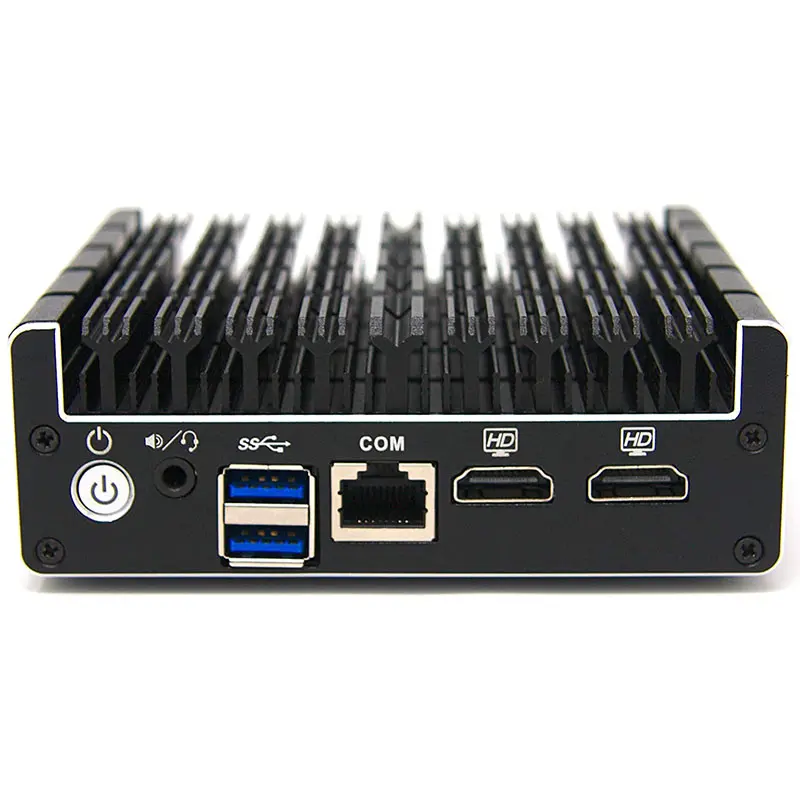

| Front Panel | 1 x Power button |
| 1 x Audio/MIC | |
| 2 x USB3.0 | |
| 1 x RJ45 COM(support Console) | |
| 2 x HDMI | |

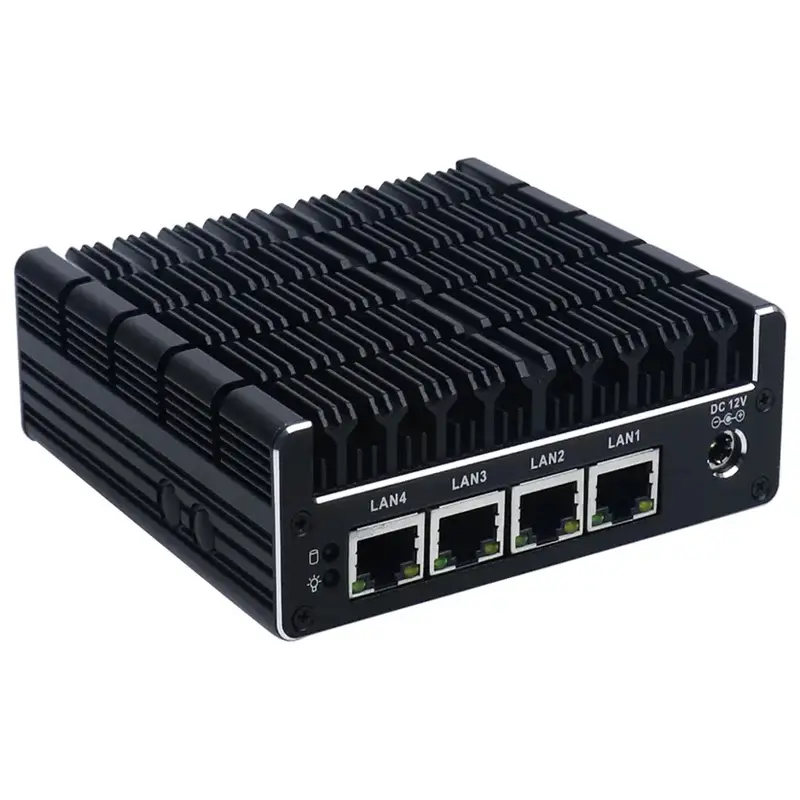

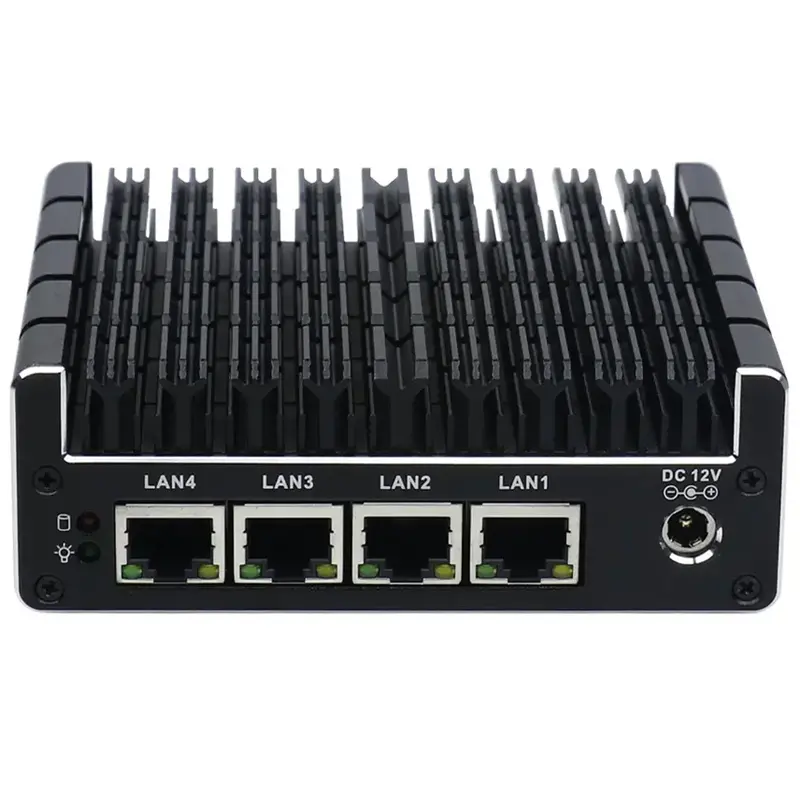

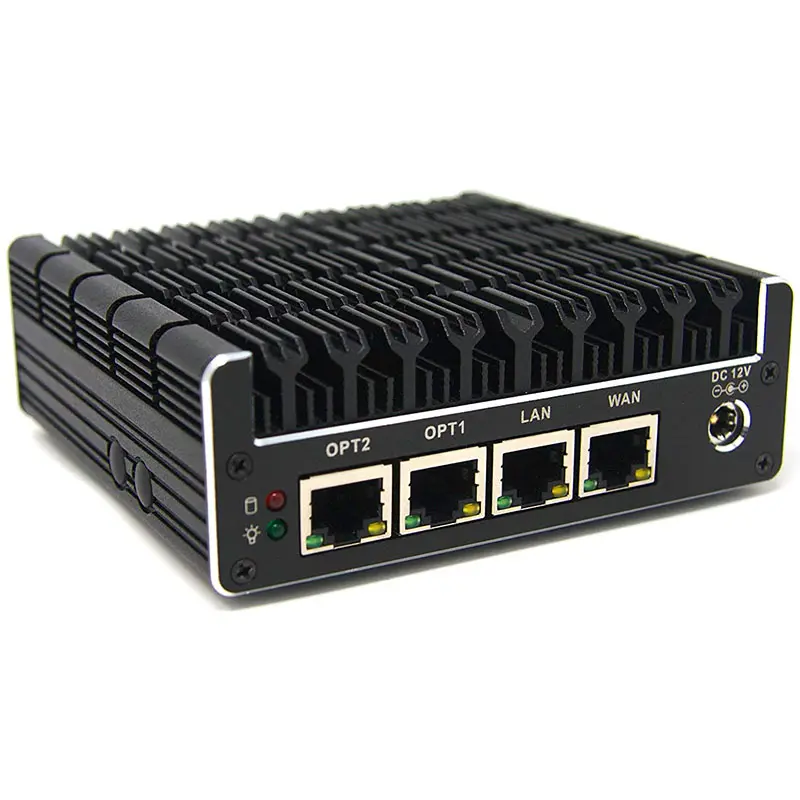

| Rear Panel | 4 x LAN |
| 1 x DC-IN 12V | |
| Bios | AMI 64Mbit Flash ROM |
| System Support | Windows 7/8/10, Linux, pfSense etc |
| Cooling Mode | Fanless |
| Power Supply | DC 12V-IN power supply and AC power adapter |

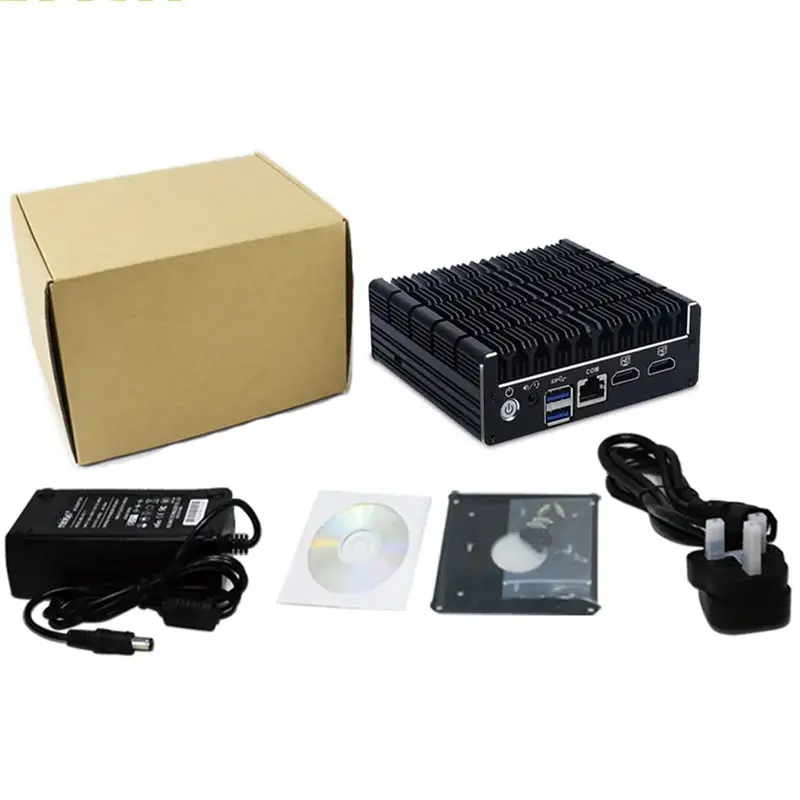

| Packing List | C4-L4 mini pc, power supply, power cord, vesa, warranty card |
| Working Temperature | -10°C – 50°C |
| Working Humidity | 0% – 95% relative humidity, Non-condensing |
| Watch Dog Timer | Support |
| Certification | CE FCC ROHS |
