Overview

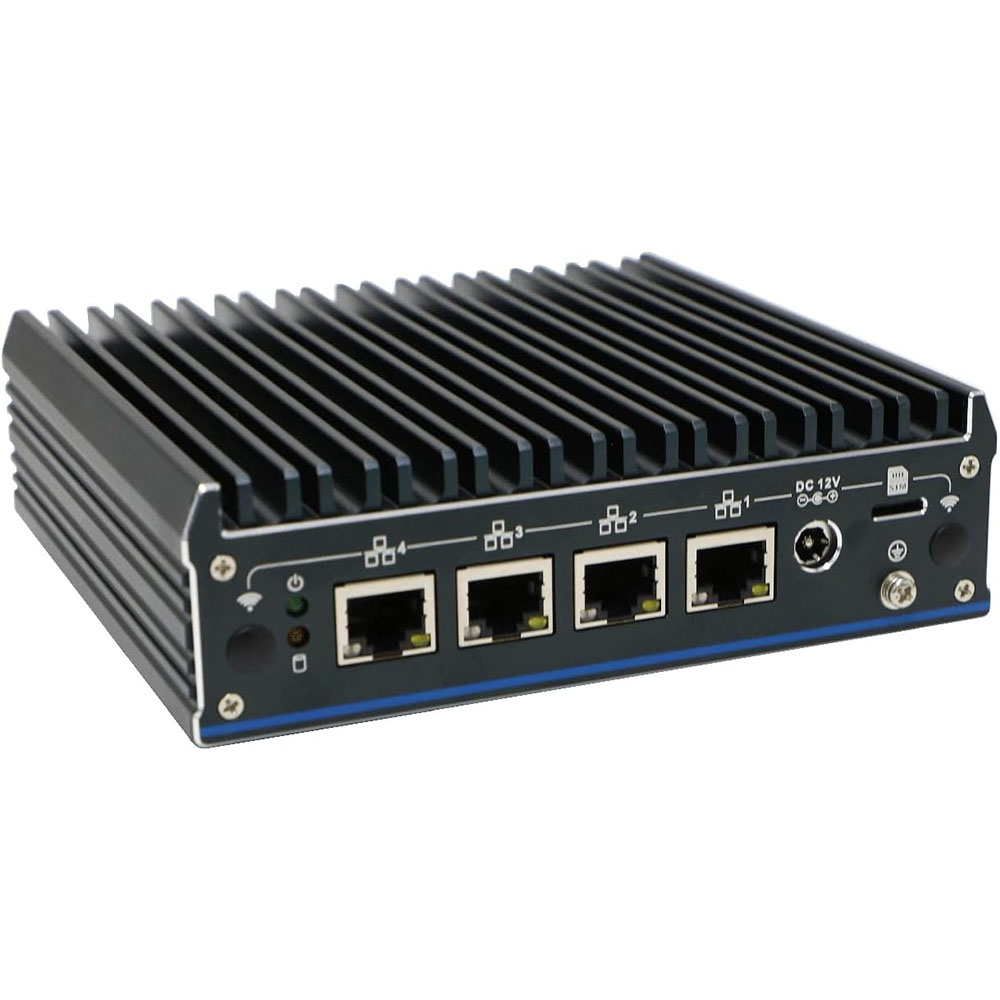

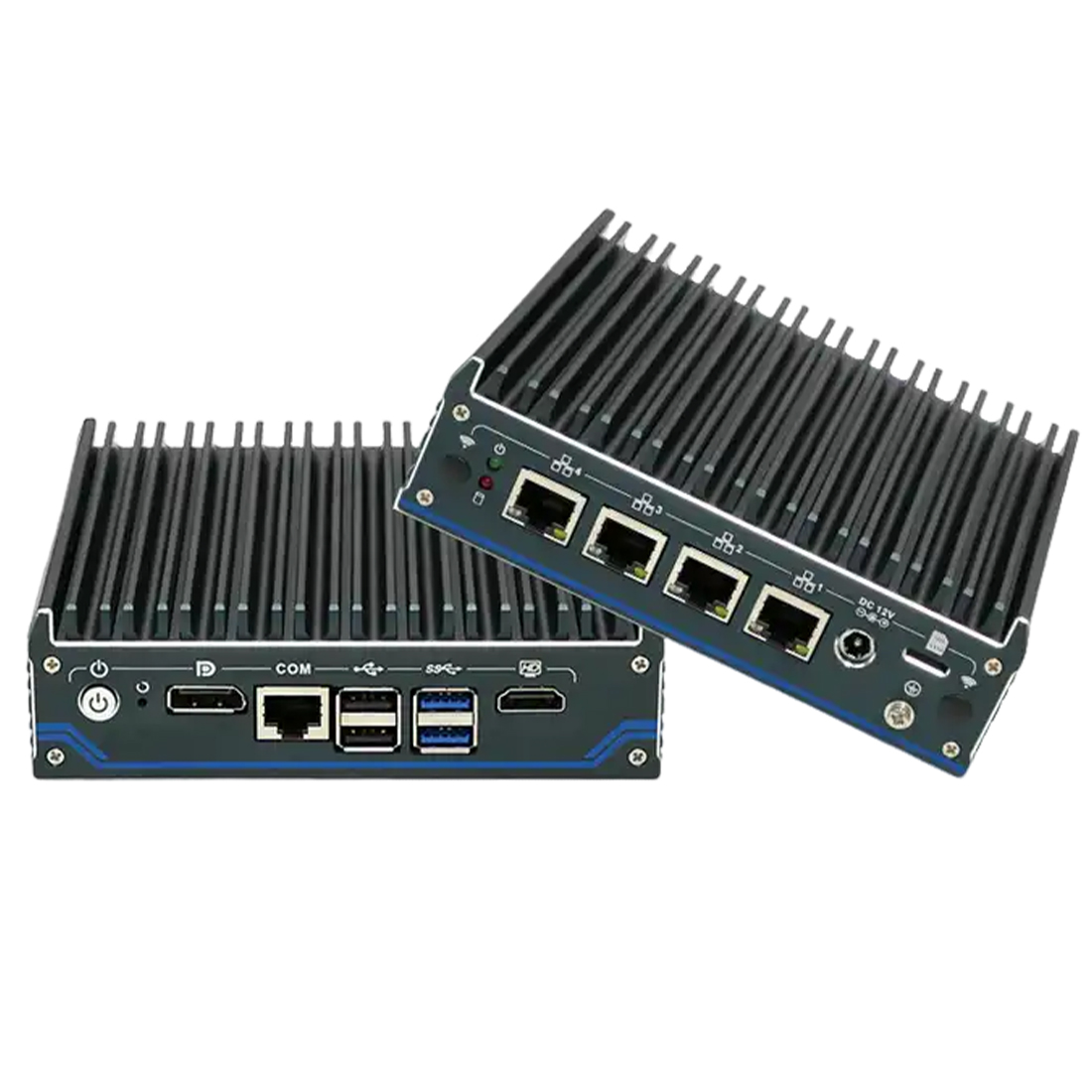

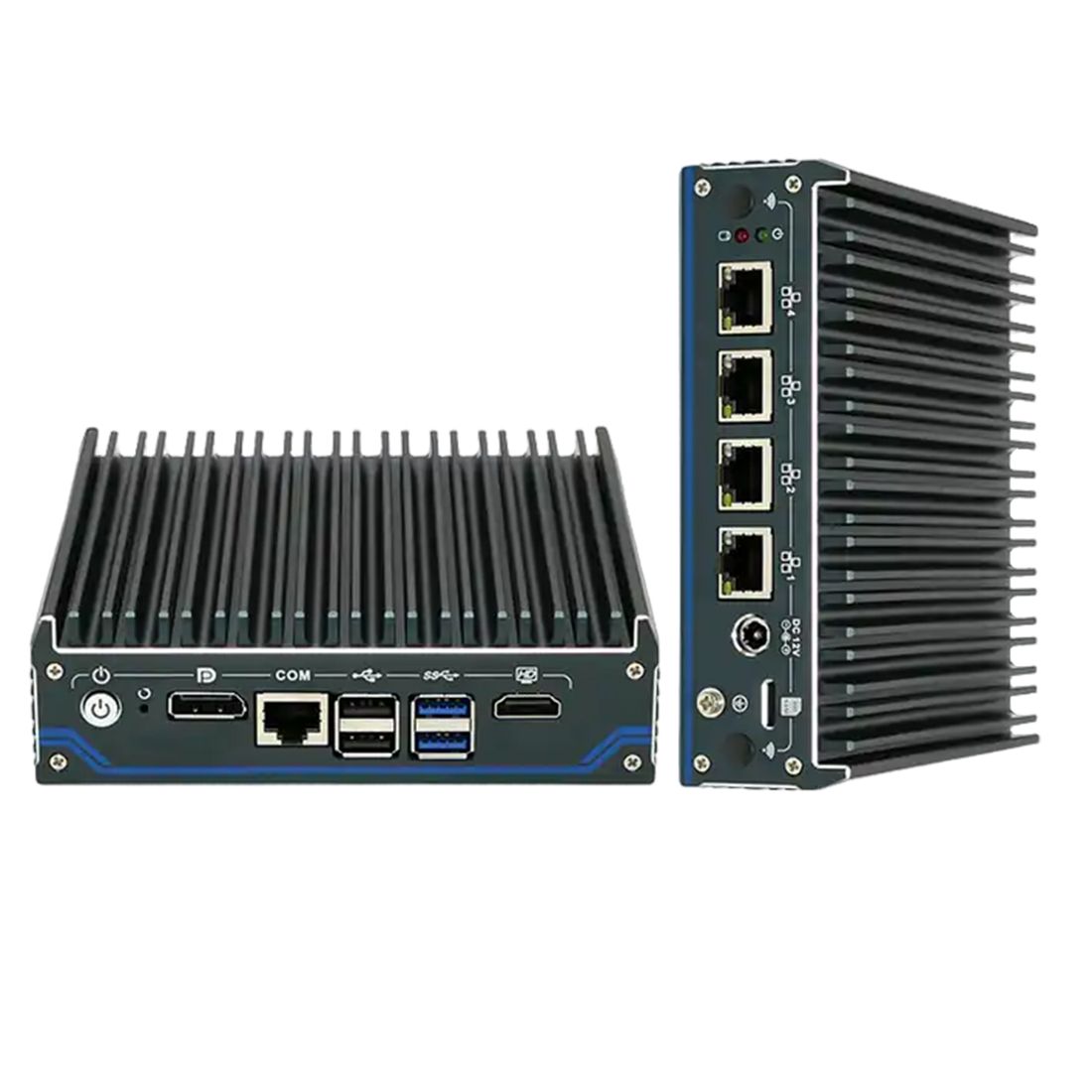

The C10 mini PC is a fanless, compact, and powerful computer that features an Intel Celeron J6412 quad core processor, up to 32GB of DDR4 RAM, and an M.2 2280 slot for fast and large storage. It also supports 4 Intel i225-V 2.5G LAN ports for high-speed and stable network connection, as well as WiFi, Bluetooth, and 4G modem for wireless connectivity. The C8 mini PC can run Windows 10/11, Linux, pfSense, and other operating systems, making it suitable for various applications such as firewall, VPN, network server, network security, router, and more. The C8 mini PC has a metal gray aluminum alloy case, a desktop type or vesa mounting installation method, and a low power consumption of 12V-IN. It comes with a power supply, a power cord, a vesa mount, and a warranty card. The C8 mini PC is a reliable and durable device that can operate in temperatures from -20°C to +60°C and has CE FCC ROHS certification. It also supports power-on, timed power-on, network wake-up, PXE boot, watchdog, and TPM2.0 security encryption functions.
Specifications
| Material | Aluminum alloy |
| Colour | Metal gray(Any color can be) |
| Size | 144 x 136.7 x 42 mm |
| Weight | 1.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| CPU | Intel Celeron J6412 Quad core quad threading，2.0GHz，pulse frequency 2.6GHz |
| CPU Architecture | Elkhart Lake |
| Network Card | 4 x Intel i225-V 2.5G LAN |
| Graphic | Intel UHD Graphics |
| Memory | 1 x DDR4 3200MHz SODIMM Memory Slot, Max. Support 32GB |
| Storage | 1 x M.2 2280 slot,1 x 2.5 inch HDD/SSD |
| Expand | Support 1 x M.2 2280 M-key slot(support SATA protocol) |
| Support 1 x M.2 2230 E-key slot(support WIFI,Bluetooth) | |
| Support 1 x Mini PCIE slot(Support 4GM modem,outside SIM slot,support USB signal WiFi/Bluetooth) | |

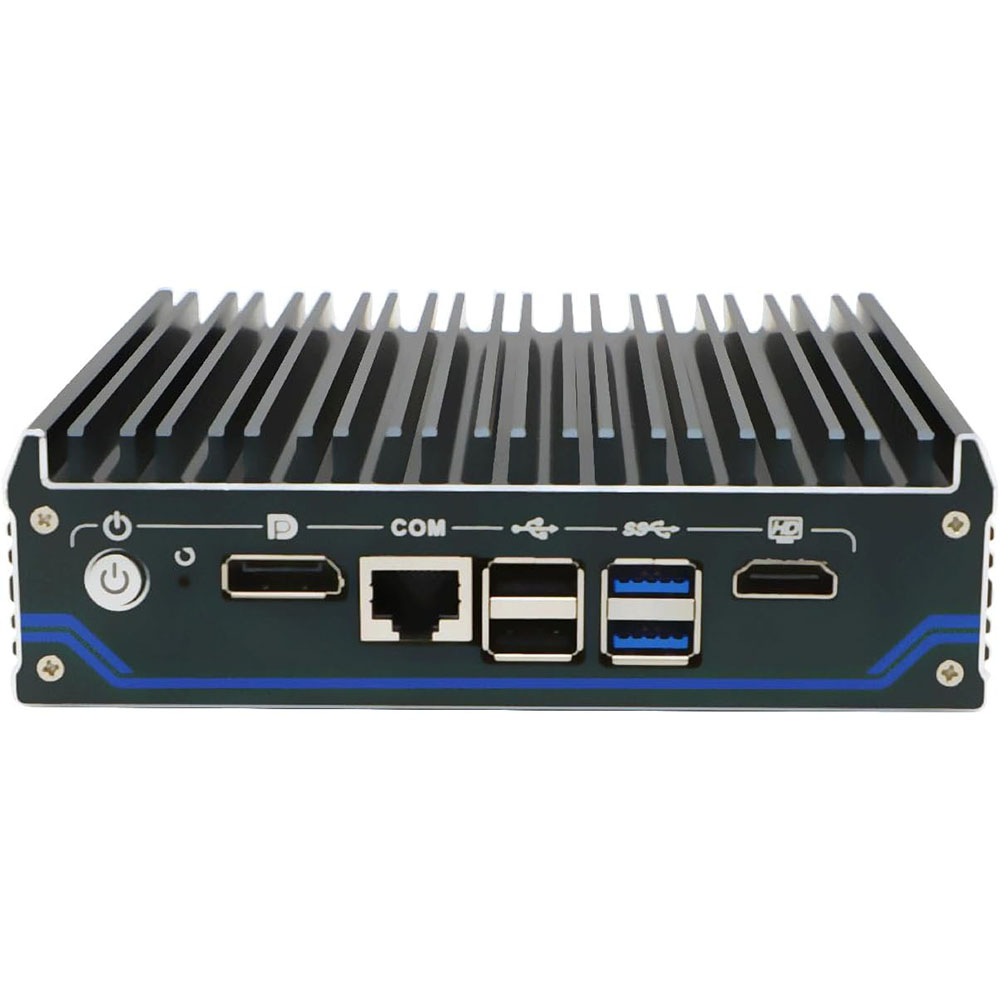

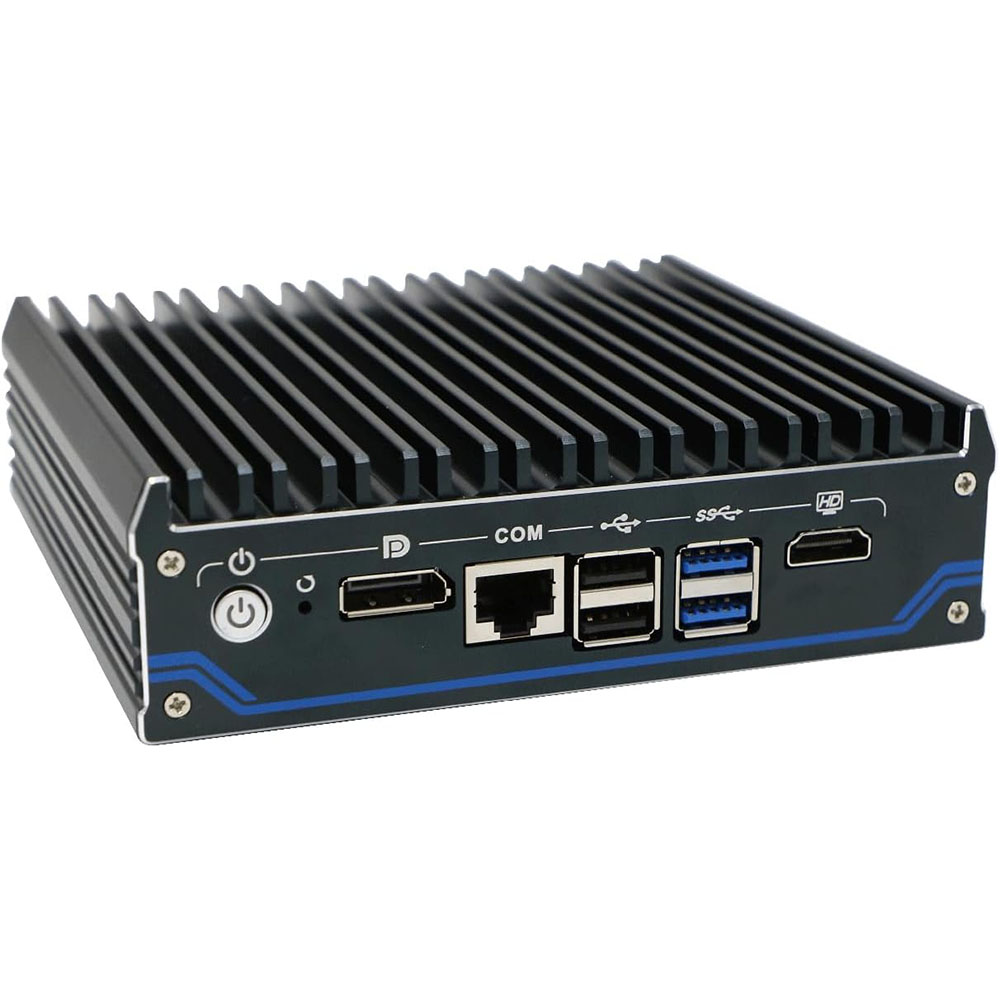

| Front Panel | 1 x Power button |
| 1 xDP | |
| 1 x HDMI | |
| 1 x RJ45 COM(support Console) | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |

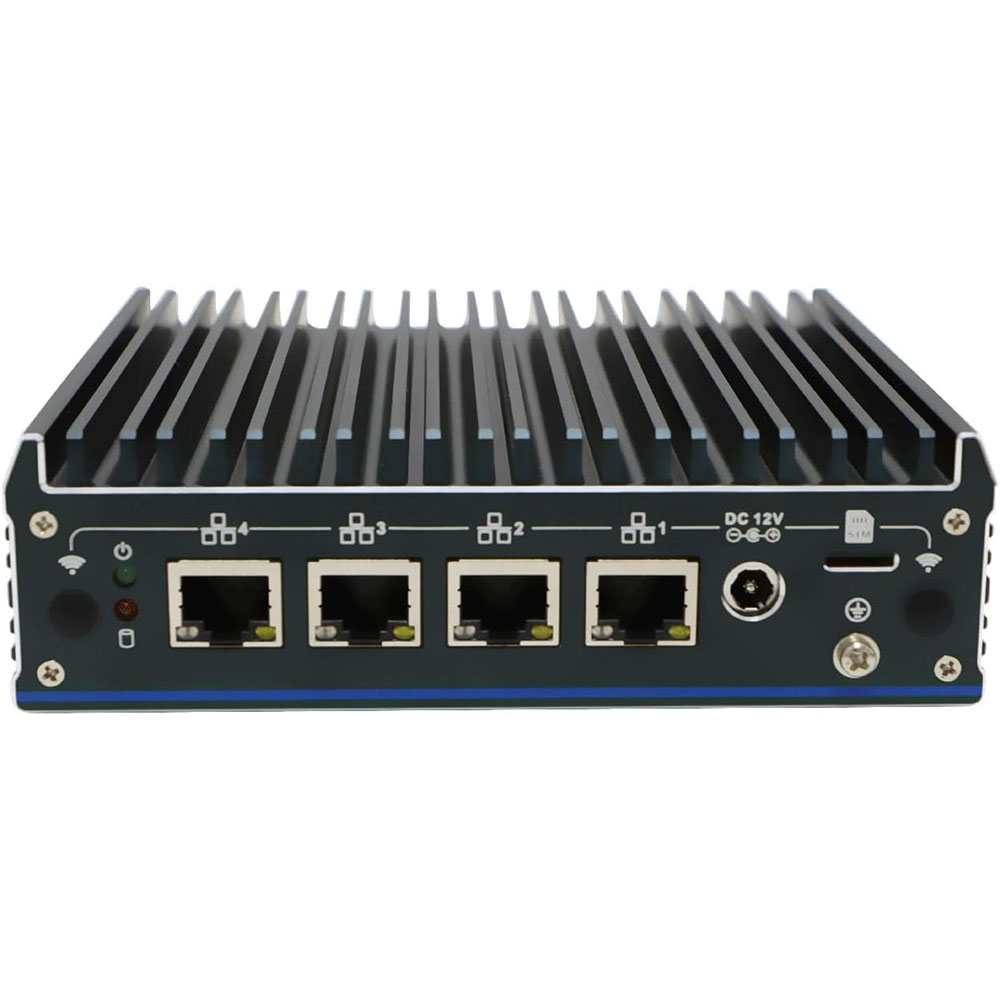

| Rear Panel | 4 x LAN |
| 1 x SIM Card Slot | |
| 1 x DC-IN 12V | |
| Bios | AMI UEFI BIOS |
| System Support | Windows 10/11, Linux, pfSense etc |
| Cooling Mode | Fanless |
| Power Supply | DC 12V-IN power supply and AC power adapter |
| Packing List | C8 mini pc, power supply, power cord, vesa, warranty card |
| Working Temperature | 0℃ ～ +40℃,surface air flow(HDD),-20℃ ～ +60℃,surface air flow(SSD),surface air flow |
| Working Humidity | 0% – 95% relative humidity, Non-condensing |
| Other Function | Power-on, timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Certification | CE FCC ROHS |
