Overview
Experience the 6 Port Firewall Mini PC: a compact, fanless powerhouse. It’s equipped with an Intel quad-core 8th Gen Core i5/i7 processor for high performance and low power consumption. With 2 DDR4 RAM slots for up to 32GB memory, and support for MSATA and 2.5″ HDD, it offers flexibility and ample storage. Boasting 6 Intel 1000M LAN ports, it’s perfect for firewall, VPN, network security, IoT, and more.
Specifications
| Material | Aluminum alloy |
| Colour | Black(color can be customized) |
| Size | 186 x126.5 x 66 mm |
| Weight | 2.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| CPU | Ondoard Intel Core i5 8250U（quad core,8 threads,1.6G，Max.Turbo 3.4G,6MB Cache） |
| Onboard Intel Core i7 8550U（quad core,8 threads, 1.8G，Max.Turbo 4.0G,8MB Cache） | |
| Onboard Intel Celeron 3867U（dual core,2 threads, 1.8G，2MB Cache） | |
| Graphic | Integrated Intel UHD Graphics 620/610 |
| Network Card | 6 x Intel i211-AT 10/100/1000M LAN, I210 for 3867U |
| Display Port | 1 x HDMI |
| Memory | Support 2 x DDR4 2133/2400 MHz SODIMM RAM slot，Max. 32 GB |
| Storage | 1 x mSATA SSD, 1 x 2.5 inch SSD/HDD |
| Expand | 1 x Half height MINI PCIE slot (WIFI/BT Optional), |
| Support 1 x Full height MINI PCIE slot (Support MSATA/4G, 1 x Nano-SIM slot on the plate) | |

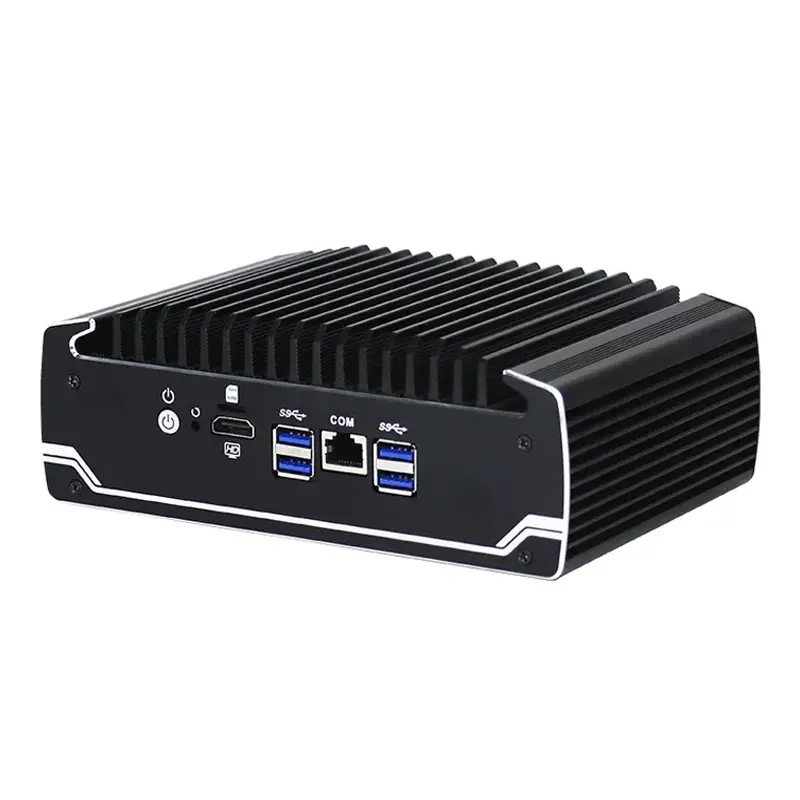

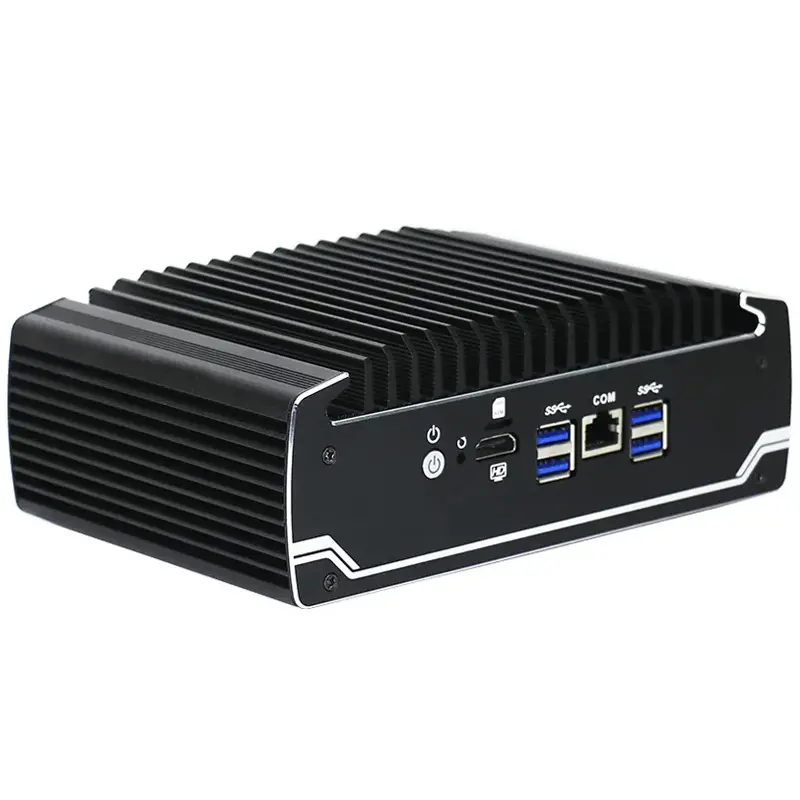

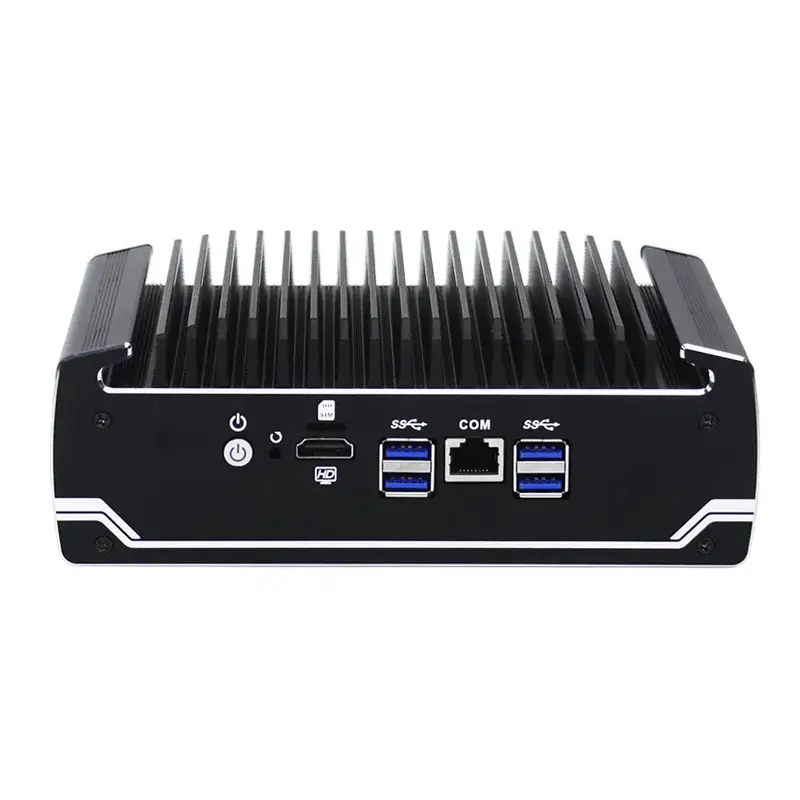

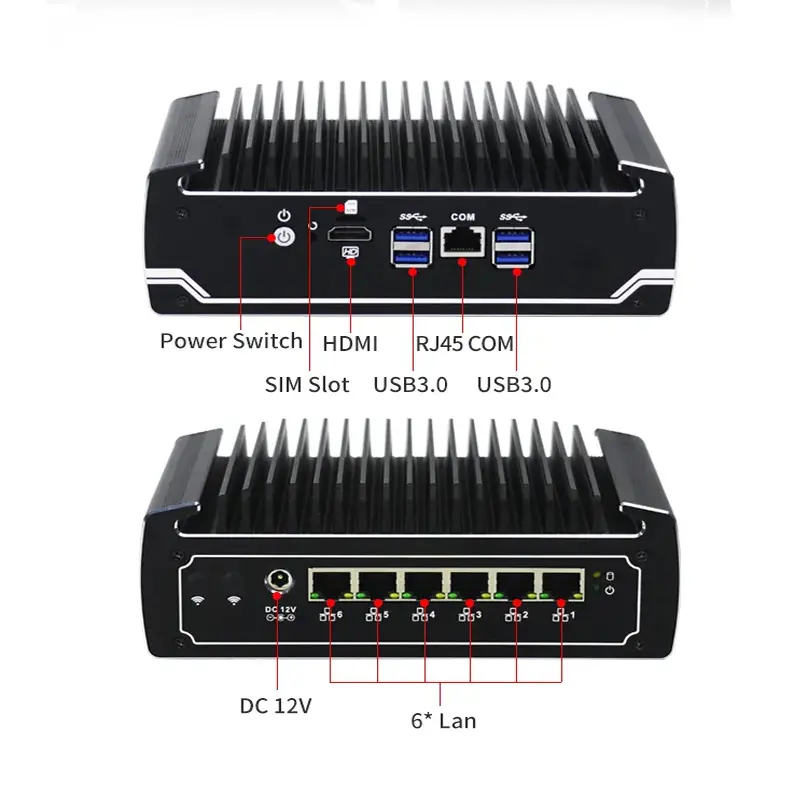

| Front Panel | 4 x USB3.0 |
| 1 x Power Switch | |
| 1 x RJ45 COM(Support Console) | |
| 1 x HDMI | |

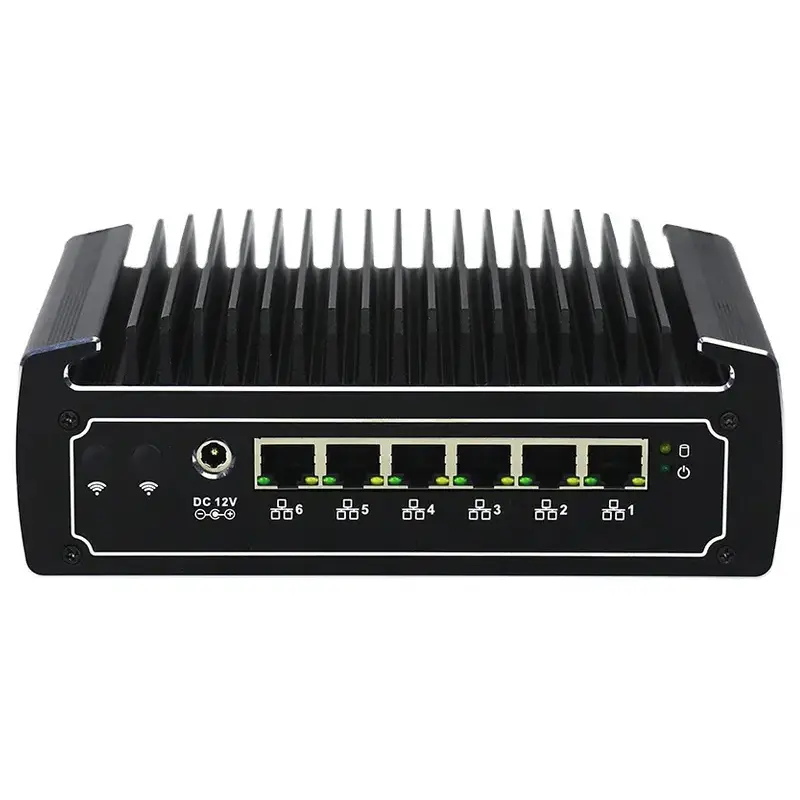

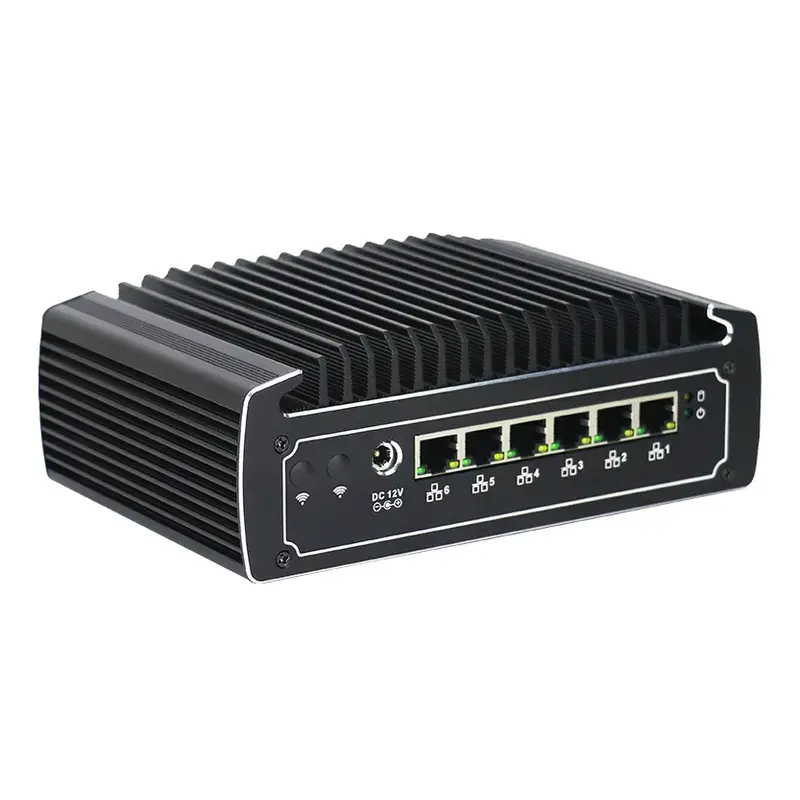

| Rear Panel | 6 x LAN |
| 1 x DC-IN 12V | |
| Bios | AMI EFI BIOS |
| System Support | Windows 7/8/10/11, Linux, pfSense etc |
| Cooling Mode | Fanless |
| Power Supply | DC 12V-IN power supply and AC power adapter |
| Packing List | C1 mini pc, power supply, power cord, vesa, warranty card |
| Working Temperature | 0℃ ～ +50℃(Commercial HDD), -20℃ ～ +50℃(Industrial SSD), Surface air flow |
| Working Humidity | 0% – 95% relative humidity, Non-condensing |
| Application | Firewall, VPN, Network server, Network security, Router etc. |
| Certification | CE FCC ROHS |
