Overview
Partaker B6 is a fanless, zero-noise, Intel 2955U 3825U core i3 i5 mini computer, the size is only 1/20 of the traditional desktop computer, if you are a student party, entrepreneur, purchaser, designer, need a cost-effective, stylish Small and compact, with simple wiring and powerful performance, our B6 is your best choice. It can meet the daily needs of most people using computers, office, customer service, classroom, training, home theater, cash register, etc.
Specifications
| Material | Aluminum alloy |
| Colour | Black |
| Size | 170 x 120 x 36mm |
| Weight | 1.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| With holding vertical stand, vesa mount as the optional | |
| CPU | Intel® Celeron® Processor 2955U (2M Cache, 1.40 GHz) |
| Intel® Celeron® Processor 3205U/3215U/3755U/3556U/3558U (2M Cache, 1.50 GHz) | |
| Intel® Core™ i3-4020Y Processor (3M Cache, 1.50 GHz) | |
| Intel® Core™ i5-4200Y Processor (3M Cache, up to 1.90 GHz) | |
| Chipset | SOC |
| Network Card | 1 x Intel RTL 8168/8111/8112 gigabit lan |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM |
| Storage | 1 x mSata SSD, 1 x 2.5 inch SSD/HDD |
| Expand | 1 x Mini PCIE (half size) WiFi slot |

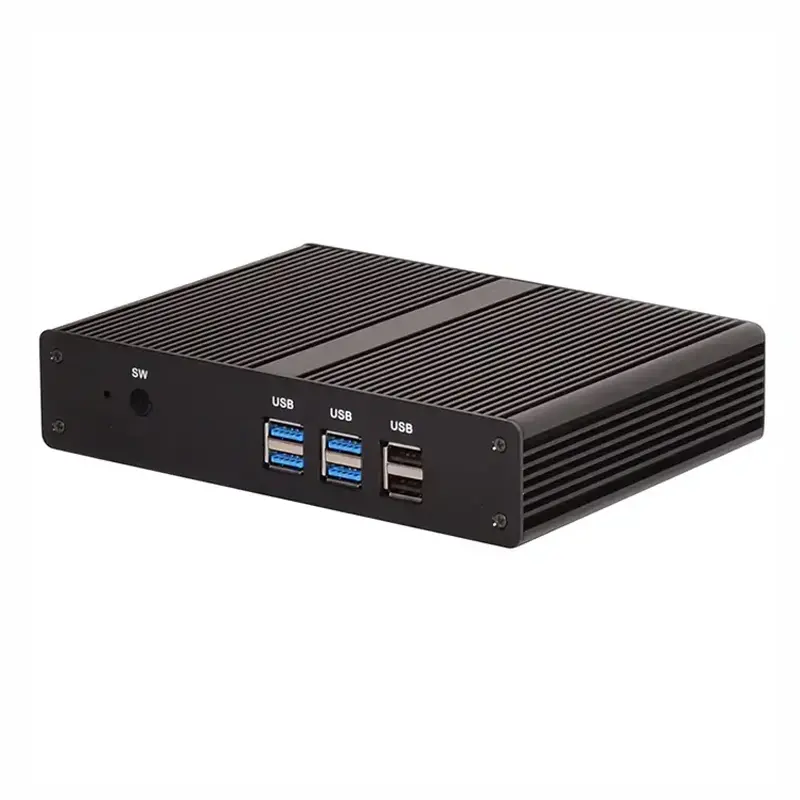

| Front Panel | 1 x Power button |
| 4 x USB3.0 | |
| 2 x USB2.0 | |

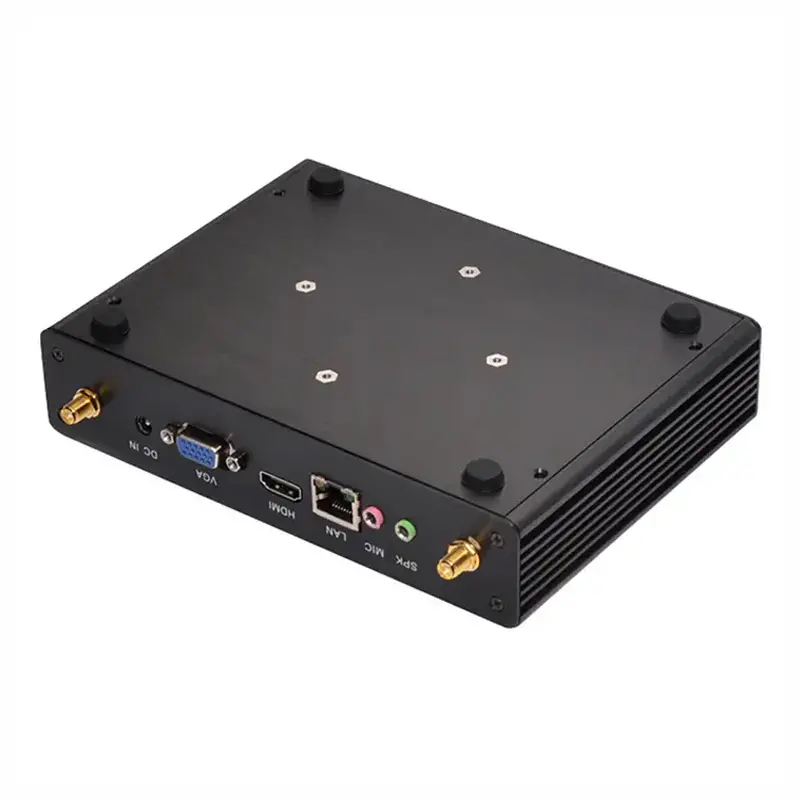

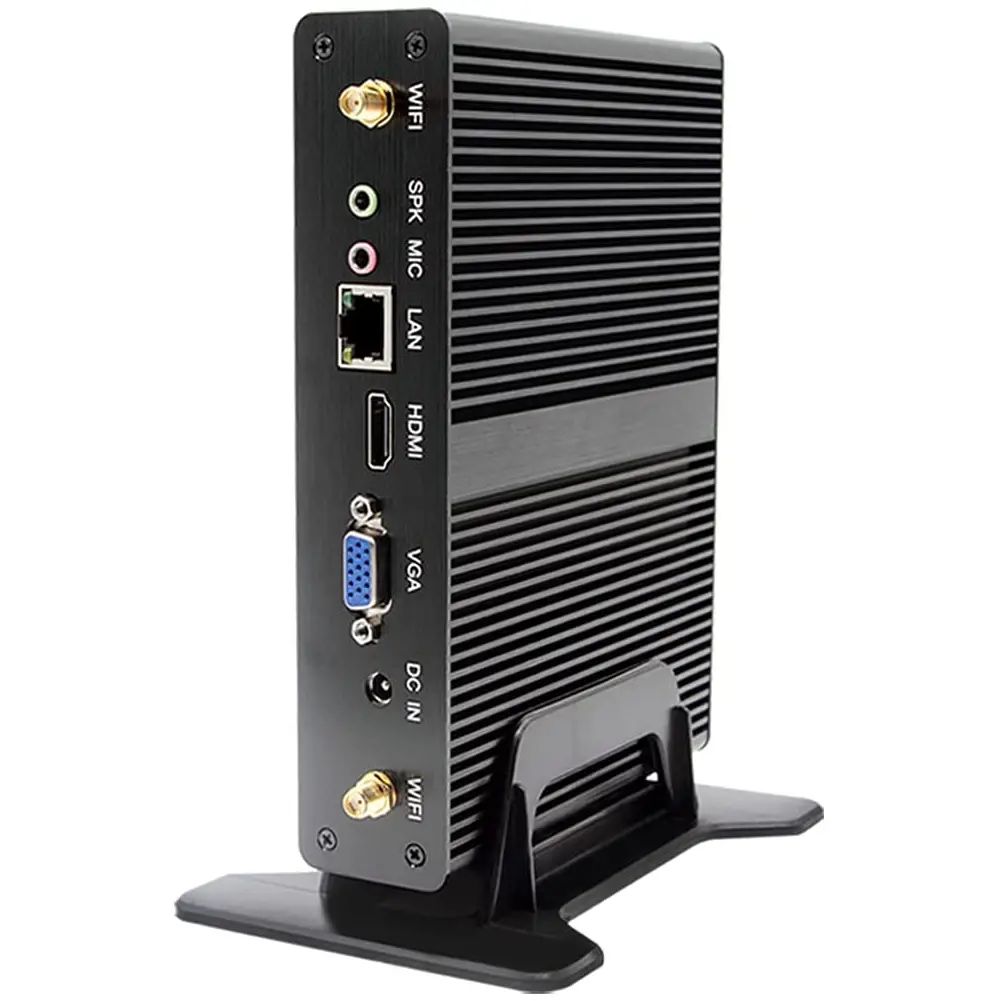

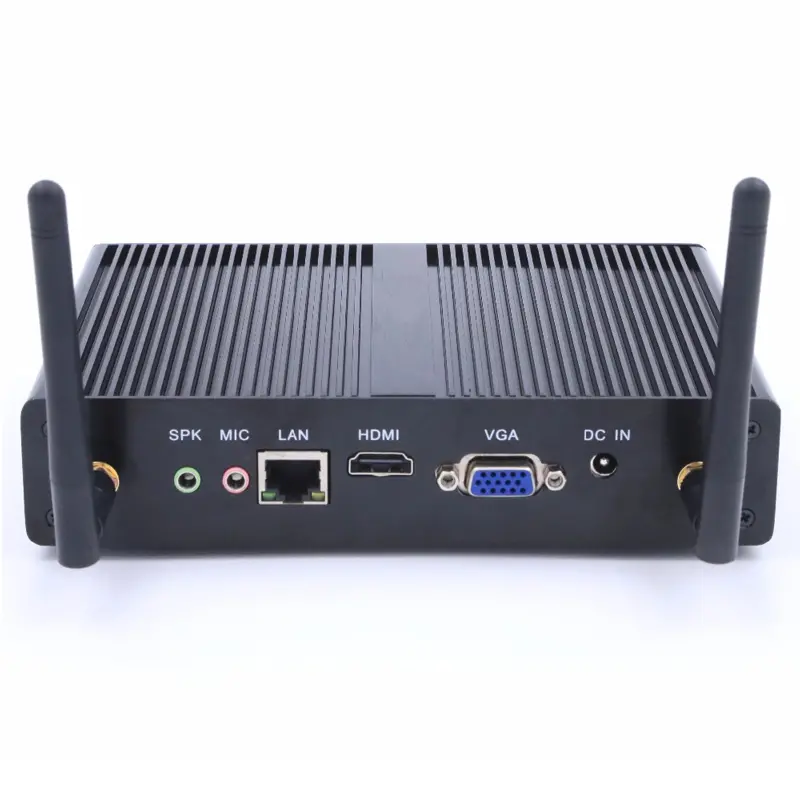

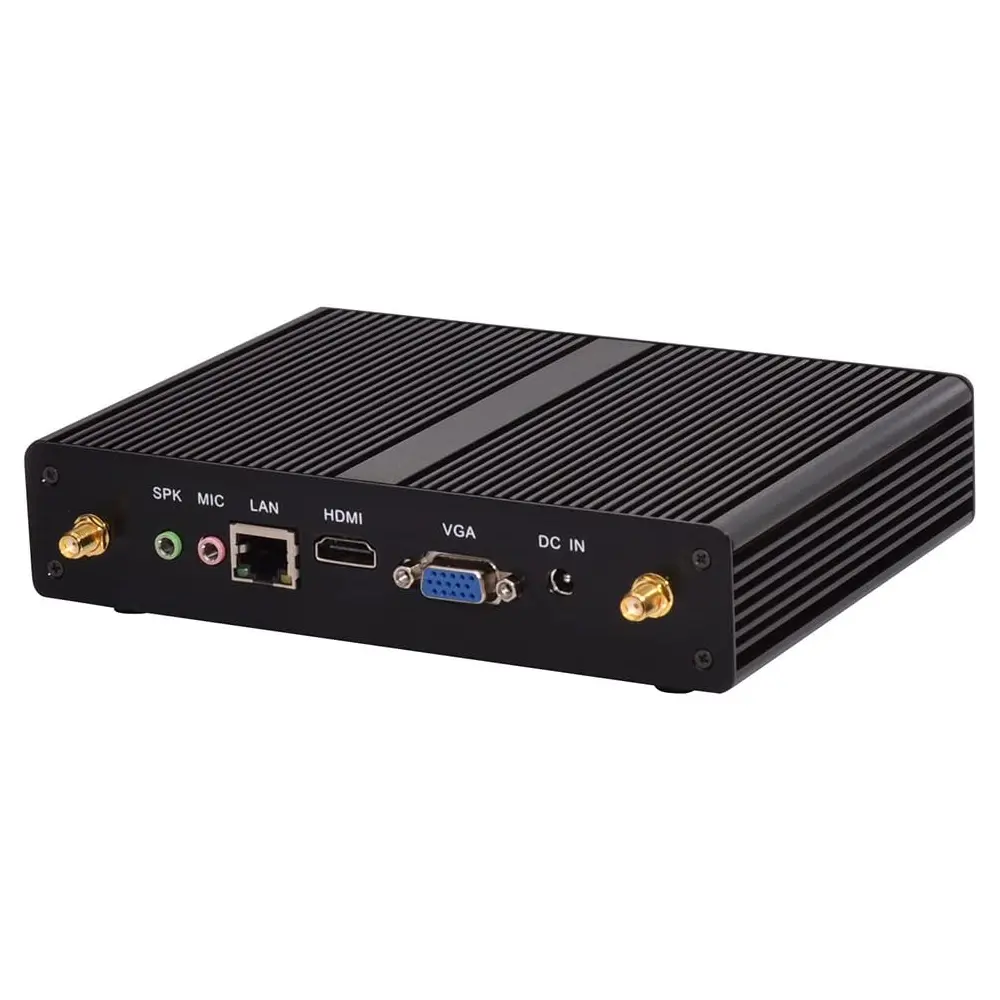

| Rear Panel | 1 x DC_in |
| 1 x VGA | |
| 1 x HDMI | |
| 1 x Lan | |
| 1 x Audio | |
| 2 x WiFi antennas | |
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V3A/5A |
| Packing List | B6 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
