Overview

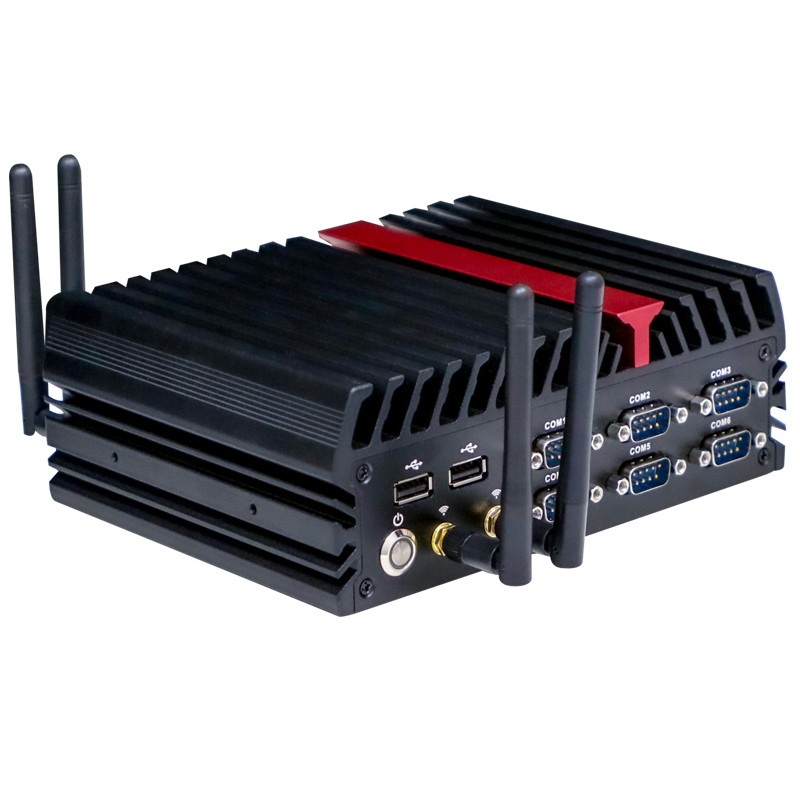

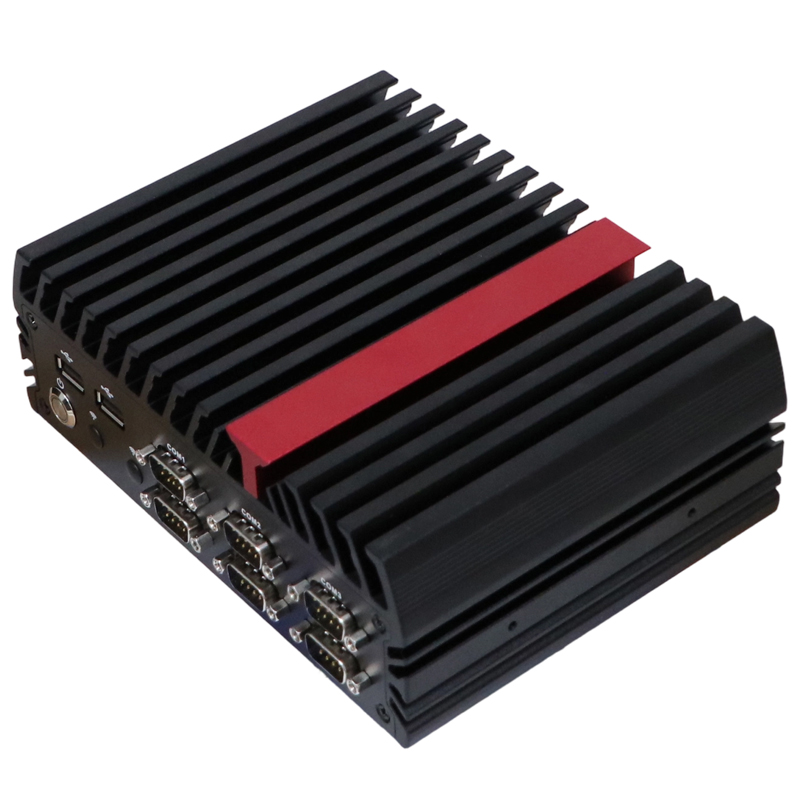

Driven by the AMD Ryzen R2314 processor, this fanless all-aluminum mini PC is engineered for silent, maintenance-free 24/7 performance in demanding industrial environments. Built to withstand harsh conditions, it features an ultra-wide DC 12–24V input and robust I/O, including 6 COM ports (4×RS232 + 2×RS485) and dual 4K HDMI outputs. With support for up to 64GB DDR4 RAM and versatile triple expansion (Mini PCIe, Wi-Fi/BT, and 4G/5G), it serves as a highly reliable embedded solution for factory automation, edge computing, and digital signage.
Specifications
| System Parameter | |
| Model | Partaker B4 |
| Processor | AMD Ryzen™ Embedded R2314 (4core 4-thread, base 2.1 GHz, turbo boost 3.5 GHz) |
| Architecture | Zen + Micro architecture |
| Memory | 2 x DDR4 2400MHz SODIMM memory slots, max 64 GB. |
| Display chip | AMD Radeon™ Graphics |
| Display Port | 2 x HD 2.0 Resolution up to 4096×2160 @ 60Hz |
| Storage | 1 x MINI PCIe (MSATA SSD) slot ,, 1*2.5-inch HDD/SSD |
| Expansion | 1 x MINI PCIe slot (support MSATA SSD) |
| 1 x M.2 2230 E-key slot (PCIe & USB, with Wi-Fi 5/Wi-Fi 6 & BT) | |
| 1 x M.2 3052 B-key slot (support USB3.0,4G/5G), with built-in Micro-SIM card slot | |
| Scalable interface (not included in standard shipment): 8 GPIO channels | |

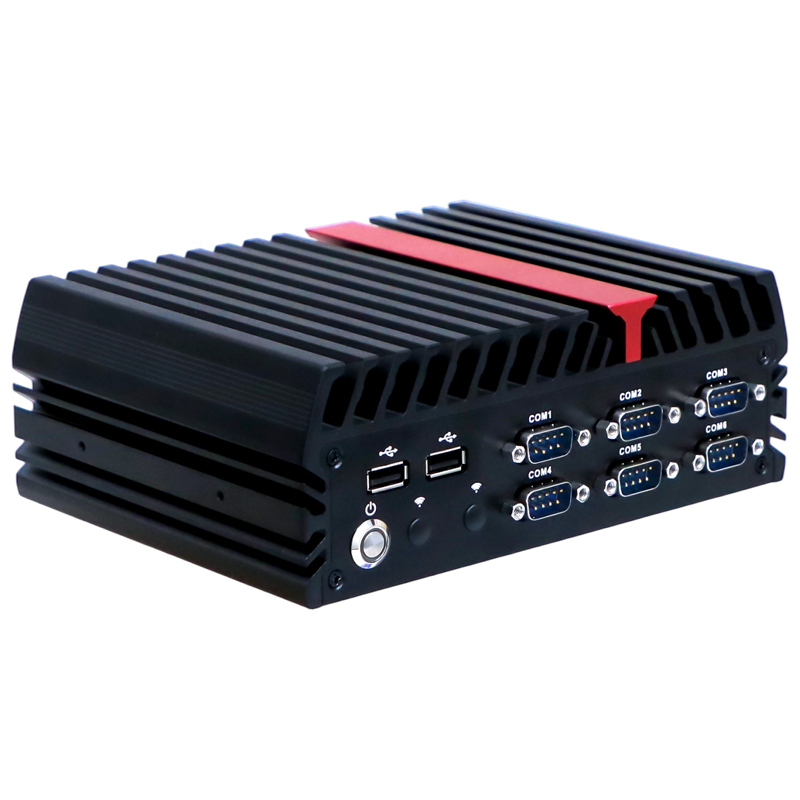

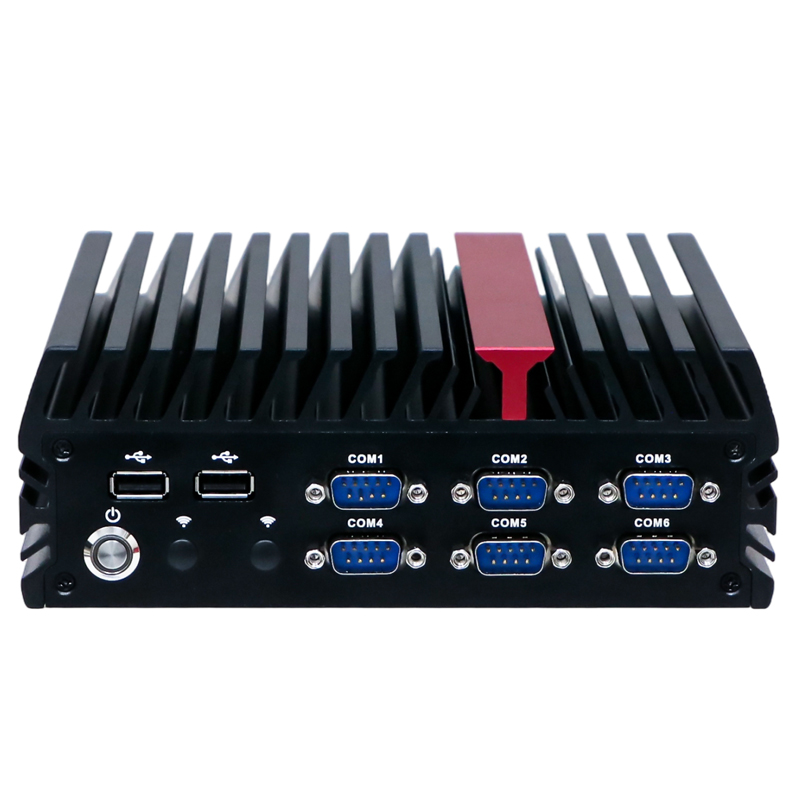

| Front I/O | 1 x power switch, 2 x USB 2.0, 6 x COM (COM 1–4 are RS232, COM 5–6 are RS485) |

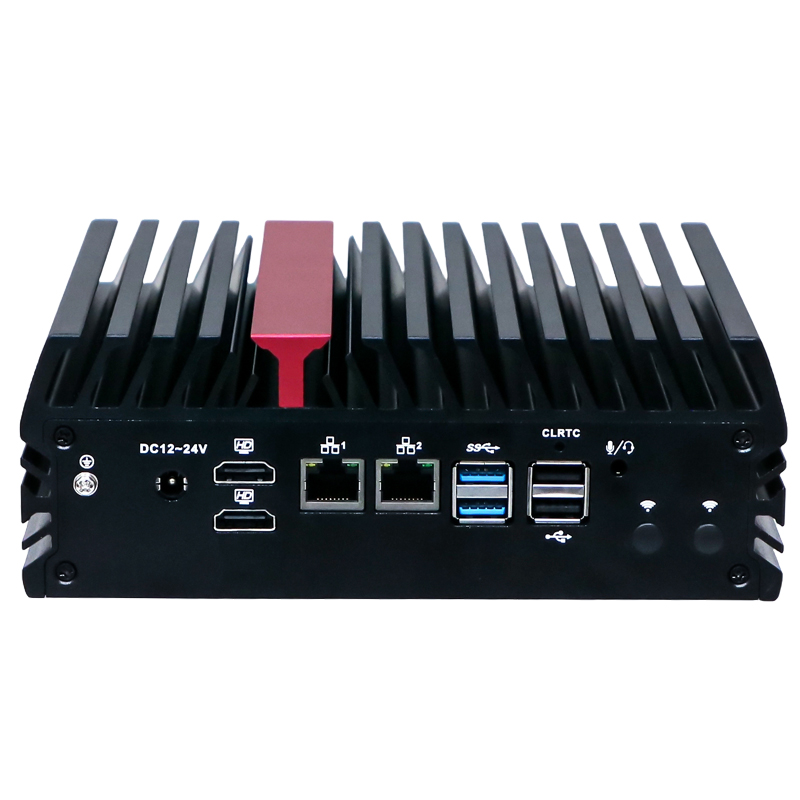

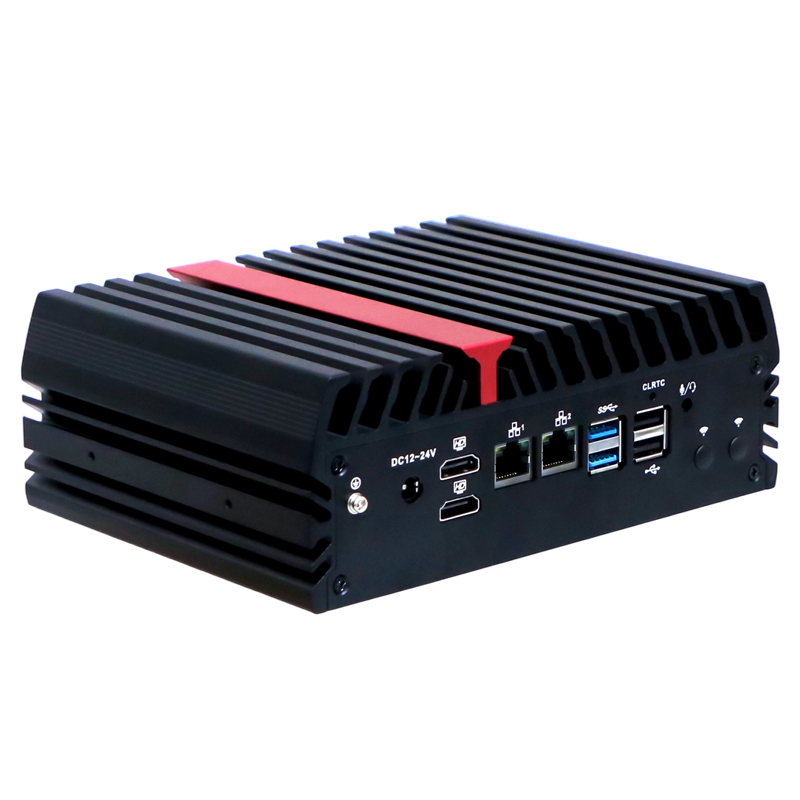

| Rear I/O | 1 x DC, 2 x HDMI, 2 x RJ45 network ports, 2 x USB 3.2 , 2 USB 2.0, 1 x MIC/SPK |
| Network | 2 x RTL8111H 10/100/1000M Gigabit Ethernet cards |
| Input Voltage | DC 12V – 24V input |
| Certificates | CE, FCC, ROHS |
| Other Function | Power-on startup, scheduled startup, network wake-up, PXE boot, watchdog (level 0–255), TPM 2.0 security encryption |
| Application | Industrial control, industrial automation, robotics, IoT gateways, edge computing, machine vision, AGVs/AMRs, etc. |
| Structure Parameter | |
| Color | Metal gray 【Any color can be customized】 |
| Material | High-quality all aluminum，surface anodic oxidation |
| Dimension | 186 * 140 * 66 mm |
| Weight | 1.58kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
