Overview

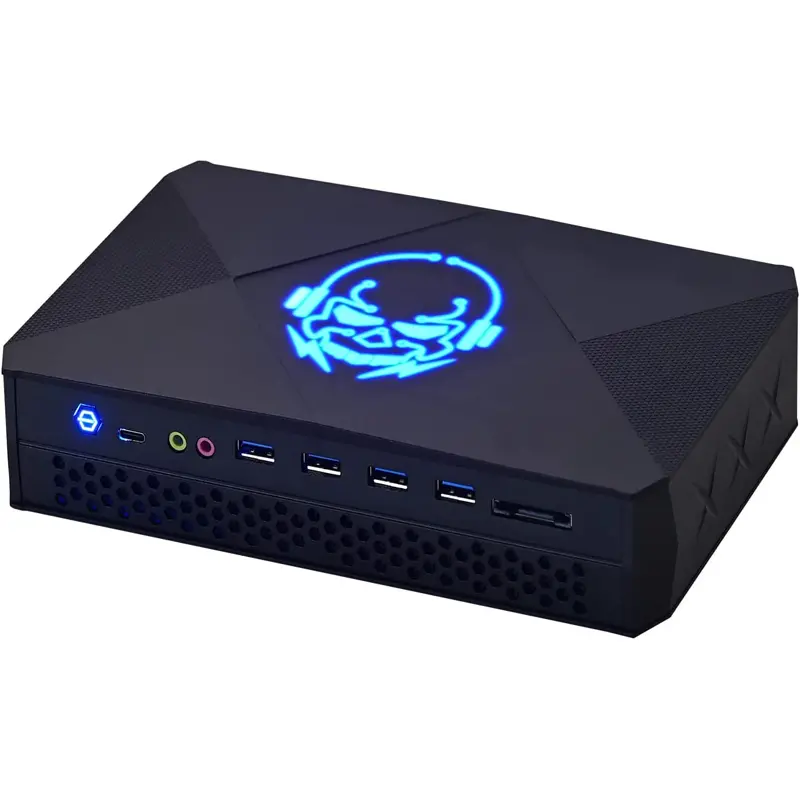

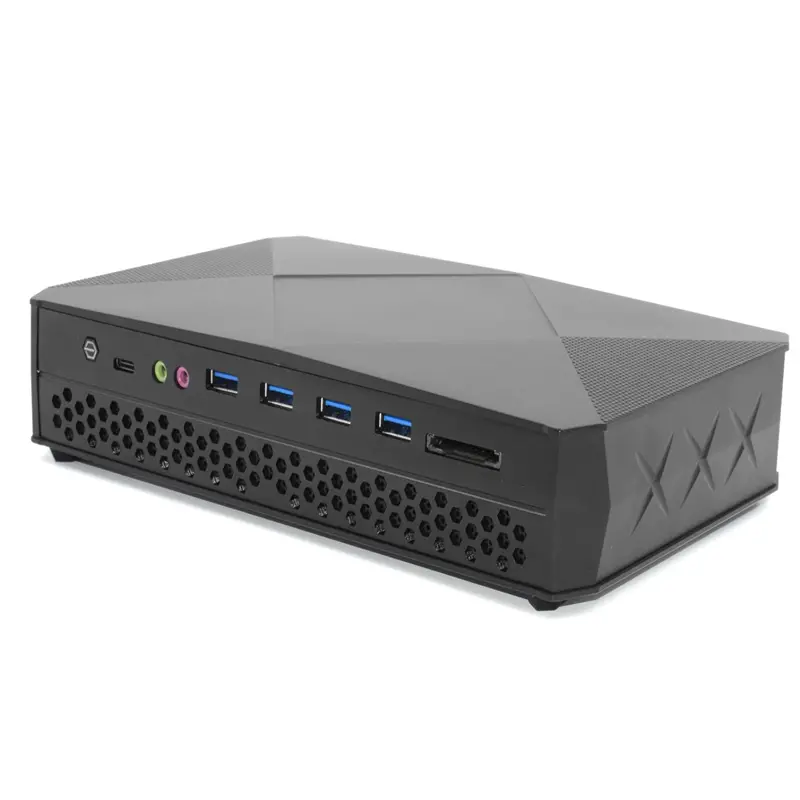

The Partaker B26 Mini PC is a compact powerhouse. It features an Intel Core i7-8709G Processor with Radeon RX Vega M GH graphics for exceptional performance. With AMD Radeon RX Vega M GH 4G DDR5 discrete graphics and support for up to 64GB of DDR4 RAM, it’s perfect for gaming and graphics-intensive tasks.
This mini PC also offers versatile connectivity with USB 3.0, USB 2.0, HDMI, and LAN ports. The smart silent fan ensures efficient cooling with minimal noise. It supports Windows 10, Linux, and more. With a sturdy aluminum alloy construction and a range of certification, it’s a reliable and durable choice for various applications.
Specifications
| Material | Aluminum alloy |
| Colour | Black |
| Size | 230 x 145 x 45mm |
| Weight | 3Kgs |
| Insallation Method | Desktop type |
| CPU | Intel Core i7-8709G Processor with Radeon RX Vega M GH graphics (8M Cache, up to 4.10 GHz) |
| Discrete Graphics Card | AMD Radeon RX vega M GH 4G DDR5 |
| Network Card | 1 x Intel i219 and 1 x RTL 8111DL |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |

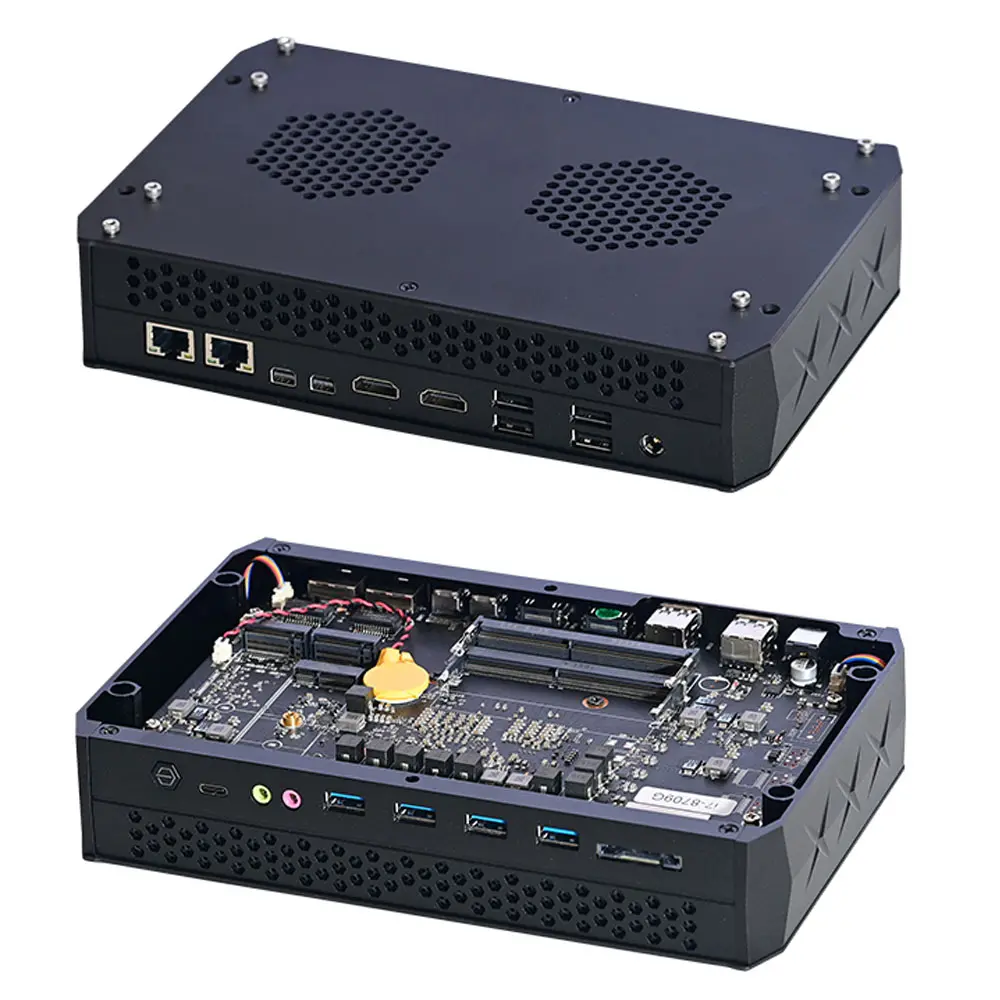

| Memory | 2 x SODIMM DDR4-2400, Max. 64GB |
| Storage | 1 x M.2 2280 SATA SSD, 1 x M.2 2280 NVME SSD |
| Expand | 1 x M.2 PCIE WiFi module |

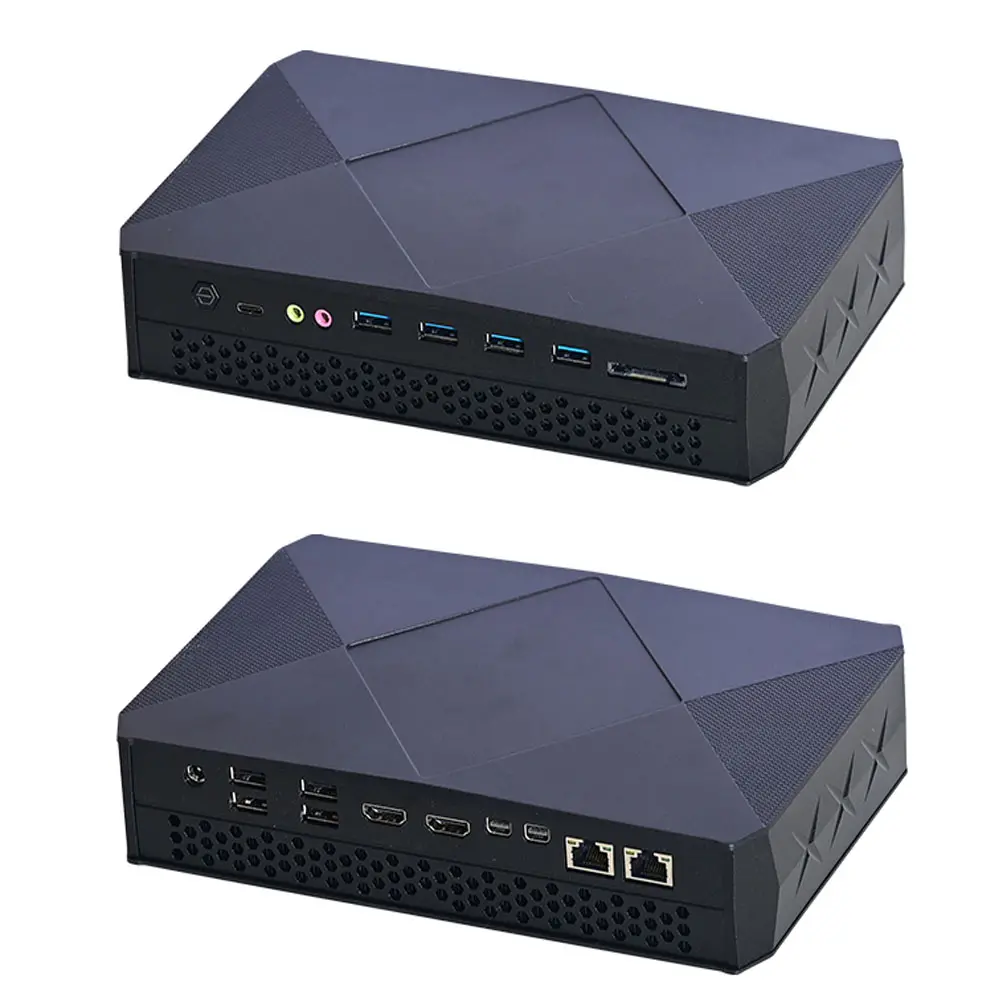

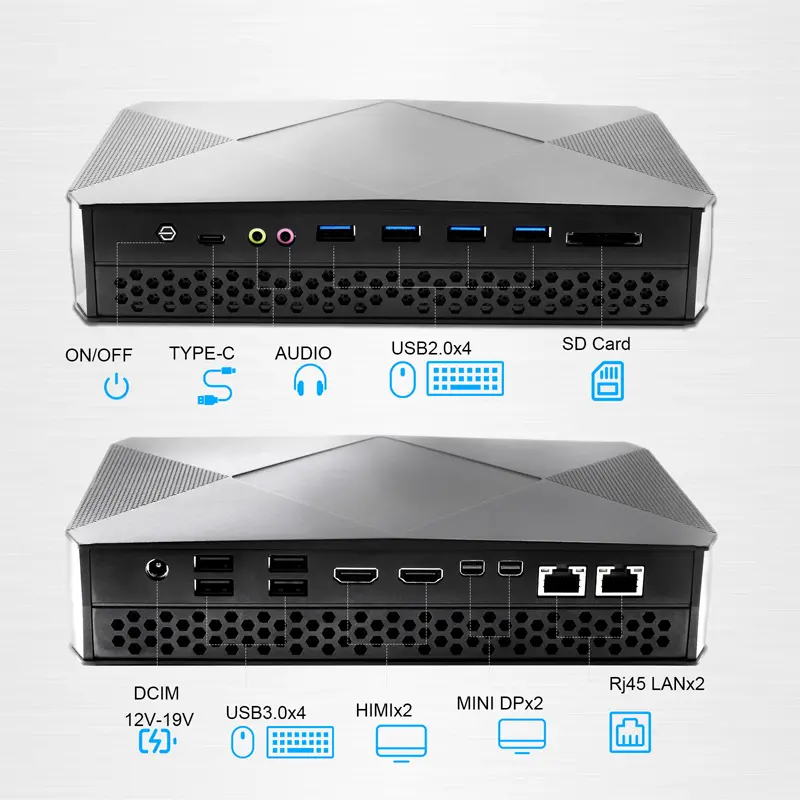

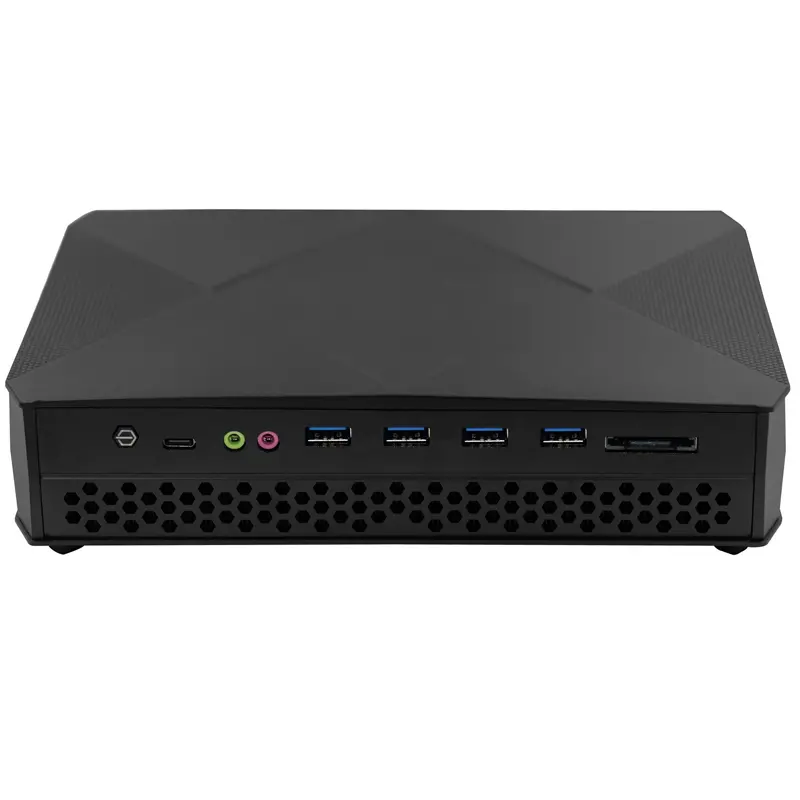

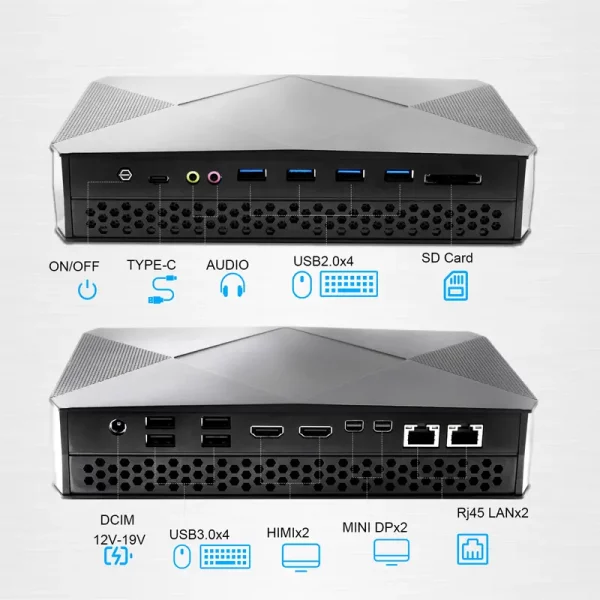

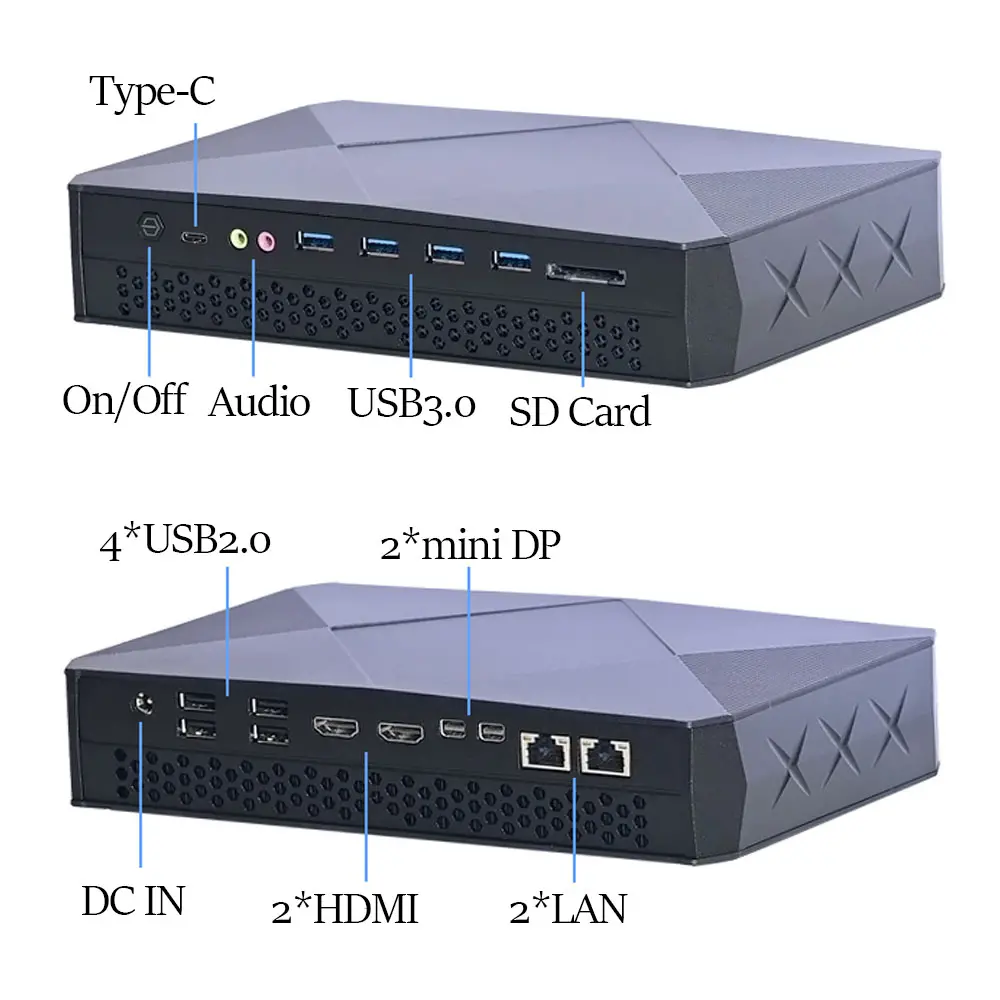

| Front Panel | 1 x Power button |
| 1 x Type C | |
| 1 x Audio | |
| 4 x USB3.0 | |
| 1 x SD Card | |

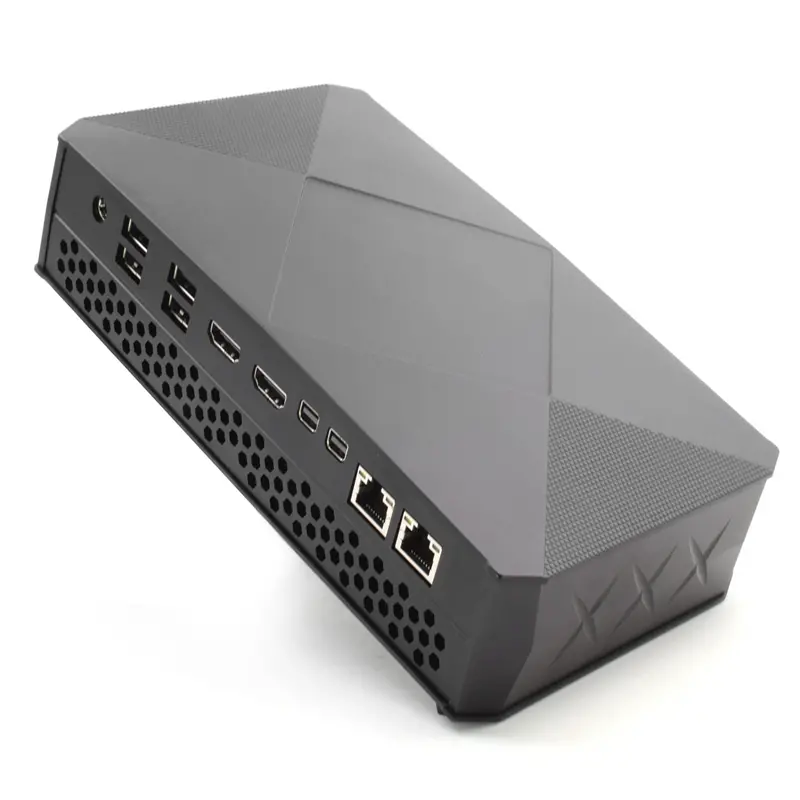

| Rear Panel | 1 x DC_in |
| 4 x USB2.0 | |
| 2 x HDMI | |
| 2 x Mini DP | |
| 2 x LAN | |
| System Support | Windows 10, linux ubuntu etc |
| Cooling Mode | Smart silent fan, sound below 25 decibels (place it vertically to reduce the fan speed & sound effectively) |
| Power Supply | DC100-240V AC/50-60Hz, 19V/9.47A |
| Packing List | Partaker B26 mini pc, power supply, power cord, vertical stand, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
