Overview
The B24 Mini PC, crafted from aluminum and magnesium alloy, packs immense power. Equipped with Intel Core i3/i5/i7/i9 processors and a GeForce RTX 3050 8G graphics card, it supports up to 4 monitors and offers seamless performance. Featuring versatile connectivity, a robust cooling system, and ample storage options, it’s an efficient workstation. Perfect for Windows, Linux, and more, this compact powerhouse ensures top-notch functionality in varied environments.
Specifications
| Material | Aluminum alloy plus magnesium alloy |
| Colour | Black |
| Size | 260 x 220 x 55mm |
| Weight | 4Kgs |
| Insallation Method | Desktop type |
| With holding vertical stand | |
| CPU | Intel® Core™ i3-9100F, 4 Core 4 threads, 3.6GHz up to 4.2GHz, 6MB Cache |
| Intel® Core™ i5-9400F, 6 Core 6 threads, 2.9GHz up to 4.1GHz, 9MB Cache | |
| Intel® Core™ i7-9700F, 8 Core 8 threads, 3.0GHz up to 4.7GHz, 12MB Cache | |
| Intel® Core™ i9-9900T, 8 Core 16 threads, 2.1GHz up to 4.4GHz, 16MB Cache | |
| Display Ports | 2 x HDMI, 2 x DP |
| Motherboard | B360 all solid-state motherboard |
| Color | Black |
| Network Card | RTL8XXX series Gigabit Ethernet |
| WiFi and Bluetooth | 2.4G/5G dual band WiFi&Bluetooth4.x |
| Memory | 2*DDR4 non-ecc SODIMM Ram slots, max 64GB |
| Storage | M.2 NVME SSD – NGFF/PCIE X4 high speed SSD, max support 2TB |
| SATA –Support 1 x 2.5 inch sata 3.0 SSD/HDD, max support 2TB | |
| Dedicated Graphics | GeForce RTX 3050 8G Discrete Graphics, memory frequency: 14000MHz, 8GB GDDR6, 128bit, with ray tracing, 4 monitors capable |

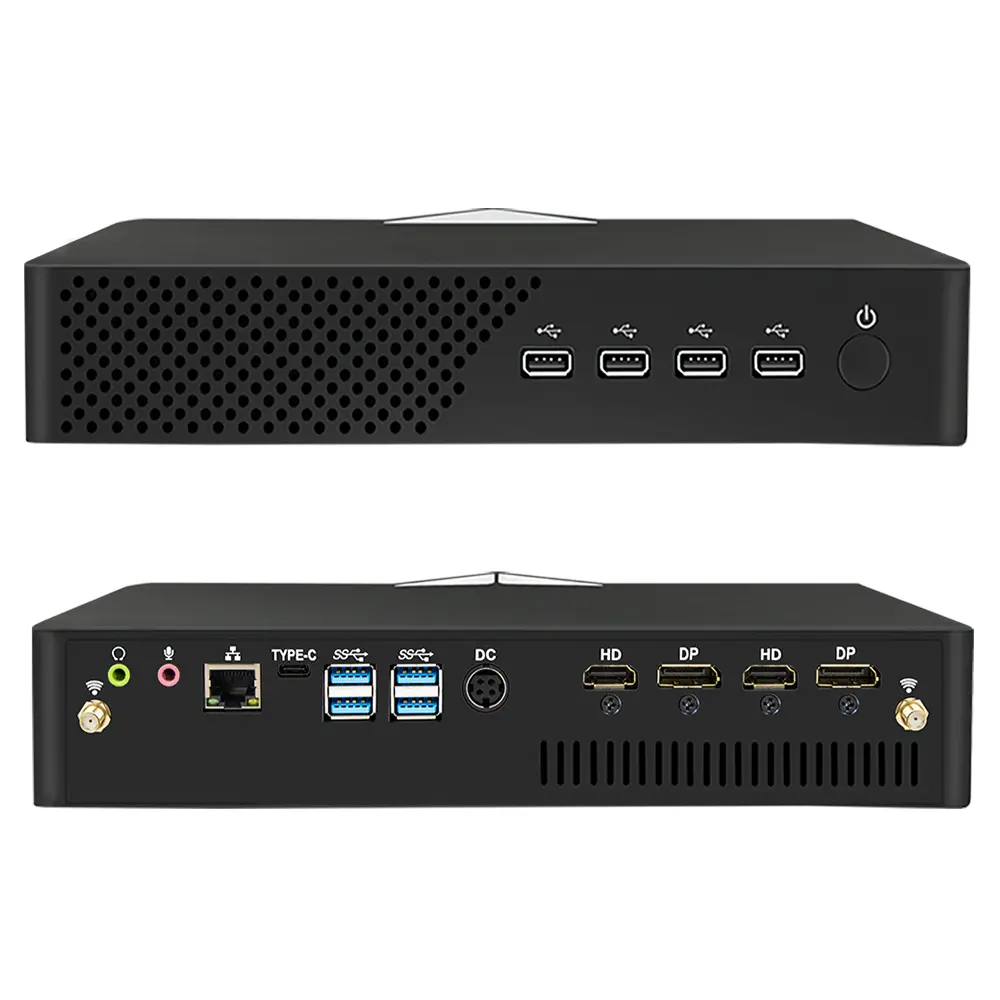

| Front Panel | 4 x USB2.0 |
| 1 x Power SW | |
| Rear Panel | 1 x SPK |
| 1 x MIC | |
| 4 x USB3.0 | |
| 1 x Type-C | |
| 1 x LAN | |
| 1 x DC IN | |
| 2 x WIFi Antennas Holes | |
| 2 x DP | |
| 2 x HDMI | |
| Bios | AMI bios |
| System Support | Windows 10/11/sever2012/2016/linux/centos/ubuntu |
| Cooling Mode | Full cooper turbo cooler |
| Power Supply | 19V |
| Packing List | B24 mini pc, power supply, power cord, vertical stand, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
