Overview
Experience Superior Performance: Our sleek B16 mini PC boasts an Intel Core i3/i5 CPU, up to 64GB RAM, and versatile storage choices. Stay cool with fanless technology, mount it effortlessly with VESA, and enjoy Windows & Linux compatibility. Ideal for diverse computing needs
Specifications
| Material | Aluminum alloy |
| Colour | Silver |
| Size | 200 x 175 x 45mm |
| Weight | 2.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| With holding vertical stand, vesa mount as the optional | |
| CPU | Intel® Core™ i3-8145U Processor (4M Cache, up to 3.90 GHz) |
| Intel® Core™ i5-8250U Processor (6M Cache, up to 3.40 GHz) | |
| Intel® Core™ i5-1235U Processor (12M Cache, up to 4.40 GHz) | |
| Chipset | SOC |
| Network Card | 1 x Intel RTL 8168/8111/8112 gigabit lan |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 2 x SODIMM DDR4, up to 64GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME) |
| Expand | 1 x M.2 PCIE WiFi slot |

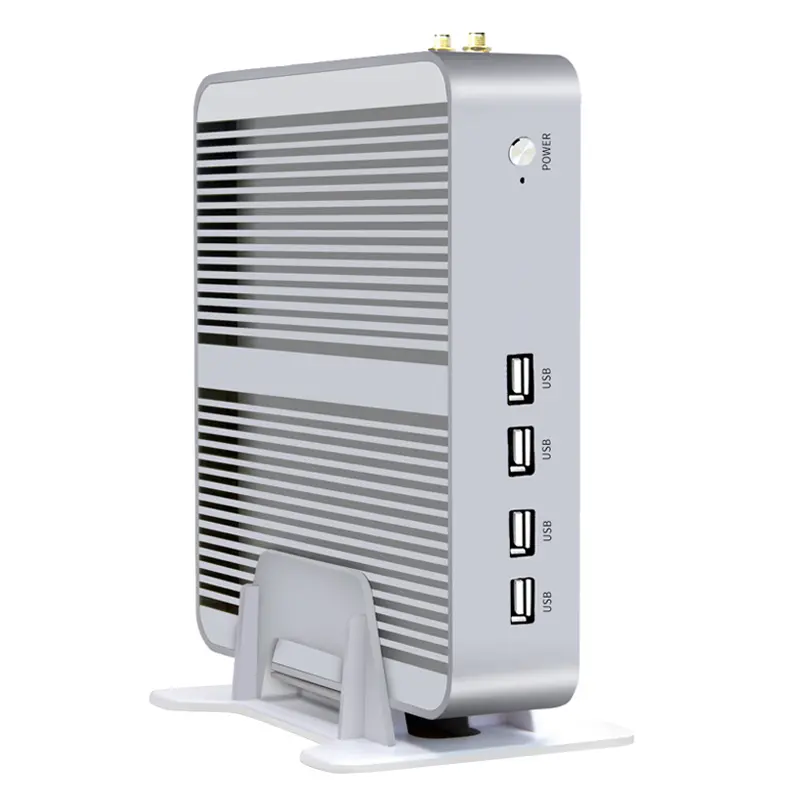

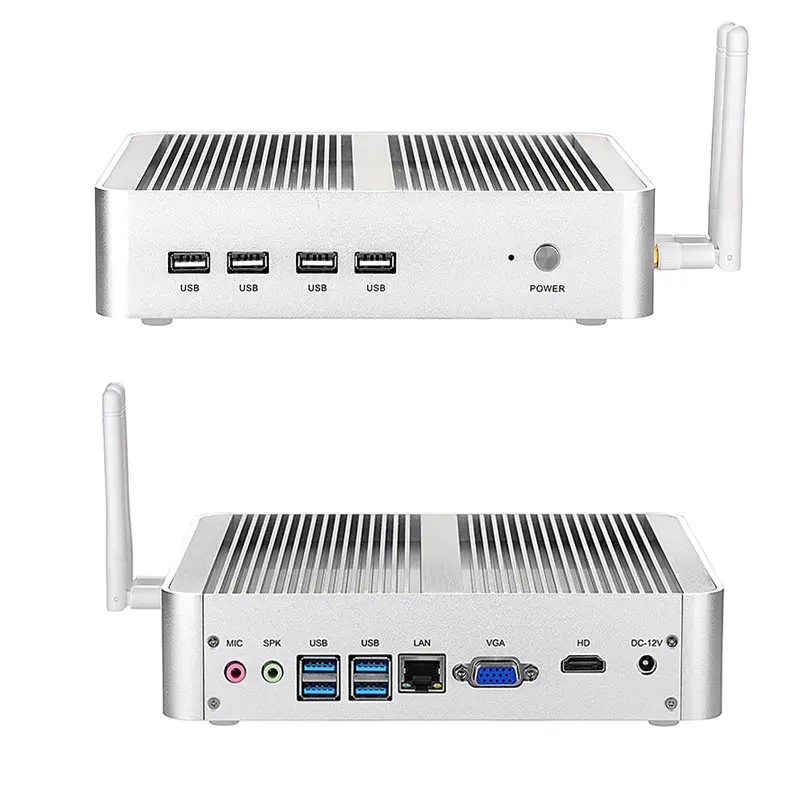

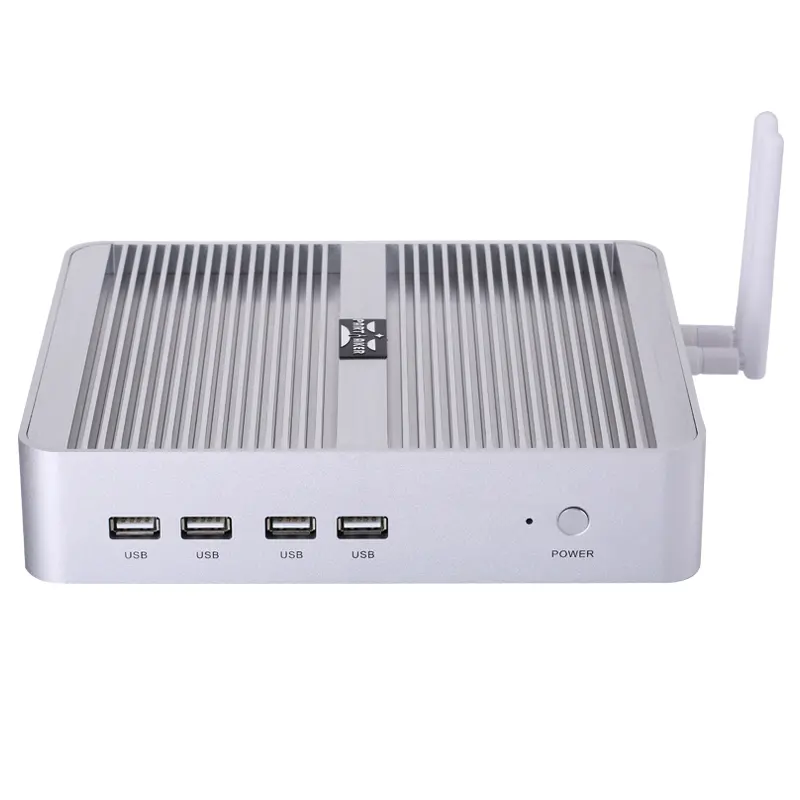

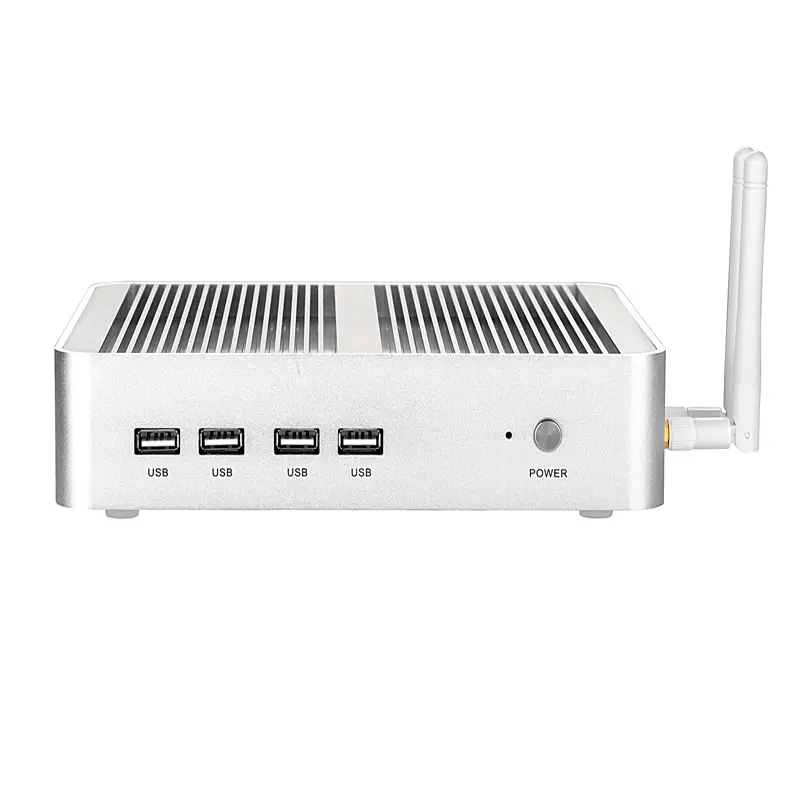

| Front Panel | 1 x Power button |
| 4 x USB2.0 | |

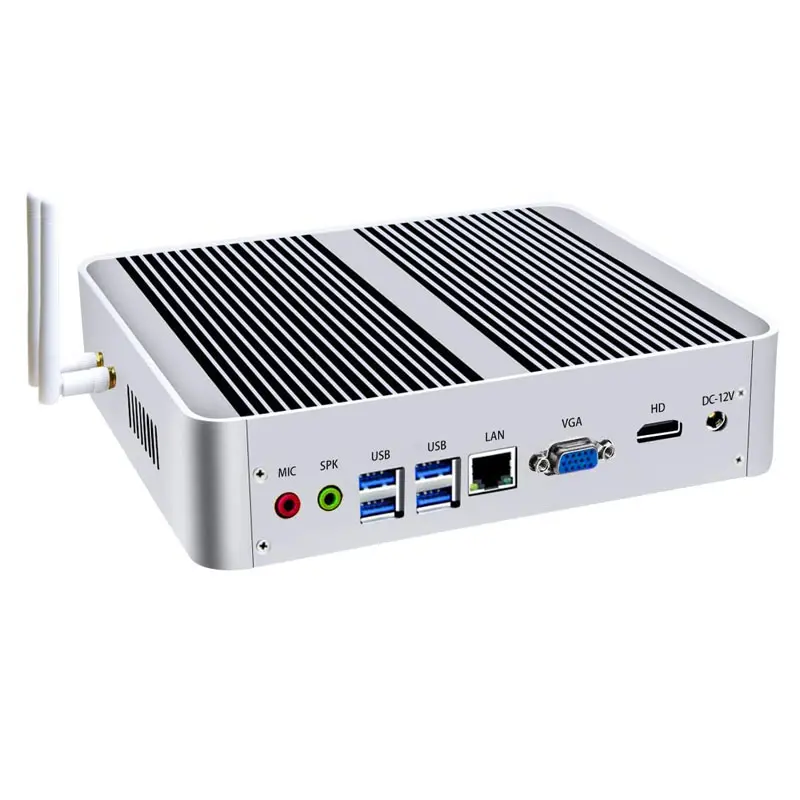

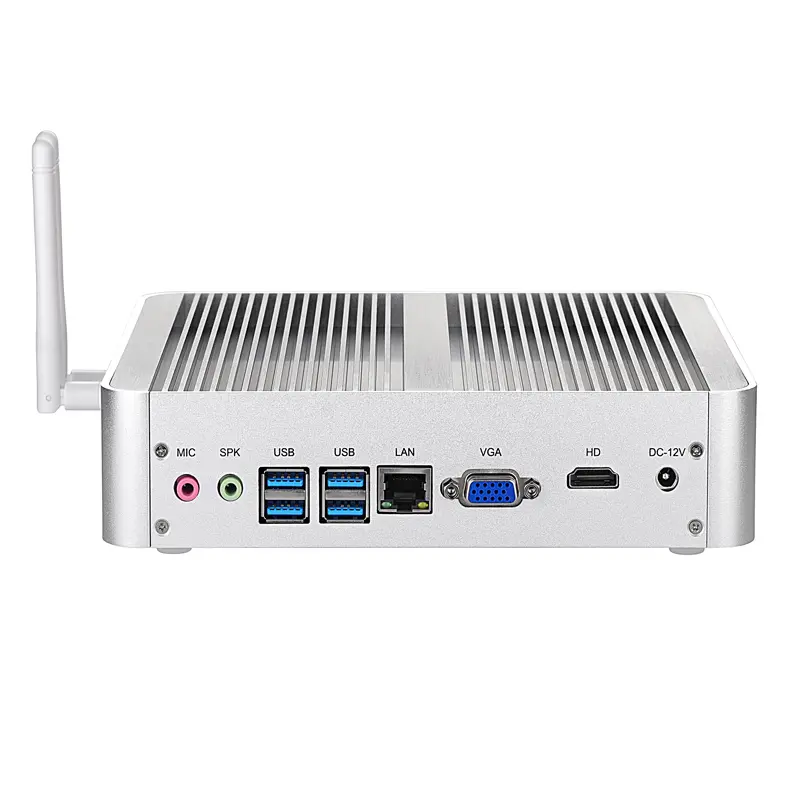

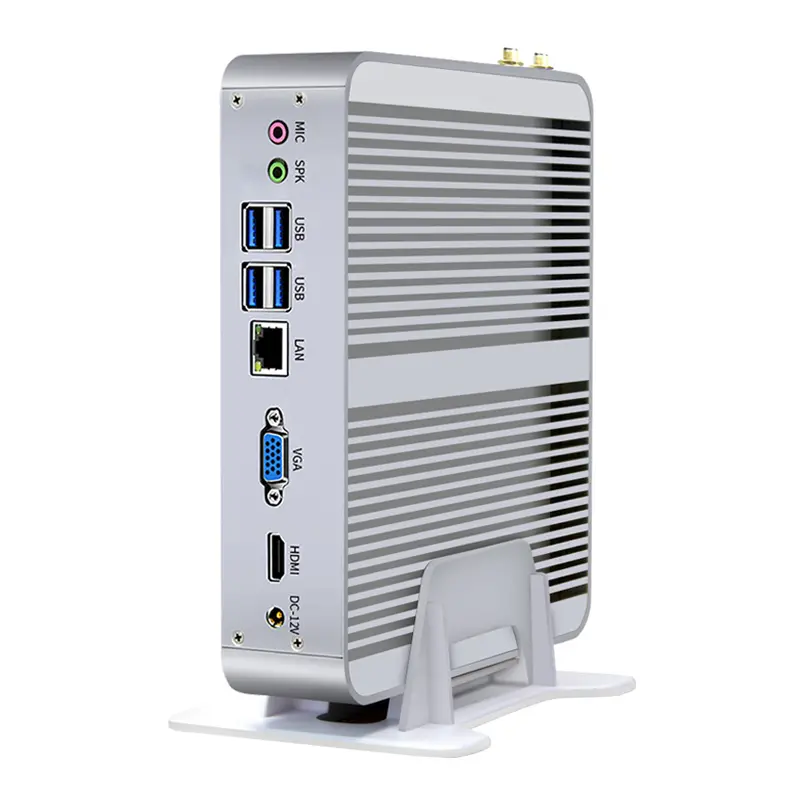

| Rear Panel | 1 x DC_in |
| 1 x HDMI | |
| 1 x VGA | |
| 1 x Lan | |
| 4 x USB3.0 | |
| 1 x Audio | |
| 2 x WiFi antennas | |
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V/5A |

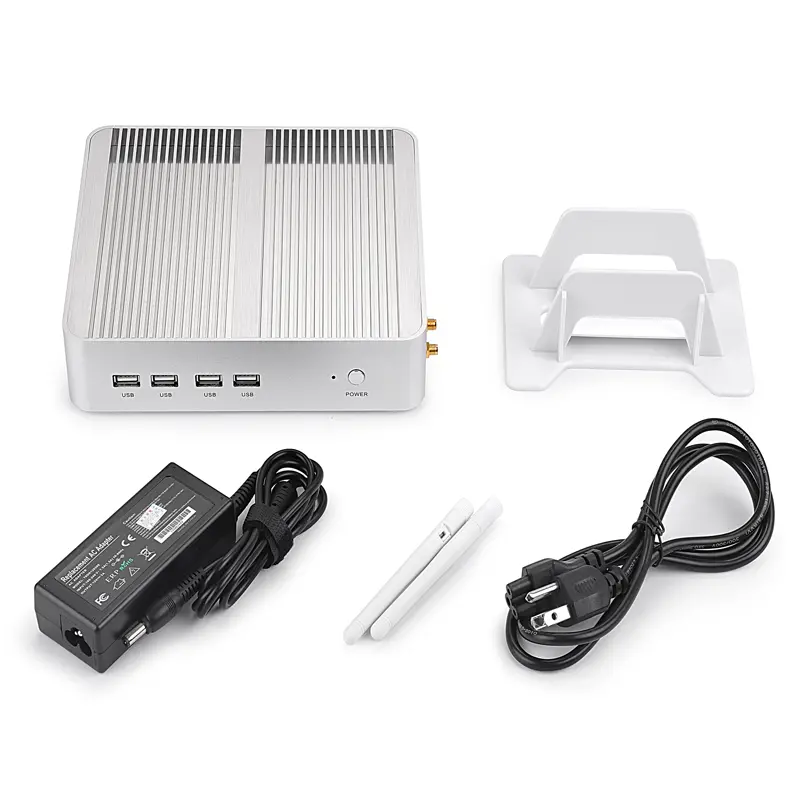

| Packing List | B16 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
