B15 Fanless Mini PC with Intel Processor N100

  • Constructed With High-Quality Aluminum for Durability
  • Compatible with VESA Mount or as a Desktop Setup
  • Intel N100 CPU up to 3.40 GHz for Efficient Operations
  • Features 2 HDMI and 1 DP Ports for Varied Displays
  • Equipped with 2 x Realtek 10/100/1000 BaseT LAN Cards
  • SO-DIMM DDR4 Slot Supporting up to 16GB RAM
  • Includes mSATA SSD, M.2 2280 NVME SSD, and 2.5-inch SATA SSD/HDD.

Share to:



The Silver N100 Mini PC, with robust all-aluminum construction, features an Intel Processor N100 reaching up to 3.40 GHz. Boasting extensive connectivity options, including dual HDMI, DP, and Realtek LAN ports, it supports up to 16GB DDR4 RAM and various storage drives. With fanless cooling and eco-friendly 10W power usage, it ensures seamless 24/7 operation. This system supports dual-screen display, WOL, LAN PXE boot, and comes with Windows and Linux compatibility. Ideal for diverse applications with efficient temperature control and versatile I/O ports for extensive connectivity.




Material High-quality all aluminum
Colour Silver
Size 170 * 125 * 50 mm
Weight 1.5Kgs
Insallation Method With VESA, desktop
CPU Intel Processor N100 6M Cache, up to 3.40 GHz
Display Ports 2 x HDMI, 1 x DP
Network Card 2 x Realtek 10/100/1000 BaseT LAN
Memory 1 x SO-DIMM DDR4 3200 MT/s, max. 16GB RAM
Storage 1 x mSATA SSD, 1 x M.2 2280 NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Audio Card ALC892
Other Function First-class temperature control ensures 24h/7 days without shutting down
12V green and environmentally friendly, only 10W power for daily use
Support restore AC power loss/WOL/LAN PXE boot
Support dual screen for simultaneous display or synchronous different display

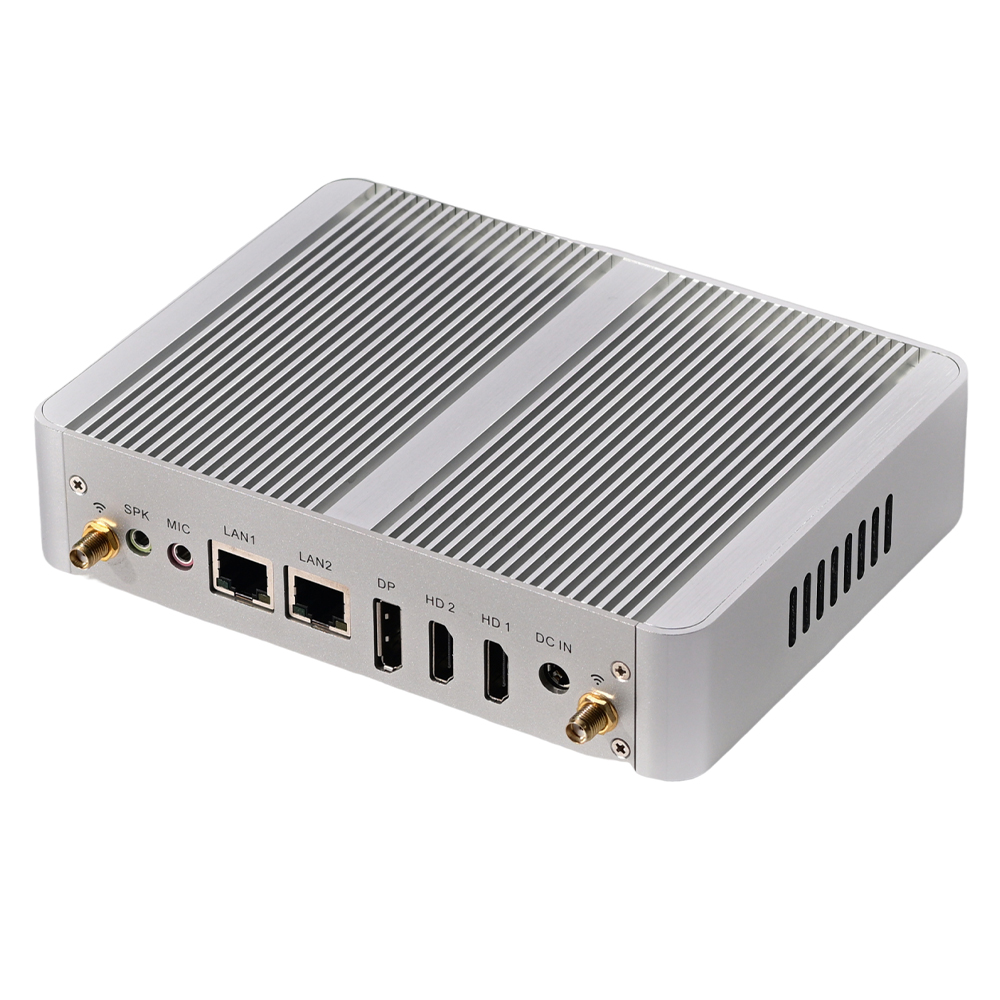

Front Panel 2 x WiFi Holes
1 x SPK
1 x MIC
2 x LAN
1 x DP
2 x HDMI
1 x DC IN

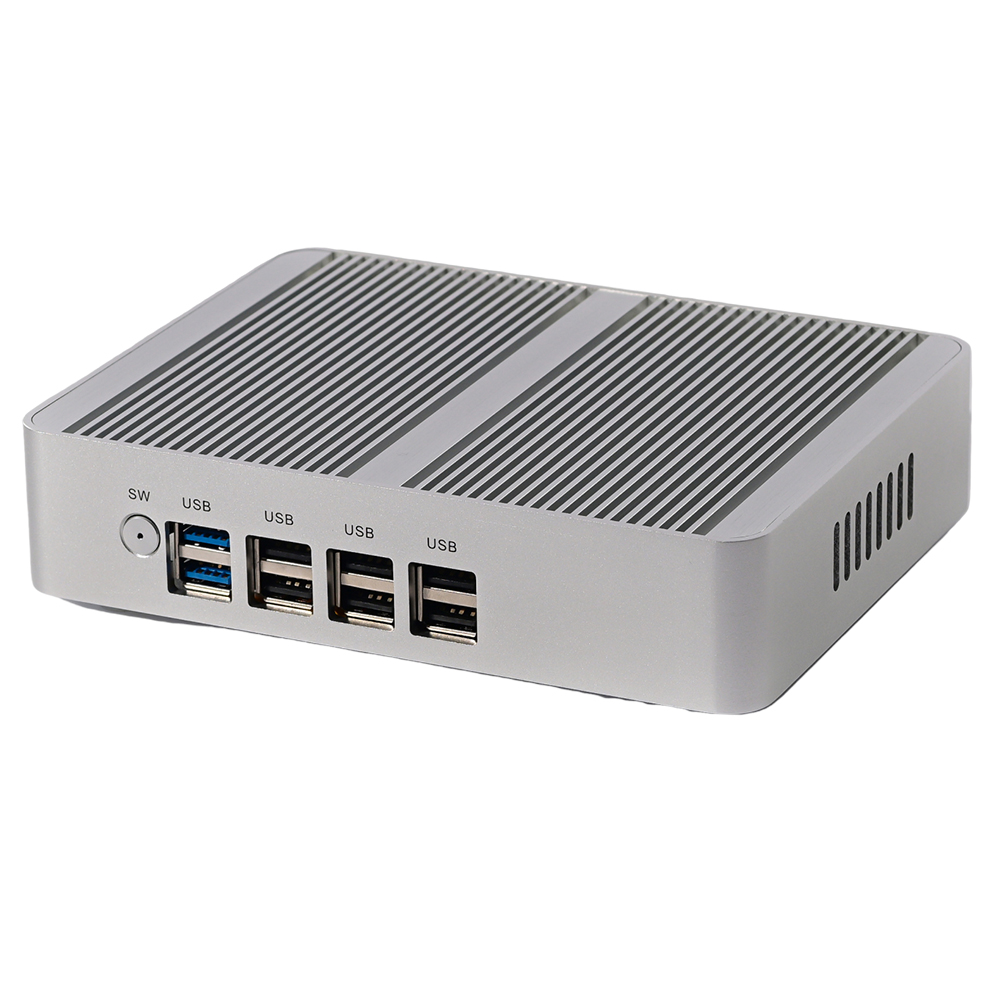

Rear Panel 1 x SW
2 x USB3.0
6 x USB2.0
System Support Windows 10/11, Linux
Cooling Mode Fanless
Power Supply DC-IN 12V
Packing List Mini pc, power supply, power cord, vertical stand, WiFi antennas, warranty card
Operating Temperature -10°C~60°C
Storage Temperature -20°C~80°C
Relative Humidity 10%~90% non-condensing
Certification CE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphic Frequency Display Memory Storage LAN USB Power
B15 N100 Intel® UHD Graphics 3.40GHz 2 x HDMI/1 x DP 1 x DDR4, Max 16G 1 x M.2 2280 NVME, 1 x mSATA, 1 x 2.5 inch SSD/HDD 2 8 DC 12V
