Overview
The B14 Mini PC combines high-performance Intel processors (i5, i7, i9) with cutting-edge graphics, storage, and dual LAN capabilities, packed into a sleek aluminum alloy design. Its compact form supports versatile installations, and with a robust set of I/O options, including USB 3.2, HDMI2.0, and DP1.4, it offers an ideal solution for various OS support, TPM2.0 security, and efficient cooling, making it suitable for demanding workloads in diverse environments. The package includes essential accessories, ensuring a seamless setup.
Specifications
| Material | Aluminum alloy |
| Colour | Black |

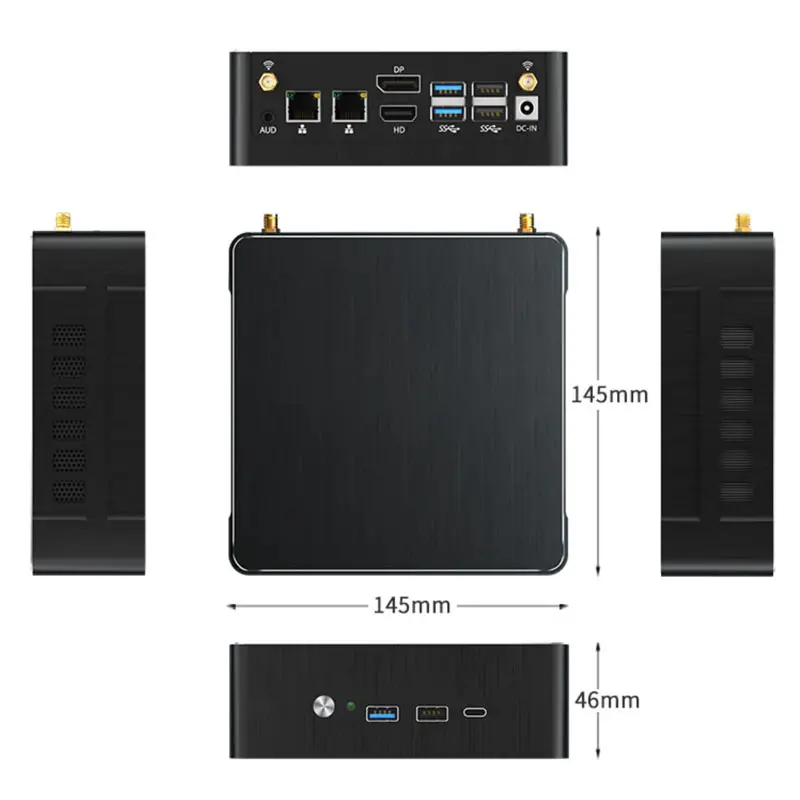

| Size | 145 x 145x 46mm |
| Weight | 2Kgs |
| Insallation Method | Desktop type |
| Vesa mounting | |
| CPU | Intel® Core™ i5-1235U Processor (12M Cache, up to 4.40 GHz) |
| Intel® Core™ i7-1260P Processor (18M Cache, up to 4.70 GHz) | |
| Intel® Core™ i9-12900H Processor (24M Cache, up to 5.00 GHz) | |
| Graphic | Intel Iris Xe Graphics eligible |
| Network Card | 1 x Intel i225/i226 2500M, 1 x Realtek RTL8111 1000M, can be configured as a host server or router |
| WiFi and Bluetooth | 802.11AX WiFi6 with Bluethooth5.2, external dual antennas for better signal |
| Memory | 2 x SO-DIMM DDR4 slots,max 64GB |
| Storage | 1 x M.2 2280 PCIE4.0(read speed: 5000-7000MB/S), 1 x M.2 2280 PCIE3.0, Support 2.5inch 7mm HDD/SSD |
| Features | Support Auto power on, wake-on-lan, PXE, RTC etc |

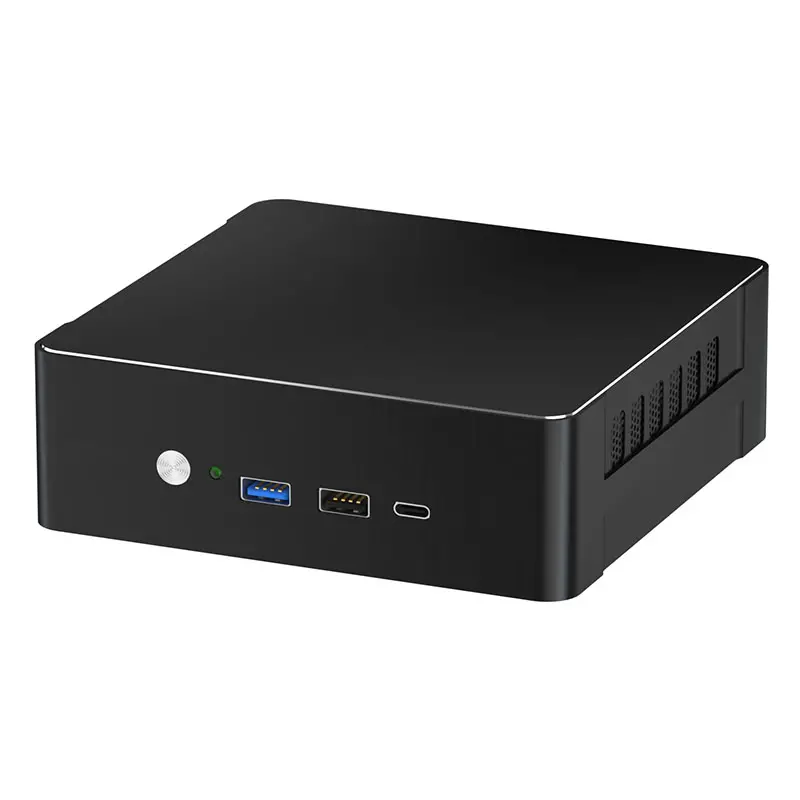

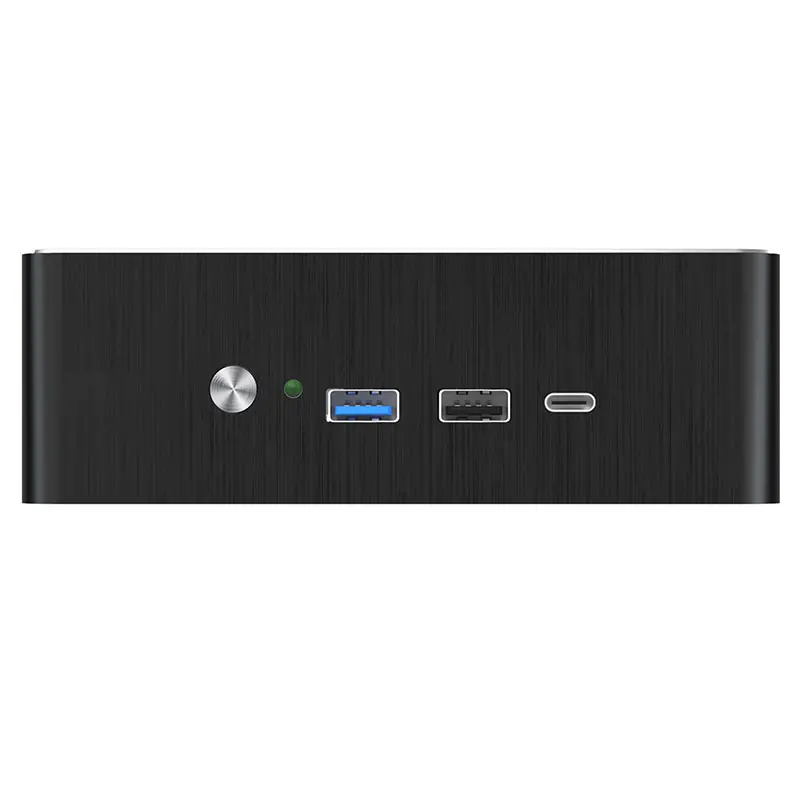

| Front Panel | 1 x Power button |
| 1 x Type-C, 8K@60Hz | |
| 1 x USB2.0 | |
| 1 x USB3.2 | |

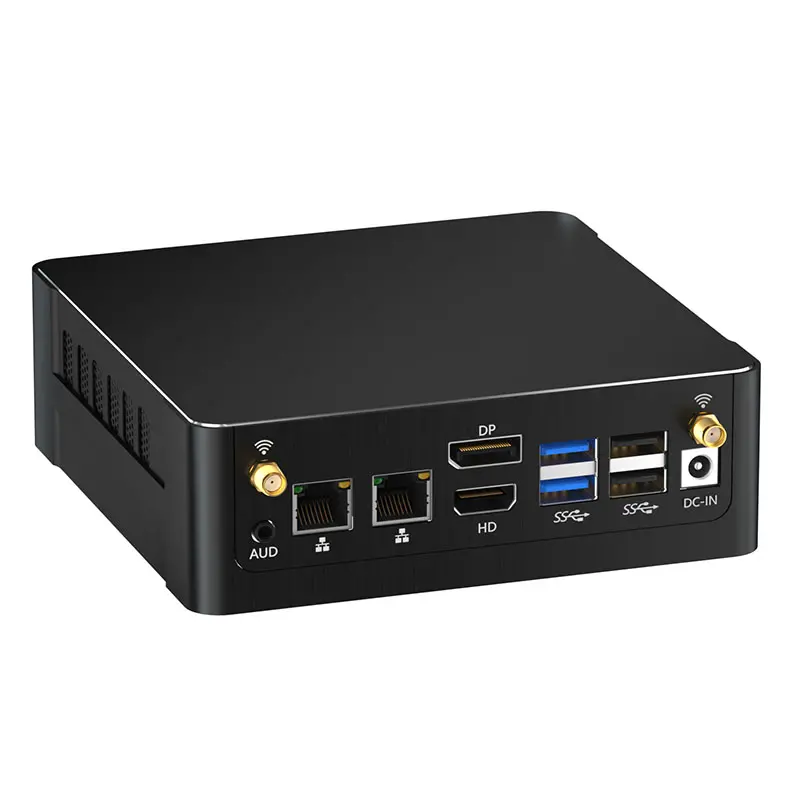

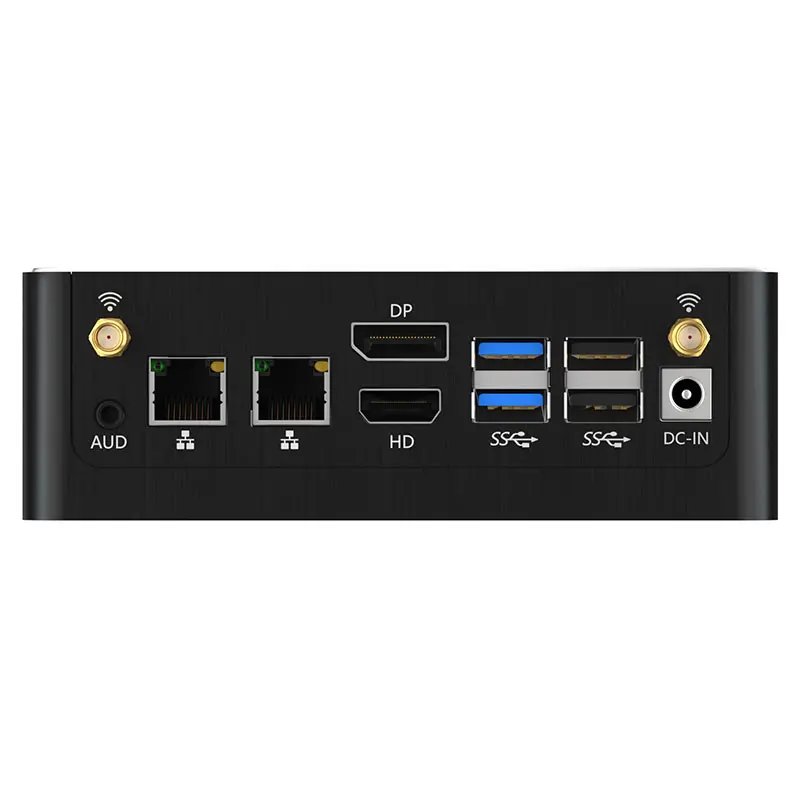

| Rear Panel | 1 x Audio |
| 1 x 2.5G LAN | |
| 1 x 1G LAN | |
| 1 x HDMI2.0, 4K@60Hz | |
| 1 x DP1.4, 8K@60Hz | |
| 2 x USB3.2 | |
| 2 x USB2.0 | |
| 1 x DC IN | |
| 2 x WiFi Dual Antennas | |
| Bios | AMI bios |
| System Support | Windows 10/11, linux ubuntu etc, Have TPM2.0 |
| Cooling Mode | Efficient heat dissipation of cooper turbo fan |
| Power Supply | 12V7A |
| Packing List | B14 mini pc, power supply, power cord, vesa bracket, sata cable, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
