Overview
Compact yet powerful, the Aluminum Alloy Mini PC features Ryzen 5 5600H, Ryzen 7 5800H, or Ryzen 9 5900HX processors. With Radeon Graphics, versatile display ports, DDR4-3200 RAM slots, dual high-speed M.2 NVMe/PCIe SSDs, and LAN options, it ensures exceptional performance. Equipped with multiple USB ports, smart fan cooling, and comprehensive connectivity, this mini PC suits diverse applications, supporting Windows and Linux systems. Ideal for home, office, or entertainment use, it comes with essential accessories, offering reliability and efficiency in a compact design
Specifications
| Material | Aluminum alloy |
| Colour | Black |
| Size | 5.7x 5.7 x 1.8 Inch |
| Weight | 1.5Kgs |
| Insallation Method | Desktop type/Vesa |
| CPU | Ryzen 5 5600H processor, 6 Cores 12 Threads, base frequency: 3.3GHz, max 4.2GHz, 16MB L3 cache |
| Ryzen 7 5800H processor and Radeon Graphics, 8 Cores 16 Threads, base frequency: 3.2GHz, max 4.4GHz, 16MB L3 cache | |
| Ryzen 9 5900HX processor and Radeon Graphics, 8 Cores 16 Threads, base frequency: 3.3GHz, max 4.6GHz, 16MB L3 cache | |
| Display Ports | 1 x HDMI, 1 x DP, 1 x Type-C |
| Graphic | AMD Radeon Graphics |
| Network Card | 1 x 1GB LAN PORT, 1 x 2.5GB LAN PORT |
| Memory | 2 x DDR4-3200 RAM slot, Max 64GB RAM |

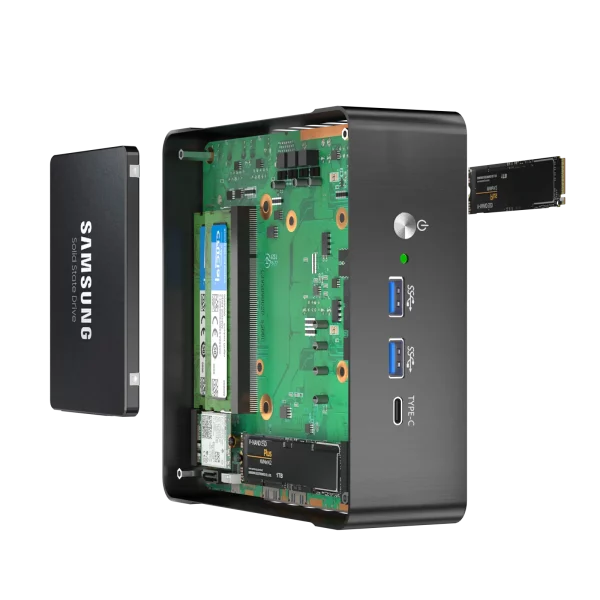

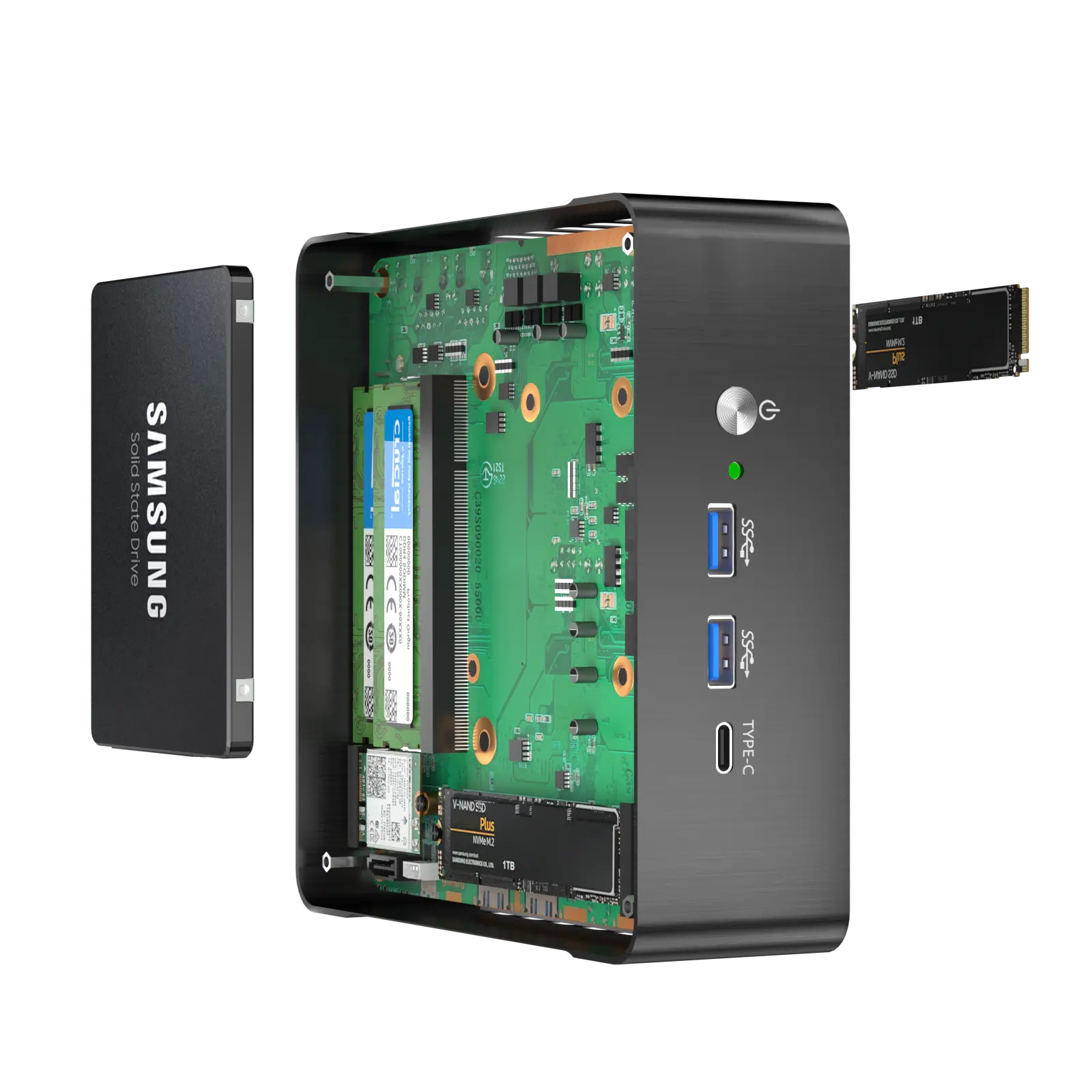

| Storage | 2 x 2280 M.2 NVME/PCIE3.0 high speed SSD. Support Add 2TB 2.5’SSD/HDD(NOT INCLUDE) |
| Other Function | RTC/Wake on Lan/Auto Power on(BIOS setting) |

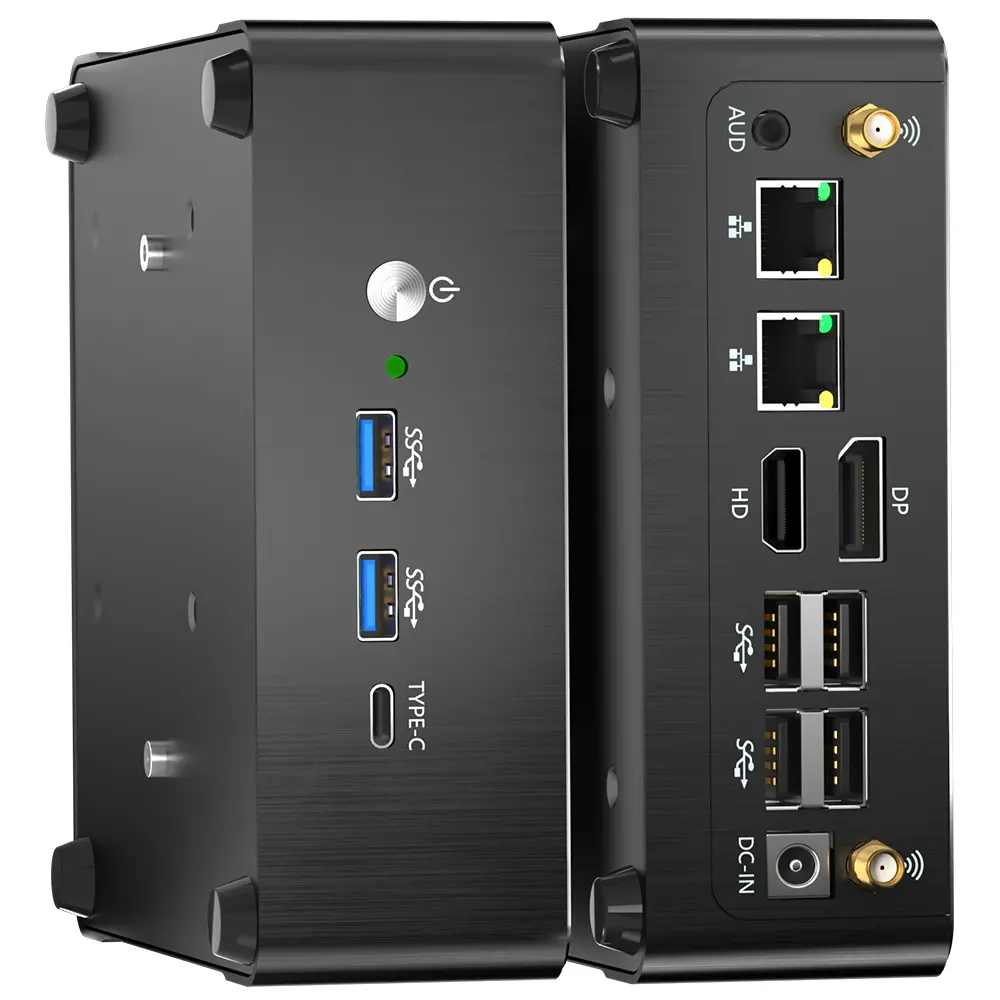

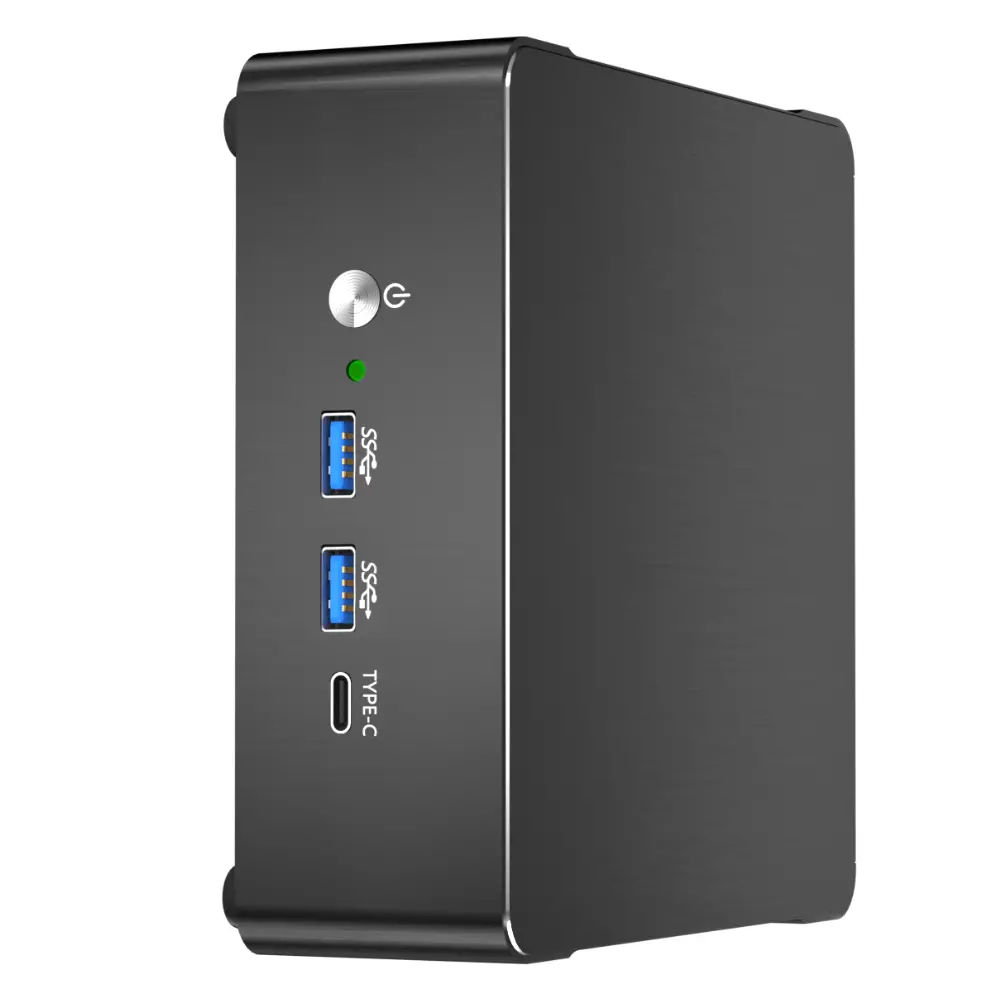

| Front Panel | 2 x USB3.0 |
| 1 x Type-C(USB-C, 4K@60Hz) Support one-line video output | |
| 1 x Power Button | |

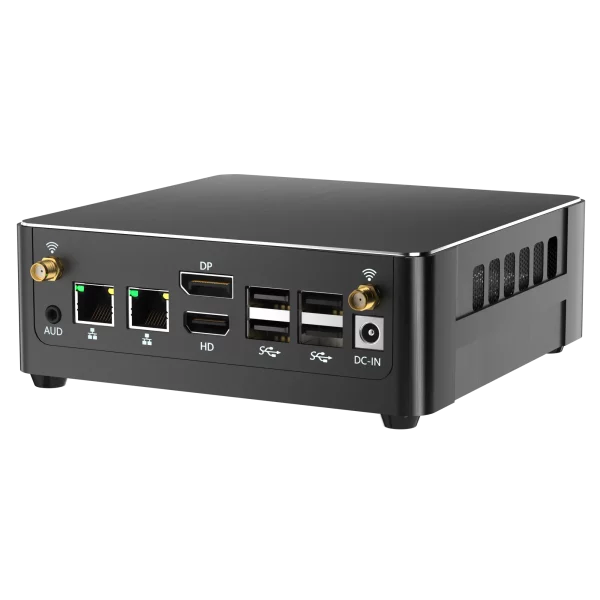

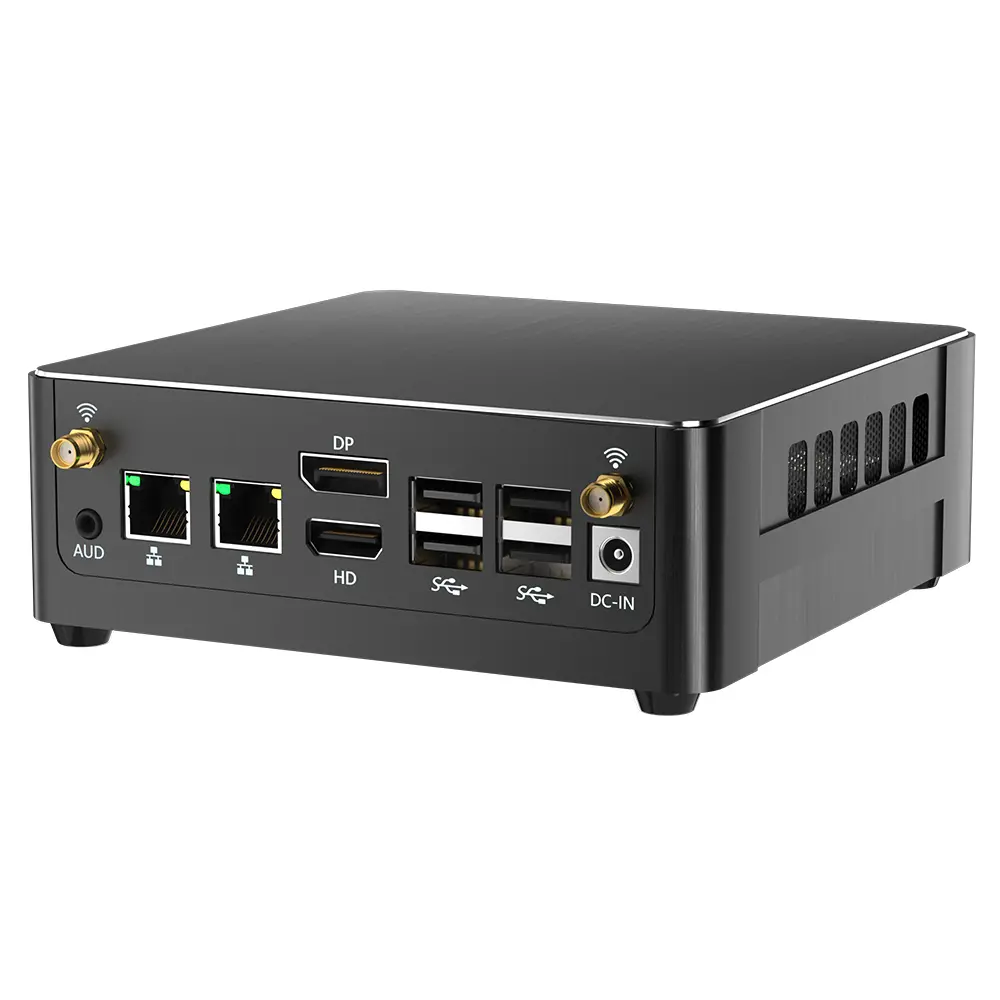

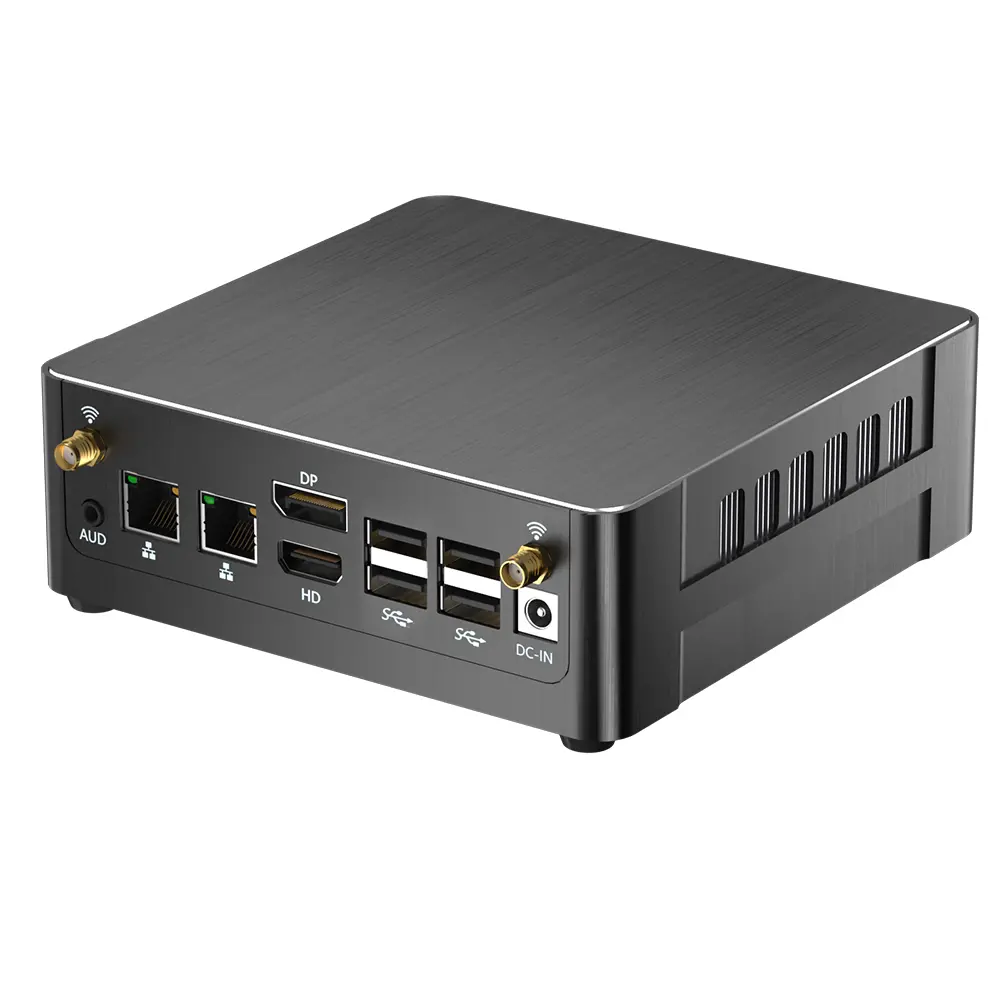

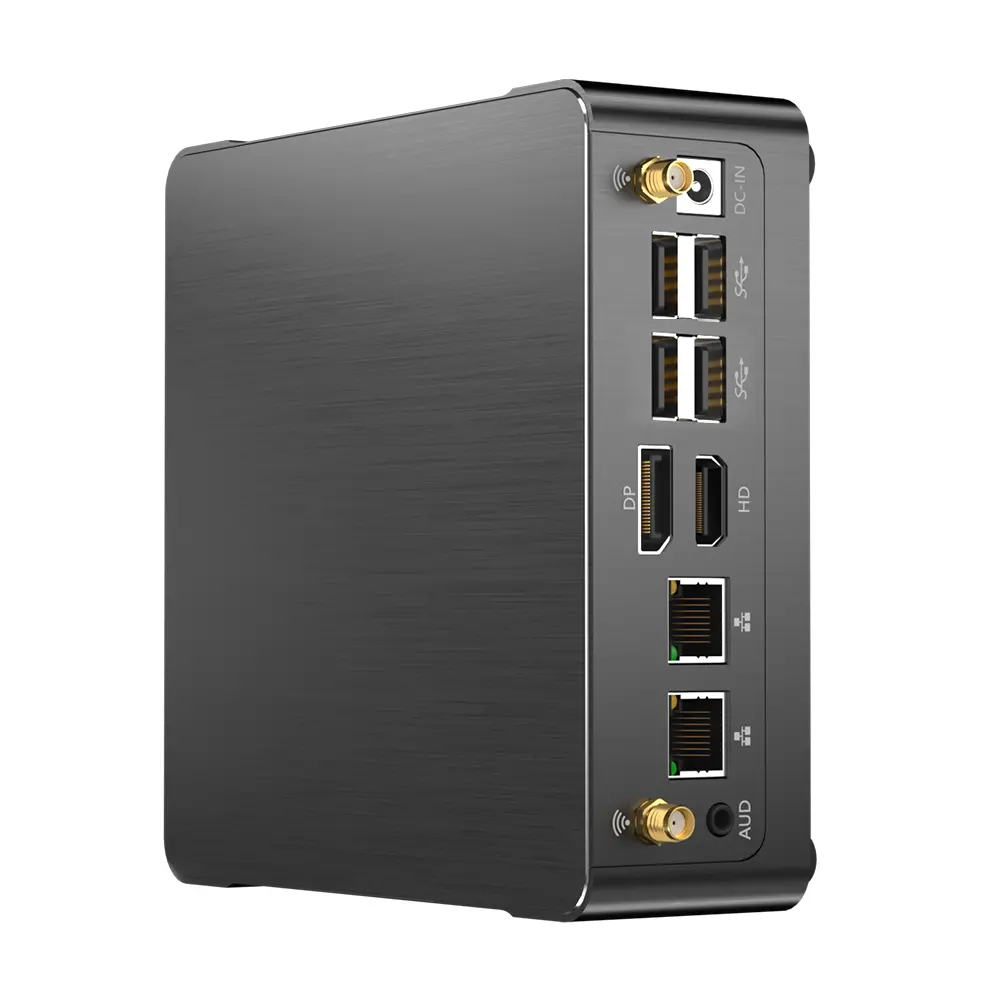

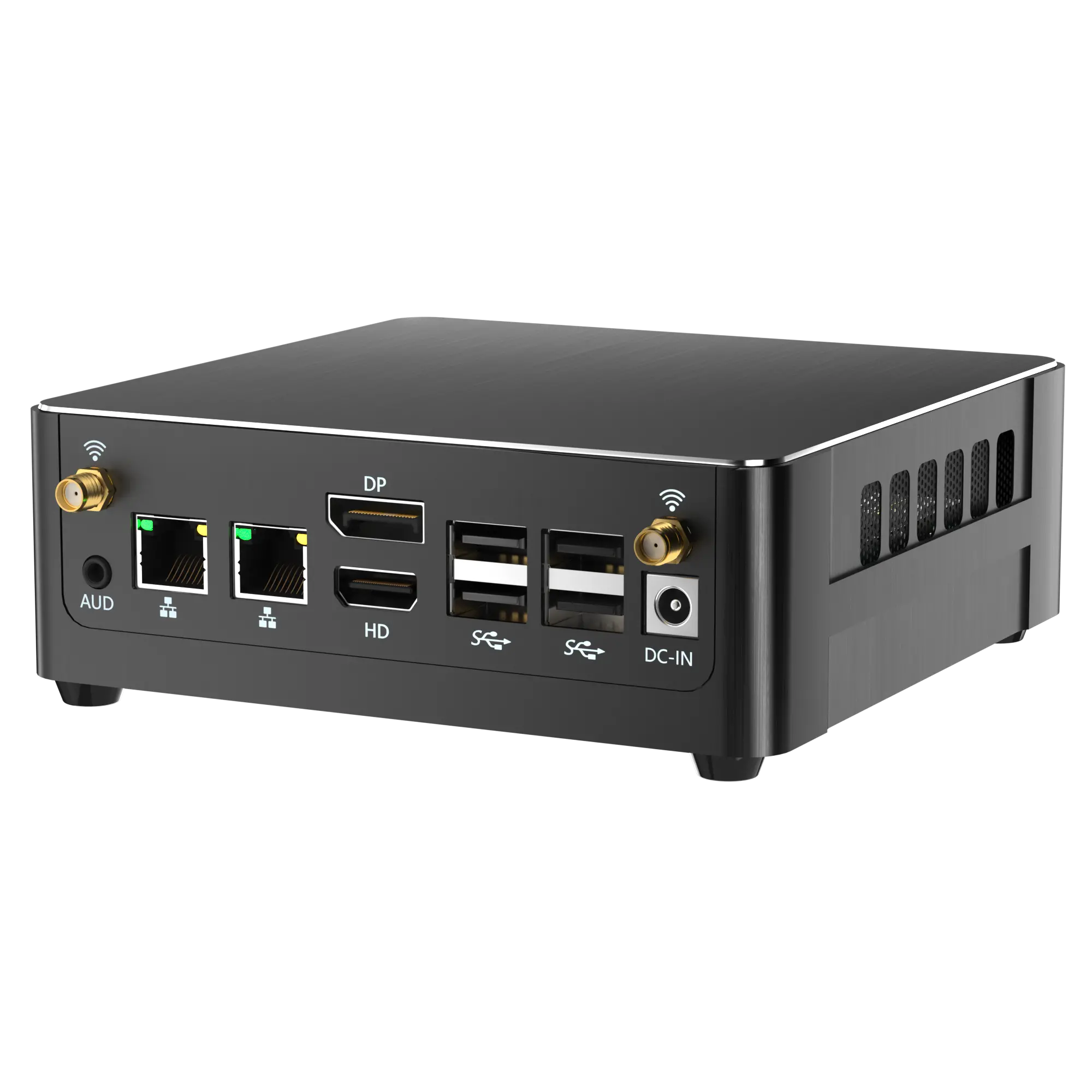

| Rear Panel | 1 x 3.5mm Headest Jack |

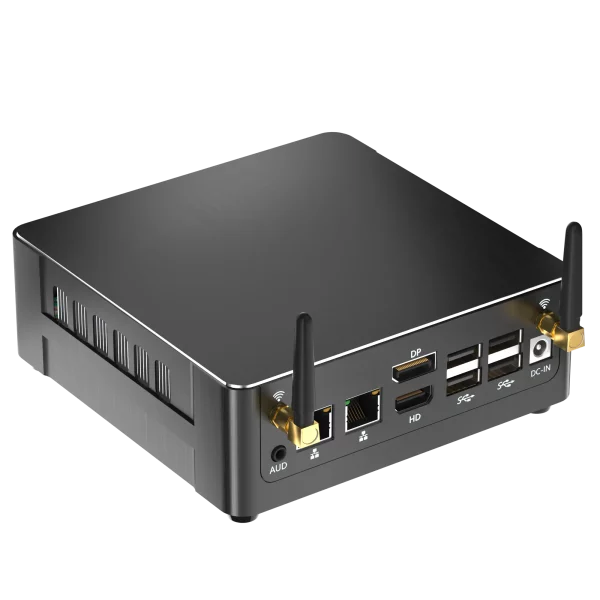

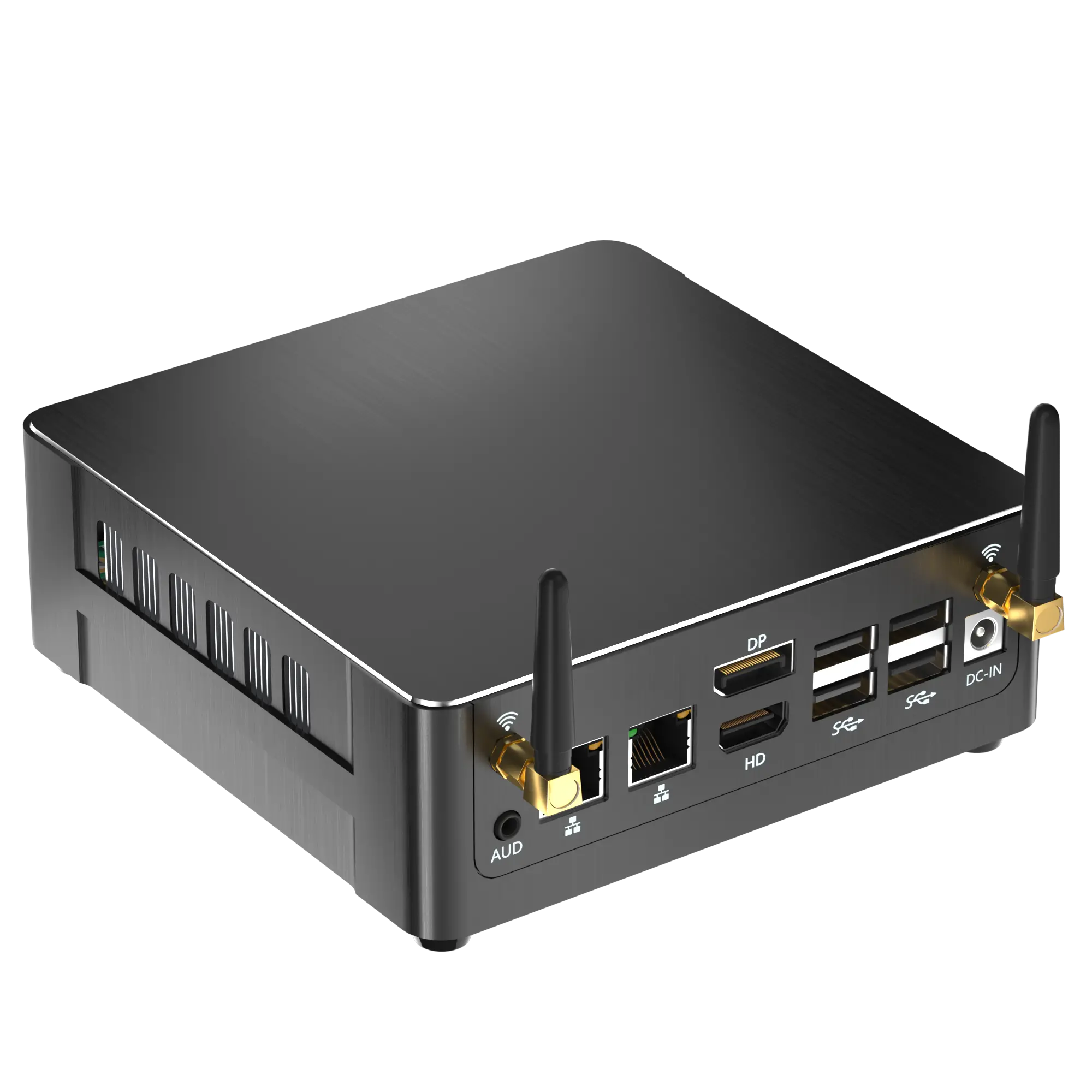

| 2 x WiFi Holes | |
| 1 x 2.5G Lan | |
| 1 x 1G Lan | |
| 1 x DP 1.4A(4K@60Hz) | |
| 1 x HDMI 2.0(4K@60Hz) | |
| 4 x USB2.0 | |
| 1 x DC-IN | |
| Bios | AMI EFI BIOS |
| System Support | Windows, Linux Ubuntu, |

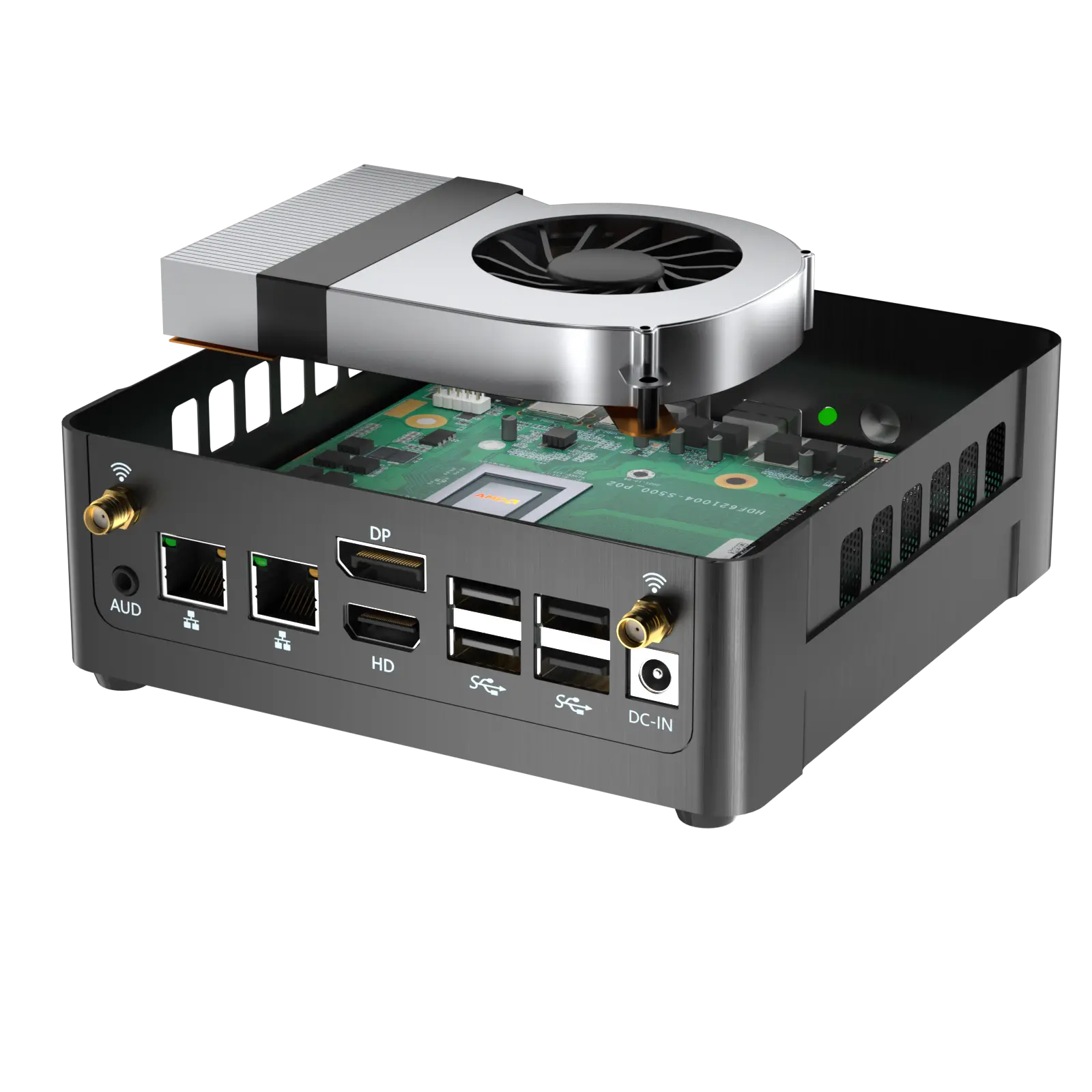

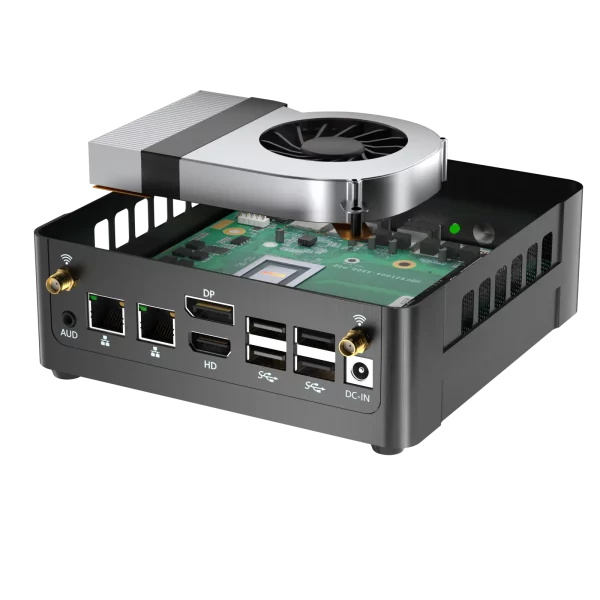

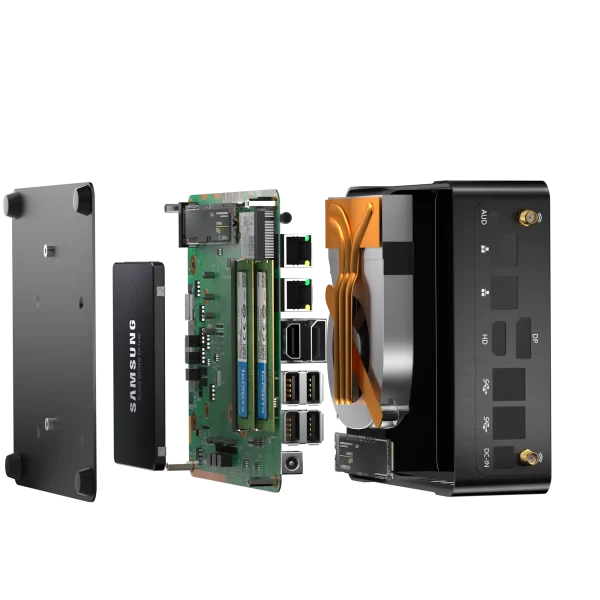

| Cooling Mode | With Smart Fan |
| Power Supply | Support 100-240V |
| Packing List | 1 x mini computer, 1 x Bracket, 1 x HDMI Cable, 1 x Power adapter with cable, 2 x External antenna, 1 x User Manual, 1 x VESA mount |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
