Overview

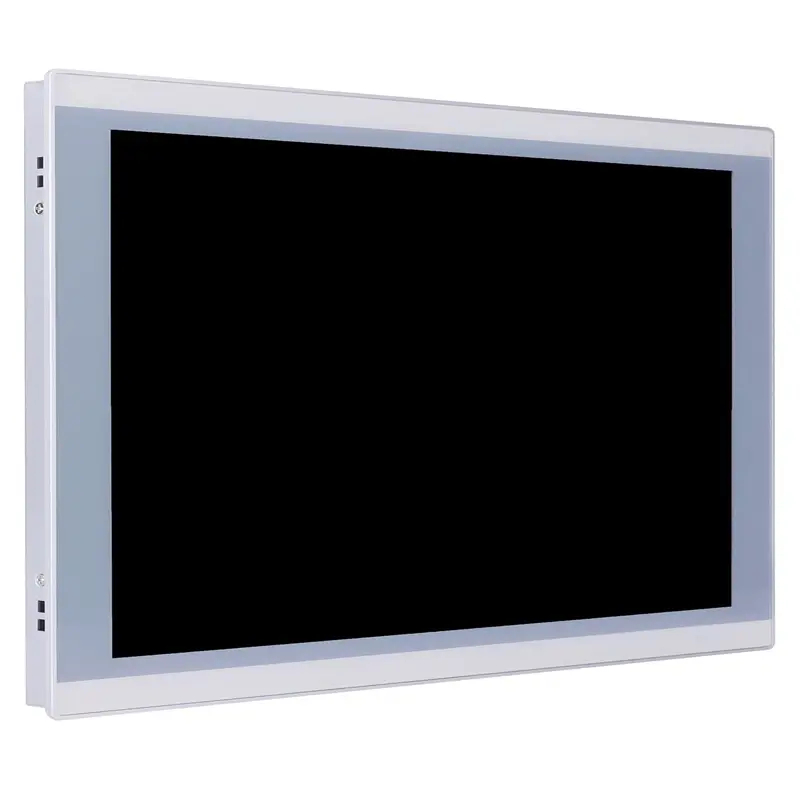

Introducing the A4 PA-150TPC-CE6A Panel PC: A versatile and rugged solution for industrial applications. This aluminum alloy panel computer offers a range of CPU options, including Intel Core and Celeron processors, and supports up to 32GB of RAM. With a 15″ TFT LED panel, 10-point projected capacitive touch screen, and IP65 front panel protection, it’s designed for durability and ease of use. Multiple connectivity options, fanless cooling, and support for various operating systems make it ideal for a wide range of industrial environments. Whether you need embedded, wall-mounted, or desktop installation, this panel PC delivers reliable performance and robust features
Specifications
| Material | Aluminum alloy |
| Model | A4 PA-150TPC-CE6A |
| Opening Hole | 348 x 272mm |
| Size | 354.3 x 278.3 x 54mm |
| Weight | 6Kgs |
| Insallation Method | Embedded recommended/Wallmounted/Desktop/Cantilevered etc |
| CPU | Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) |
| Intel Core I5 Gen. 3th CPU, ship one of them | |
| Intel Core I3 Gen. 4th CPU, ship one of them | |
| Intel Core I5 Gen. 4th CPU, ship one of them | |
| Intel Core I5 Gen. 6th CPU, ship one of them | |
| Intel Core I5 Gen. 11th CPU, ship one of them | |
| Intel Core I7 Gen. 6th CPU, ship one of them | |
| Intel Core I5 Gen. 8th CPU, ship one of them | |
| Intel Core I7 Gen. 8th CPU, ship one of them | |
| Intel Core I7 Gen. 11th CPU, ship one of them | |
| Intel Celeron Processor J6412 (1.5M Cache, up to 2.60 GHz) | |
| Chipset | Intel SOC |
| Watchdog Timer | 255 levels |
| Network Card | 1 x 10/100/1000 Mbps Ethernet |
| WiFi and Bluetooth | N/A, optional to add |
| Memory | 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM |
| 1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM(J6412) | |
| Storage | 1 x mSATA SSD, 1 x 2.5″ SATA SSD/HDD |
| 1 x M.2 2280 SATA SSD, 1 x 2.5″ SATA SSD/HDD(J6412) | |
| Expand | 1 x Mini PCIE slot for WiFi/4G, with sim slot |
| Touch Type | 10-point projected capacitive touch screen |
| Durability (Number of Touches) | 200 million times |
| Transmittance | 86±5% at 550 nm wavelength |
| Controller | USB interface |

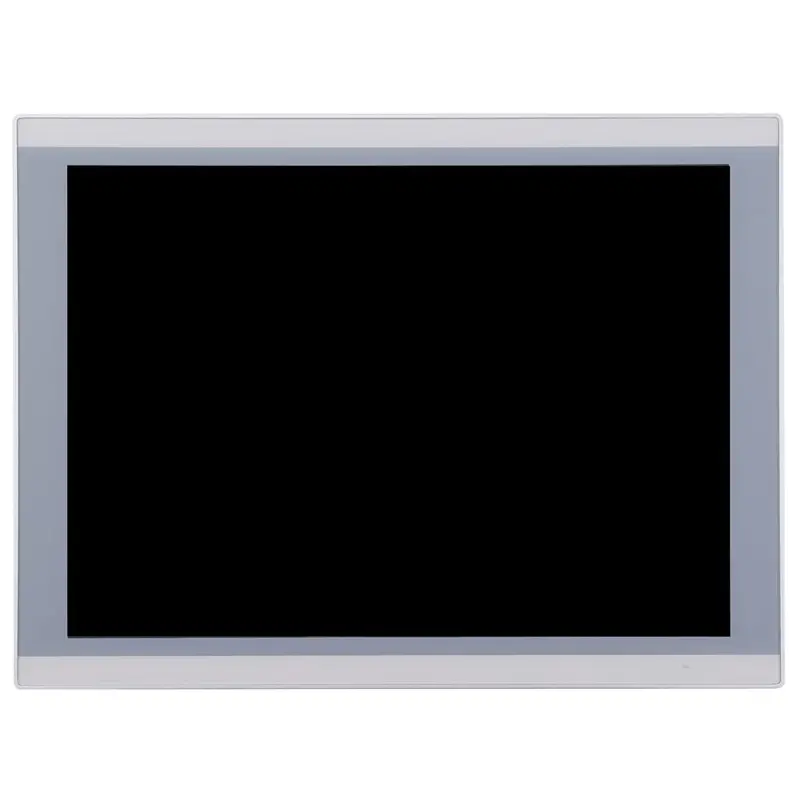

| Display Type | 15″ TFT LED panel |
| Resolution | 1024 x 768 |
| Perspective | 80(L), 80(R), 60(T), 60(B) |
| Brightness | 350cd/m2 |
| Contrast | 1000 |
| Backlight Life | 30,000 hours (min.) |

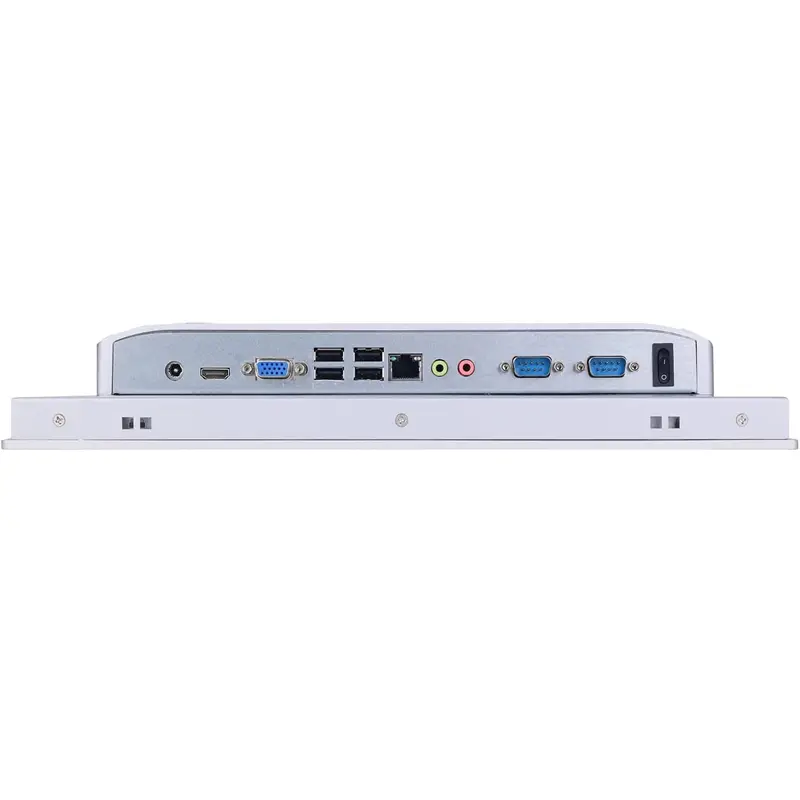

| J1900/3th I5/4th I3/4th I5/6th I5 | 1 x 12V DC |
| 1 x HDMI | |
| 1 x VGA | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 1 x LAN | |
| 1 x AUDIO-IN&OUT | |
| 2 x COM | |
| 1 x POWER_SW | |

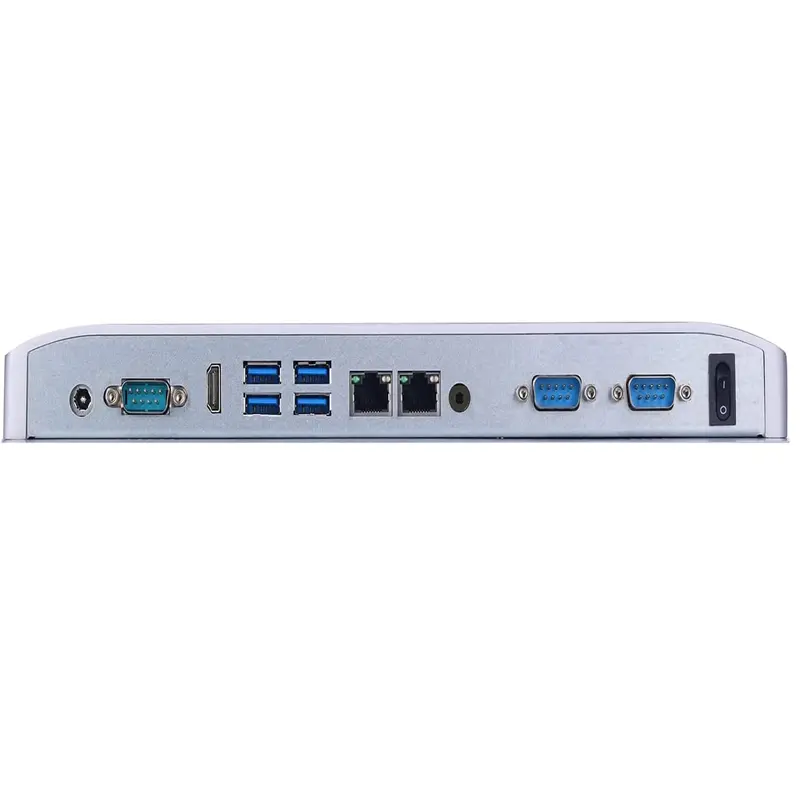

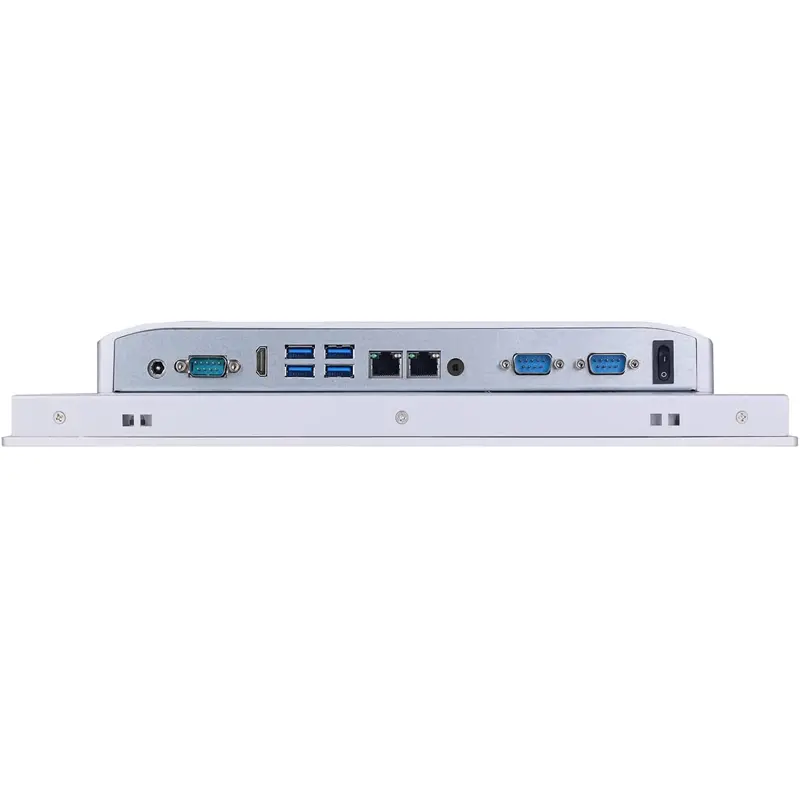

| J6412 | 1 x 12V DC |
| 3 x COM | |
| 1 x HDMI | |
| 4 x USB3.0 | |
| 2 x LAN | |
| 1 x AUDIO | |
| 1 x POWER_SW | |
| Bios | AMI BIOS |
| System Support | Windows 7 32bit&64bit / Windows 8.1 32bit&64bit |
| Windows 10 32bit&64bit/WES7/Linux | |
| Cooling Mode | Fanless/Smart fan |
| Power Supply | DC100-240V AC/50-60Hz, 12V |
| Packing List | A4 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card |
| Operating Temperature | 0 ~ 50°C with SSD, 0 ~ 40°C with HDD |
| Storage Temperature | -20 ℃ ~ 60 ℃ |
| Operating Humidity | 10% ~ 95% @ 40 ℃ without condensation |
| Certification | CE FCC ROHS |
| Front panel protection | IP65 standard |
