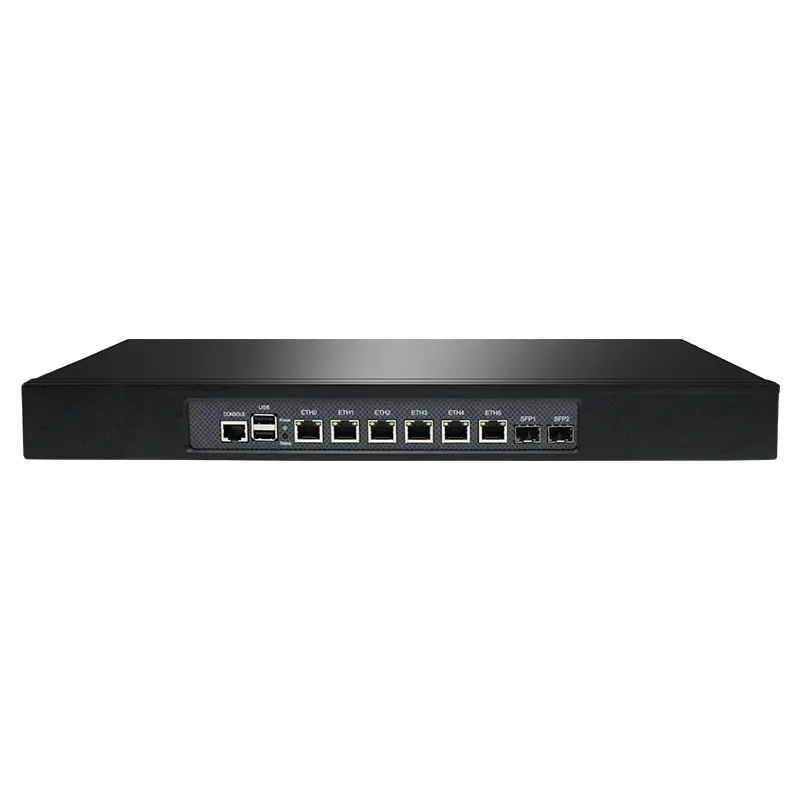

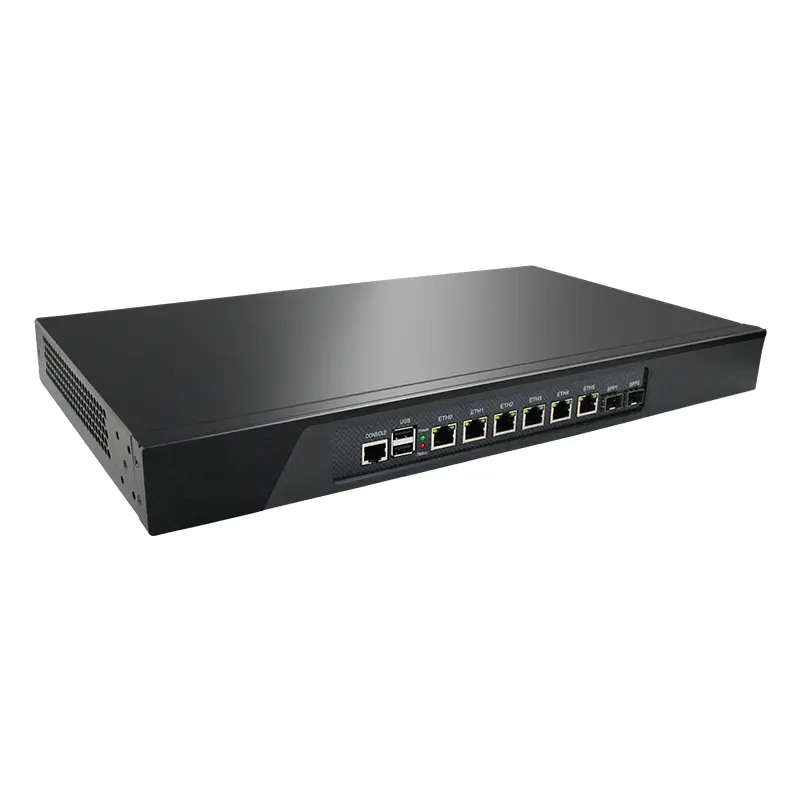

S15 1U Firewall 6 LAN Ports 2x10G SFP

  • 1U firewall with B85/Z87 chipset and LGA1155 CPU support
  • Comes with 1 VGA Display Port for Monitor Connection
  • Supports 1 Mini-PCIE slot for WIFI/Bluetooth/4G Expansion
  • Supports Diskless boot, Network Wake-on-LAN, and PXE Boot Features
  • 6 Intel 82583V/82574L Gigabit Ethernet Ports and 2 Intel 82599ES 10G Optical
  • Supports 2 DDR3L 1600MHz SODIMM Memory Slots, up to 16GB
  • Supports 1 MSATA SSD and 1 2.5/3.5 inch SSD/HDD for Flexible Storage Options

Share to:

Overview



The S15 1U Firewall, built with B85/Z87 support for 4th Gen Intel processors, boasts 6 Gigabit LAN ports, 2x10G SFP optical ports, and versatile expansion options. Featuring DDR3L memory, mSATA/SSD storage, and comprehensive system support, it ensures robust performance for varied networking needs. Its compact design, multiple mounting options, and robust certifications make it ideal for secure and scalable network operations in diverse environments.



Specifciations



MaterialIron, Aluminum panel
ColourGray
Size440 x255 x 45(mm)(without mounting ear)
Weight6.5Kgs
Insallation MethodRack Mounting/Wall Mounting/Desktop Mounting
CPUB85/Z87 supports 4th Intel®celeron/Pentium Core™ i3/i5/i7 processor with LGA1155 architecture
Intel Core i3 4160, i5 4460, i7 4770 etc
Network Card6 x Intel 82583V/82574L Gigabit network interfaces, 2 x 10G Intel 82599Es optical ports
GraphicDepend on CPUs
MemorySupport 2 x DDR3L 1600 MHz SODIMM memory slots, up to 16GB
Storage1 x mSATA SSD, 1 x 2.5/3.5 inch SSD/HDD
Display1 x VGA
Expand1× Mini-PCIE slot, (Optional WIFI/Bluetooth/4G )

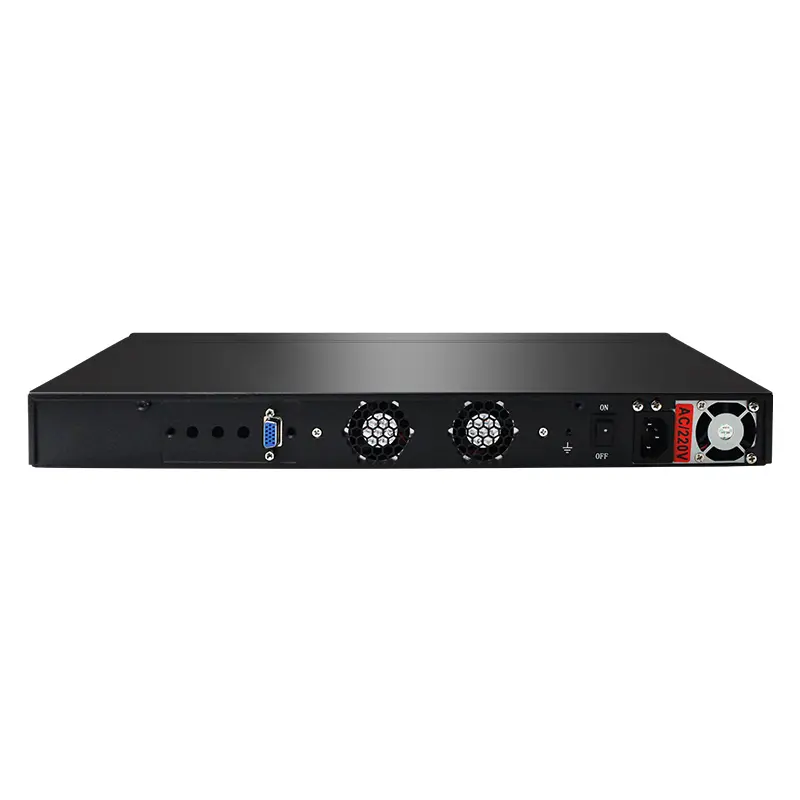

Front Panel1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket
Rear Panel1 x RJ45 serial port (supports Console function)
2 x USB2.0
2 x Intel 82599ES Gigabit optical ports
6 x LAN
System SupportWindows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOSAMI EFI BIOS
Cooling ModeWith Fan
Power Supply110~240V/50~60Hz AC input 200W (optional Great Wall 550W redundant power supply)
Packing ListS15 firewall, power cord, warranty card
Operating temperature-0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature5~90°C relative humidity, non-condensing
CertificationCE, FCC, CCC, ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

ModelProcessorGraphicsFrequencyDisplayMemoryStorageLANSFPUSBPower
S15I3 4160Intel® HD Graphics 44003.60GHz1 x VGA2 x SO-DIMM DDR3L, Max 16GB1 x mSATA/1 x 2.5 Inch SATA62 x Intel 82599ES2200w 110-240v 50hz/60hz
S15I5 4460Intel® HD Graphics 46003.2~3.40GHz1 x VGA2 x SO-DIMM DDR3L, Max 16GB1 x mSATA/1 x 2.5 Inch SATA62 x Intel 82599ES2200w 110-240v 50hz/60hz
S15I7 4770Intel® HD Graphics 46003.4~3.90GHz1 x VGA2 x SO-DIMM DDR3L, Max 16GB1 x mSATA/1 x 2.5 Inch SATA62 x Intel 82599ES2200w 110-240v 50hz/60hz
