Overview

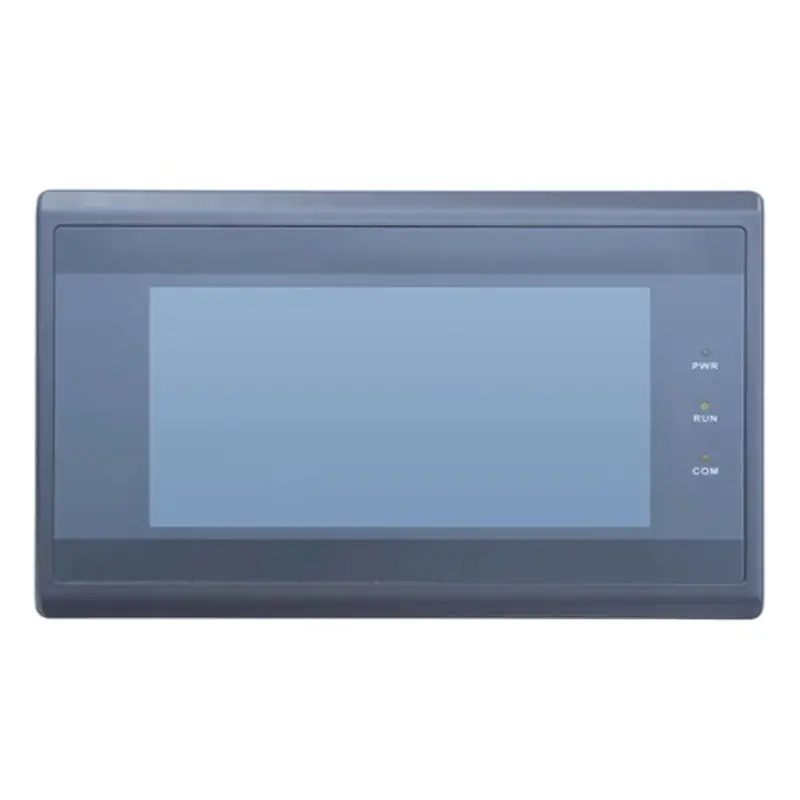

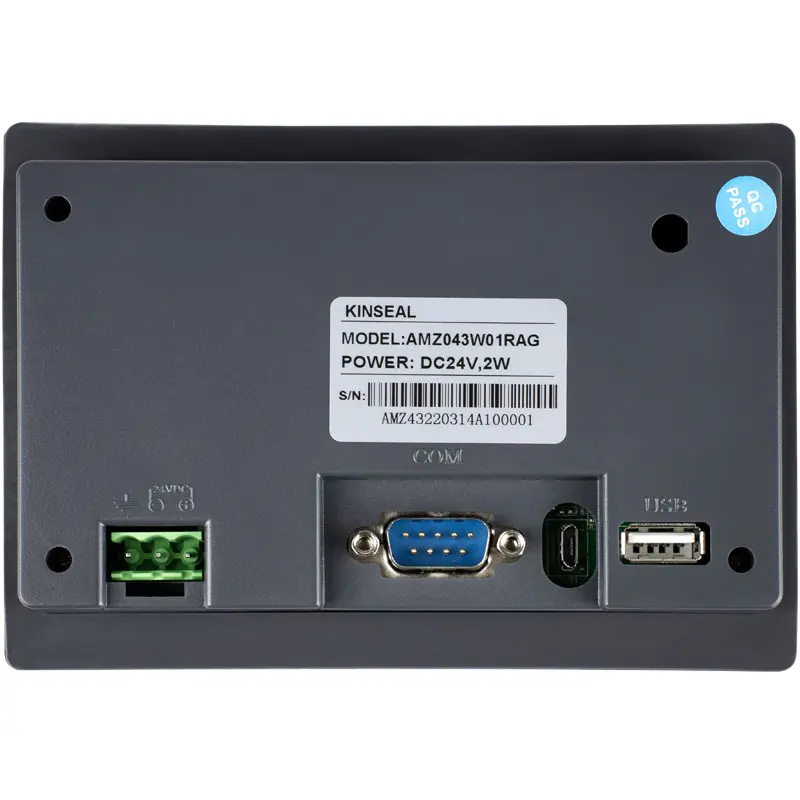

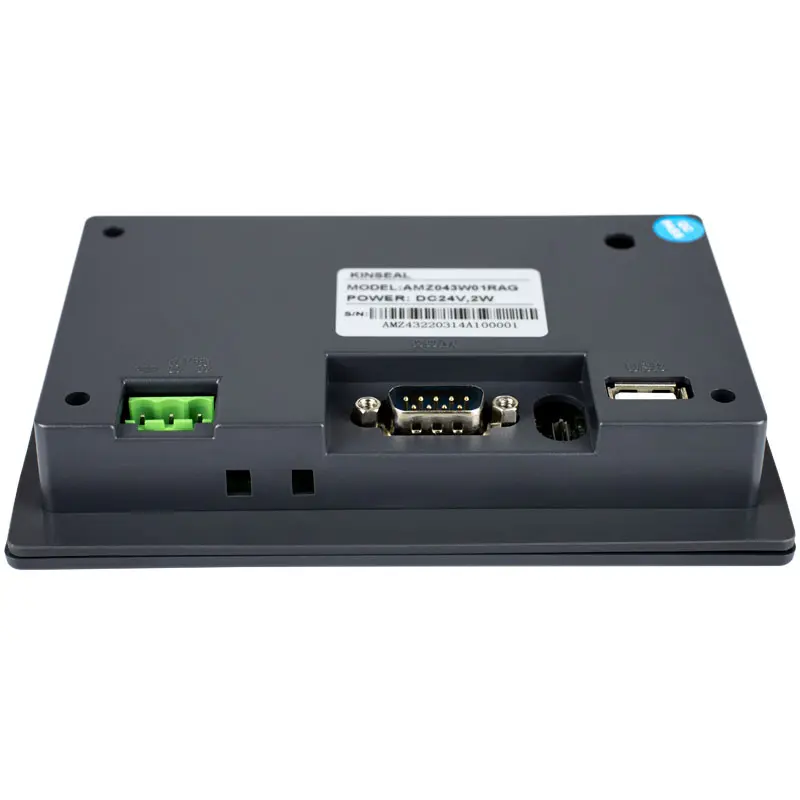

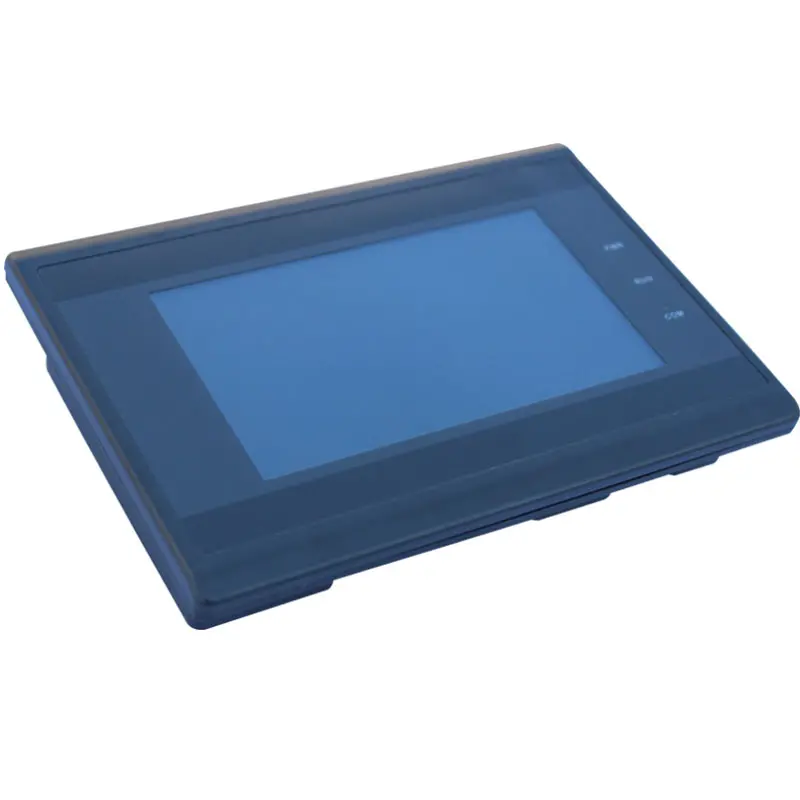

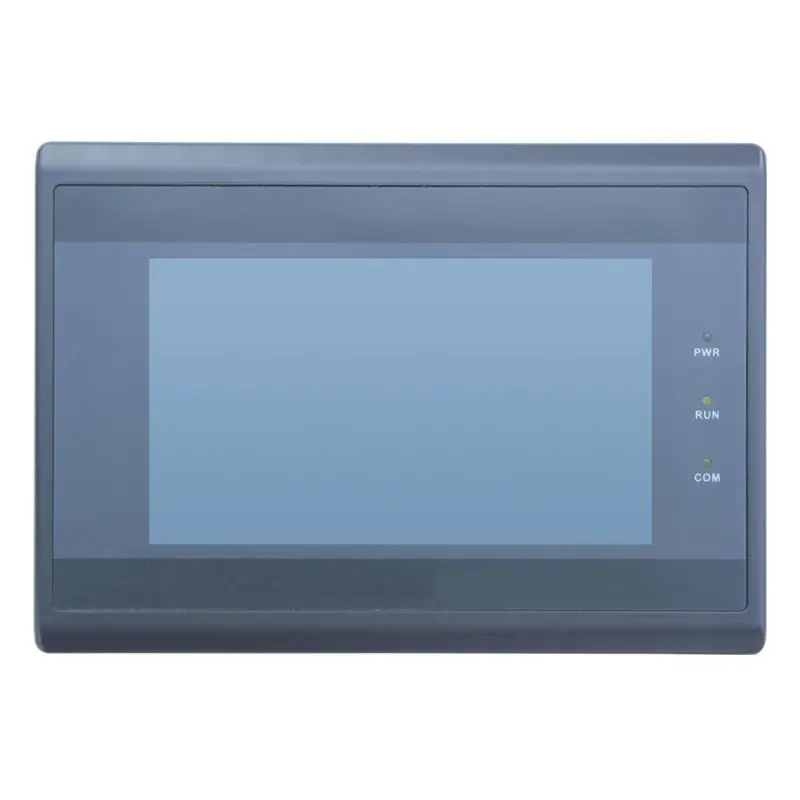

“Introducing the AMZ043W01R 4.3″ TFT LCD display module with a 480×272 resolution, offering vivid visuals with 260,000 colors. It features a 4-wire resistive touch screen with 4H surface hardness and 32-bit 600MHz ARM9 CPU, backed by 32MB DDR2 memory and 128Mbyte SPI Nand Flash. This module includes a built-in real-time clock, buzzer, and supports power failure data saving. With USB ports for program download and U-disk support, it provides versatile connectivity. Its robust design offers protection against power surges and a wide voltage range of DC 10-30V. The AMZ043W01R complies with CE, ROHS, and various environmental standards, with an operating temperature range of -10℃ to 50℃ and IP65 front panel protection. Choose from two different sizes and installation options to suit your needs.”
Specifications
| Module | AMZ043W01R |
| Display Size | 4.3″ TFT LCD |
| Resolution（Px） | 480 x 272 |
| Colors | 260000 Colors |
| Brightness | 300 cd/m2 |
| Backlight | LED |
| LED life | 20000 hours |
| Touch screen | 4-wire resistive touch screen touch screen（Surface hardness 4H） |
| CPU | 32-bit 600MHz ARM9 built-in 32MB DDR2 memory |
| Memory | 128Mbyte SPI Nand Flash |
| RTC | Real-time clock built-in |
| Buzzer | Have |
| Save power failure data | Support |
| USB1 | A USB2.0 Device port |
| USB2 | TYPE A USB，U-disk |
| Program download Mode | USB，U disk，SD card |
| U disk | Support |
| Communication port | Port1:RS232,RS485,RS422 .（3 choose 1） |
| Port2：RS232,RS485d.（2 choose 1） | |
| Maximum power consumption | ＜2W |
| Voltage range | DC 10-30V |
| Power protection | 255 levels |
| Network Card | +/-2KV lightning surge protection capability |
| The allowed loss of power | <5ms |
| CE&ROHS | Comply with EN61000-6-2:2005, EN61000-6-4:2007 |
| standards;Lightning surge +/ -2kV, EFT: +/ -4kV;Electrostatic | |
| contact discharge +/-8KV;Electrostatic air discharge +/-15KV. | |
| Operating temperature | -10℃~50℃ |
| Storage temperature | -30℃~70℃ |
| Environmental humidity | 10~90%RH(non-condensing) |
| Vibration | 10-25Hz (X, Y, Z direction, 2g/30 min) |
| Cooling way | Natural air cooling |
| Protection grade | The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20 |
| Overall dimensions | AMZ043W01RA:140*98*26mm |
| AMZ043W01RD:138*86*26mm | |
| Effective display area size | 95.04*53.86mm |
| Opening size | 130*78mm |
| Recommended opening size | 132*80mm |
| The weight | 149g |
