Overview
Partaker S01 Maximize network security with the 19″ 1U Firewall. Equipped with LGA1700, it supports PfSense/OPNsense for robust VPN routing.

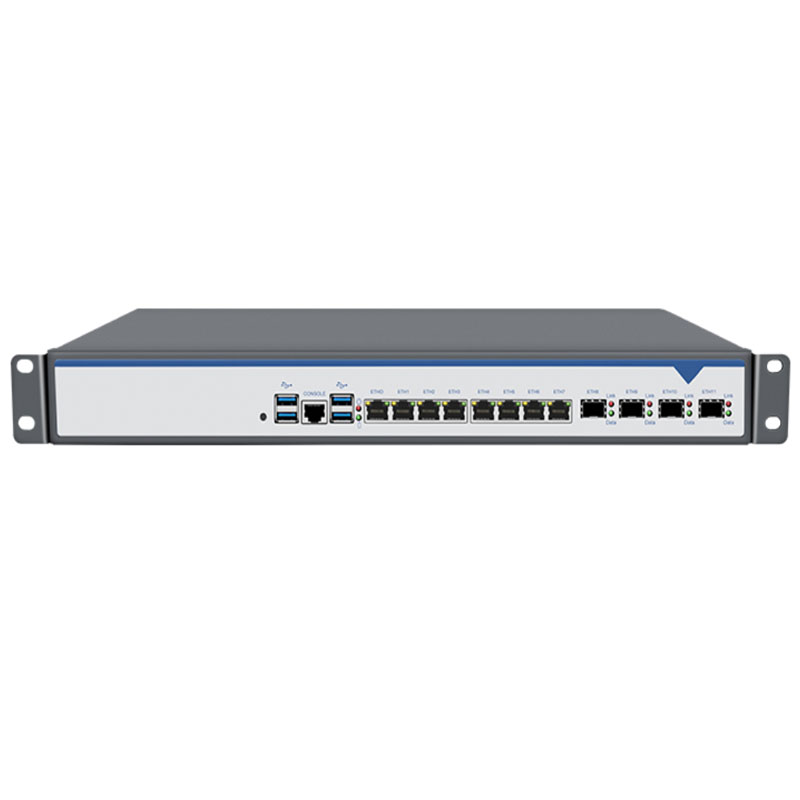

19 Inch 1U Firewall LGA1700 12th/13th/14th Gen CPU Intel i226 8×2.5GE With 4x10G SFP VPN Router PC pfSense OPNsense
19 inch 1U Firewall Server B760 With LGA 1700 12th/13th/14th Gen CPU DDR5 Ram i226 M.2 SSD 8 x I226 LAN Network Appliance

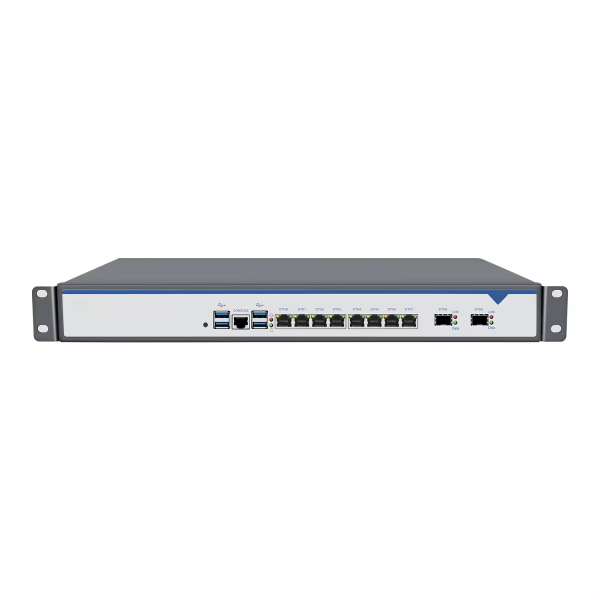

1U Firewall Appliance 8 x 2.5GE LGA1700 12th/13th/14th Gen CPU Intel i226 With 2x10G SFP Compatible pfSense OPNsense
Specification
| Processor | 12th/13th/14th generation Intel Core supporting LGA1700 architecture TM I3/i5/i7 processors | |
| Chipset | Using IlNTELB760 chipset | |
| Memory | Two 262 Pin DDR5 SO-DIMM memory slots | |
| Single memory supports 48GB，2 memory up to 96G | ||
| Storage function | 4 SATA 3.0 slots | |
| Two M.2 solid-state drive interfaces | ||
| Display interface | VGA/HDMI/EDP, supporting any three display synchronous or asynchronous outputFront l/O interface 4xUSB3.2,1xRJ45-COM interface, | |

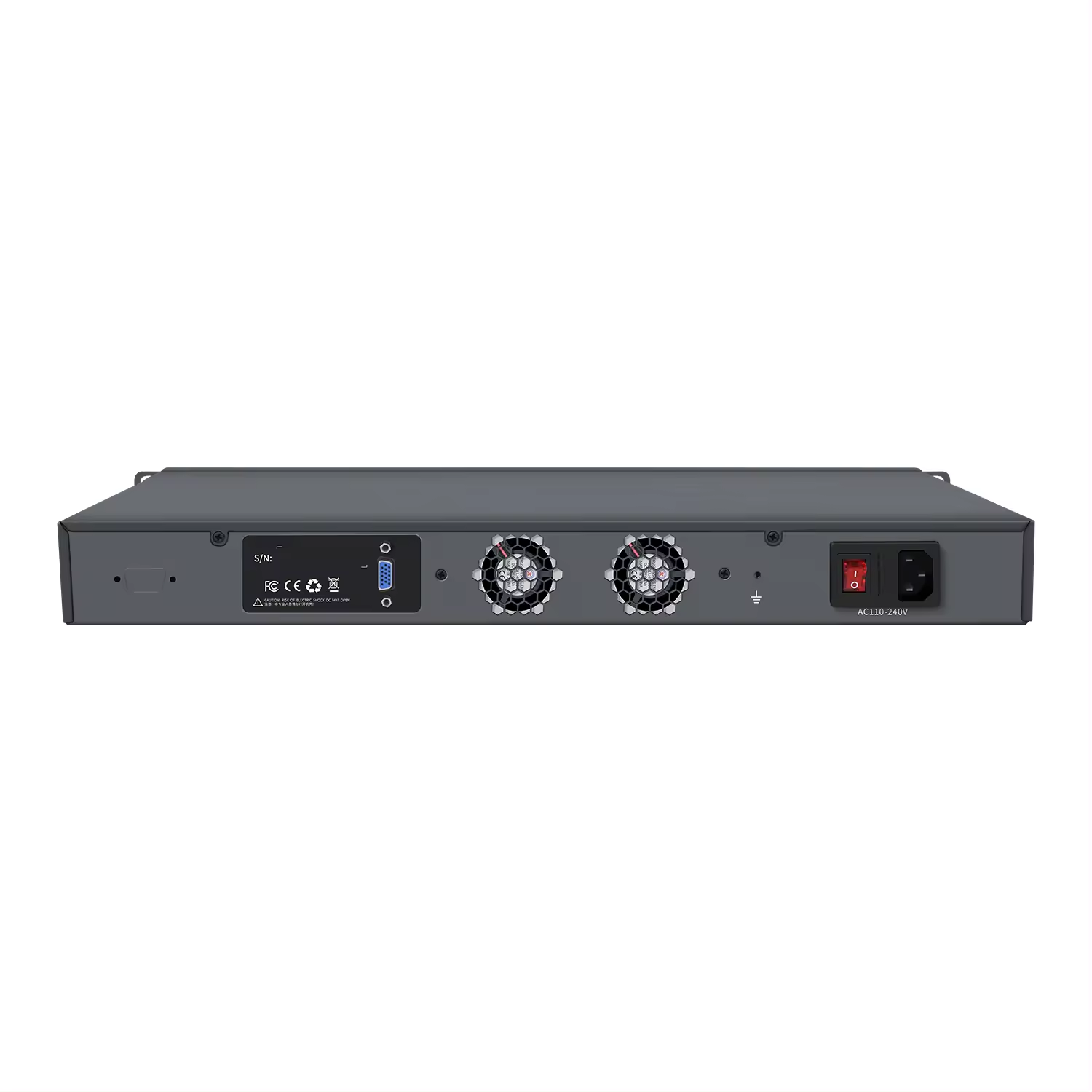

| Rear l/0 interface lx power interface, grounding wire, turbo fan, 1xVGA | ||
| Expansion | 1xPCIE16X,2xM.2_NVME | |
| 1* J_VGA pin 1* J_HDMl pin 1 * EDP pin 1 * TPM pin 1* LPT/GPIO pin | ||
| On board l/o | 1*12C pin 4 * SATA interface 1 *F-PANEL pin 3 * SYS-FAN socket1 *CPU-FAN socket 2 * F-USB2.0 pin 2 * COM pin 1 * JP6jump cap4 * COM2_JP1/JP2 Jumping Hat 1* JP3 Jumping Hat | |
| Network interface | 8* Intel l2262.5G network card | |
| 8 x 2.5GE 2x10G SFP | ||
| i226 8×2.5GE With 4x10G SFP | ||
| supports network wake-up and PXE functions | ||
| Power supply | PWIN_24V/DC 24V power supply | |
| ambient | 5~90 °℃ relative humidity, non condensing | |
| temperature | Working humidity0~50 °c | |
| Product size | 44x252x48(mm)(excluding hanging ears) | |
| overall weight | Whole machine weight 5.2kg, bare machine weight 4kg | |
| Package size | 52x34x12 (cm) | |
