S01 Celeron/Pentium CPU 4-LAN Soft Routing for PFsense

  • Sturdy Build with Customizable Color Options

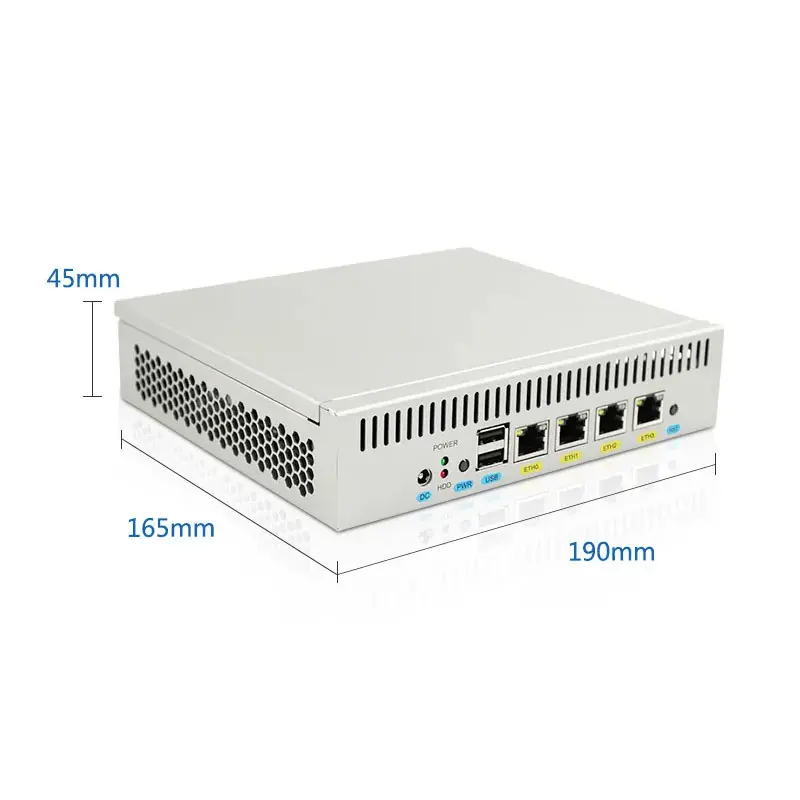

  • Measures 190 x 165 x 45 mm for Easy Placement
  • Weighs only 2 kgs, Ideal for Desktop Use
  • Equipped with 4 Intel Gigabit Network Cards
  • MINI PCIE Channel for Additional Connectivity
  • External 12V 5A DC power, with Surge Protection

Share to:



Experience the compact yet powerful S01 Mini PC, equipped with an Intel Celeron J1900 processor, 4 high-speed Intel LAN ports, and comprehensive OS compatibility, making it an ideal choice for various computing needs




Material Iron
Colour Silver (any color can be customized)
Size 190 x165 x 45(mm)
Weight 2Kgs
Insallation Method Desktop type
CPU Intel Bay Trail Celeron Processor J1900, FCBGA1170, 4 Cores 4 Threads, 2.00 GHz Base Frequency, Burst Frequency 2.42GHz, 2MB
Intel Smart Cache, TDP 10W processor.
Other available processors:
Intel Celeron/Pentium CPU N2830,J1800,J1900,J2900,N2940
Network Card 4 x Intel 82583V/82574L 10/100/1000M lan
Graphic Integrated Intel HD Graphics
Memory 1 x DDR3L 1600MHz SODIMM memory slot, up to 8GB
Storage 1 x mSATA SSD, 1*SATA3.0
Display 1 x VGA
Expand Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)

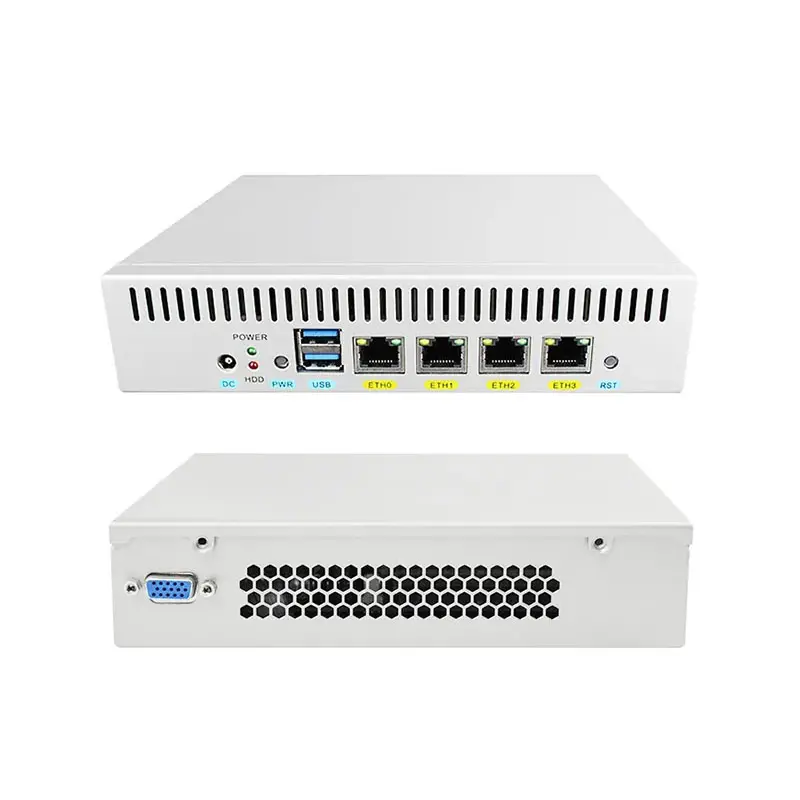

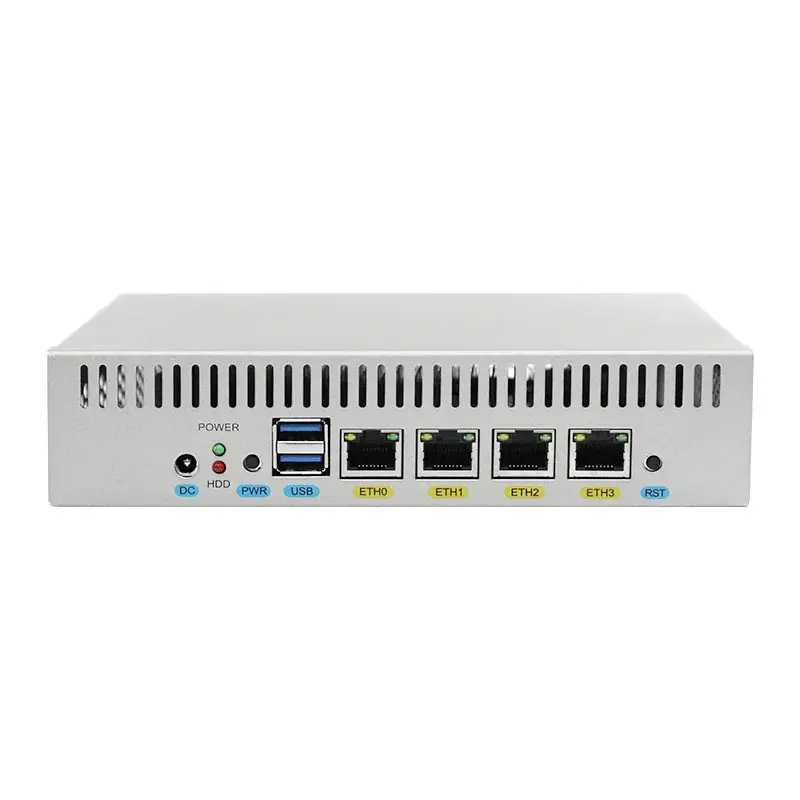

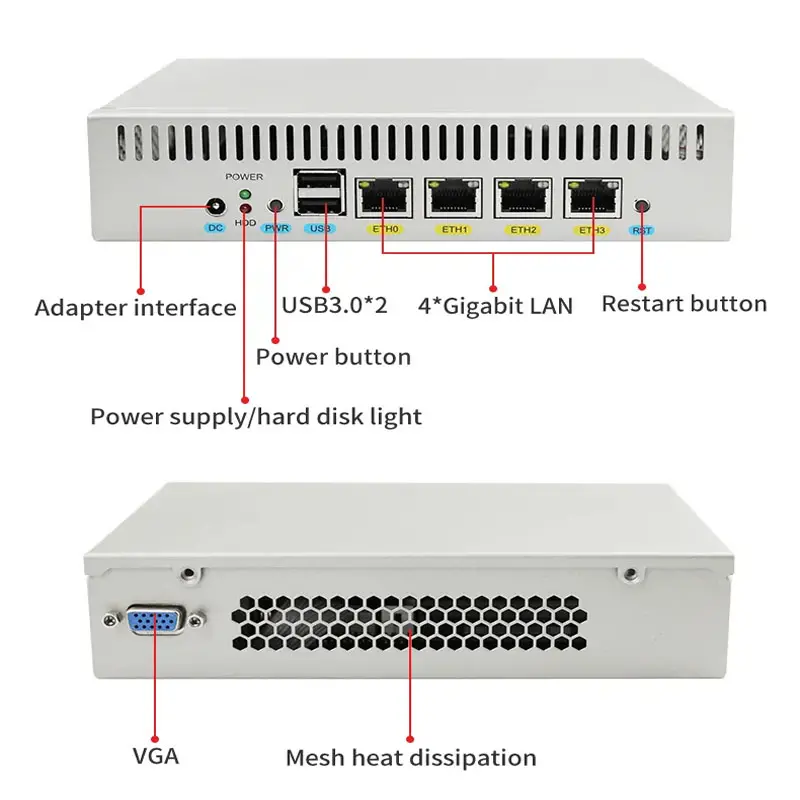

Front Panel 1 x DC-IN 12V
1 x Power supply/hard disk light
1 x PWR
2 x USB3.0
4 x LAN
1 x RST

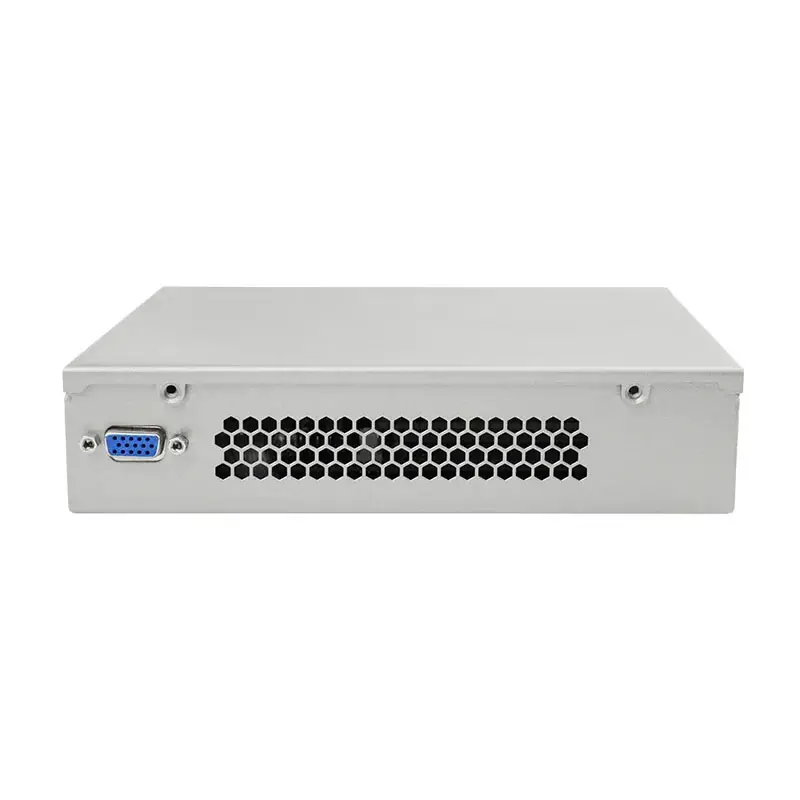

Rear Panel 1 x VGA
System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
Cooling Mode Fanless/With Fan
Power Supply External power 12V 5A DC5.5*2.5(optional)
Packing List S01 mini pc, power adapter, power cord, warranty card

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S01 J1900 Intel® HD Graphics 2.0~2.42 GHz 1 x VGA 1 x SO-DIMM DDR3L 1 x mSATA 4 2 12V/5A
S01 J1800 Intel® HD Graphics 2.41~2.58 GHz 1 x VGA 1 x SO-DIMM DDR3L 1 x mSATA 4 2 12V/5A
S01 N2840 Intel® HD Graphics 2.16~2.58 GHz 1 x VGA 1 x SO-DIMM DDR3L 1 x mSATA 4 2 12V/5A
S01 N2600 Intel® HD Graphics 1.60 GHz 1 x VGA 1 x SO-DIMM DDR3L 1 x mSATA 4 2 12V/5A
S01 J4125 Intel® UHD Graphics 600 2.0~2.70 GHz 1 x VGA 1 x SO-DIMM DDR4 1 x mSATA 4 2 12V/5A
